Европа

Модель

LAND CRUISER

VIN

Дата

1980/08

Двигатель

4,2 литра

Кузов

STATION WAGON G TYPE

Фрейм

FJ60

КПП

механика МКПП, 4 ступени

Опции

правый руль STANDARD ROOF LIFT UP BACK DOOR STANDARD CARBURETOR SPECIFICATION GENERAL COUNTRIES

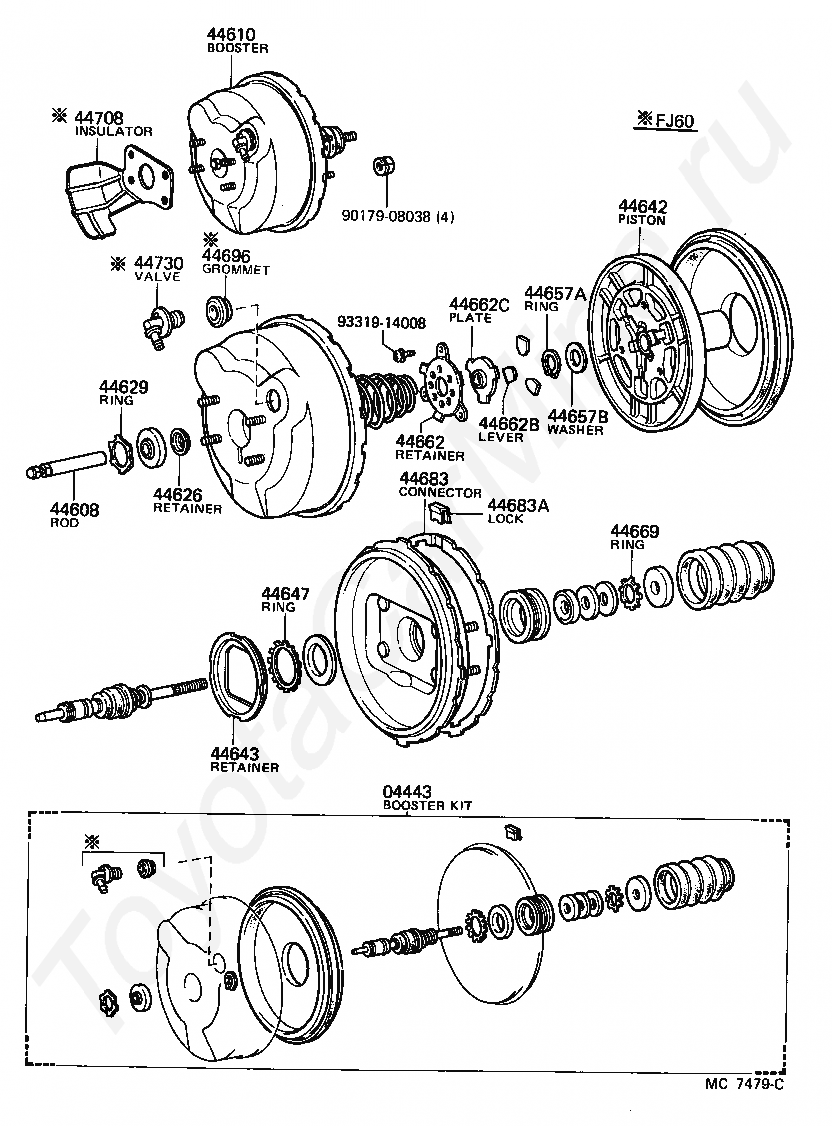

Вакуумный тормозной цилиндр TOYOTA LAND CRUISER

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44657B

WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44683

CONNECTOR, BOOSTER BODY

44683A

LOCK, CONNECTOR

44696

GROMMET, CHECK VALVE

44708

INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

9017908038

Крепеж

9331914008

Крепеж

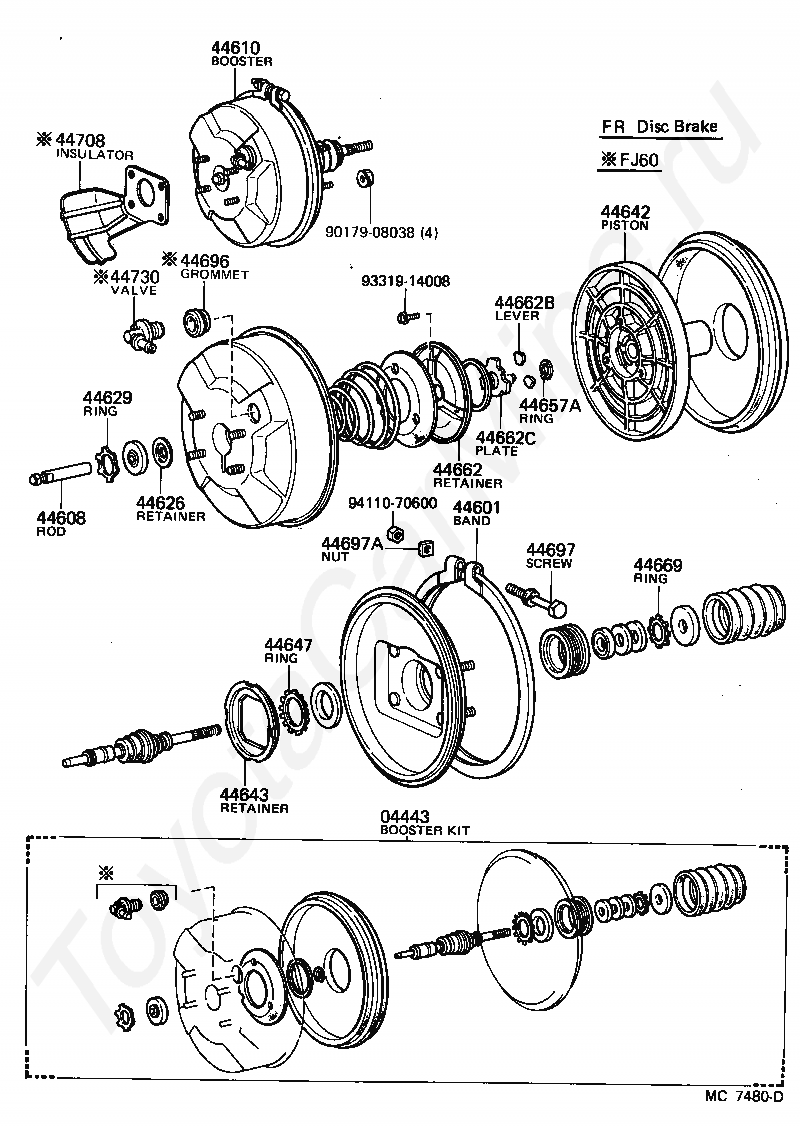

Код

Описание

04443

BOOSTER KIT, BRAKE

44601

BAND SUB-ASSY, BOOSTER BODY

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44696

GROMMET, CHECK VALVE

44697

SCREW, BOOSTER BAND SET

44697A

NUT(FOR BOOSTER BAND SET)

44708

INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

9017908038

Крепеж

9331914008

Крепеж

9411070600

Крепеж

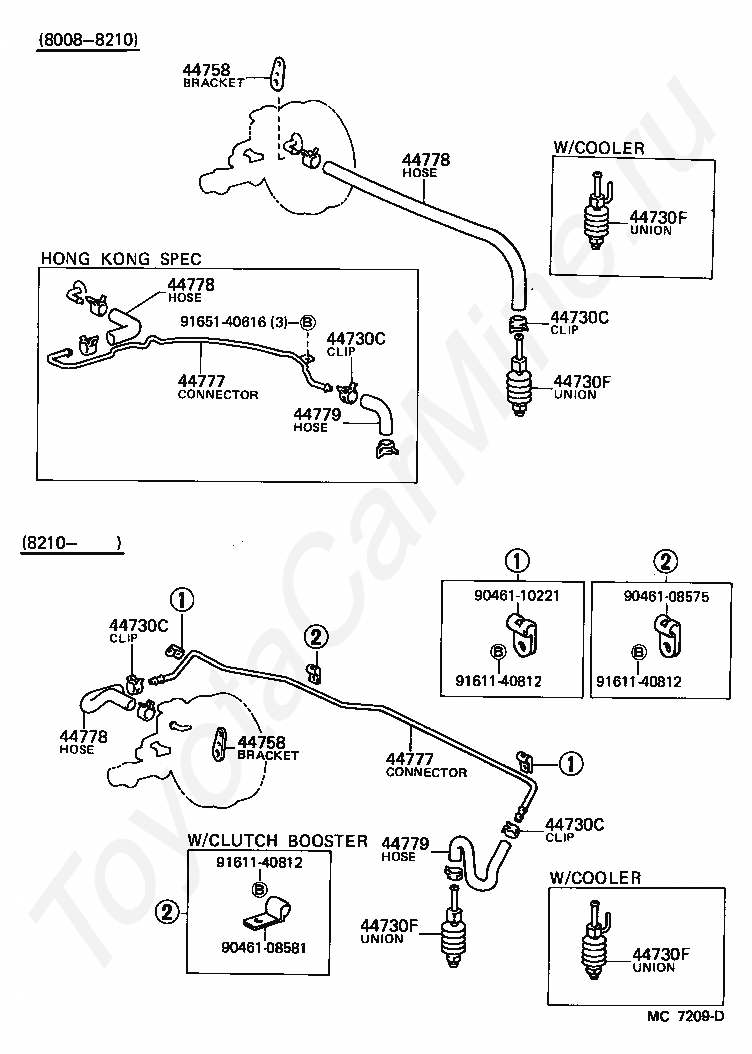

Код

Описание

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44758

BRACKET, VACUUM CHECK VALVE

44758

BRACKET, VACUUM CHECK VALVE

44777

CONNECTOR, VACUUM HOSE, NO.1

44777

CONNECTOR, VACUUM HOSE, NO.1

44778

HOSE, CONNECTOR TO CHECK VALVE

44778

HOSE, CONNECTOR TO CHECK VALVE

44778

HOSE, CONNECTOR TO CHECK VALVE

44779

HOSE, UNION TO CONNECTOR

44779

HOSE, UNION TO CONNECTOR

9046108575

Крепеж

9046108581

Крепеж

9046110221

Крепеж

9161140812

Крепеж

9161140812

Крепеж

9161140812

Крепеж

9165140616

Крепеж

Вакуумный тормозной цилиндр TOYOTA LAND CRUISER
