Европа

Модель

LAND CRUISER

VIN

Дата

1980/08

Двигатель

4,2 литра

Кузов

STATION WAGON G TYPE

Фрейм

FJ60

КПП

механика МКПП, 4 ступени

Опции

правый руль STANDARD ROOF LIFT UP BACK DOOR STANDARD CARBURETOR SPECIFICATION GENERAL COUNTRIES

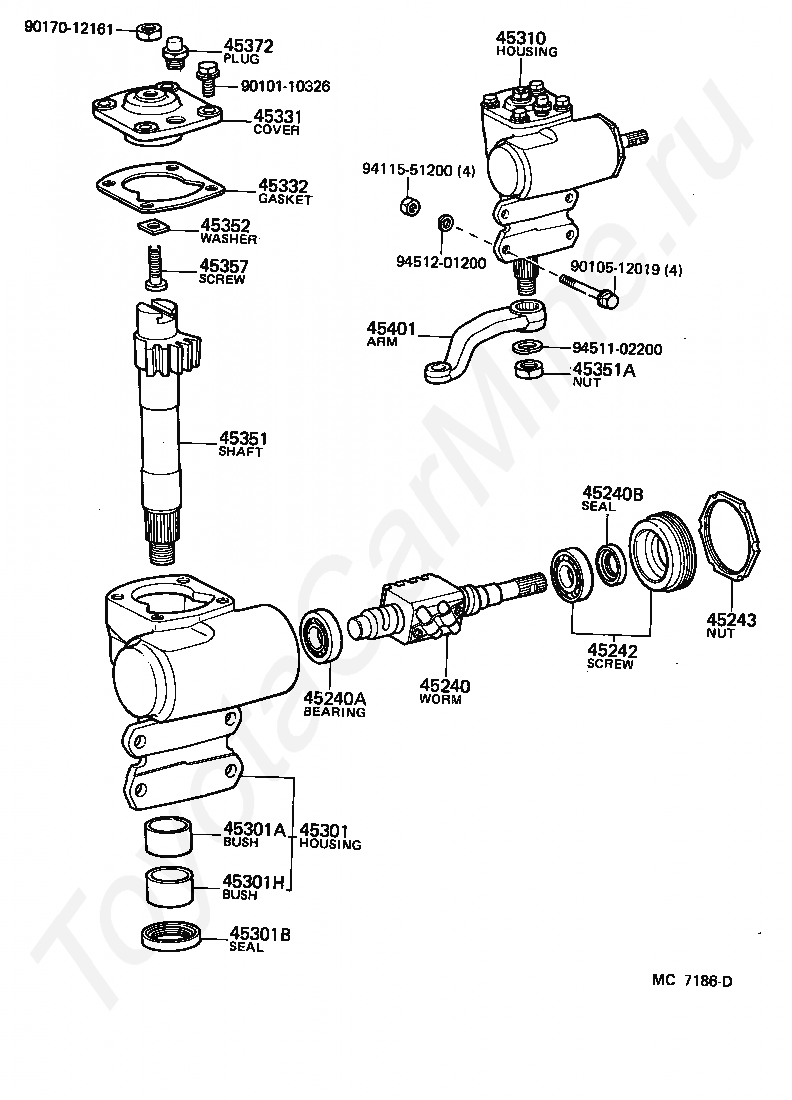

Рулевая рейка и наконечники TOYOTA LAND CRUISER

Код

Описание

45240

WORM ASSY, STEERING

45240A

BEARING(FOR STEERING WORM)

45240B

SEAL, OIL(FOR STEERING WORM)

45242

SCREW, WORM BEARING ADJUSTING

45243

NUT, WORM BEARING ADJUSTING SCREW LOCK

45301

HOUSING SUB-ASSY, STEERING GEAR

45301A

BUSH OR BEARING, SECTOR SHAFT, NO.1

45301B

SEAL, OIL(FOR SECTOR SHAFT)

45301H

BUSH OR BEARING, SECTOR SHAFT, NO.2

45310

HOUSING ASSY, STEERING GEAR

45331

COVER, SECTOR SHAFT END

45332

GASKET, SECTOR SHAFT END COVER

45351

SHAFT, STEERING SECTOR

45351A

NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

45352

WASHER, SECTOR SHAFT THRUST

45357

SCREW, SECTOR SHAFT ADJUSTING

45372

PLUG, STEERING GEAR HOUSING OIL

45401

ARM SUB-ASSY, PITMAN

9010110326

Крепеж

9010512019

Крепеж

9017012161

Крепеж

9411551200

Крепеж

9451102200

Крепеж

9451201200

Крепеж

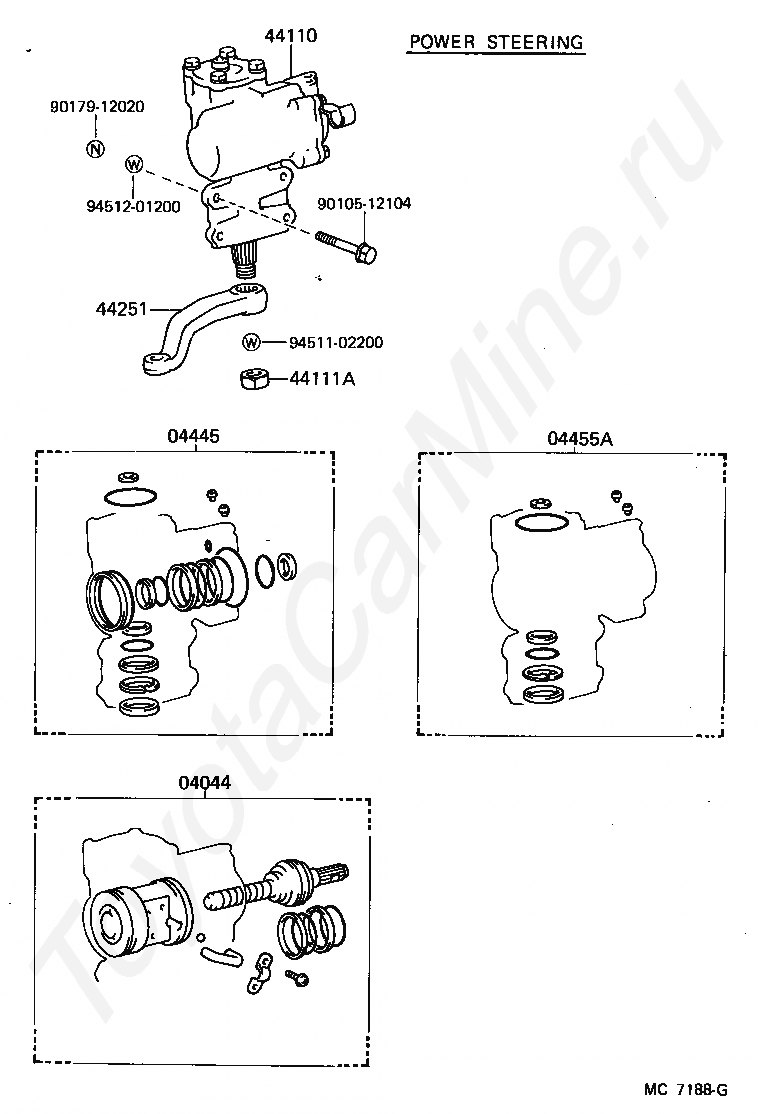

Код

Описание

04044

WARM KIT, POWER STEERING

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

04455A

GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

44110

GEAR ASSY, POWER STEERING

44111A

NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

44251

ARM, PITMAN

9010512104

Крепеж

9017912020

Крепеж

9451102200

Крепеж

9451201200

Крепеж

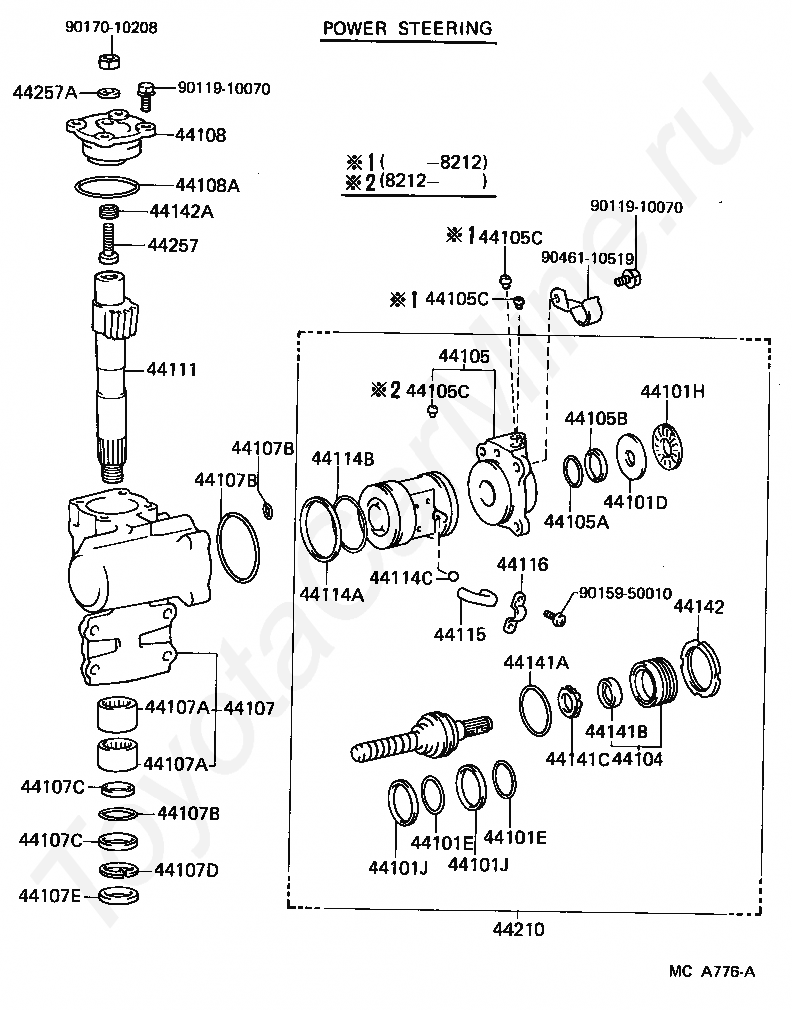

Код

Описание

44101D

WASHER, PLATE(FOR STEERING WORM)

44101E

RING, O(FOR STEERING WORM)

44101E

RING, O(FOR STEERING WORM)

44101H

BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44104

PLUG SUB-ASSY, ADJUSTER

44105

HOUSING SUB-ASSY, VALVE

44105A

RING, O(FOR VALVE HOUSING)

44105B

RING(FOR VALVE HOUSING)

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107D

RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44108

COVER SUB-ASSY, SIDE

44108A

RING, O(FOR SIDE COVER)

44111

SHAFT, CROSS

44114A

RING(FOR POWER PISTON NUT)

44114B

RING, O(FOR POWER PISTON NUT)

44114C

BALL(FOR POWER PISTON NUT)

44115

GUIDE, BALL

44116

CLAMP, BALL GUIDE

44141A

RING, O(FOR ADJUSTER PLUG)

44141B

SEAL, OIL(FOR ADJUSTER PLUG)

44141C

BEARING(FOR ADJUSTER PLUG)

44142

NUT, LOCK

44142A

NUT, LOCK, NO.1

44210

VALVE ASSY, POWER STEERING CONTROL

44257

SCREW, CROSS SHAFT ADJUSTING

44257A

WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)

9011910070

Крепеж

9011910070

Крепеж

9015950010

Крепеж

9017010208

Крепеж

9046110519

Крепеж

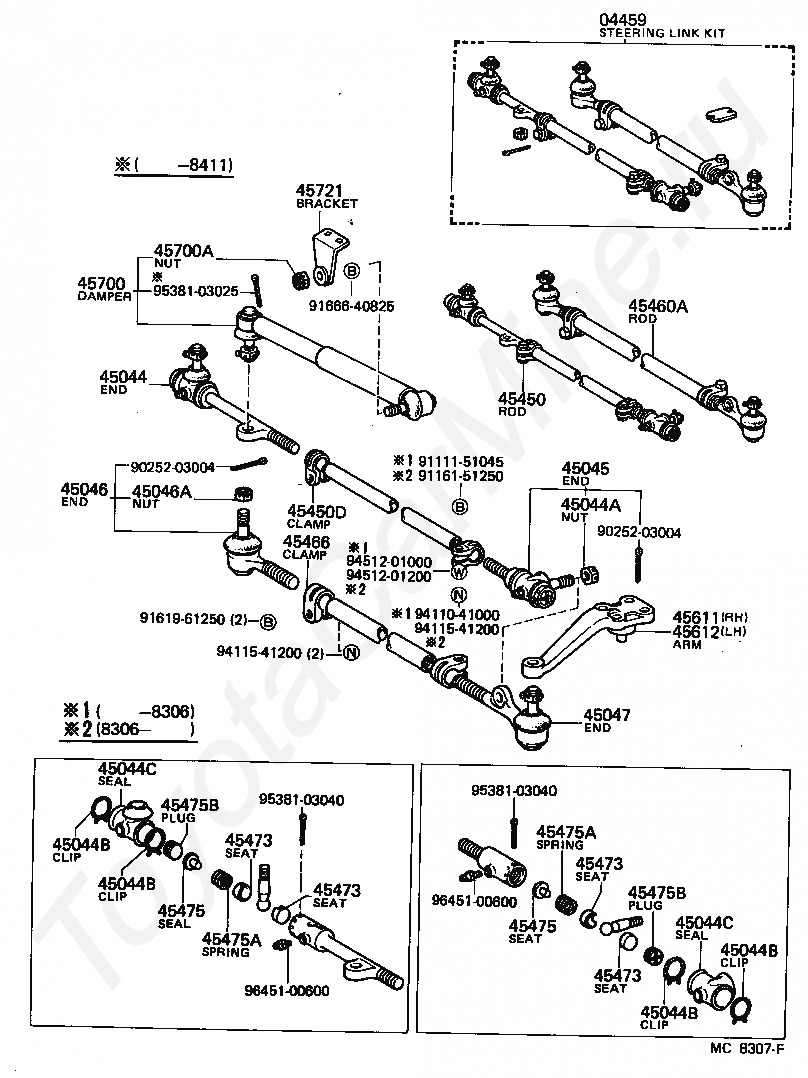

Код

Описание

04459

LINK KIT, STEERING

45044

END SUB-ASSY, STEERING RELAY ROD, RH

45044A

NUT, CASTLE(FOR RELAY ROD)

45044B

RING, SET(FOR RELAY ROD)

45044B

RING, SET(FOR RELAY ROD)

45044B

RING, SET(FOR RELAY ROD)

45044B

RING, SET(FOR RELAY ROD)

45044C

SEAL, DUST(FOR RELAY ROD)

45044C

SEAL, DUST(FOR RELAY ROD)

45045

END SUB-ASSY, STEERING RELAY ROD, LH

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45450

ROD ASSY, STEERING RELAY

45450D

CLAMP, STEERING RELAY ROD END

45460A

ROD ASSY, TIE

45466

CLAMP, TIE ROD END

45473

SEAT, BALL STUD

45473

SEAT, BALL STUD

45473

SEAT, BALL STUD

45473

SEAT, BALL STUD

45475

SEAT, STEERING LINK JOINT SPRING

45475

SEAT, STEERING LINK JOINT SPRING

45475A

SPRING, COMPRESSION(FOR STEERING LINK JOINT)

45475A

SPRING, COMPRESSION(FOR STEERING LINK JOINT)

45475B

PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)

45475B

PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)

45611

ARM, STEERING KNUCKLE, RH

45612

ARM, STEERING KNUCKLE, LH

45700

DAMPER ASSY, STEERING

45700A

NUT(FOR STEERING DAMPER)

45721

BRACKET, STEERING DAMPER

9025203004

Крепеж

9025203004

Крепеж

9111151045

Крепеж

9116151250

Крепеж

9161961250

Крепеж

9166640825

Крепеж

9411041000

Крепеж

9411541200

Крепеж

9411541200

Крепеж

9451201000

Крепеж

9451201200

Крепеж

9538103025

Крепеж

9538103040

Крепеж

9538103040

Крепеж

9645100600

Крепеж

9645100600

Крепеж

Рулевая рейка и наконечники TOYOTA LAND CRUISER
