Европа

Модель

LAND CRUISER

VIN

Дата

1980/08

Двигатель

4,2 литра

Кузов

STATION WAGON G TYPE

Фрейм

FJ60

КПП

механика МКПП, 4 ступени

Опции

правый руль STANDARD ROOF LIFT UP BACK DOOR STANDARD CARBURETOR SPECIFICATION GENERAL COUNTRIES

WINCH TOYOTA LAND CRUISER

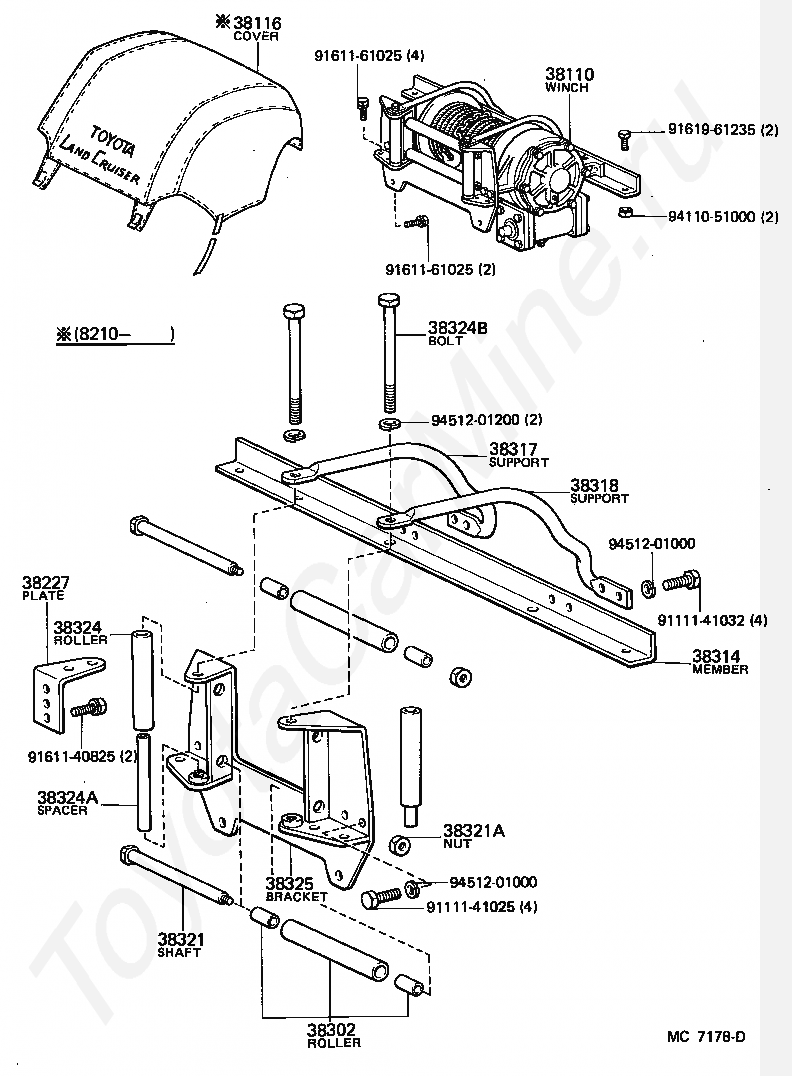

Код

Описание

38110

WINCH ASSY

38116

COVER, WINCH

38227

PLATE, WINCH CLUTCH LEVER SHIFT LOCK

38302

ROLLER SUB-ASSY, WINCH WIRE GUIDE

38314

MEMBER, REAR BASE

38317

SUPPORT, ROLLER BRACKET, NO.1

38318

SUPPORT, ROLLER BRACKET, NO.2

38321

SHAFT, WINCH ROLLER

38321A

NUT, HEXAGON (FOR WINCH ROLLER SHAFT)

38324

ROLLER, WINCH WIRE GUIDE, NO.2

38324A

SPACER, WINCH WIRE GUIDE ROLLER

38324B

BOLT, HEXAGON (FOR WINCH WIRE GUIDE ROLLER)

38325

BRACKET, WINCH ROLLER, NO.1

9111141025

Крепеж

9111141032

Крепеж

9161140825

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9161961235

Крепеж

9411051000

Крепеж

9451201000

Крепеж

9451201000

Крепеж

9451201200

Крепеж

Код

Описание

38110

WINCH ASSY

38116

COVER, WINCH

38227

PLATE, WINCH CLUTCH LEVER SHIFT LOCK

38302

ROLLER SUB-ASSY, WINCH WIRE GUIDE

38314

MEMBER, REAR BASE

38317

SUPPORT, ROLLER BRACKET, NO.1

38318

SUPPORT, ROLLER BRACKET, NO.2

38321

SHAFT, WINCH ROLLER

38321A

NUT, HEXAGON (FOR WINCH ROLLER SHAFT)

38324

ROLLER, WINCH WIRE GUIDE, NO.2

38324A

SPACER, WINCH WIRE GUIDE ROLLER

38324B

BOLT, HEXAGON (FOR WINCH WIRE GUIDE ROLLER)

38325

BRACKET, WINCH ROLLER, NO.1

9111141025

Крепеж

9111141032

Крепеж

9161140825

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9161961235

Крепеж

9411051000

Крепеж

9451201000

Крепеж

9451201000

Крепеж

9451201200

Крепеж

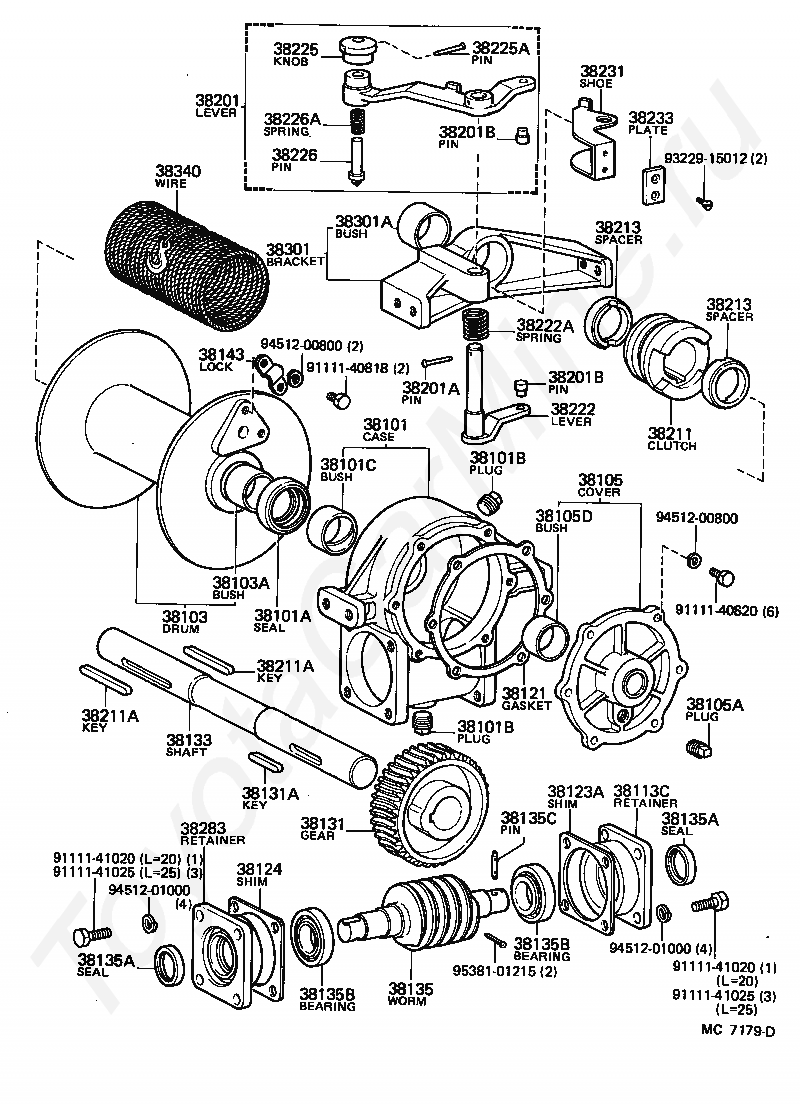

Код

Описание

38101

CASE SUB-ASSY, WINCH GEAR

38101A

SEAL, TYPE T OIL (FOR WINCH GEAR CASE)

38101B

PLUG, W/HEAD TAPER SCREW (FOR WINCH GEAR CASE)

38101B

PLUG, W/HEAD TAPER SCREW (FOR WINCH GEAR CASE)

38101C

BUSH, SOLID (FOR WINCH GEAR CASE)

38103

DRUM SUB-ASSY, WINCH

38103A

BUSH (FOR WINCH DRUM)

38105

COVER SUB-ASSY, WINCH GEAR CASE

38105A

PLUG (FOR WINCH SIDE GEAR CASE)

38105D

BUSH (FOR WINCH GEAR CASE COVER)

38113C

RETAINER, WORM BEARING, NO.1

38121

GASKET, WINCH GEAR CASE COVER

38123A

SHIM, WINCH WORM ADJUST, NO.1

38124

SHIM, WINCH WORM ADJUST, NO.2

38131

GEAR, WORM

38131A

KEY, SLIDING (FOR WINCH WORM GEAR)

38133

SHAFT, WORM GEAR

38135

WORM, WINCH

38135A

SEAL, TYPE T OIL (FOR WINCH WORM)

38135A

SEAL, TYPE T OIL (FOR WINCH WORM)

38135B

BEARING (FOR WINCH WORM)

38135B

BEARING (FOR WINCH WORM)

38135C

PIN, SAFETY LOCK

38143

LOCK, WIRE

38201

LEVER SUB-ASSY, WINCH CLUTCH

38201A

PIN, WINCH CLUTCH LEVER

38201B

PIN, WINCH CLUTCH

38201B

PIN, WINCH CLUTCH

38211

CLUTCH, WINCH

38211A

KEY, WINCH CLUTCH

38211A

KEY, WINCH CLUTCH

38213

SPACER, CLUTCH FEATHER KEY

38213

SPACER, CLUTCH FEATHER KEY

38222

LEVER, WINCH CLUTCH, LOWER

38222A

SPRING (FOR WINCH CLUTCH LOWER LEVER)

38225

KNOB, WINCH CLUTCH LEVER

38225A

PIN, WINCH CLUTCH LEVER KNOB

38226

PIN, LEVER SHIFT LOCK

38226A

SPRING, LEVER SHIFT LOCK PIN

38231

SHOE, BRAKE

38233

PLATE, BRAKE

38283

RETAINER, WORM BEARING, NO.2

38301

BRACKET SUB-ASSY, WINCH END

38301A

BUSH (FOR WINCH END BRACKET)

38340

WIRE ASSY, WINCH CHAIN

9111140818

Крепеж

9111140820

Крепеж

9111141020

Крепеж

9111141020

Крепеж

9111141025

Крепеж

9111141025

Крепеж

9322915012

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9451201000

Крепеж

9538101215

Крепеж

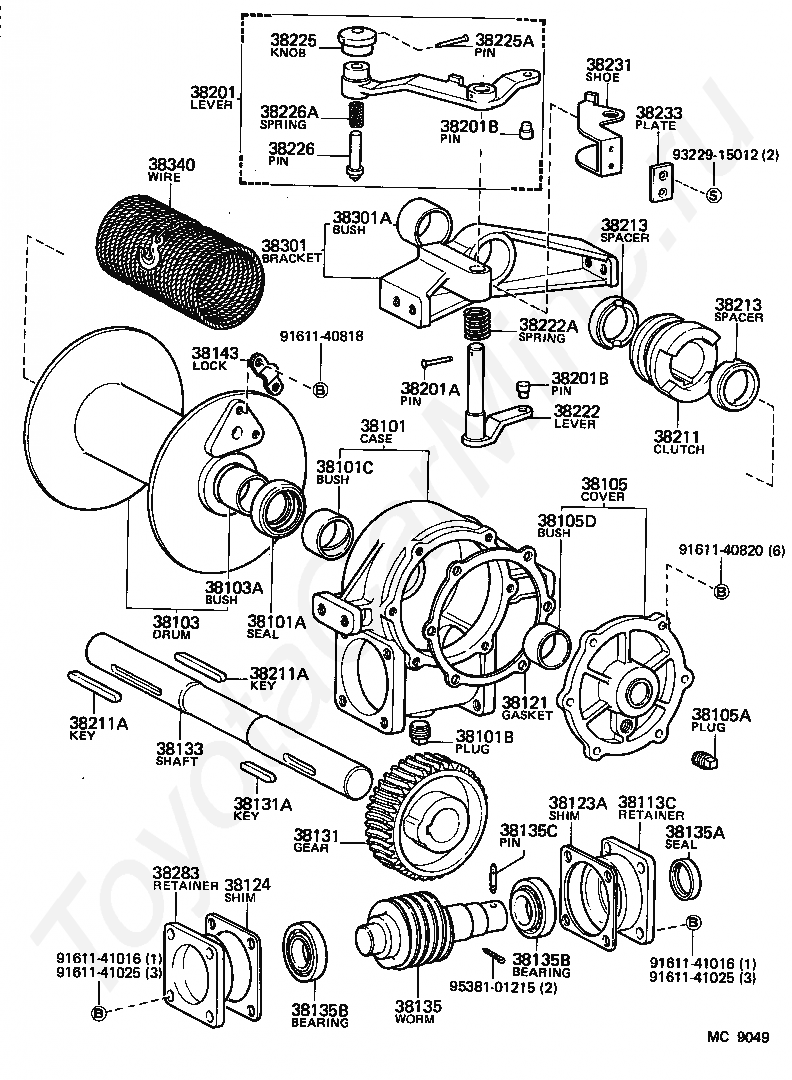

Код

Описание

38101

CASE SUB-ASSY, WINCH GEAR

38101A

SEAL, TYPE T OIL (FOR WINCH GEAR CASE)

38101B

PLUG, W/HEAD TAPER SCREW (FOR WINCH GEAR CASE)

38101C

BUSH, SOLID (FOR WINCH GEAR CASE)

38103

DRUM SUB-ASSY, WINCH

38103A

BUSH (FOR WINCH DRUM)

38105

COVER SUB-ASSY, WINCH GEAR CASE

38105A

PLUG (FOR WINCH SIDE GEAR CASE)

38105D

BUSH (FOR WINCH GEAR CASE COVER)

38113C

RETAINER, WORM BEARING, NO.1

38121

GASKET, WINCH GEAR CASE COVER

38123A

SHIM, WINCH WORM ADJUST, NO.1

38124

SHIM, WINCH WORM ADJUST, NO.2

38131

GEAR, WORM

38131A

KEY, SLIDING (FOR WINCH WORM GEAR)

38133

SHAFT, WORM GEAR

38135

WORM, WINCH

38135A

SEAL, TYPE T OIL (FOR WINCH WORM)

38135B

BEARING (FOR WINCH WORM)

38135B

BEARING (FOR WINCH WORM)

38135C

PIN, SAFETY LOCK

38143

LOCK, WIRE

38201

LEVER SUB-ASSY, WINCH CLUTCH

38201A

PIN, WINCH CLUTCH LEVER

38201B

PIN, WINCH CLUTCH

38201B

PIN, WINCH CLUTCH

38211

CLUTCH, WINCH

38211A

KEY, WINCH CLUTCH

38211A

KEY, WINCH CLUTCH

38213

SPACER, CLUTCH FEATHER KEY

38213

SPACER, CLUTCH FEATHER KEY

38222

LEVER, WINCH CLUTCH, LOWER

38222A

SPRING (FOR WINCH CLUTCH LOWER LEVER)

38225

KNOB, WINCH CLUTCH LEVER

38225A

PIN, WINCH CLUTCH LEVER KNOB

38226

PIN, LEVER SHIFT LOCK

38226A

SPRING, LEVER SHIFT LOCK PIN

38231

SHOE, BRAKE

38233

PLATE, BRAKE

38283

RETAINER, WORM BEARING, NO.2

38301

BRACKET SUB-ASSY, WINCH END

38301A

BUSH (FOR WINCH END BRACKET)

38340

WIRE ASSY, WINCH CHAIN

9161140818

Крепеж

9161140820

Крепеж

9161141016

Крепеж

9161141016

Крепеж

9161141025

Крепеж

9161141025

Крепеж

9322915012

Крепеж

9538101215

Крепеж

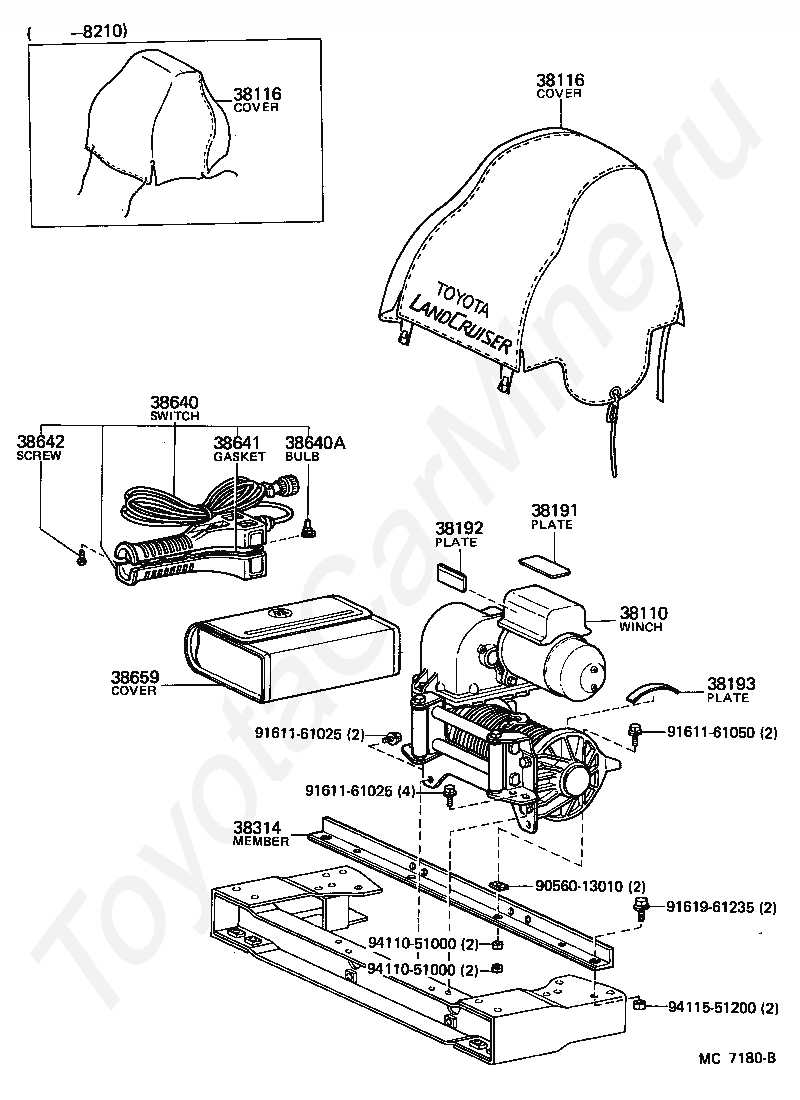

Код

Описание

38110

WINCH ASSY

38116

COVER, WINCH

38116

COVER, WINCH

38191

PLATE, WINCH CAUTION, NO.1

38192

PLATE, WINCH CAUTION, NO.2

38193

PLATE, WINCH CAUTION, NO.3

38314

MEMBER, REAR BASE

38640

SWITCH ASSY, WINCH CONTROL

38640A

BULB (FOR WINCH CONTROL SWITCH)

38641

GASKET (FOR WINCH CONTROL SWITCH)

38642

SCREW (FOR WINCH CONTROL SWITCH)

38659

COVER, WINCH CONTROL SWITCH

9056013010

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9161161050

Крепеж

9161961235

Крепеж

9411051000

Крепеж

9411051000

Крепеж

9411551200

Крепеж

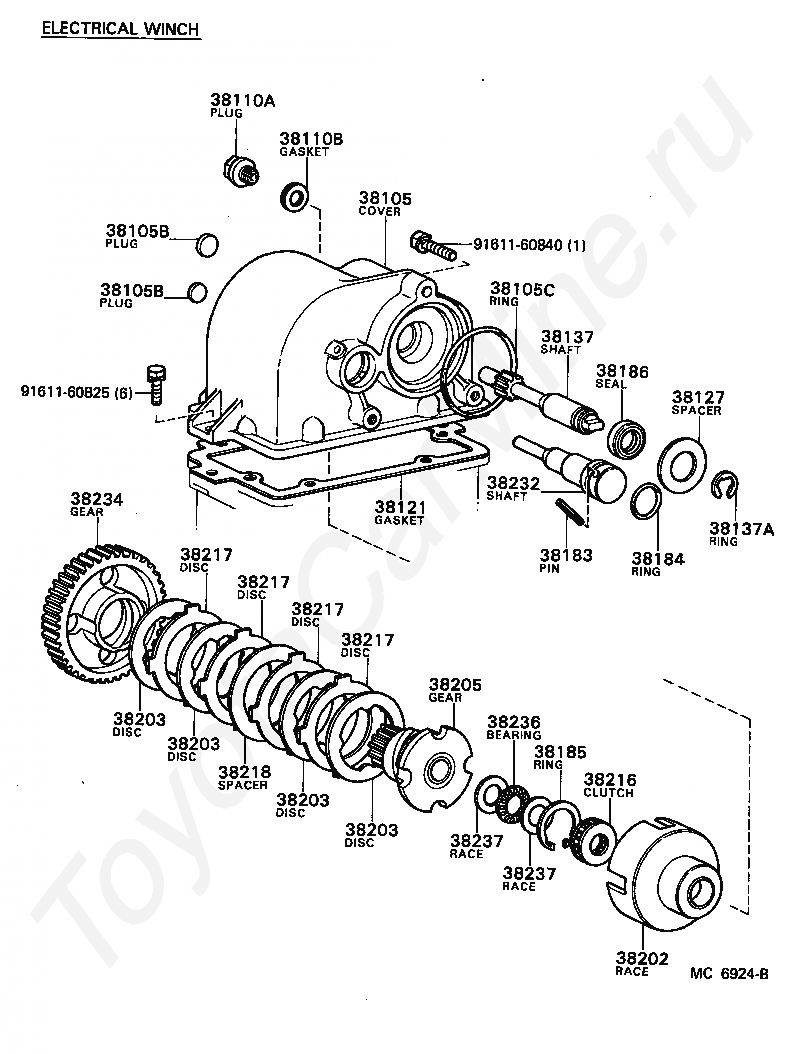

Код

Описание

38105

COVER SUB-ASSY, WINCH GEAR CASE

38105B

PLUG, TIGHT (FOR WINCH GEAR CASE COVER)

38105B

PLUG, TIGHT (FOR WINCH GEAR CASE COVER)

38105C

RING, O (FOR WINCH GEAR CASE COVER)

38110A

PLUG, FILLER

38110B

GASKET (FOR FILLER PLUG)

38121

GASKET, WINCH GEAR CASE COVER

38127

SPACER, INPUT SHAFT

38137

SHAFT, WINCH INPUT

38137A

RING, E (FOR WINCH INPUT SHAFT)

38183

PIN, BRAKE SHAFT LOCK

38184

RING, BRAKE SHAFT, O

38185

RING, CLUTCH OUTER RACE SNAP

38186

SEAL, GEAR CASE COVER OIL

38202

RACE SUB-ASSY, CLUTCH, OUTER

38203

DISC SUB-ASSY, WINCH CLUTCH, INNER

38203

DISC SUB-ASSY, WINCH CLUTCH, INNER

38203

DISC SUB-ASSY, WINCH CLUTCH, INNER

38203

DISC SUB-ASSY, WINCH CLUTCH, INNER

38205

GEAR SUB-ASSY, BRAKE SHAFT DRIVEN

38216

CLUTCH, WINCH 1 WAY

38217

DISC, WINCH CLUTCH, OUTER

38217

DISC, WINCH CLUTCH, OUTER

38217

DISC, WINCH CLUTCH, OUTER

38217

DISC, WINCH CLUTCH, OUTER

38218

SPACER, CLUTCH DISC

38232

SHAFT, WINCH BRAKE

38234

GEAR, BRAKE SHAFT DRIVE

38236

BEARING, GEAR THRUST

38237

RACE, GEAR THRUST BEARING

38237

RACE, GEAR THRUST BEARING

9161160825

Крепеж

9161160840

Крепеж

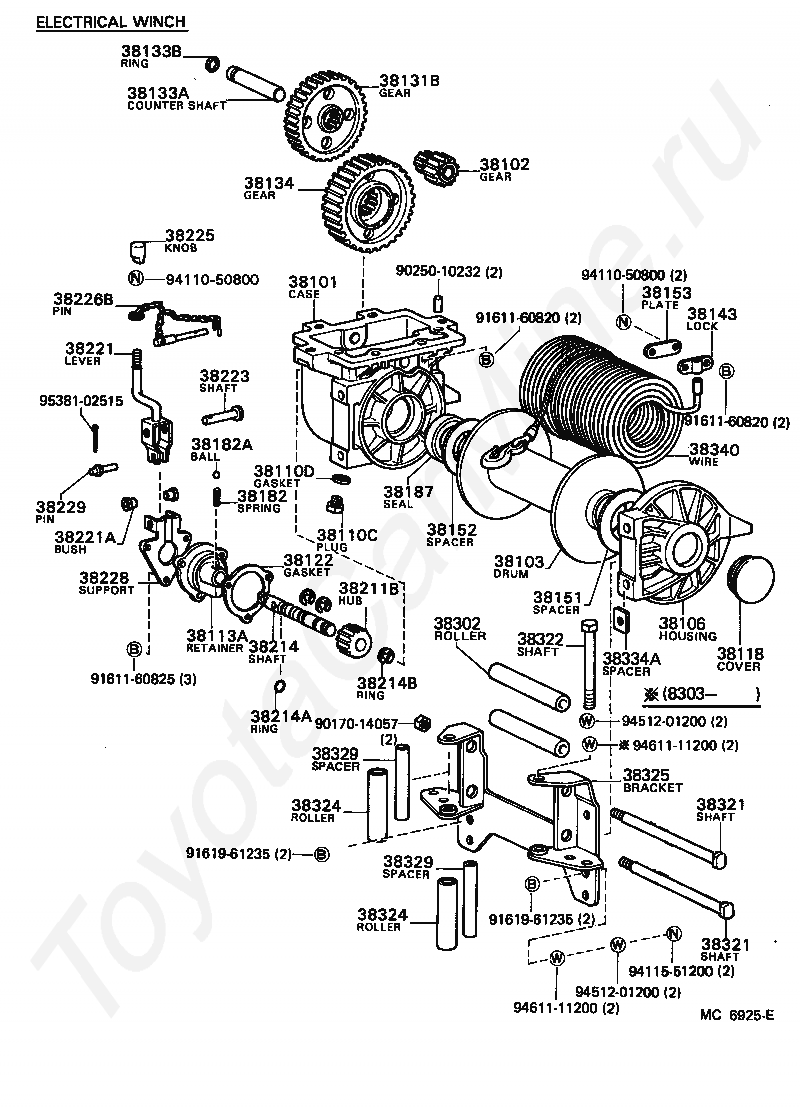

Код

Описание

38101

CASE SUB-ASSY, WINCH GEAR

38102

GEAR SUB-ASSY, COUNTERSHAFT

38103

DRUM SUB-ASSY, WINCH

38106

HOUSING SUB-ASSY, WINCH DRUM

38110C

PLUG, DRAIN

38110D

GASKET (FOR DRAIN PLUG)

38113A

RETAINER, SHIFT SHAFT

38118

COVER, WINCH DRUM HOUSING

38122

GASKET, SHIFT SHAFT RETAINER

38131B

GEAR, COUNTER, NO.1

38133A

COUNTER SHAFT

38133B

RING, O (FOR COUNTER SHAFT)

38134

GEAR, WINCH OUTPUT

38143

LOCK, WIRE

38151

SPACER, WINCH DRUM, NO.1

38152

SPACER, WINCH DRUM, NO.2

38153

PLATE, WIRE LOCK

38182

SPRING, SHIFT LOCK

38182A

BALL (FOR SHIFT LOCK SPRING)

38187

SEAL, GEAR CASE OIL

38211B

HUB, WINCH CLUTCH

38214

SHIM, WINCH WORM ADJUST, NO.2

38214A

RING, O (FOR CLUTCH HUB SHIFT SHAFT)

38214B

RING, E (FOR CLUTCH HUB SHIFT SHAFT)

38221

LEVER, CLUTCH HUB SHIFT

38221A

BUSH (FOR CLUTCH HUB SHIFT LEVER)

38223

SHAFT, CLUTCH SHIFT LEVER

38225

KNOB, WINCH CLUTCH LEVER

38226B

PIN, CLUTCH SHIFT LEVER LOCK

38228

SUPPORT, CLUTCH SHIFT LEVER

38229

PIN, CLUTCH SHIFT LEVER

38302

ROLLER SUB-ASSY, WINCH WIRE GUIDE

38321

SHAFT, WINCH ROLLER

38321

SHAFT, WINCH ROLLER

38322

SHAFT, WINCH ROLLER, NO.2

38324

ROLLER, WINCH WIRE GUIDE, NO.2

38324

ROLLER, WINCH WIRE GUIDE, NO.2

38325

BRACKET, WINCH ROLLER, NO.1

38329

SPACER, WINCH WIRE GUIDE ROLLER

38329

SPACER, WINCH WIRE GUIDE ROLLER

38334A

SPACER, REAR MEMBER

38340

WIRE ASSY, WINCH CHAIN

9017014057

Крепеж

9025010232

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160825

Крепеж

9161961235

Крепеж

9161961235

Крепеж

9411050800

Крепеж

9411050800

Крепеж

9411551200

Крепеж

9451201200

Крепеж

9451201200

Крепеж

9461111200

Крепеж

9461111200

Крепеж

9538102515

Крепеж

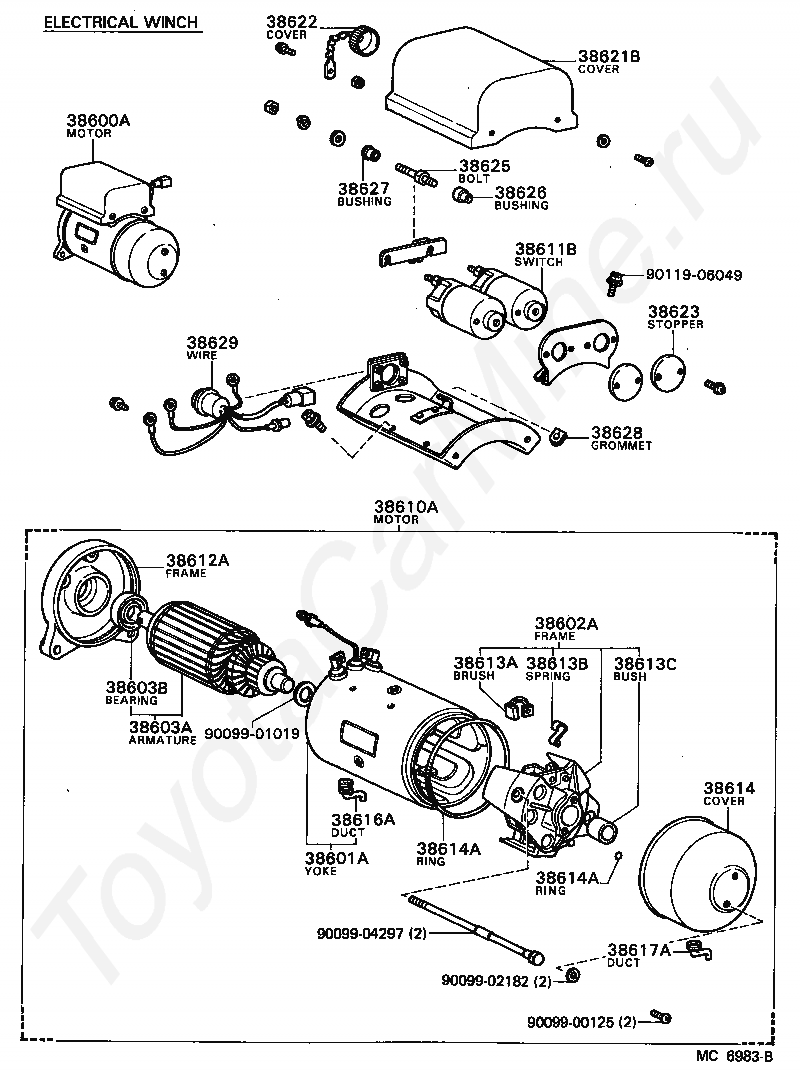

Код

Описание

38600A

MOTOR ASSY, W/MAGNET SWITCH, WINCH

38601A

YOKE SUB-ASSY, WINCH MOTOR

38602A

FRAME SUB-ASSY, CUMMUTATOR END (FOR WINCH MOTER)

38603A

ARMATURE SUB-ASSY, WINCH MOTOR

38603B

BEARING, NO.1 (FOR WINCH MOTOR ARMATURE)

38610A

MOTOR ASSY, WINCH

38611B

SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR)

38612A

FRAME, WINCH MOTOR END

38613A

BRUSH, WINCH MOTOR

38613B

SPRING, WINCH MOTOR BRUSH

38613C

BUSH (FOR WINCH MOTOR)

38614

COVER, COMMUTATOR WINCH

38614A

RING, O(FOR WINCH MOTOR)

38614A

RING, O(FOR WINCH MOTOR)

38616A

DUCT, YOKE WINCH

38617A

DUCT, COVER WINCH

38621B

COVER, MAGNET SWITCH WINCH

38622

COVER, CONNECTOR WINCH

38623

STOPPER, WINCH MOTOR

38625

BOLT, STUD WINCH MOTOR

38626

BUSHING, STEPPED FEMALE WINCH MOTOR

38627

BUSHING, STEPPED MALE WINCH MOTOR

38628

GROMET, WINCH

38629

WIRE, WINCH MOTOR

9009900125

Крепеж

9009901019

Крепеж

9009902182

Крепеж

9009904297

Крепеж

9011906049

Крепеж
