Европа

Модель

LAND CRUISER

VIN

Дата

1980/08

Двигатель

4,2 литра

Кузов

STATION WAGON G TYPE

Фрейм

FJ60

КПП

механика МКПП, 4 ступени

Опции

правый руль STANDARD ROOF LIFT UP BACK DOOR STANDARD CARBURETOR SPECIFICATION GENERAL COUNTRIES

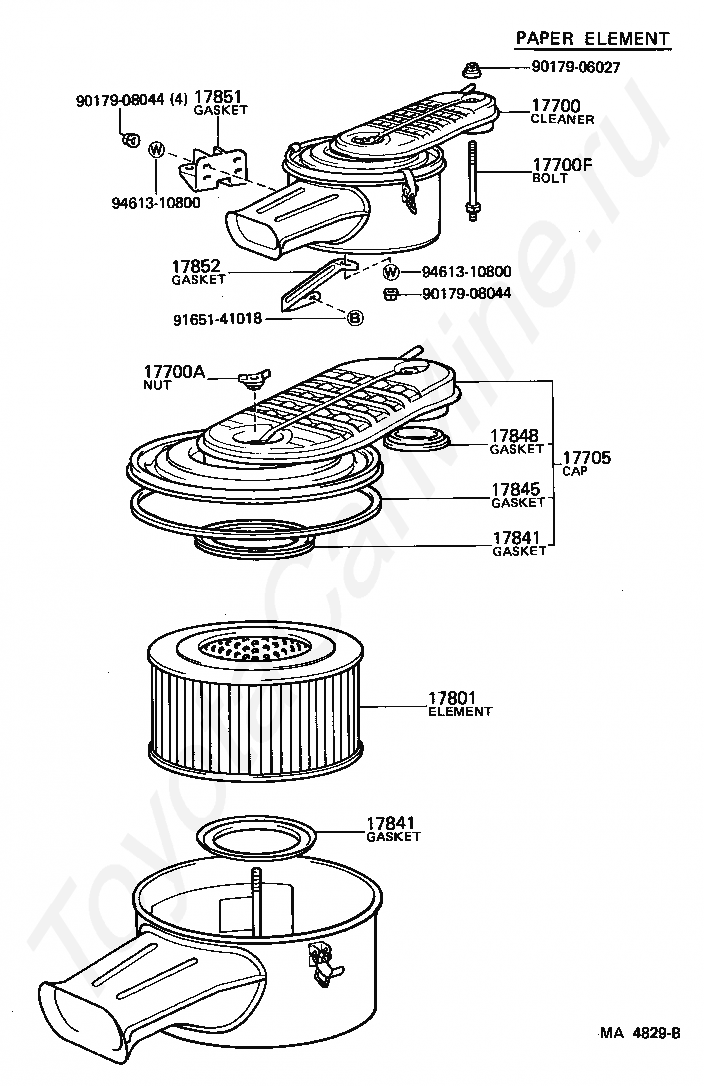

Воздушный фильтр TOYOTA LAND CRUISER

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17851

BRACKET, AIR CLEANER SUPPORT

17852

BRACKET, AIR CREANER SUPPORT, NO.2

9017906027

Крепеж

9017908044

Крепеж

9017908044

Крепеж

9165141018

Крепеж

9461310800

Крепеж

9461310800

Крепеж

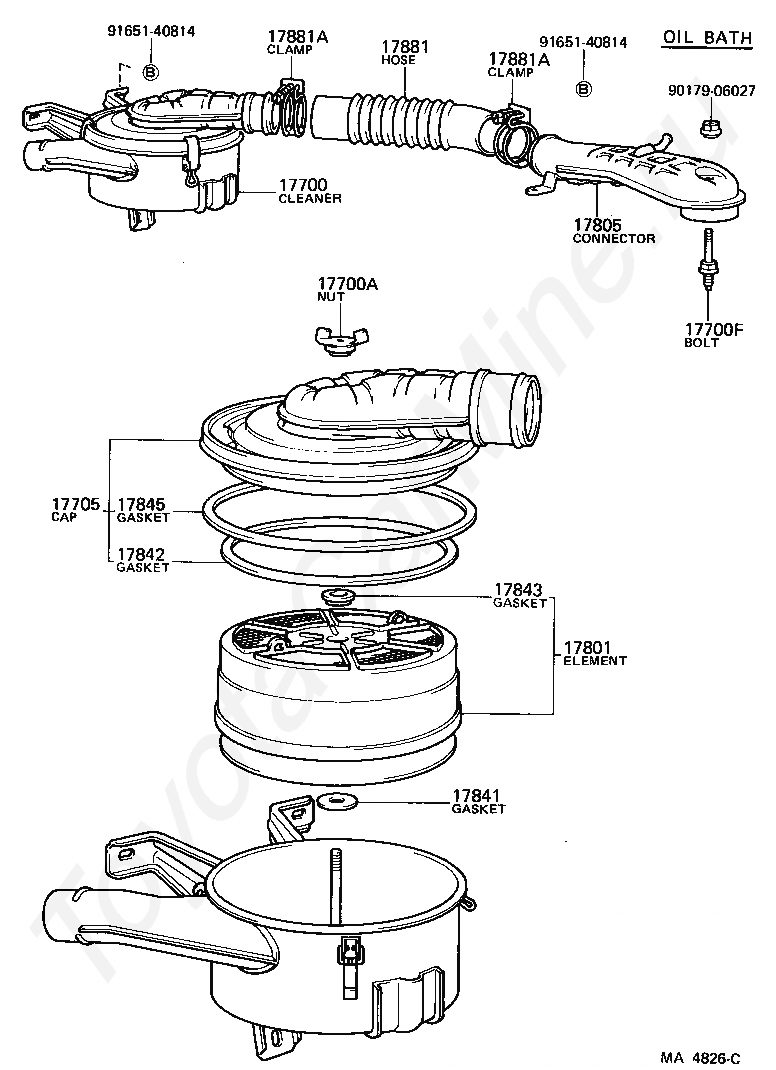

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17841

GASKET, FILTER ELEMENT

17842

GASKET, FILTER ELEMENT, NO.2

17843

GASKET, FILTER ELEMENT, NO.3

17845

GASKET, AIR CLEANER CAP

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

9017906027

Крепеж

9165140814

Крепеж

9165140814

Крепеж

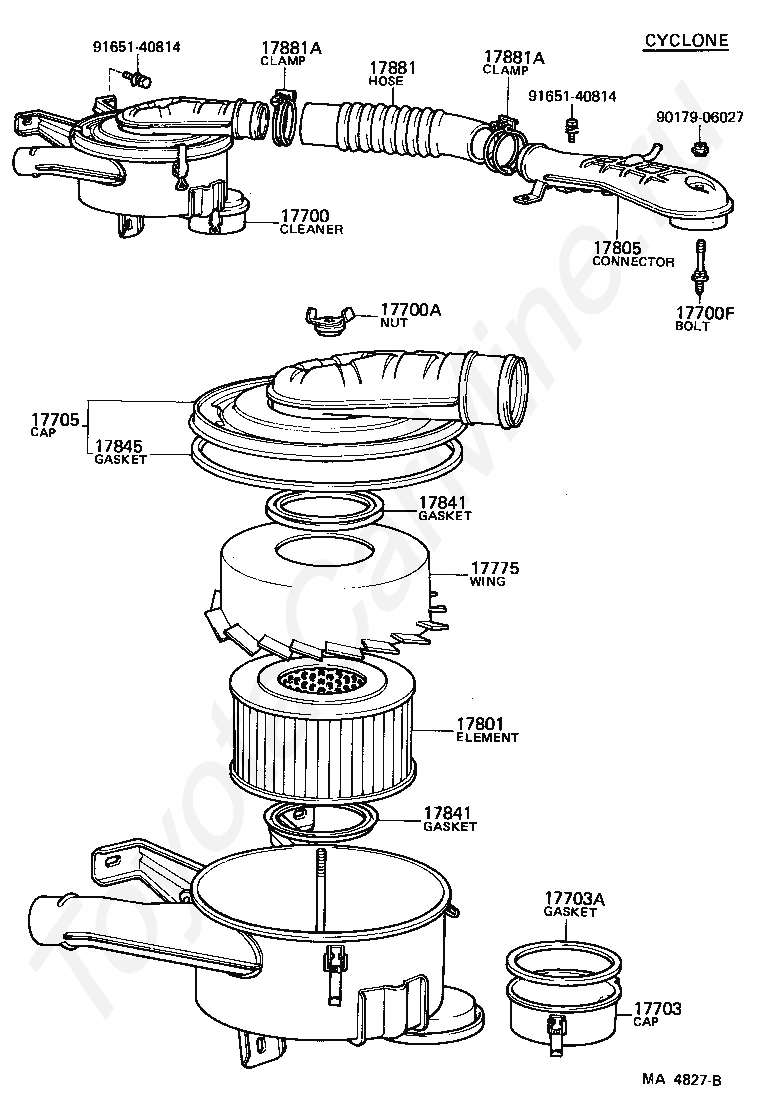

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17703

CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER

17703A

GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)

17705

CAP SUB-ASSY, AIR CLEANER

17775

WING, CYCLONE

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

9017906027

Крепеж

9165140814

Крепеж

9165140814

Крепеж

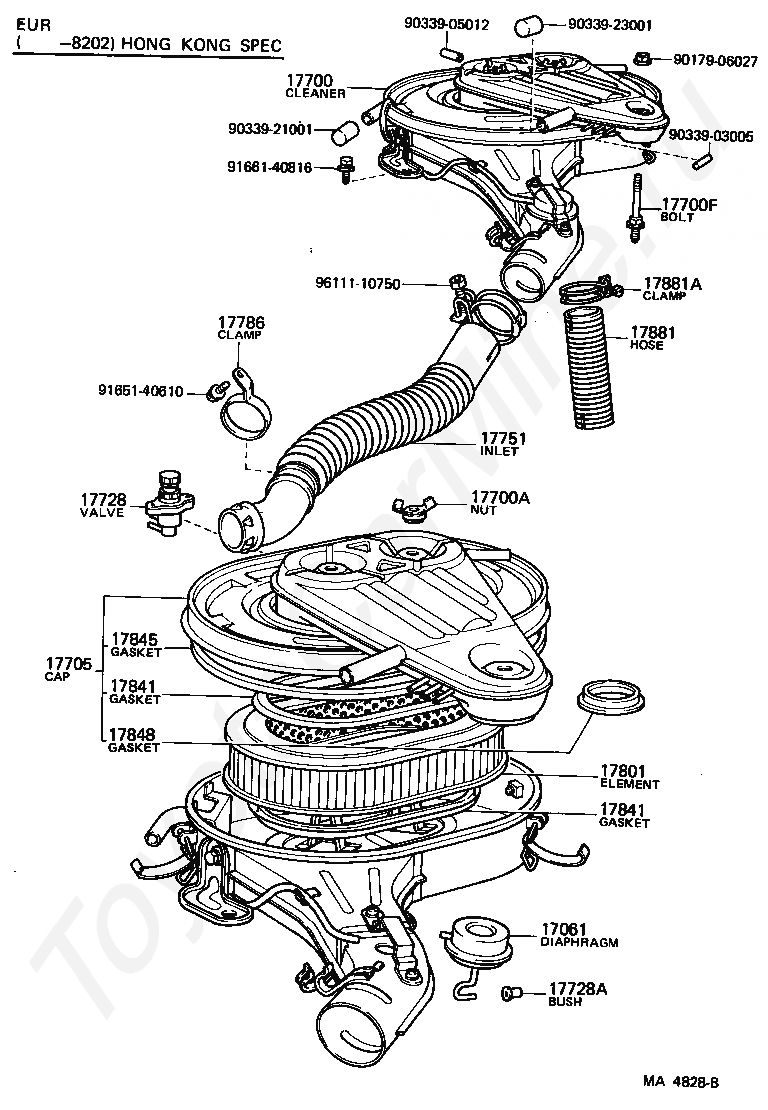

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17728A

BUSH

17751

INLET, AIR CLEANER, NO.1

17786

CLAMP, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

9017906027

Крепеж

9033903005

Крепеж

9033905012

Крепеж

9033921001

Крепеж

9033923001

Крепеж

9165140610

Крепеж

9166140816

Крепеж

9611110750

Крепеж
