Европа

Модель

LAND CRUISER

VIN

Дата

1980/08

Двигатель

4,2 литра

Кузов

STATION WAGON G TYPE

Фрейм

FJ60

КПП

механика МКПП, 4 ступени

Опции

правый руль STANDARD ROOF LIFT UP BACK DOOR STANDARD CARBURETOR SPECIFICATION GENERAL COUNTRIES

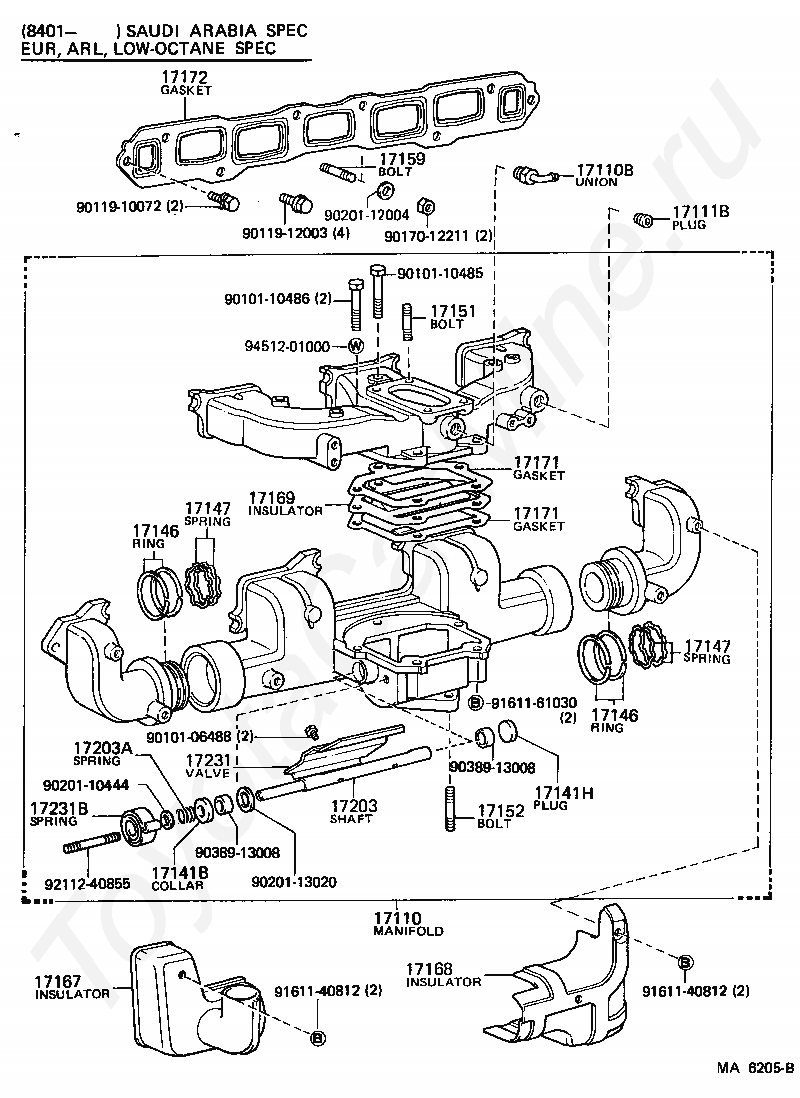

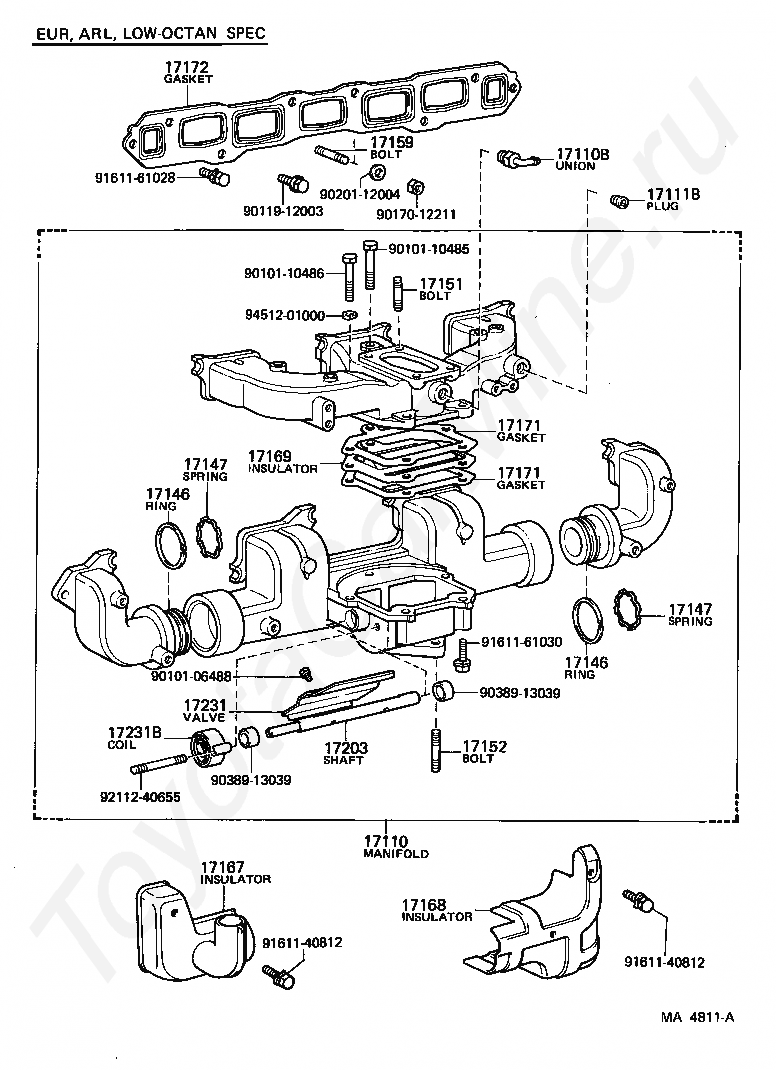

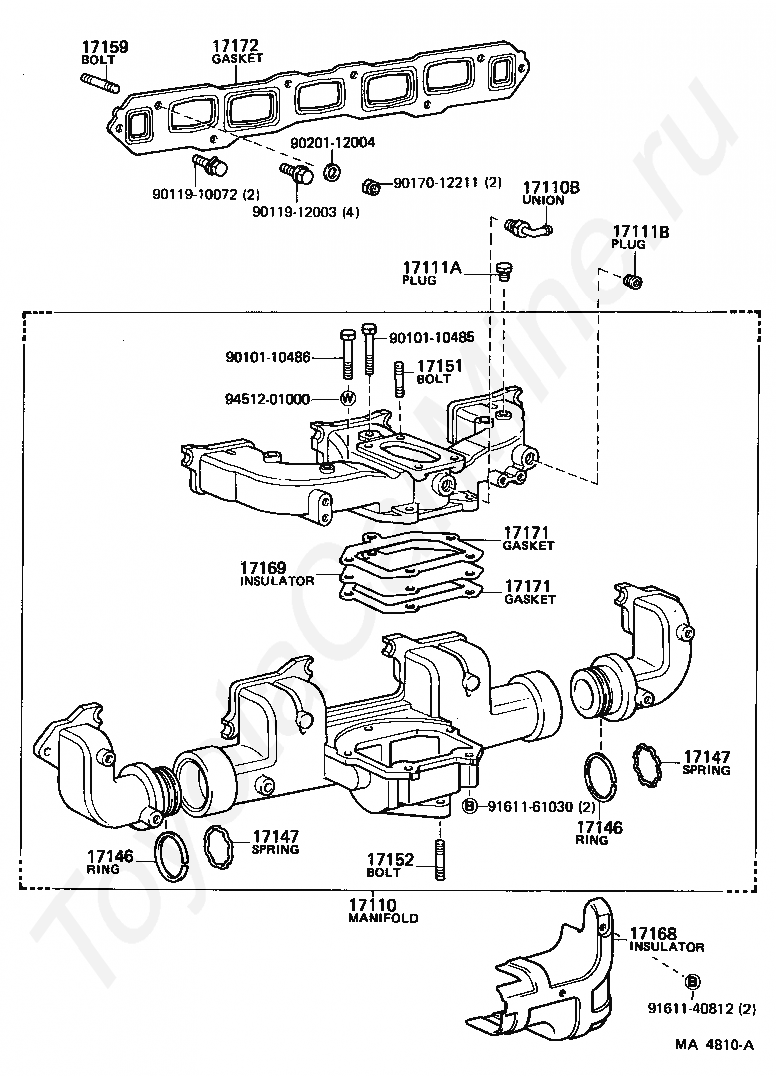

Коллекторы TOYOTA LAND CRUISER

Код

Описание

17110

MANIFOLD ASSY

17110B

UNION(FOR VENTILATION HOSE TO MANIFOLD)

17111A

PLUG, NO.1

17111B

PLUG, NO.2

17146

RING, EXHAUST MANIFOLD

17146

RING, EXHAUST MANIFOLD

17147

SPRING, EXHAUST MANIFOLD

17147

SPRING, EXHAUST MANIFOLD

17151

BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152

BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159

BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17168

INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17169

INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17172

GASKET, MANIFOLD TO CYLINDER HEAD

9010110485

Крепеж

9010110486

Крепеж

9011910072

Крепеж

9011912003

Крепеж

9017012211

Крепеж

9020112004

Крепеж

9161140812

Крепеж

9161161030

Крепеж

9451201000

Крепеж

Код

Описание

17110

MANIFOLD ASSY

17110B

UNION(FOR VENTILATION HOSE TO MANIFOLD)

17111B

PLUG, NO.2

17146

RING, EXHAUST MANIFOLD

17146

RING, EXHAUST MANIFOLD

17147

SPRING, EXHAUST MANIFOLD

17147

SPRING, EXHAUST MANIFOLD

17151

BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152

BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159

BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17167

INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17168

INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17169

INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17172

GASKET, MANIFOLD TO CYLINDER HEAD

17203

SHAFT SUB-ASSY, MANIFOLD HEAT CONTROL

17231

VALVE, MANIFOLD HEAT CONTROL

17231B

COIL, HEAT CONTROL VALVE

9010106488

Крепеж

9010110485

Крепеж

9010110486

Крепеж

9011912003

Крепеж

9017012211

Крепеж

9020112004

Крепеж

9038913039

Крепеж

9038913039

Крепеж

9161140812

Крепеж

9161140812

Крепеж

9161161028

Крепеж

9161161030

Крепеж

9211240655

Крепеж

9451201000

Крепеж

Код

Описание

17110

MANIFOLD ASSY

17110B

UNION(FOR VENTILATION HOSE TO MANIFOLD)

17111B

PLUG, NO.2

17141B

COLLAR(FOR EXHAUST MANIFOLD)

17141H

PLUG, TIGHT(FOR EXHAUST MANIFOLD)

17146

RING, EXHAUST MANIFOLD

17146

RING, EXHAUST MANIFOLD

17147

SPRING, EXHAUST MANIFOLD

17147

SPRING, EXHAUST MANIFOLD

17151

BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152

BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159

BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17167

INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17168

INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17169

INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17171

GASKET, INTAKE TO EXHAUST MANIFOLD

17172

GASKET, MANIFOLD TO CYLINDER HEAD

17203

SHAFT SUB-ASSY, MANIFOLD HEAT CONTROL

17203A

SPRING, COMPRESSION(FOR HEAT CONTROL SHAFT)

17231

VALVE, MANIFOLD HEAT CONTROL

17231B

COIL, HEAT CONTROL VALVE

9010106488

Крепеж

9010110485

Крепеж

9010110486

Крепеж

9011910072

Крепеж

9011912003

Крепеж

9017012211

Крепеж

9020110444

Крепеж

9020112004

Крепеж

9020113020

Крепеж

9038913008

Крепеж

9038913008

Крепеж

9161140812

Крепеж

9161140812

Крепеж

9161161030

Крепеж

9211240855

Крепеж

9451201000

Крепеж
