Европа

Модель

LAND CRUISER

VIN

Дата

1975/01

Двигатель

4,2 литра

Кузов

DECELERATION CONTROL SYSTEM

Фрейм

FJ40

КПП

МКПП, 4 ступени

Опции

правый руль TARPAULIN CANVAS TOP SPECIFICATION C ROLL BAR GENERAL COUNTRIES COMPLETED VEHICLE

Ручной тормоз TOYOTA LAND CRUISER

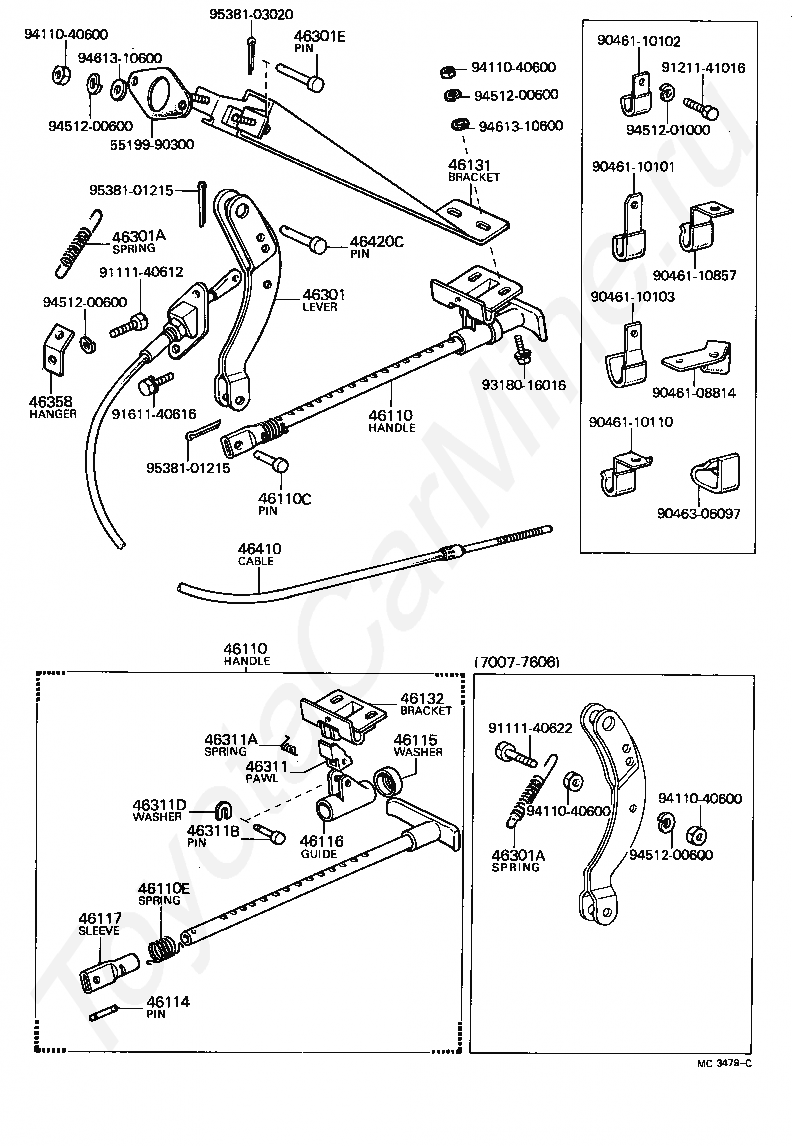

Код

Описание

46110

HANDLE ASSY, PARKING BRAKE CONTROL

46110

HANDLE ASSY, PARKING BRAKE CONTROL

46110C

PIN(FOR PARKING BRAKE HANDLE SET)

46110E

SPRING, TORSION(FOR PARKING BRAKE PLUNGER)

46114

PIN, PARKING BRAKE PLUNGER

46115

WASHER, PARKING BRAKE PLUNGER

46116

GUIDE, PARKING BRAKE PLUNGER

46117

SLEEVE, PARKING BRAKE PLUNGER

46131

BRACKET SUB-ASSY, PARKING BRAKE

46132

BRACKET, PARKING BRAKE PLUNGER, NO.2

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46301E

PIN, W/HOLE(FOR INTERMEDIATE LEVER)

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46311D

WASHER, TYPE C(FOR PARKING BRAKE PAWL)

46358

HANGER, PULL ROD RETURN SPRING

46410

CABLE ASSY, PARKING BRAKE, NO.1

46420C

PIN, W/HOLE(FOR PARKING BRAKE CABLE)

5519990300

Крепеж

9046108814

Крепеж

9046110101

Крепеж

9046110102

Крепеж

9046110103

Крепеж

9046110110

Крепеж

9046110857

Крепеж

9046306097

Крепеж

9111140612

Крепеж

9111140622

Крепеж

9121141016

Крепеж

9161140616

Крепеж

9318016016

Крепеж

9411040600

Крепеж

9411040600

Крепеж

9411040600

Крепеж

9411040600

Крепеж

9451200600

Крепеж

9451200600

Крепеж

9451200600

Крепеж

9451200600

Крепеж

9451201000

Крепеж

9461310600

Крепеж

9461310600

Крепеж

9538101215

Крепеж

9538101215

Крепеж

9538103020

Крепеж

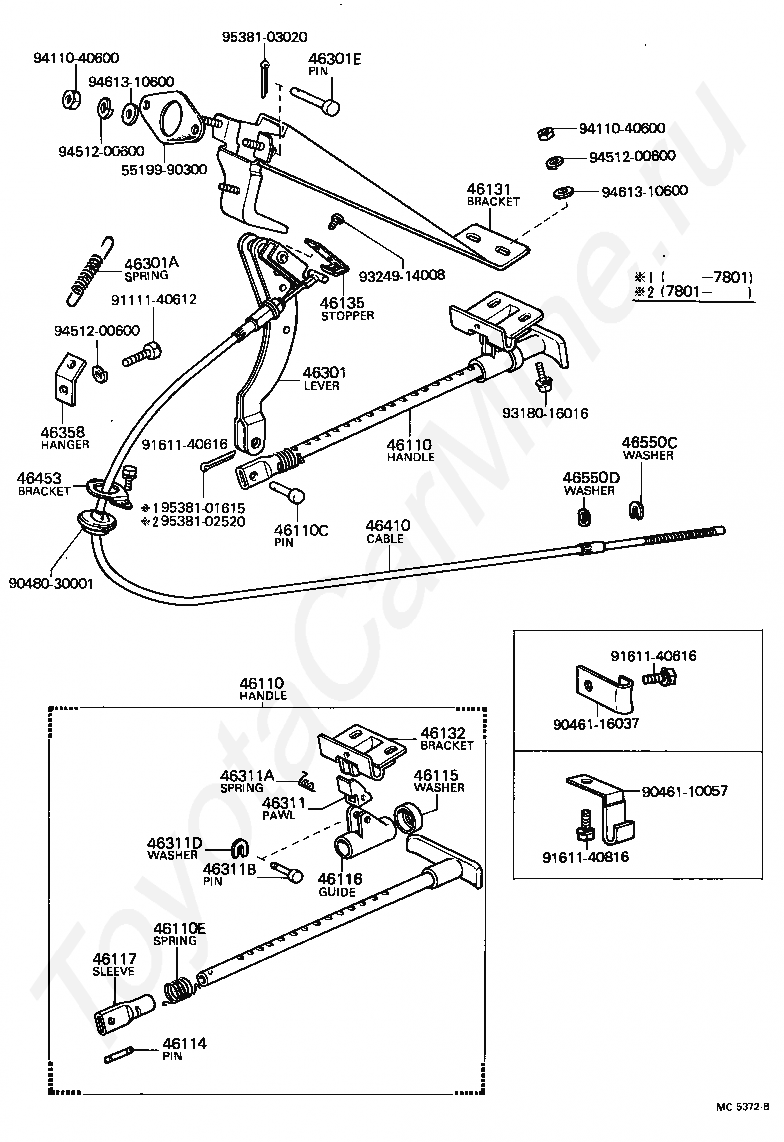

Код

Описание

46110

HANDLE ASSY, PARKING BRAKE CONTROL

46110

HANDLE ASSY, PARKING BRAKE CONTROL

46110C

PIN(FOR PARKING BRAKE HANDLE SET)

46110E

SPRING, TORSION(FOR PARKING BRAKE PLUNGER)

46114

PIN, PARKING BRAKE PLUNGER

46115

WASHER, PARKING BRAKE PLUNGER

46116

GUIDE, PARKING BRAKE PLUNGER

46117

SLEEVE, PARKING BRAKE PLUNGER

46131

BRACKET SUB-ASSY, PARKING BRAKE

46132

BRACKET, PARKING BRAKE PLUNGER, NO.2

46135

STOPPER, PARKING BRAKE CABLE END

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46301E

PIN, W/HOLE(FOR INTERMEDIATE LEVER)

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46311D

WASHER, TYPE C(FOR PARKING BRAKE PAWL)

46358

HANGER, PULL ROD RETURN SPRING

46410

CABLE ASSY, PARKING BRAKE, NO.1

46453

BRACKET, HOLDER

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550D

WASHER, WAVE(FOR PARKING BRAKE SHOE)

5519990300

Крепеж

9046110057

Крепеж

9046116037

Крепеж

9048030001

Крепеж

9111140612

Крепеж

9161140616

Крепеж

9161140616

Крепеж

9161140816

Крепеж

9318016016

Крепеж

9324914008

Крепеж

9411040600

Крепеж

9411040600

Крепеж

9451200600

Крепеж

9451200600

Крепеж

9451200600

Крепеж

9461310600

Крепеж

9461310600

Крепеж

9538101615

Крепеж

9538102520

Крепеж

9538103020

Крепеж

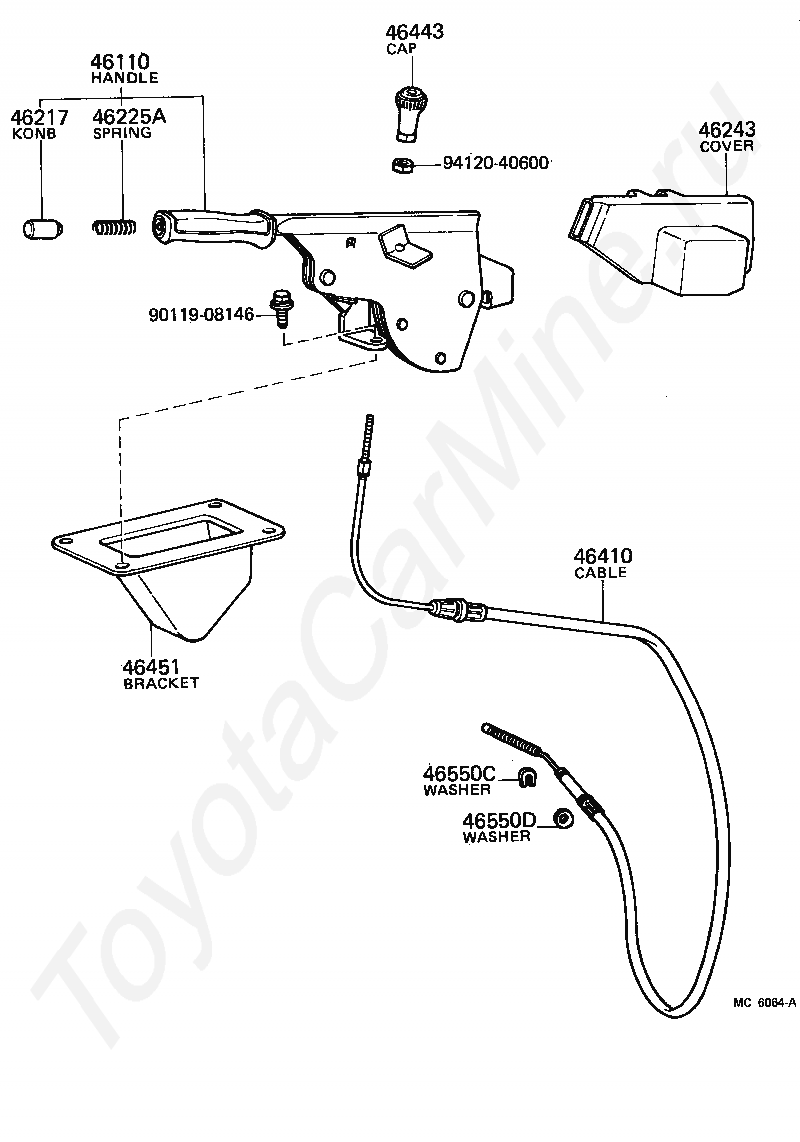

Код

Описание

46110

HANDLE ASSY, PARKING BRAKE CONTROL

46217

KNOB, PARKING BRAKE RELEASE ROD

46225A

SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

46243

COVER, PARKING BRAKE LEVER

46410

CABLE ASSY, PARKING BRAKE, NO.1

46443

CAP, CABLE ADJUSTING

46451

BRACKET, CABLE SUPPORT

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550D

WASHER, WAVE(FOR PARKING BRAKE SHOE)

9011908146

Крепеж

9412040600

Крепеж

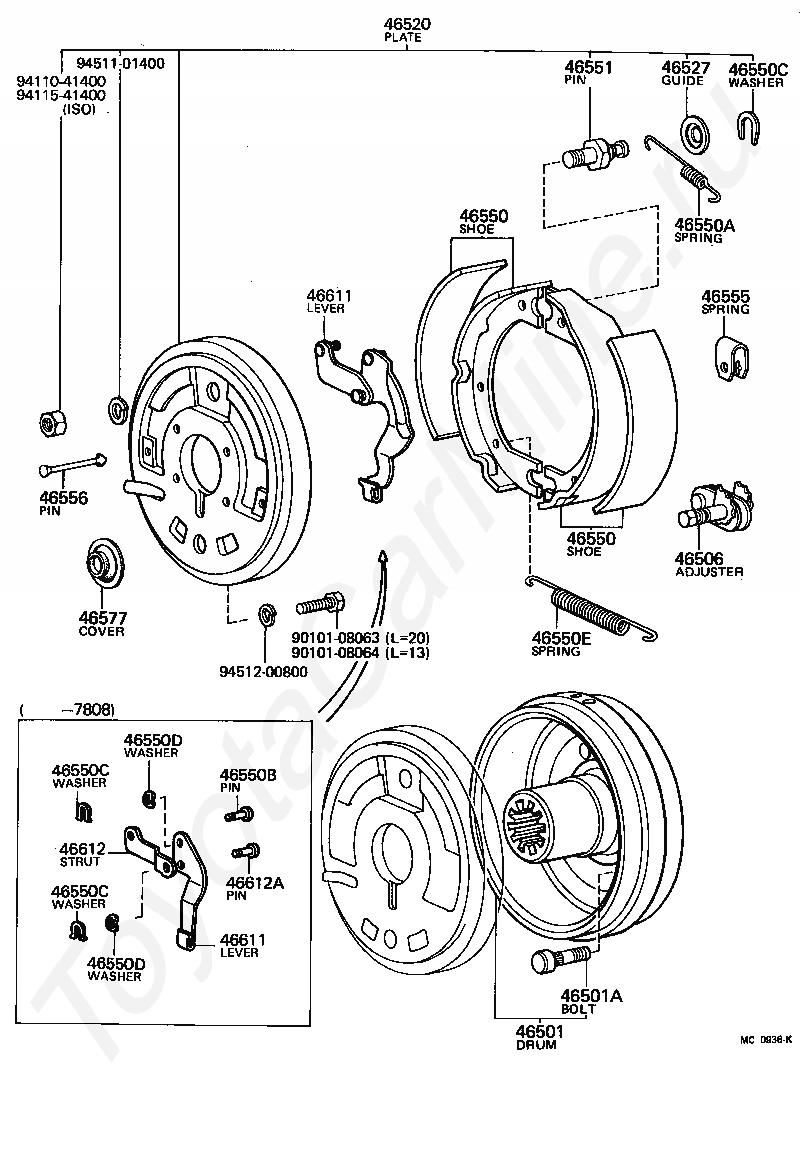

Код

Описание

46501

DRUM SUB-ASSY, PARKING BRAKE

46501A

BOLT, SERRATION(FOR PARKING BRAKE DRUM)

46506

ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER

46520

PLATE SUB-ASSY, PARKING BRAKE

46527

GUIDE, SHOE(FOR PARKING BRAKE)

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550B

PIN(FOR PARKING BRAKE SHOE)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550D

WASHER, WAVE(FOR PARKING BRAKE SHOE)

46550D

WASHER, WAVE(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46551

PIN, ANCHOR(FOR PARKING BRAKE)

46555

SPRING, BRAKE SHOE HOLD DOWN

46556

PIN, SHOE HOLD DOWN SPRING

46577

COVER, ADJUSTING CAM HOLE

46611

LEVER, PARKING BRAKE SHOE, RH OR CENTER

46611

LEVER, PARKING BRAKE SHOE, RH OR CENTER

46612

STRUT, PARKING BRAKE SHOE LEVER

46612A

PIN(FOR PARKING BRAKE SHOE LEVER STRUT)

9010108063

Крепеж

9010108064

Крепеж

9411041400

Крепеж

9411541400

Крепеж

9451101400

Крепеж

9451200800

Крепеж

Ручной тормоз TOYOTA LAND CRUISER
