Европа

Модель

LAND CRUISER

VIN

Дата

1975/01

Двигатель

4,2 литра

Кузов

DECELERATION CONTROL SYSTEM

Фрейм

FJ40

КПП

МКПП, 4 ступени

Опции

правый руль TARPAULIN CANVAS TOP SPECIFICATION C ROLL BAR GENERAL COUNTRIES COMPLETED VEHICLE

Масляный насос TOYOTA LAND CRUISER

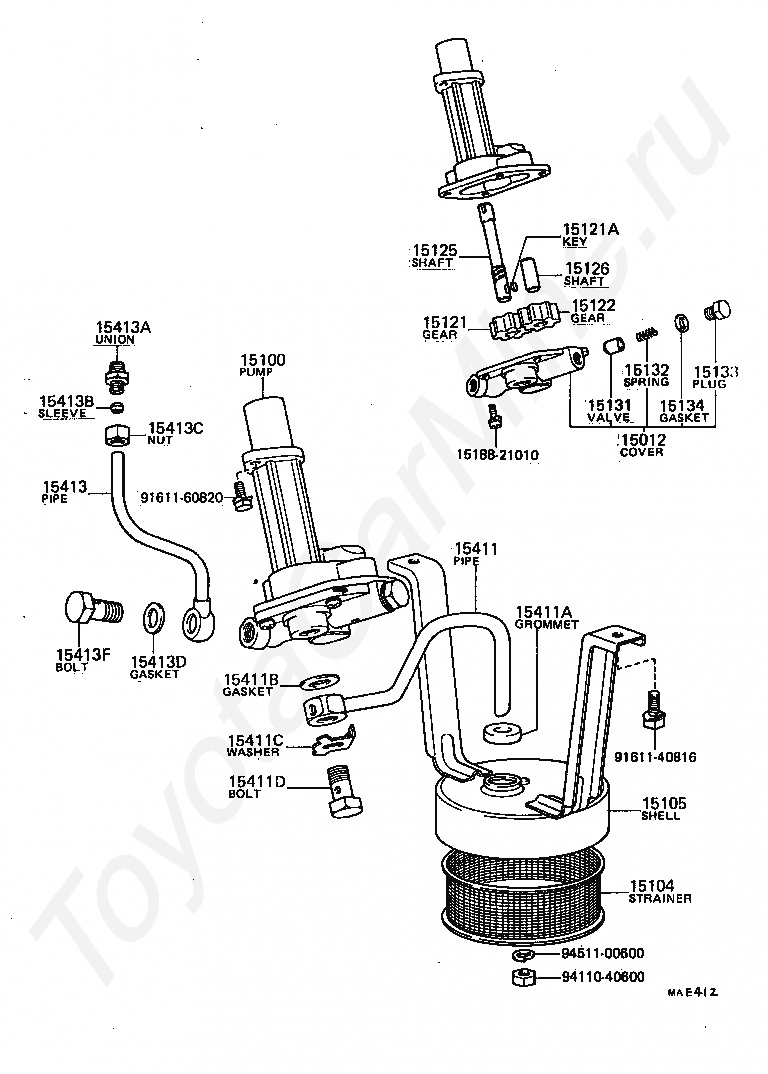

Код

Описание

15012

COVER SUB-ASSY, OIL PUMP

15100

PUMP ASSY, OIL

15104

STRAINER SUB-ASSY, OIL

15105

SHELL SUB-ASSY, OIL STRAINER

15121

GEAR, OIL PUMP DRIVE

15121A

KEY, OIL PUMP DRIVE SHAFT

15122

GEAR, OIL PUMP DRIVEN

15125

SHAFT, OIL PUMP

15126

SHAFT, OIL PUMP DRIVEN

15131

VALVE, OIL PUMP RELIEF

15132

SPRING, OIL PUMP RELIEF VALVE

15133

PLUG, OIL PUMP RELIEF VALVE

15134

GASKET, OIL PUMP RELIEF VALVE

1518821010

Крепеж

15411

PIPE, OIL PUMP INLET

15411A

GROMMET(FOR OIL PUMP INLET PIPE)

15411B

GASKET OR RING, O(FOR OIL PUMP INLET PIPE)

15411C

WASHER, LOCK(FOR OIL PUMP INLET PIPE)

15411D

BOLT, UNION(FOR OIL PUMP INLET PIPE)

15413

PIPE, OIL PUMP OUTLET

15413A

UNION(FOR OIL PUMP OUTLET PIPE)

15413B

SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

15413C

NUT, UNION(FOR OIL PUMP OUTLET PIPE)

15413D

GASKET(FOR OIL PUMP OUTLET PIPE)

15413F

BOLT, UNION(FOR OIL PUMP OUTLET PIPE)

9161140816

Крепеж

9161160820

Крепеж

9411040600

Крепеж

9451100600

Крепеж

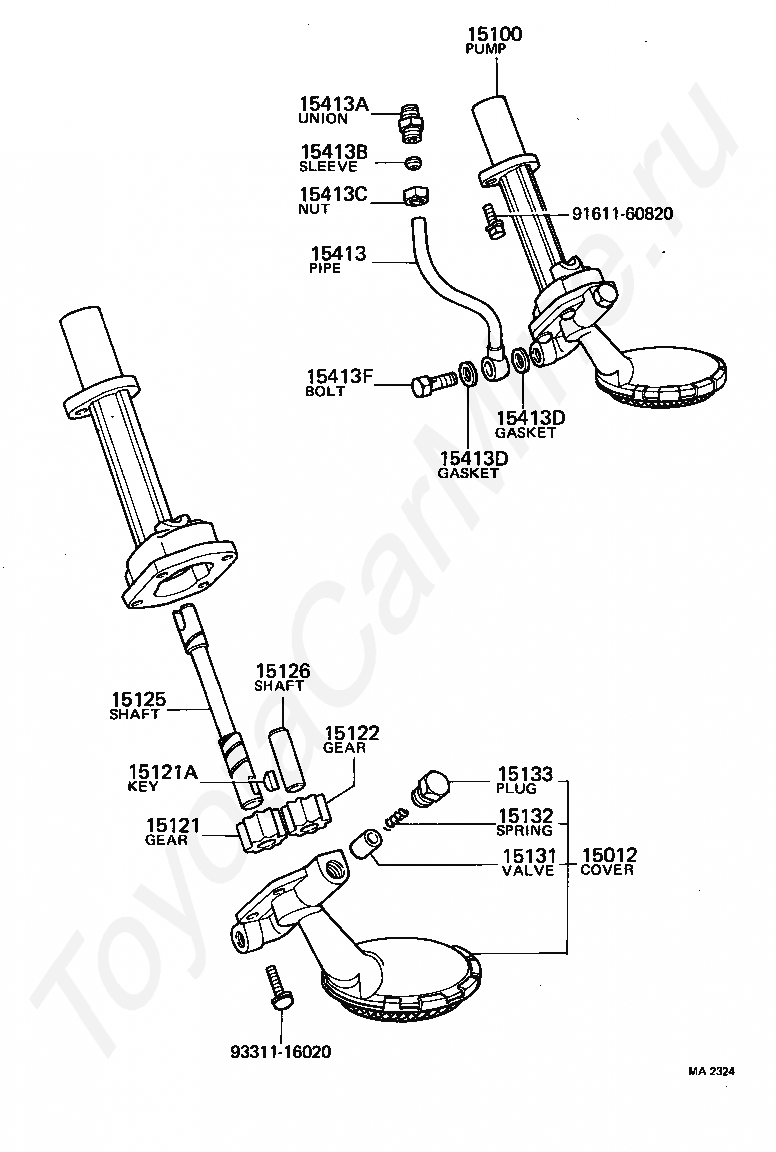

Код

Описание

15012

COVER SUB-ASSY, OIL PUMP

15100

PUMP ASSY, OIL

15121

GEAR, OIL PUMP DRIVE

15121A

KEY, OIL PUMP DRIVE SHAFT

15122

GEAR, OIL PUMP DRIVEN

15125

SHAFT, OIL PUMP

15126

SHAFT, OIL PUMP DRIVEN

15131

VALVE, OIL PUMP RELIEF

15132

SPRING, OIL PUMP RELIEF VALVE

15133

PLUG, OIL PUMP RELIEF VALVE

15413

PIPE, OIL PUMP OUTLET

15413A

UNION(FOR OIL PUMP OUTLET PIPE)

15413B

SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

15413C

NUT, UNION(FOR OIL PUMP OUTLET PIPE)

15413D

GASKET(FOR OIL PUMP OUTLET PIPE)

15413D

GASKET(FOR OIL PUMP OUTLET PIPE)

15413F

BOLT, UNION(FOR OIL PUMP OUTLET PIPE)

9161160820

Крепеж

9331116020

Крепеж
