Европа

Модель

LAND CRUISER

VIN

Дата

1972/04

Двигатель

3900CC:F TYPE

Кузов

V(MODEL MARK)

Фрейм

FJ40

Опции

левый руль VAN WITH DOUBLE-LEAFED HINGED DOOR WITHOUT ROLL BAR GENERAL COUNTRIES COMPLETED VEHICLE

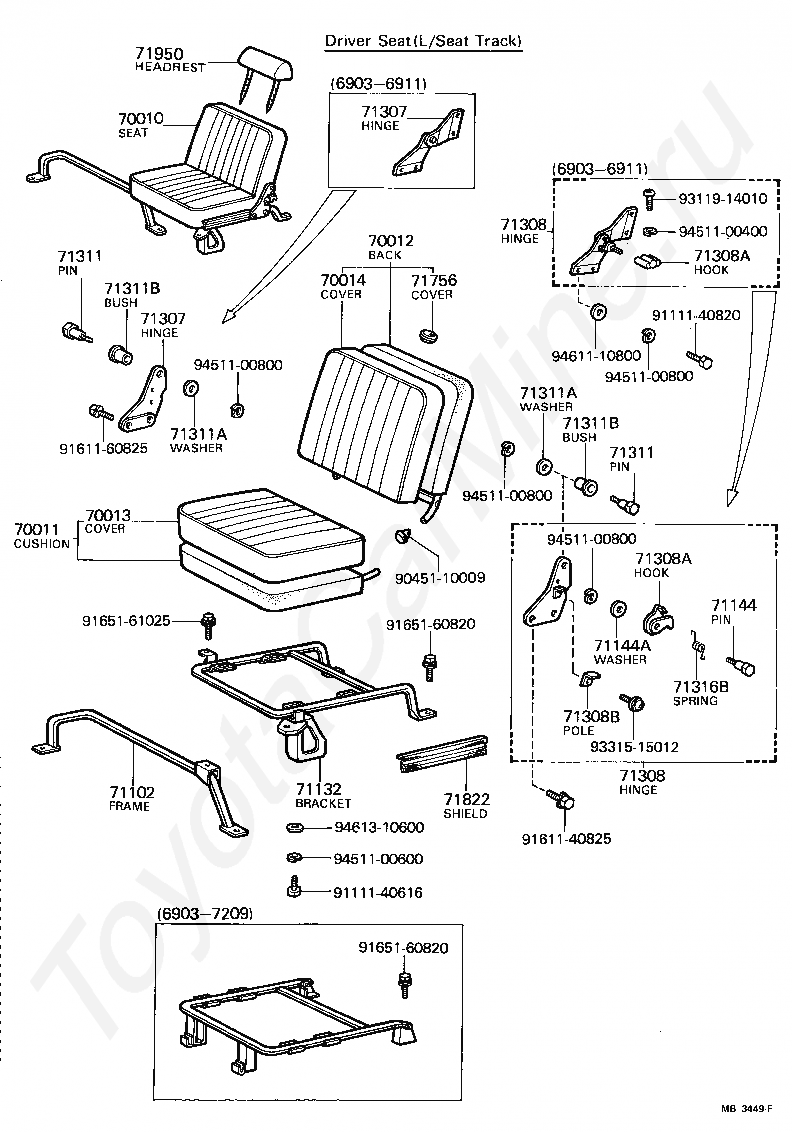

Кресла TOYOTA LAND CRUISER







Код

Описание

70010

SEAT ASSY, NO.1

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

71102

FRAME SUB-ASSY, FRONT SEAT SET INNER

71132

BRACKET, FRONT SEAT SET, OUTER LH

71144

PIN, SEAT HINGE HOOK

71144A

WASHER, PLATE (FOR SEAT HINGE HOOK PIN)

71307

HINGE SUB-ASSY, DRIVER SEAT, RH

71307

HINGE SUB-ASSY, DRIVER SEAT, RH

71308

HINGE SUB-ASSY, DRIVER SEAT, LH

71308

HINGE SUB-ASSY, DRIVER SEAT, LH

71308A

HOOK, DRIVER SEAT HINGE, LH

71308A

HOOK, DRIVER SEAT HINGE, LH

71308B

POLE, DRIVER SEAT HINGE HOOK, LH

71311

PIN, FRONT SEAT HINGE

71311

PIN, FRONT SEAT HINGE

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71316B

SPRING, TORSION, NO.2

71756

COVER, AIR HOLE

71822

SHIELD, FRONT SEAT SIDE, LH

71950

HEADREST ASSY, FRONT SEAT

9045110009

Крепеж

9111140616

Крепеж

9111140820

Крепеж

9161140825

Крепеж

9161160825

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165161025

Крепеж

9311914010

Крепеж

9331515012

Крепеж

9451100400

Крепеж

9451100600

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9461110800

Крепеж

9461310600

Крепеж

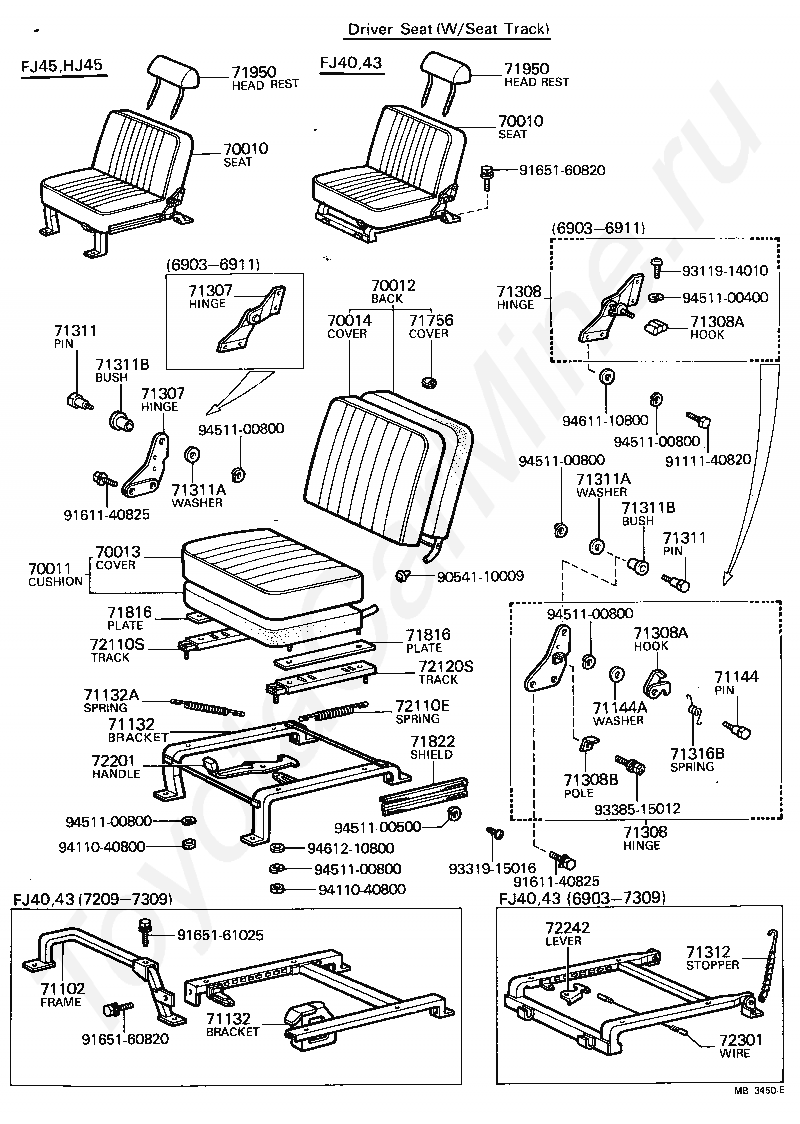

Код

Описание

70010

SEAT ASSY, NO.1

70010

SEAT ASSY, NO.1

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

71102

FRAME SUB-ASSY, FRONT SEAT SET INNER

71132

BRACKET, FRONT SEAT SET, OUTER LH

71132

BRACKET, FRONT SEAT SET, OUTER LH

71132A

SPRING, TENSION (FOR SEAT TRACK)

71144

PIN, SEAT HINGE HOOK

71144A

WASHER, PLATE (FOR SEAT HINGE HOOK PIN)

71307

HINGE SUB-ASSY, DRIVER SEAT, RH

71307

HINGE SUB-ASSY, DRIVER SEAT, RH

71308

HINGE SUB-ASSY, DRIVER SEAT, LH

71308

HINGE SUB-ASSY, DRIVER SEAT, LH

71308A

HOOK, DRIVER SEAT HINGE, LH

71308A

HOOK, DRIVER SEAT HINGE, LH

71308B

POLE, DRIVER SEAT HINGE HOOK, LH

71311

PIN, FRONT SEAT HINGE

71311

PIN, FRONT SEAT HINGE

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71312

STOPPER SUB-ASSY, SEAT HINGE SHAFT

71316B

SPRING, TORSION, NO.2

71756

COVER, AIR HOLE

71816

PLATE, DRIVER SEAT LEATHER SET

71816

PLATE, DRIVER SEAT LEATHER SET

71822

SHIELD, FRONT SEAT SIDE, LH

71950

HEADREST ASSY, FRONT SEAT

71950

HEADREST ASSY, FRONT SEAT

72110E

SPRING, TENSION, NO.1 (FOR SEAT TRACK)

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72201

HANDLE SUB-ASSY, SEAT TRACK

72242

LEVER, SEAT TRACK LOCK OPEN

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

9054110009

Крепеж

9111140820

Крепеж

9161140825

Крепеж

9161140825

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165161025

Крепеж

9311914010

Крепеж

9331915016

Крепеж

9338515012

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9451100400

Крепеж

9451100500

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9461110800

Крепеж

9461210800

Крепеж

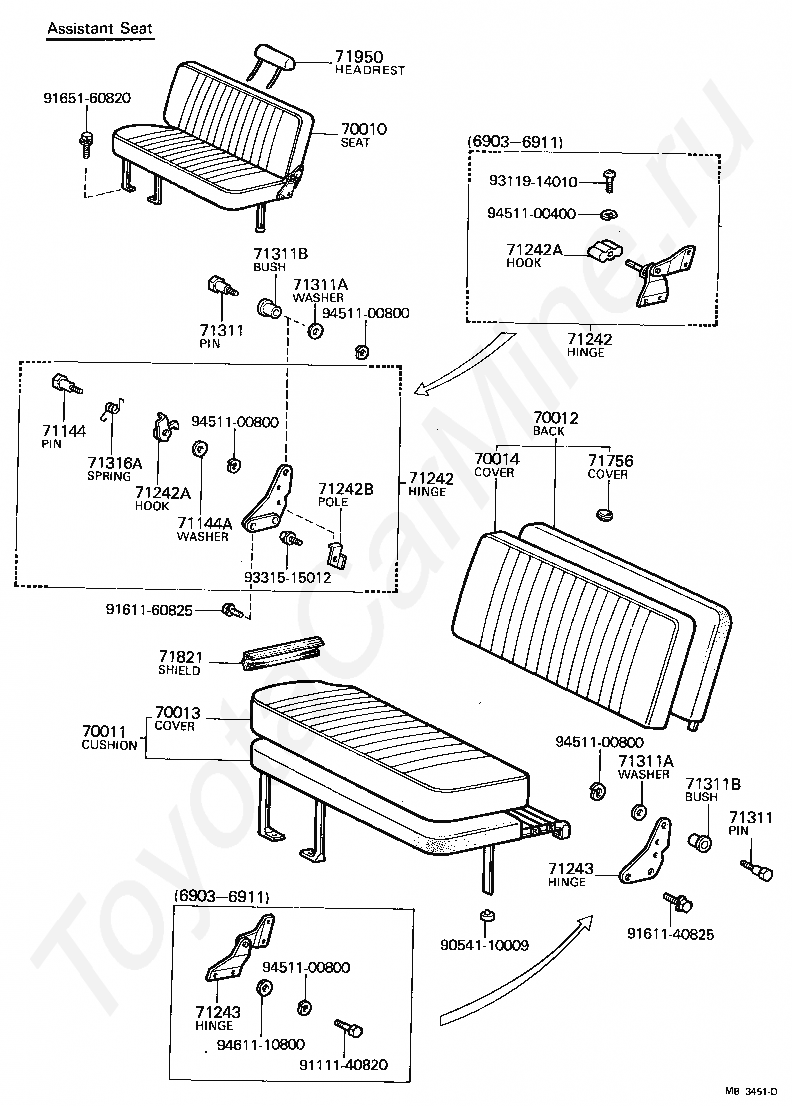

Код

Описание

70010

SEAT ASSY, NO.1

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

71144

PIN, SEAT HINGE HOOK

71144A

WASHER, PLATE (FOR SEAT HINGE HOOK PIN)

71242

HINGE, PASSENGER SEAT BACK, RH

71242

HINGE, PASSENGER SEAT BACK, RH

71242A

HOOK, PASSENGER SEAT HINGE, RH

71242A

HOOK, PASSENGER SEAT HINGE, RH

71242B

POLE, PASSENGER SEAT HINGE HOOK, RH

71243

HINGE, PASSENGER SEAT BACK, LH

71243

HINGE, PASSENGER SEAT BACK, LH

71311

PIN, FRONT SEAT HINGE

71311

PIN, FRONT SEAT HINGE

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71316A

SPRING, TORSION, NO.1

71756

COVER, AIR HOLE

71821

SHIELD, FRONT SEAT SIDE, RH

71950

HEADREST ASSY, FRONT SEAT

9054110009

Крепеж

9111140820

Крепеж

9161140825

Крепеж

9161160825

Крепеж

9165160820

Крепеж

9311914010

Крепеж

9331515012

Крепеж

9451100400

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9461110800

Крепеж

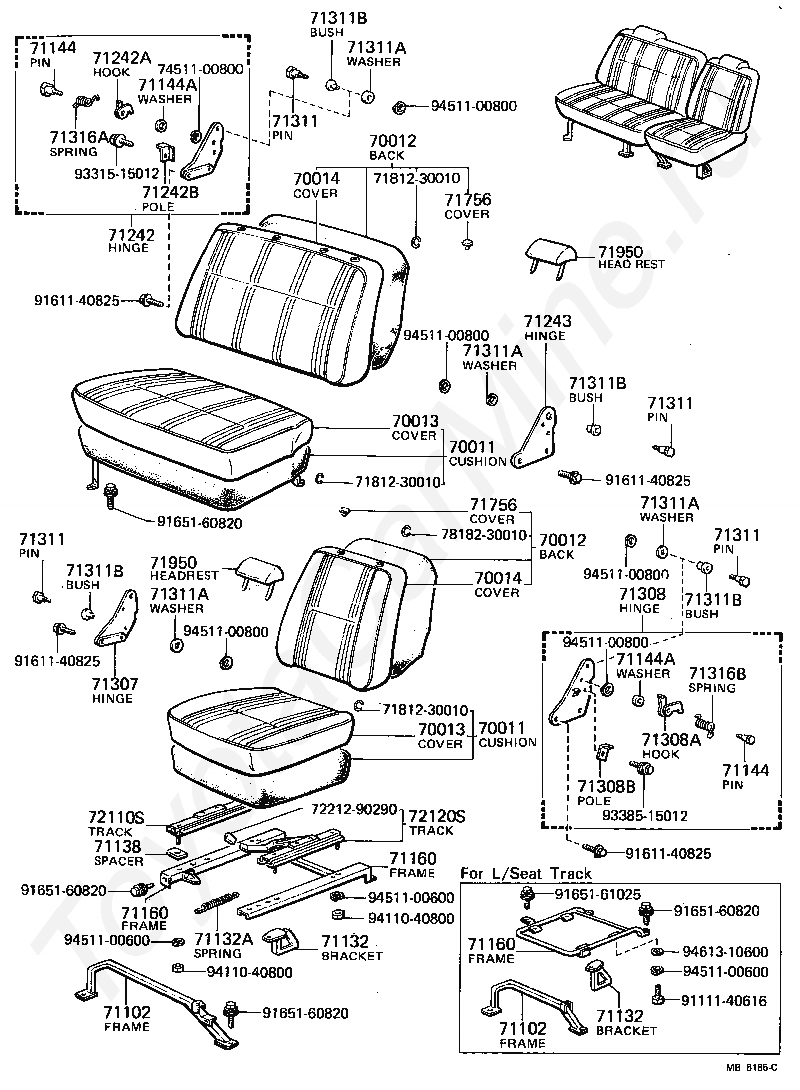

Код

Описание

70011

CUSHION ASSY, NO.1 SEAT

70011

CUSHION ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70012

BACK ASSY, NO.1 SEAT

70013

COVER ASSY, NO.1 SEAT CUSHION

70013

COVER ASSY, NO.1 SEAT CUSHION

70014

COVER ASSY, NO.1 SEAT BACK

70014

COVER ASSY, NO.1 SEAT BACK

71102

FRAME SUB-ASSY, FRONT SEAT SET INNER

71102

FRAME SUB-ASSY, FRONT SEAT SET INNER

71132

BRACKET, FRONT SEAT SET, OUTER LH

71132

BRACKET, FRONT SEAT SET, OUTER LH

71132A

SPRING, TENSION (FOR SEAT TRACK)

71138

SPACER, FRONT SEAT SET

71144

PIN, SEAT HINGE HOOK

71144

PIN, SEAT HINGE HOOK

71144A

WASHER, PLATE (FOR SEAT HINGE HOOK PIN)

71144A

WASHER, PLATE (FOR SEAT HINGE HOOK PIN)

71160

FRAME ASSY, DRIVER SEAT

71160

FRAME ASSY, DRIVER SEAT

71160

FRAME ASSY, DRIVER SEAT

71242

HINGE, PASSENGER SEAT BACK, RH

71242A

HOOK, PASSENGER SEAT HINGE, RH

71242B

POLE, PASSENGER SEAT HINGE HOOK, RH

71243

HINGE, PASSENGER SEAT BACK, LH

71307

HINGE SUB-ASSY, DRIVER SEAT, RH

71308

HINGE SUB-ASSY, DRIVER SEAT, LH

71308A

HOOK, DRIVER SEAT HINGE, LH

71308B

POLE, DRIVER SEAT HINGE HOOK, LH

71311

PIN, FRONT SEAT HINGE

71311

PIN, FRONT SEAT HINGE

71311

PIN, FRONT SEAT HINGE

71311

PIN, FRONT SEAT HINGE

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71316A

SPRING, TORSION, NO.1

71316B

SPRING, TORSION, NO.2

71756

COVER, AIR HOLE

71756

COVER, AIR HOLE

7181230010

Крепеж

7181230010

Крепеж

7181230010

Крепеж

71950

HEADREST ASSY, FRONT SEAT

71950

HEADREST ASSY, FRONT SEAT

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

7221290290

Крепеж

7451100800

Крепеж

7818230010

Крепеж

9111140616

Крепеж

9161140825

Крепеж

9161140825

Крепеж

9161140825

Крепеж

9161140825

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165161025

Крепеж

9331515012

Крепеж

9338515012

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9451100600

Крепеж

9451100600

Крепеж

9451100600

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9461310600

Крепеж

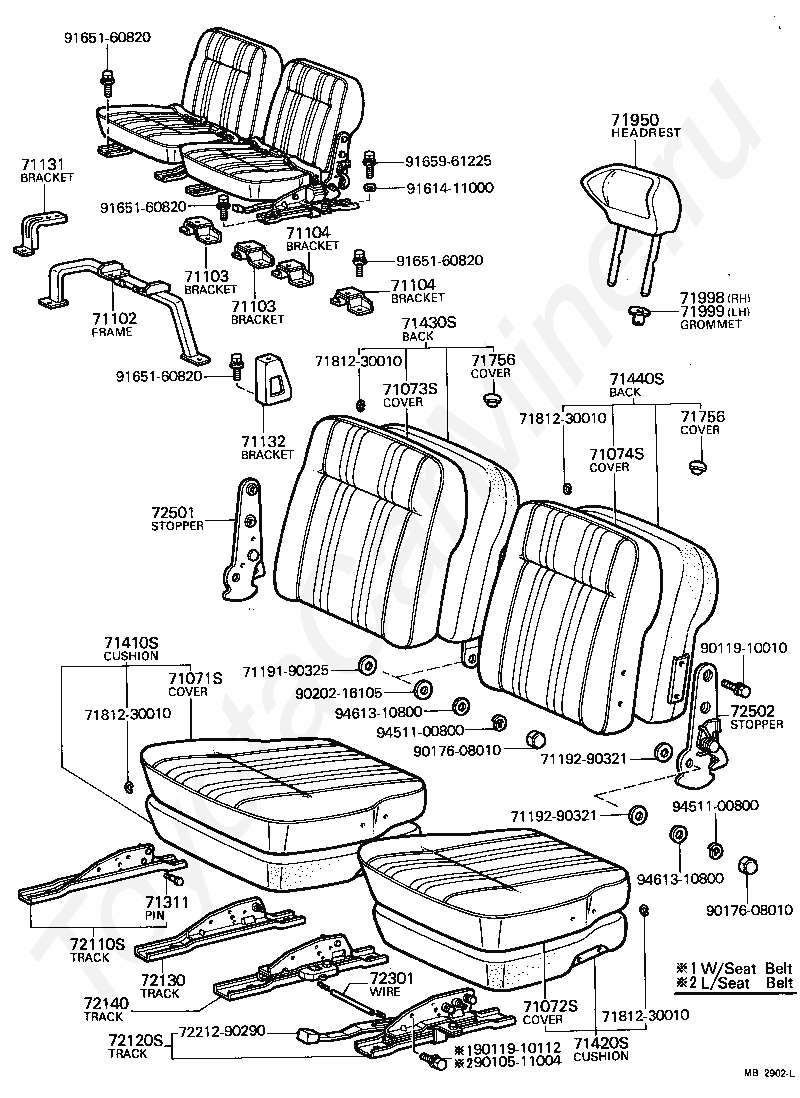

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71102

FRAME SUB-ASSY, FRONT SEAT SET INNER

71103

BRACKET SUB-ASSY, FRONT SEAT, REAR, RH

71103

BRACKET SUB-ASSY, FRONT SEAT, REAR, RH

71104

BRACKET SUB-ASSY, FRONT SEAT, REAR, LH

71104

BRACKET SUB-ASSY, FRONT SEAT, REAR, LH

71131

BRACKET, FRONT SEAT SET, OUTER RH

71132

BRACKET, FRONT SEAT SET, OUTER LH

7119190325

Крепеж

7119290321

Крепеж

7119290321

Крепеж

71311

PIN, FRONT SEAT HINGE

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71756

COVER, AIR HOLE

71756

COVER, AIR HOLE

7181230010

Крепеж

7181230010

Крепеж

7181230010

Крепеж

7181230010

Крепеж

71950

HEADREST ASSY, FRONT SEAT

71998

GROMMET, FRONT SEAT HEADREST, RH

71999

GROMMET, FRONT SEAT HEADREST, LH

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72130

TRACK ASSY, RH SEAT, INNER

72140

TRACK ASSY, LH SEAT, INNER

7221290290

Крепеж

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72501

STOPPER ASSY, FRONT SEAT BACK, RH

72502

STOPPER ASSY, FRONT SEAT BACK, LH

9010511004

Крепеж

9011910010

Крепеж

9011910112

Крепеж

9017608010

Крепеж

9017608010

Крепеж

9020216105

Крепеж

9161411000

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165961225

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9461310800

Крепеж

9461310800

Крепеж

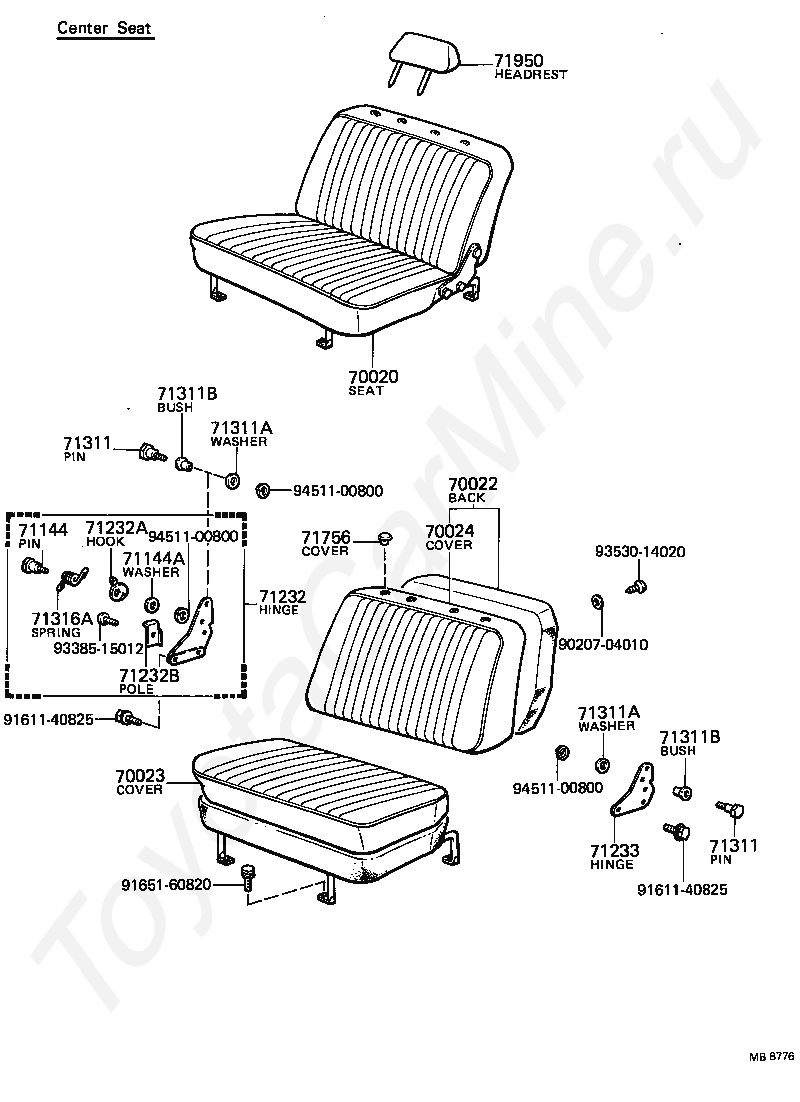

Код

Описание

70020

SEAT ASSY, NO.2

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

71144

PIN, SEAT HINGE HOOK

71144A

WASHER, PLATE (FOR SEAT HINGE HOOK PIN)

71232

HINGE, REAR SEAT BACK FRAME, RH

71232A

HOOK SUB-ASSY, REAR SEAT HINGE, RH

71232B

POLE, REAR SEAT HINGE HOOK, RH

71233

HINGE, REAR SEAT BACK FRAME, LH

71311

PIN, FRONT SEAT HINGE

71311

PIN, FRONT SEAT HINGE

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311A

WASHER, PLATE (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71316A

SPRING, TORSION, NO.1

71756

COVER, AIR HOLE

71950

HEADREST ASSY, FRONT SEAT

9020704010

Крепеж

9161140825

Крепеж

9161140825

Крепеж

9165160820

Крепеж

9338515012

Крепеж

9353014020

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

Код

Описание

70020

SEAT ASSY, NO.2

70021

CUSHION ASSY, NO.2 SEAT

70021

CUSHION ASSY, NO.2 SEAT

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

70024

COVER ASSY, NO.2 SEAT BACK

71609

BAND SUB-ASSY, REAR SIDE SEAT

71609

BAND SUB-ASSY, REAR SIDE SEAT

71609

BAND SUB-ASSY, REAR SIDE SEAT

71609

BAND SUB-ASSY, REAR SIDE SEAT

71609A

FASTENER, REAR SIDE SEAT BAND

71609A

FASTENER, REAR SIDE SEAT BAND

71844

RUBBER, REAR SEAT CUSHION BASE

72532

HOOK, PASSENGER SEAT CUSHION STOP

72532

HOOK, PASSENGER SEAT CUSHION STOP

9016740011

Крепеж

9020704010

Крепеж

9111140620

Крепеж

9165140820

Крепеж

9165140820

Крепеж

9165640820

Крепеж

9165640820

Крепеж

9165640820

Крепеж

9321915030

Крепеж

9331515012

Крепеж

9331515012

Крепеж

9331515012

Крепеж

9331515012

Крепеж

9353014020

Крепеж

9411040600

Крепеж

9411540500

Крепеж

9451200500

Крепеж

9451200600

Крепеж

9461210500

Крепеж

9461310600

Крепеж

> Запчасти CRUISER > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
