Европа

Модель

LAND CRUISER

VIN

Дата

1972/04

Двигатель

3900CC:F TYPE

Кузов

V(MODEL MARK)

Фрейм

FJ40

Опции

левый руль VAN WITH DOUBLE-LEAFED HINGED DOOR WITHOUT ROLL BAR GENERAL COUNTRIES COMPLETED VEHICLE

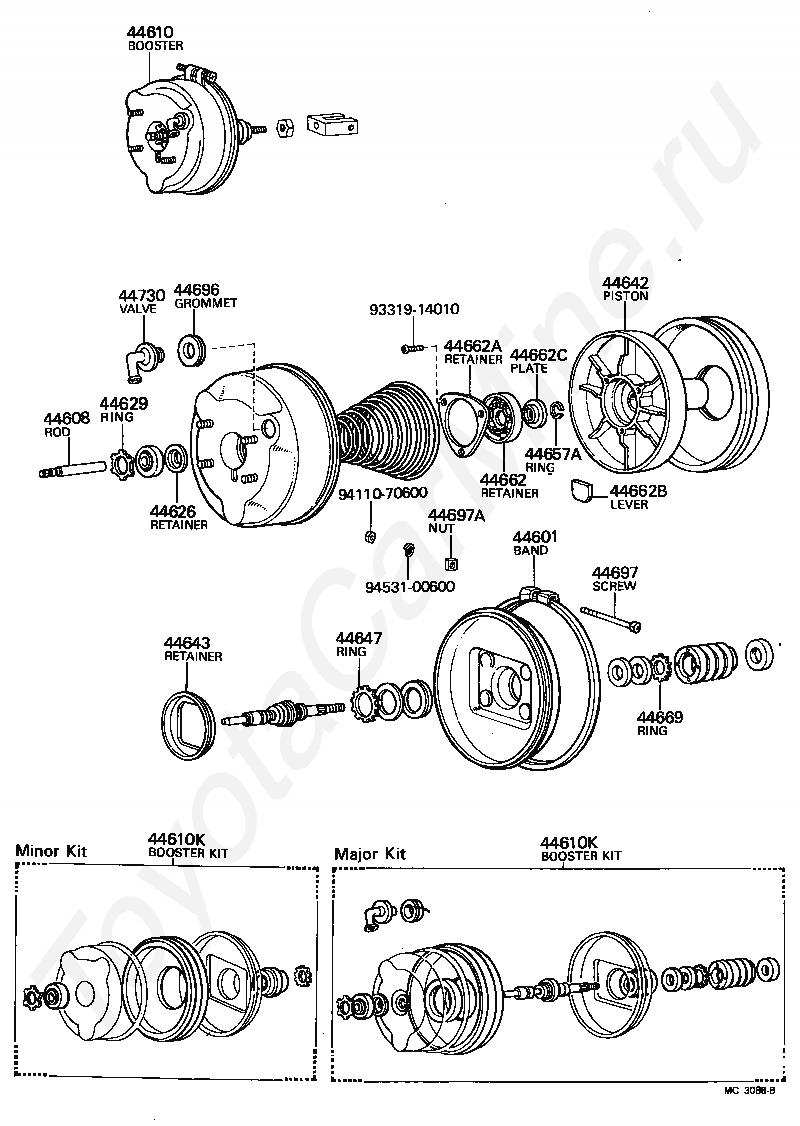

Вакуумный тормозной цилиндр TOYOTA LAND CRUISER

Код

Описание

44601

BAND SUB-ASSY, BOOSTER BODY

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44610K

BOOSTER KIT, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662A

RETAINER, REACTION, NO.2

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44696

GROMMET, CHECK VALVE

44697

SCREW, BOOSTER BAND SET

44697A

NUT(FOR BOOSTER BAND SET)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

9331914010

Крепеж

9411070600

Крепеж

9453100600

Крепеж

Код

Описание

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730F
