Европа

Модель

LAND CRUISER

VIN

Дата

1972/04

Двигатель

3900CC:F TYPE

Кузов

V(MODEL MARK)

Фрейм

FJ40

Опции

левый руль VAN WITH DOUBLE-LEAFED HINGED DOOR WITHOUT ROLL BAR GENERAL COUNTRIES COMPLETED VEHICLE

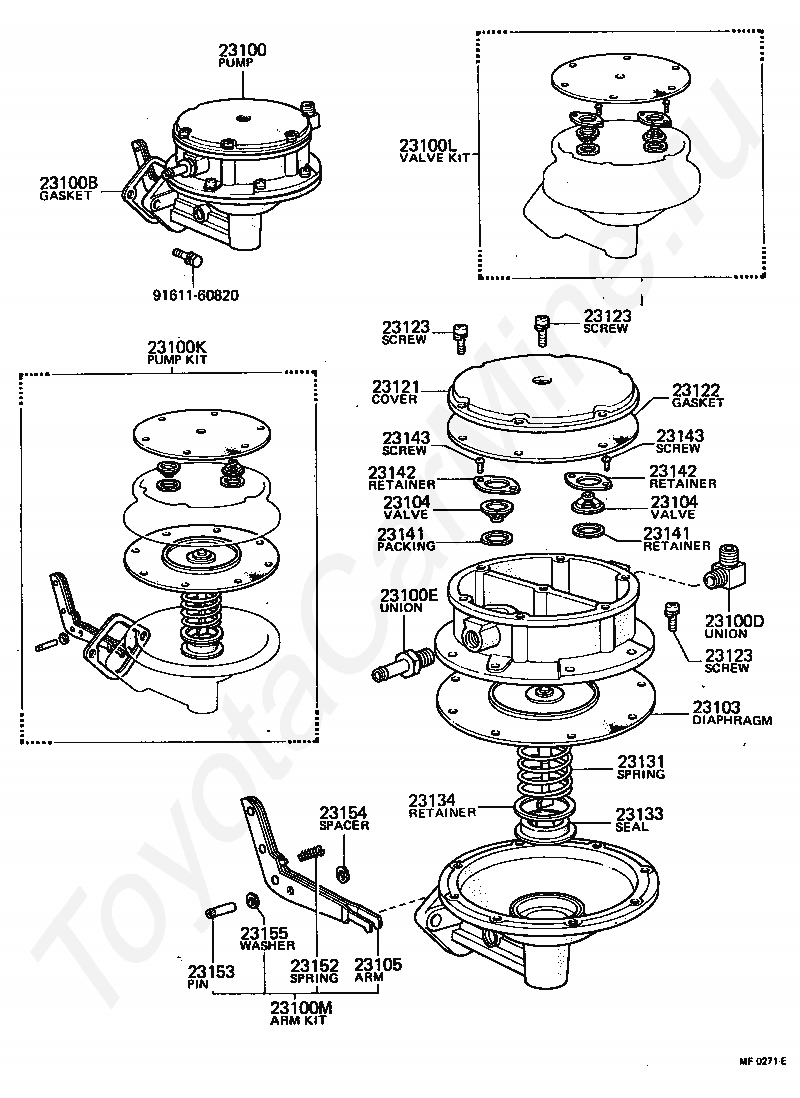

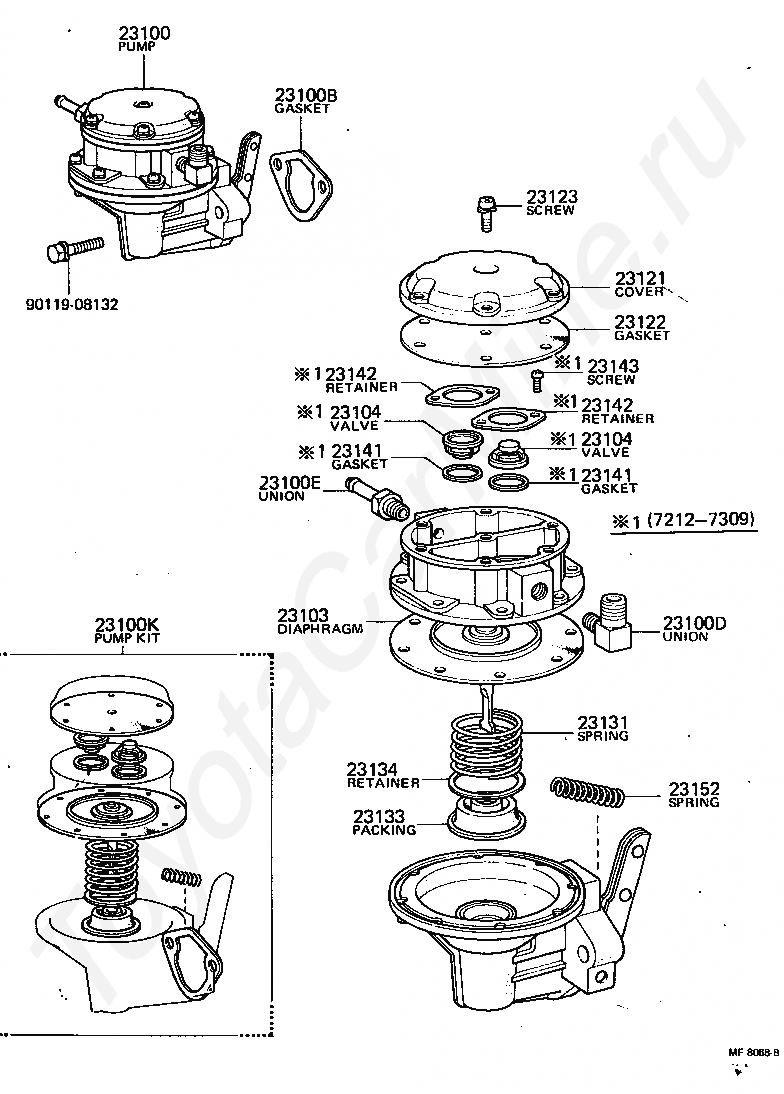

Топливная помпа TOYOTA LAND CRUISER

Код

Описание

23100

PUMP ASSY, FUEL

23100B

GASKET, FUEL PUMP

23100D

UNION, NIPPLE(FOR FUEL OUTLET)

23100E

UNION, NIPPLE(FOR FUEL INLET)

23100K

PUMP KIT, FUEL

23100L

VALVE KIT, FUEL PUMP

23100M

ARM KIT, FUEL PUMP ROCKER

23103

DIAPHRAGM SUB-ASSY

23104

VALVE SUB-ASSY

23104

VALVE SUB-ASSY

23105

ARM SUB-ASSY, ROCKER

23121

COVER, FUEL PUMP

23122

GASKET, FUEL PUMP COVER

23123

SCREW, COVER SET, NO.1

23123

SCREW, COVER SET, NO.1

23123

SCREW, COVER SET, NO.1

23131

SPRING, DIAPHRAGM(FOR FUEL PUMP)

23133

PACKING, OIL SEAL(FOR FUEL PUMP)

23134

RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)

23141

PACKING, VALVE

23141

PACKING, VALVE

23142

RETAINER, VALVE

23142

RETAINER, VALVE

23143

SCREW, VALVE RETAINER SET

23143

SCREW, VALVE RETAINER SET

23152

SPRING, ROCKER ARM

23153

PIN, ROCKER ARM

23154

SPACER, ROCKER ARM

23155

WASHER, ROCKER ARM PIN

9161160820

Крепеж

Код

Описание

23100

PUMP ASSY, FUEL

23100B

GASKET, FUEL PUMP

23100D

UNION, NIPPLE(FOR FUEL OUTLET)

23100E

UNION, NIPPLE(FOR FUEL INLET)

23100K

PUMP KIT, FUEL

23103

DIAPHRAGM SUB-ASSY

23104

VALVE SUB-ASSY

23104

VALVE SUB-ASSY

23121

COVER, FUEL PUMP

23122

GASKET, FUEL PUMP COVER

23123

SCREW, COVER SET, NO.1

23131

SPRING, DIAPHRAGM(FOR FUEL PUMP)

23133

PACKING, OIL SEAL(FOR FUEL PUMP)

23134

RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)

23141

PACKING, VALVE

23141

PACKING, VALVE

23142

RETAINER, VALVE

23142

RETAINER, VALVE

23143

SCREW, VALVE RETAINER SET

23152

SPRING, ROCKER ARM

9011908132

Крепеж

Топливная помпа TOYOTA LAND CRUISER
