Европа

Модель

LAND CRUISER

VIN

Дата

1986/08

Двигатель

3,4 литра, турбо-дизель

Кузов

HARD TOP SERIES

Класс

LX SPECIFICATION

Фрейм

BJ71

Опции

левый руль TURBO DIESEL COMPLETED VEHICLE

Реле и кнопки TOYOTA LAND CRUISER

Код

Описание

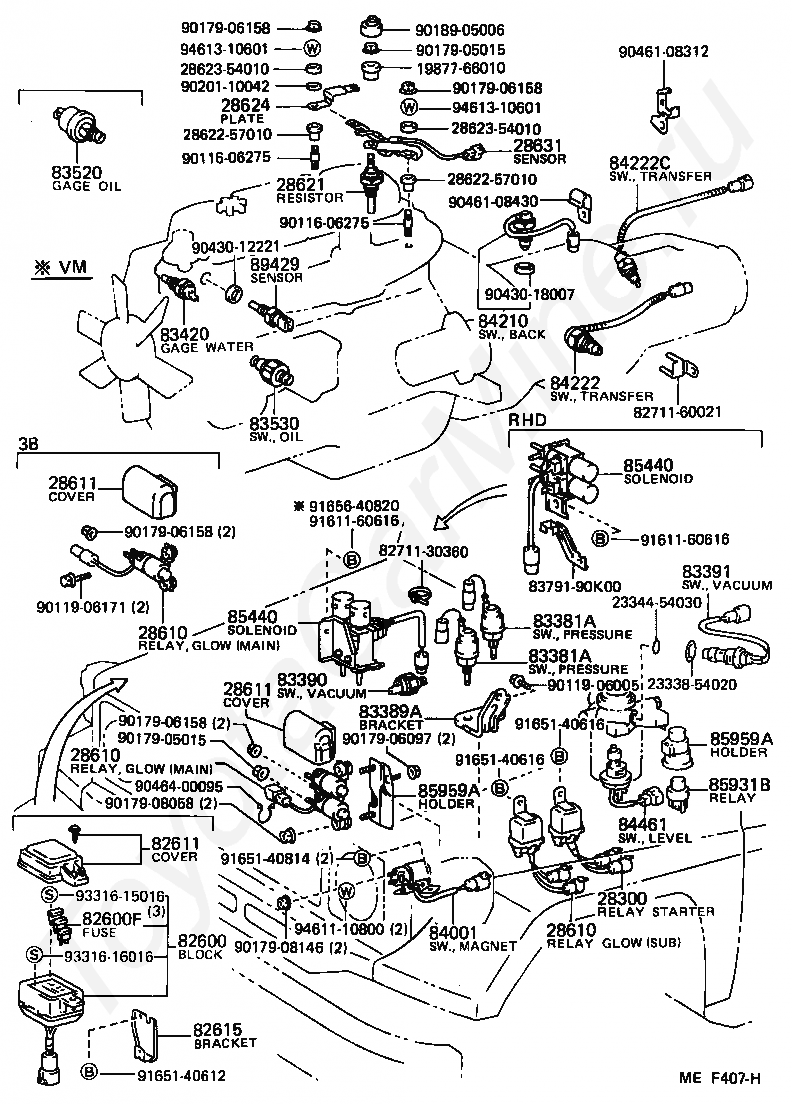

1987766010

Крепеж

2333854020

Крепеж

2334454030

Крепеж

28300

RELAY ASSY, STARTER

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28611

COVER, GLOW PLUG RELAY

28611

COVER, GLOW PLUG RELAY

28621

RESISTOR, GLOW PLUG

2862257010

Крепеж

2862257010

Крепеж

2862354010

Крепеж

2862354010

Крепеж

28624

PLATE, CURRENT SENSOR

28631

SENSOR, GLOW PLUG CURRENT

82600

BLOCK ASSY, FUSE

82600F

FUSE, FUSE BLOCK

82611

COVER, FUSE BLOCK

82615

BRACKET, FUSE

8271130360

Крепеж

8271160021

Крепеж

83381A

SWITCH, PRESSURE

83381A

SWITCH, PRESSURE

83389A

BRACKET, PRESSURE SWITCH

83390

SWITCH ASSY, VACUUM WARNING

83391

SWITCH, VACUUM

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83520

GAGE ASSY,OIL PRESSURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

8379190K00

Крепеж

84001

SWITCH ASSY, MAGNET

84210

SWITCH ASSY, BACK-UP LAMP

84222

SWITCH, TRANSFER INDICATOR, NO.1

84222C

SWITCH, TRANSFER INDICATOR, NO.3

84461

SWITCH, LEVEL WARNING

85440

SOLENOID ASSY, FRONT DRIVE

85440

SOLENOID ASSY, FRONT DRIVE

85931B

RELAY, FUEL HEATER

85959A

HOLDER, RELAY

85959A

HOLDER, RELAY

89429

SENSOR, OIL TEMPERATURE

9011606275

Крепеж

9011606275

Крепеж

9011906005

Крепеж

9011906171

Крепеж

9017905015

Крепеж

9017905015

Крепеж

9017906097

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017906158

Крепеж

9017908058

Крепеж

9017908146

Крепеж

9018905006

Крепеж

9020110042

Крепеж

9043012221

Крепеж

9043018007

Крепеж

9046108312

Крепеж

9046108430

Крепеж

9046400095

Крепеж

9161160616

Крепеж

9161160616

Крепеж

9165140612

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140814

Крепеж

9165640820

Крепеж

9331615016

Крепеж

9331616016

Крепеж

9461110800

Крепеж

9461310601

Крепеж

9461310601

Крепеж

Код

Описание

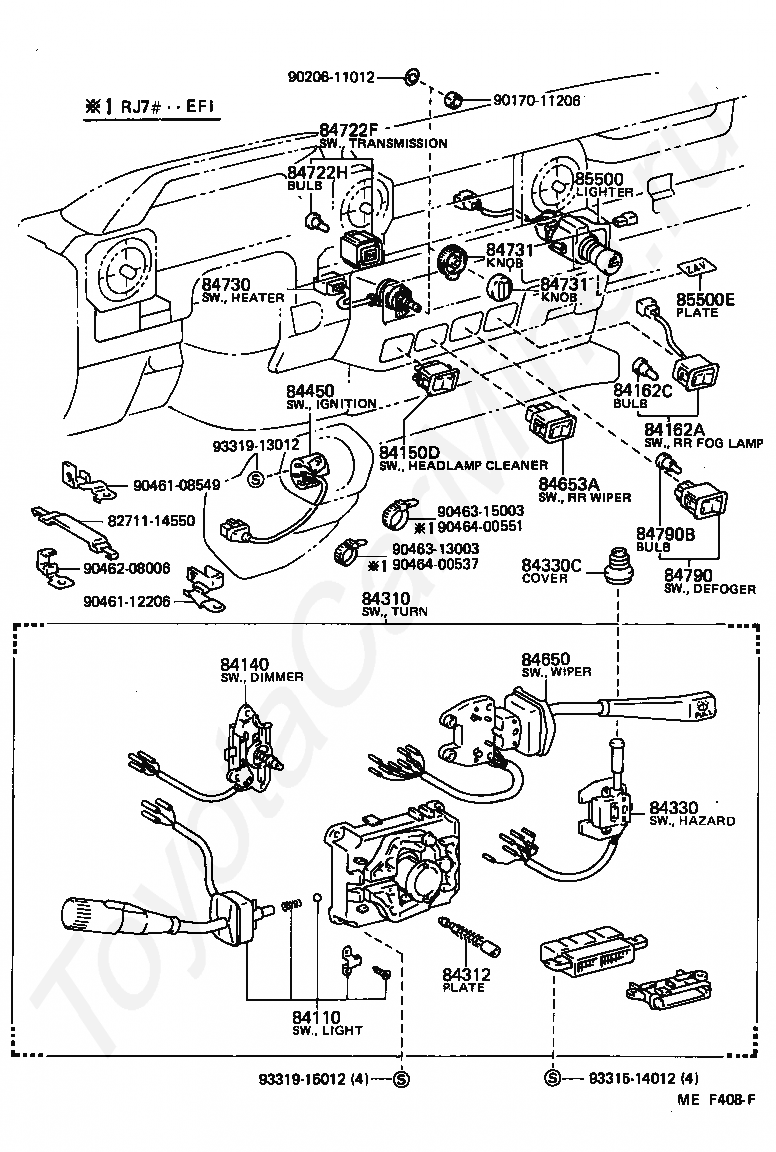

8271114550

Крепеж

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84150D

SWITCH ASSY, HEADLAMP CLEANER

84162A

SWITCH, REAR FOG LAMP

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330C

COVER, HAZARD WARNING SIGNAL SWITCH

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

84653A

SWITCH, REAR WIPER

84722F

SWITCH, TRANSMISSION CONTROL

84722H

BULB, TRANSMISSION CONTROL SWITCH

84730

SWITCH ASSY, HEATER BLOWER

84731

KNOB, HEATER BLOWER SWITCH

84731

KNOB, HEATER BLOWER SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

85500

LIGHTER ASSY, CIGARETTE

85500E

PLATE, VOLTAGE CAUTION

9017011206

Крепеж

9020611012

Крепеж

9046108549

Крепеж

9046112206

Крепеж

9046208006

Крепеж

9046313003

Крепеж

9046315003

Крепеж

9046400537

Крепеж

9046400551

Крепеж

9331514012

Крепеж

9331913012

Крепеж

9331915012

Крепеж

Код

Описание

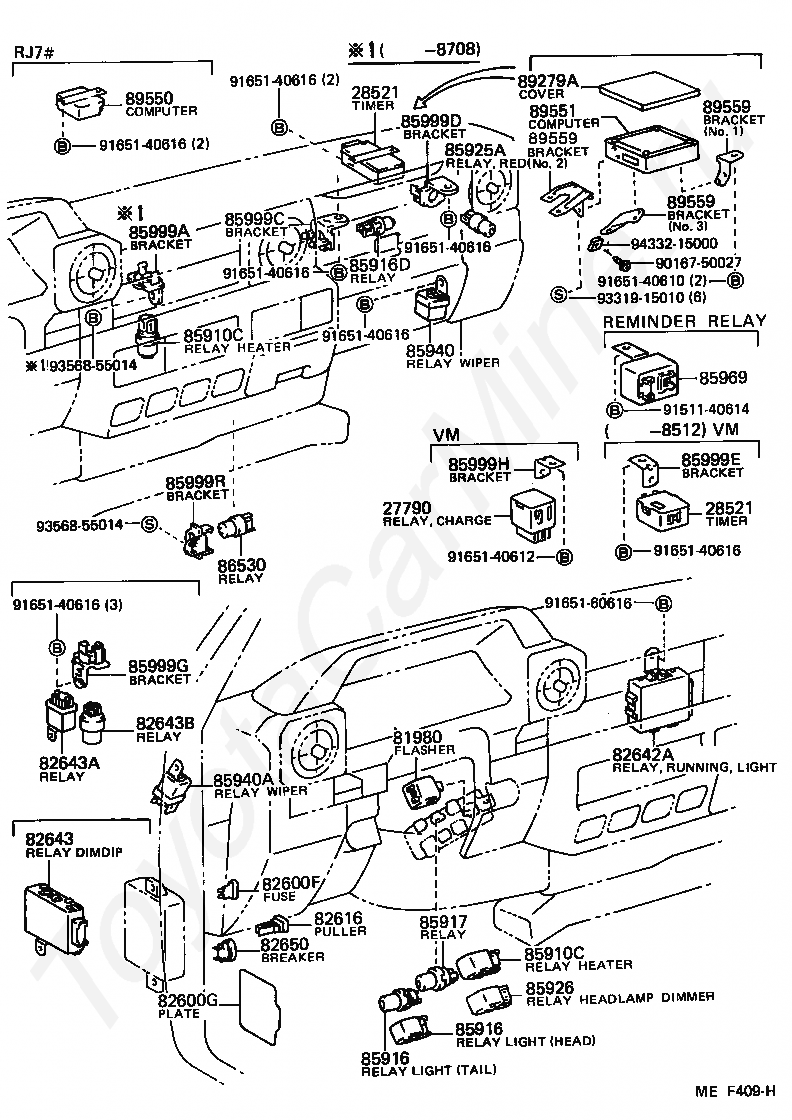

27790

RELAY ASSY, CHARGE LAMP

28521

TIMER, PREHEATING

28521

TIMER, PREHEATING

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82600G

PLATE, CAUTION(FOR FUSE)

82616

PULLER, FUSE

82642A

RELAY, RUNNING LIGHT

82643

RELAY, DIM-DIP LAMP

82643A

RELAY, DIM-DIP LAMP

82643B

RELAY, DIM

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85916

RELAY, LIGHT CONTROL

85916

RELAY, LIGHT CONTROL

85916D

RELAY, FOG LAMP

85917

RELAY, FRONT DRIVE

85925A

RELAY, RED INDICATOR

85926

RELAY, HEADLAMP DIMMER

85940

RELAY ASSY, WINDSHIELD WIPER

85940A

RELAY, WINDSHIELD WIPER SWITCH

85969

RELAY, LIGHT REMINDER

85999A

BRACKET, RELAY, NO.2

85999C

BRACKET, RELAY, NO.3

85999D

BRACKET, RELAY, NO.4

85999E

BRACKET, RELAY, NO.5

85999G

RELAY, STEREO COMPONENT

85999H

BRACKET, RELAY

85999R

BRACKET, RELAY, NO.6

86530

RELAY ASSY, HORN

89279A

COVER, COMPUTER

89550

COMPUTER ASSY, EMISSION CONTROL

89551

COMPUTER, EMISSION CONTROL

89559

BRACKET, EMISSION CONTROL COMPUTER

89559

BRACKET, EMISSION CONTROL COMPUTER

89559

BRACKET, EMISSION CONTROL COMPUTER

9016750027

Крепеж

9151140614

Крепеж

9165140610

Крепеж

9165140612

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165160616

Крепеж

9331915010

Крепеж

9356855014

Крепеж

9356855014

Крепеж

9433215000

Крепеж

Код

Описание

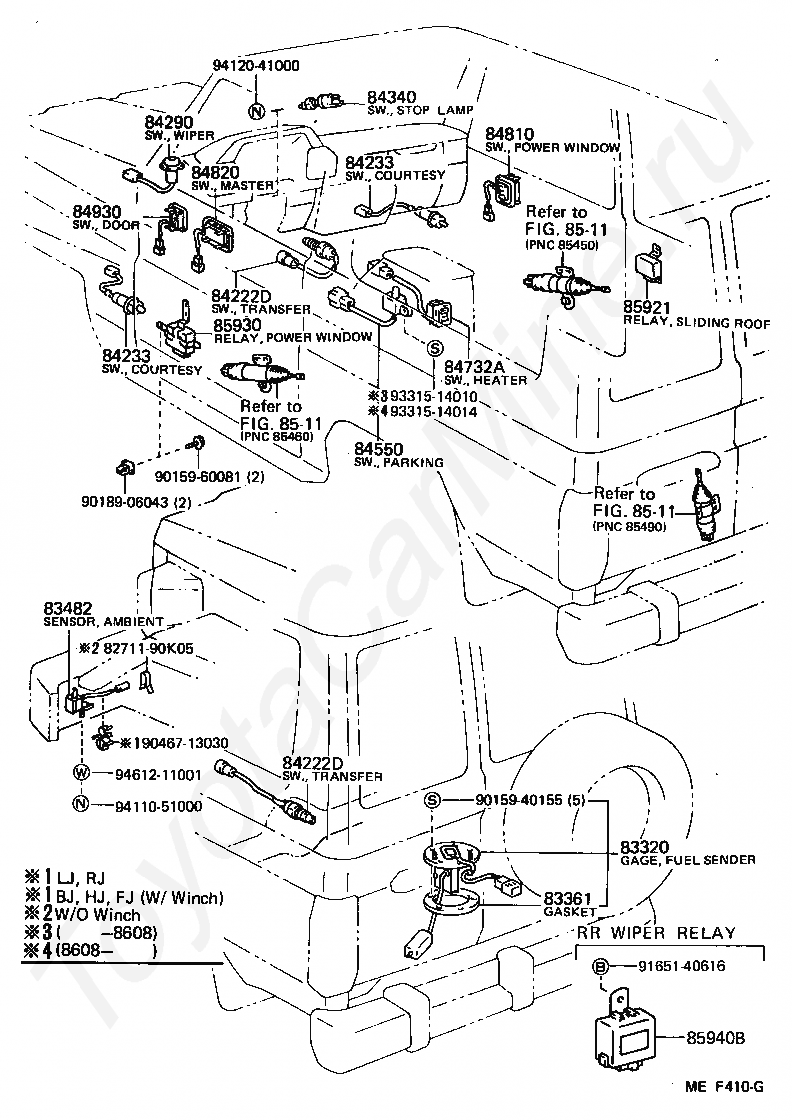

8271190K05

Крепеж

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

83482

SENSOR, OUTER AMBIENT TEMPERATURE

84222D

SWITCH, TRANSFER INDICATOR, NO.4

84222D

SWITCH, TRANSFER INDICATOR, NO.4

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84290

SWITCH ASSY, LIMIT

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

84732A

SWITCH, REAR HEATER BLOWER

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84930

SWITCH ASSY, DOOR CONTROL

8511

переход к группе запчастей

8511

переход к группе запчастей

8511

переход к группе запчастей

85921

RELAY, SLIDING ROOF CONTROL

85930

RELAY ASSY, POWER WINDOW

85940B

RELAY ASSY, REAR WIPER

9015940155

Крепеж

9015960081

Крепеж

9018906043

Крепеж

9046713030

Крепеж

9165140616

Крепеж

9331514010

Крепеж

9331514014

Крепеж

9411051000

Крепеж

9412041000

Крепеж

9461211001

Крепеж

Код

Описание

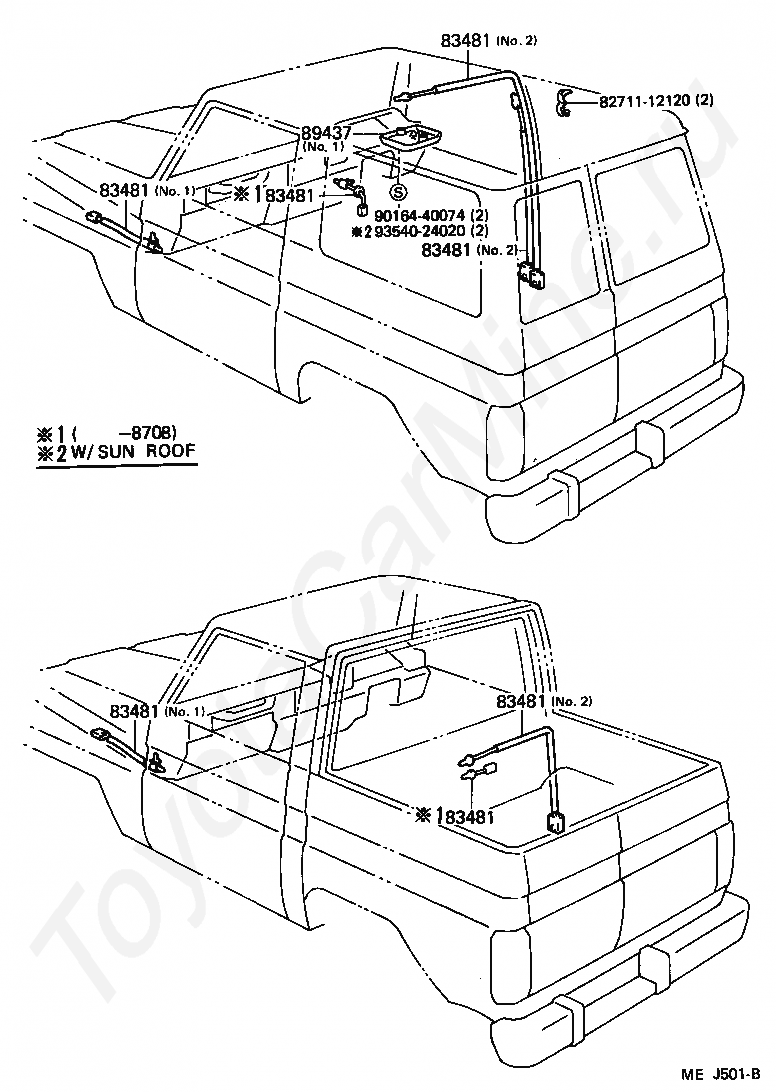

8271112120

Крепеж

83481
