Япония

Модель

LAND CRUISER

VIN

Дата

2021/07

Двигатель

3300CC 24-VALVE DOHC

Класс

GR SPORT TYPE

Фрейм

FJA300

Опции

5-местный система впрыска дизельного топлива (низкое загрязнение) 810W

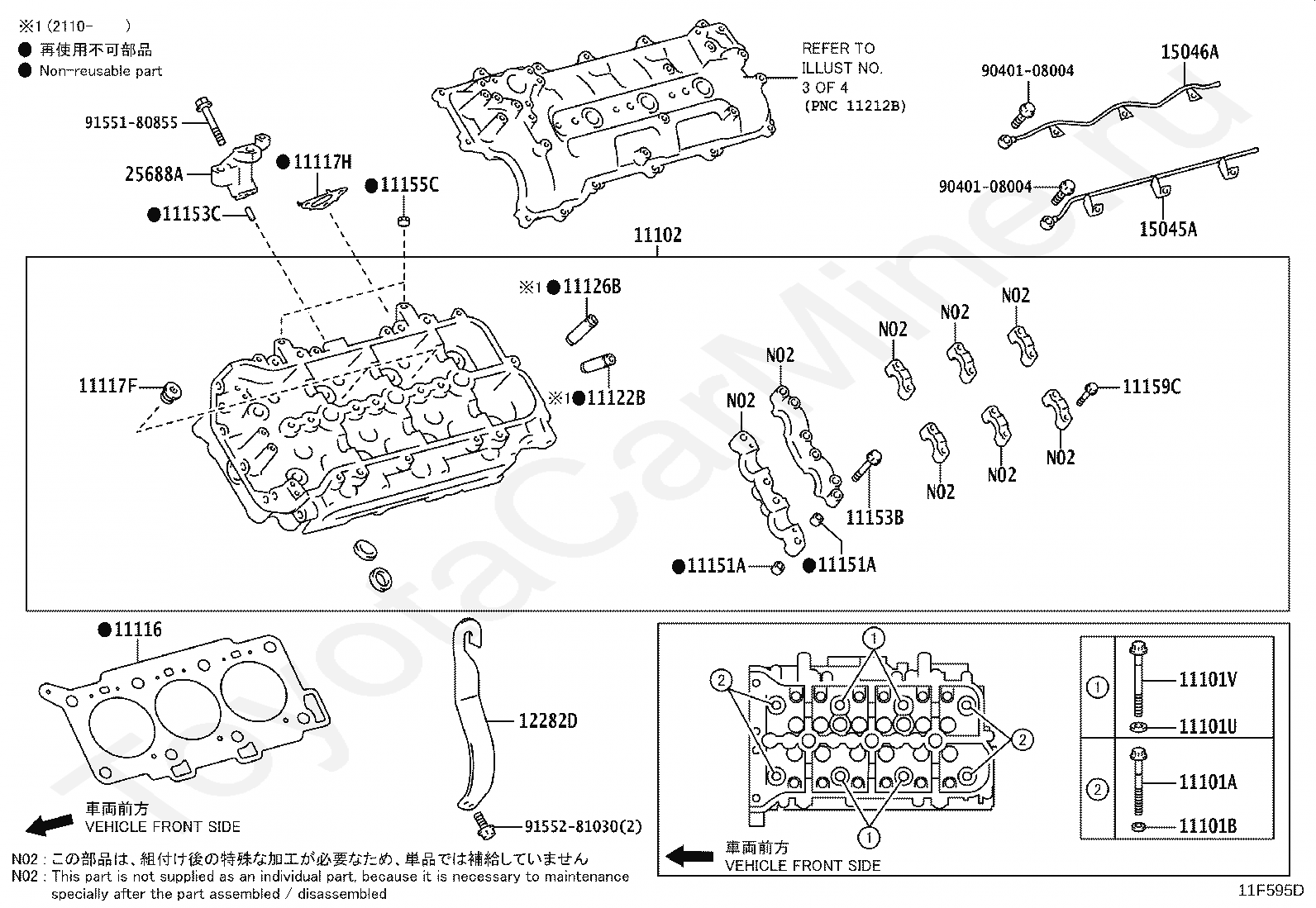

Головка блока цилиндров TOYOTA LAND CRUISER

Код

Описание

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11101U

SPACER(FOR CYLINDER HEAD SET BOLT)

11101V

BOLT(FOR CYLINDER HEAD SET SUB)

11102

HEAD, CYLINDER, LH

11116

GASKET, CYLINDER HEAD, NO.2

11117F

PLUG, W/HEAD STRAIGHT SCREW, NO.2

11117H

GASKET(FOR WATER HOLE)

11122B

BUSH, INTAKE VALVE GUIDE, NO.2

11126B

BUSH, EXHAUST VALVE GUIDE, NO.2

11151A

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

11151A

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

11153B

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)

11153C

PIN, STRAIGHT(FOR CAMSHAFT HOUSING LH)

11155C

PIN, RING NO.2

11159C

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

12282D

HANGER, ENGINE, NO.2

15045A

PIPE SUB-ASSY, CAMSHAFT OIL FEED, NO.3

15046A

PIPE SUB-ASSY, CAMSHAFT OIL FEED, NO.4

25688A

BRACKET, CLAMP STAY, NO.2

9040108004

Крепеж

9040108004

Крепеж

9155180855

Крепеж

9155281030

Крепеж

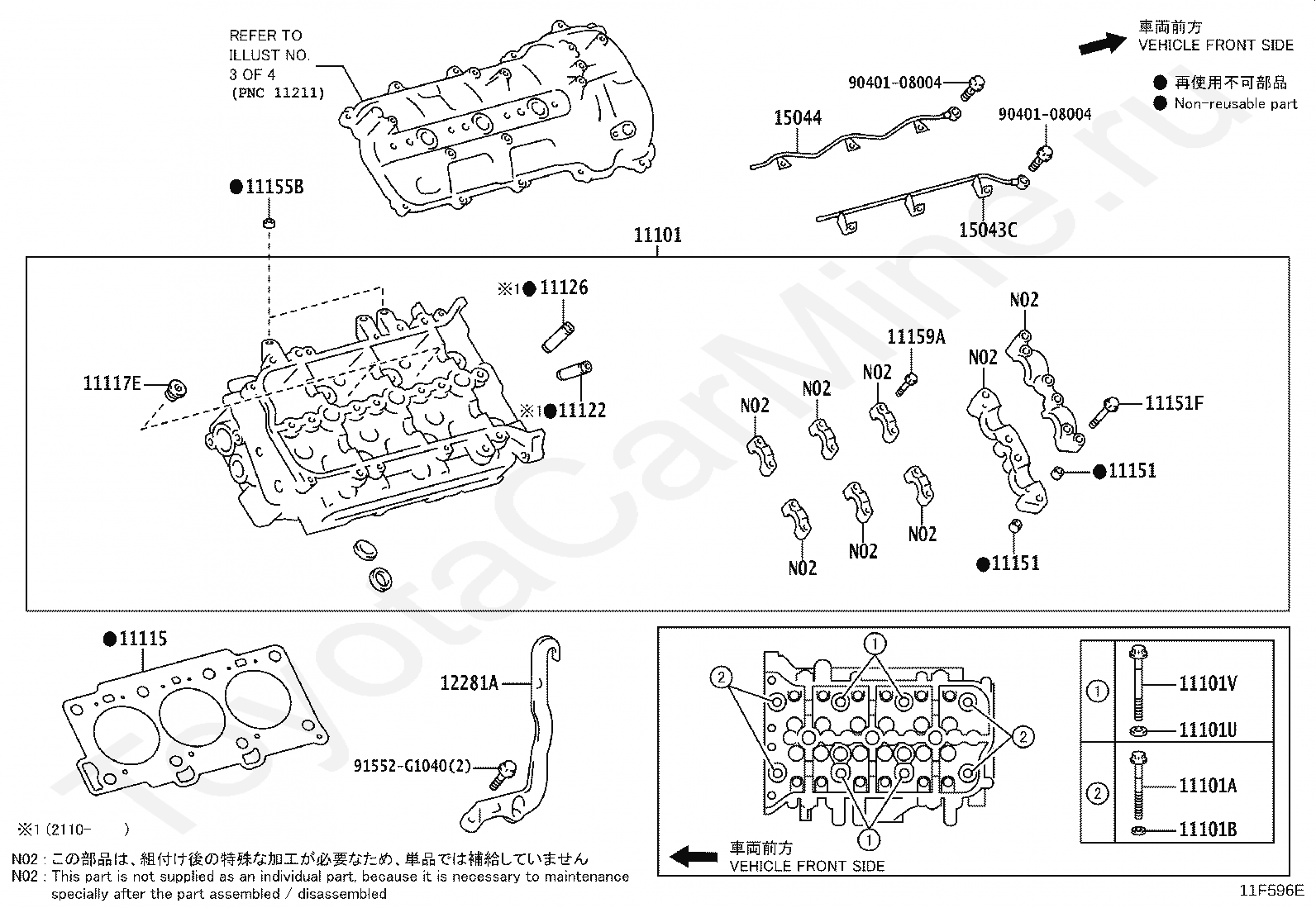

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11101U

SPACER(FOR CYLINDER HEAD SET BOLT)

11101V

BOLT(FOR CYLINDER HEAD SET SUB)

11115

GASKET, CYLINDER HEAD

11117E

PLUG, W/HEAD STRAIGHT SCREW, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11151

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH)

11151

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH)

11151F

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)

11155B

PIN, RING

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

12281A

HANGER, ENGINE, NO.1

15043C

PIPE SUB-ASSY, CAMSHAFT OIL FEED

15044

PIPE SUB-ASSY, CAMSHAFT OIL FEED

9040108004

Крепеж

9040108004

Крепеж

91552G1040

Крепеж

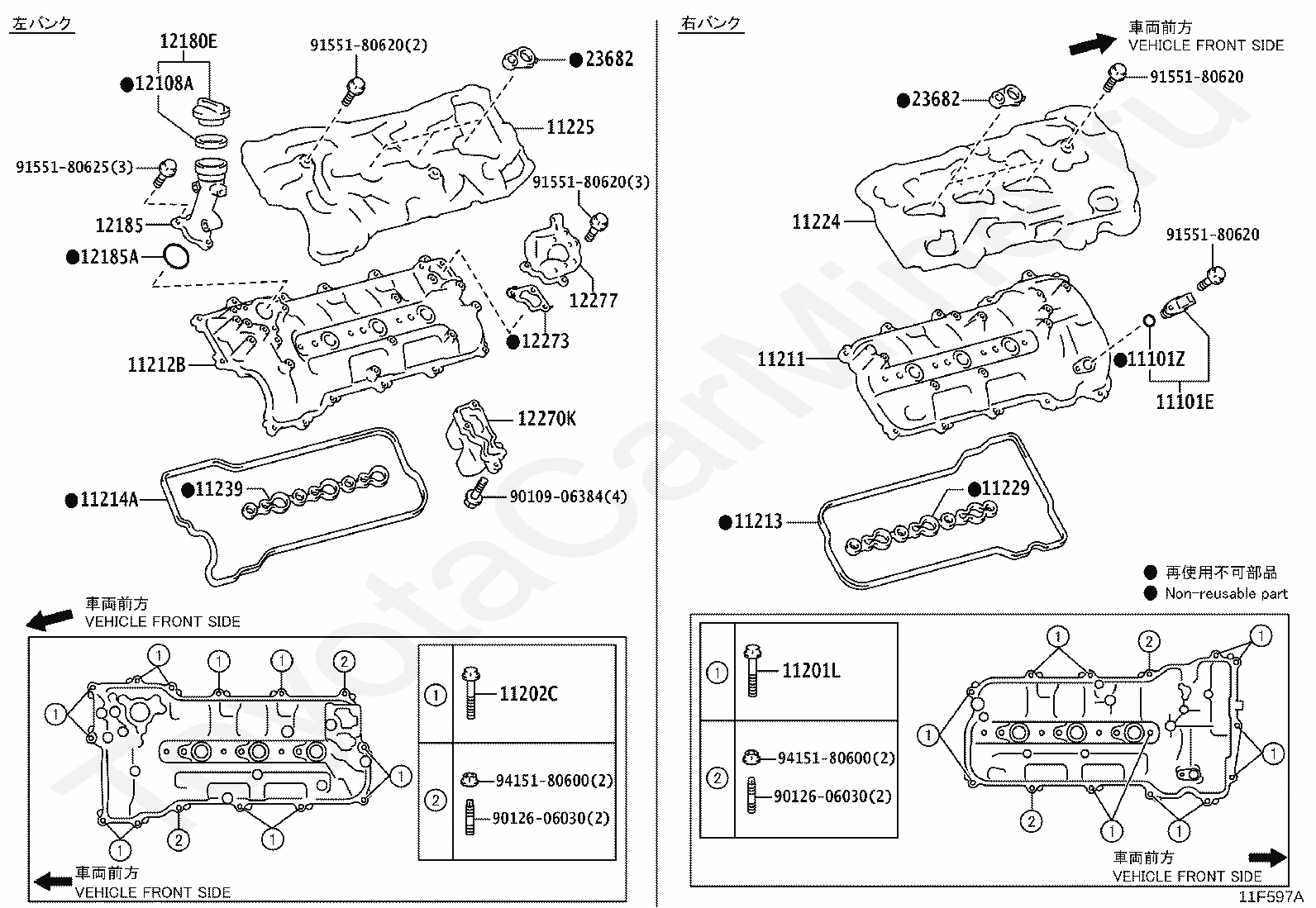

Код

Описание

11101E

SENSOR, CAM POSITION

11101Z

O RING, CAM POSITION SENSOR

11201L

BOLT(FOR CYLINDER HEAD COVER RH)

11202C

BOLT(FOR CYLINDER HEAD COVER LH)

11211

COVER, CYLINDER HEAD, RH

11212B

COVER, CYLINDER HEAD, LH

11213

GASKET, CYLINDER HEAD COVER

11214A

GASKET, CYLINDER HEAD COVER, LH NO.1

11224

SILENCER, CYLINDER HEAD COVER

11225

SILENCER, CYLINDER HEAD COVER LH

11229

GASKET, CYLINDER HEAD COVER, NO.3

11239

GASKET, CLINDER HEAD CONER, NO.4

12108A

GASKET(FOR OIL FILLER CAP)

12180E

CAP ASSY, OIL FILLER

12185

HOUSING, OIL FILLER CAP

12185A

GASKET, OIL FILLER CAP HOUSING

12270K

SEPARATOR ASSY, OIL

12273

GASKET, OIL SEPARATOR

12277

HOLDER, OIL SEPARATOR

23682

GASKET, NOZZLE HOLDER

23682

GASKET, NOZZLE HOLDER

9010906384

Крепеж

9012606030

Крепеж

9012606030

Крепеж

9155180620

Крепеж

9155180620

Крепеж

9155180620

Крепеж

9155180620

Крепеж

9155180625

Крепеж

9415180600

Крепеж

9415180600

Крепеж

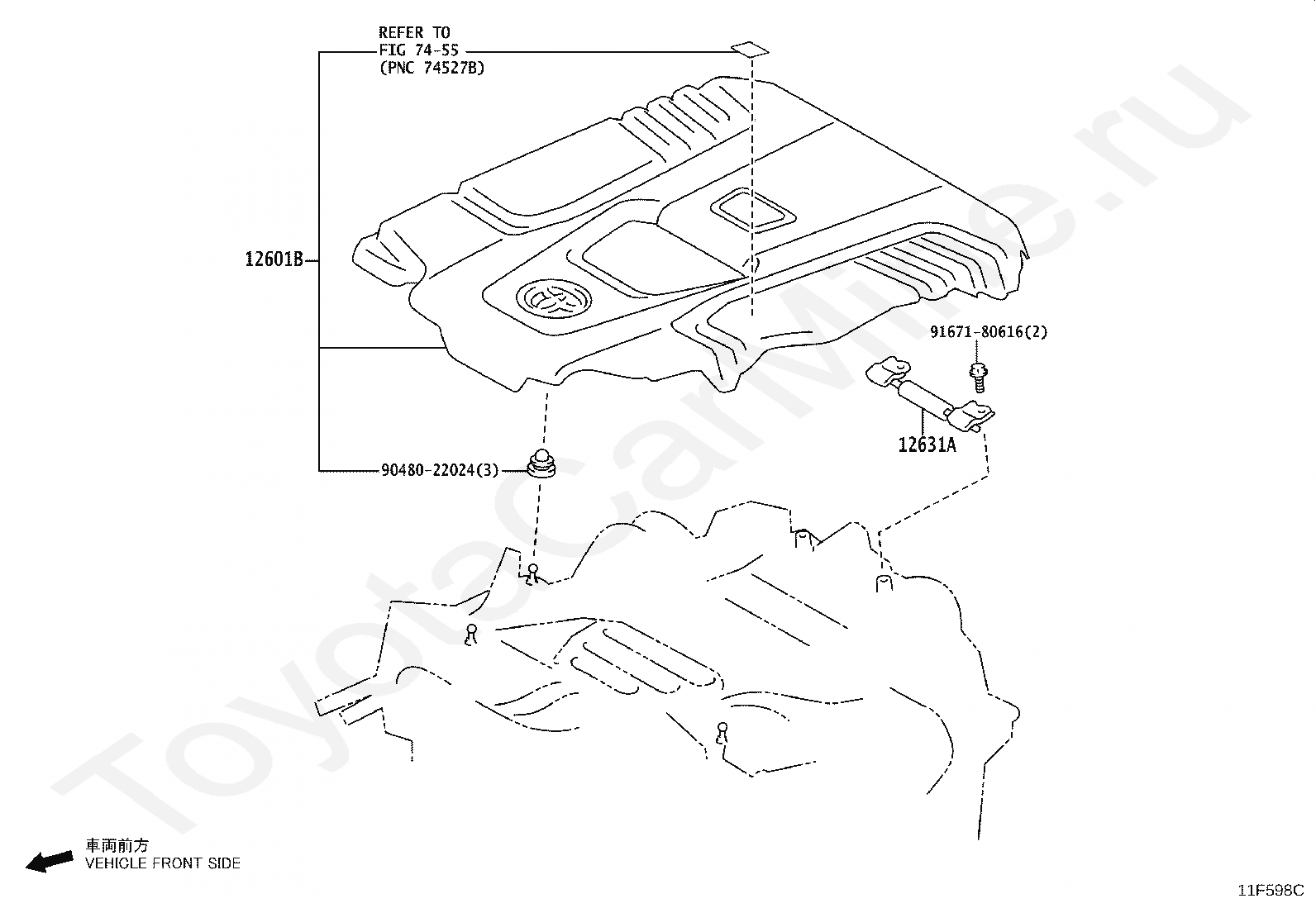

Код

Описание

12601B

COVER SUB-ASSY, ENGINE, NO.1

12631A

BRACKET, ENGINE COVER

7455

переход к группе запчастей

9048022024

Крепеж

9167180616

Крепеж
