1603
переход к группе запчастей
1603
переход к группе запчастей

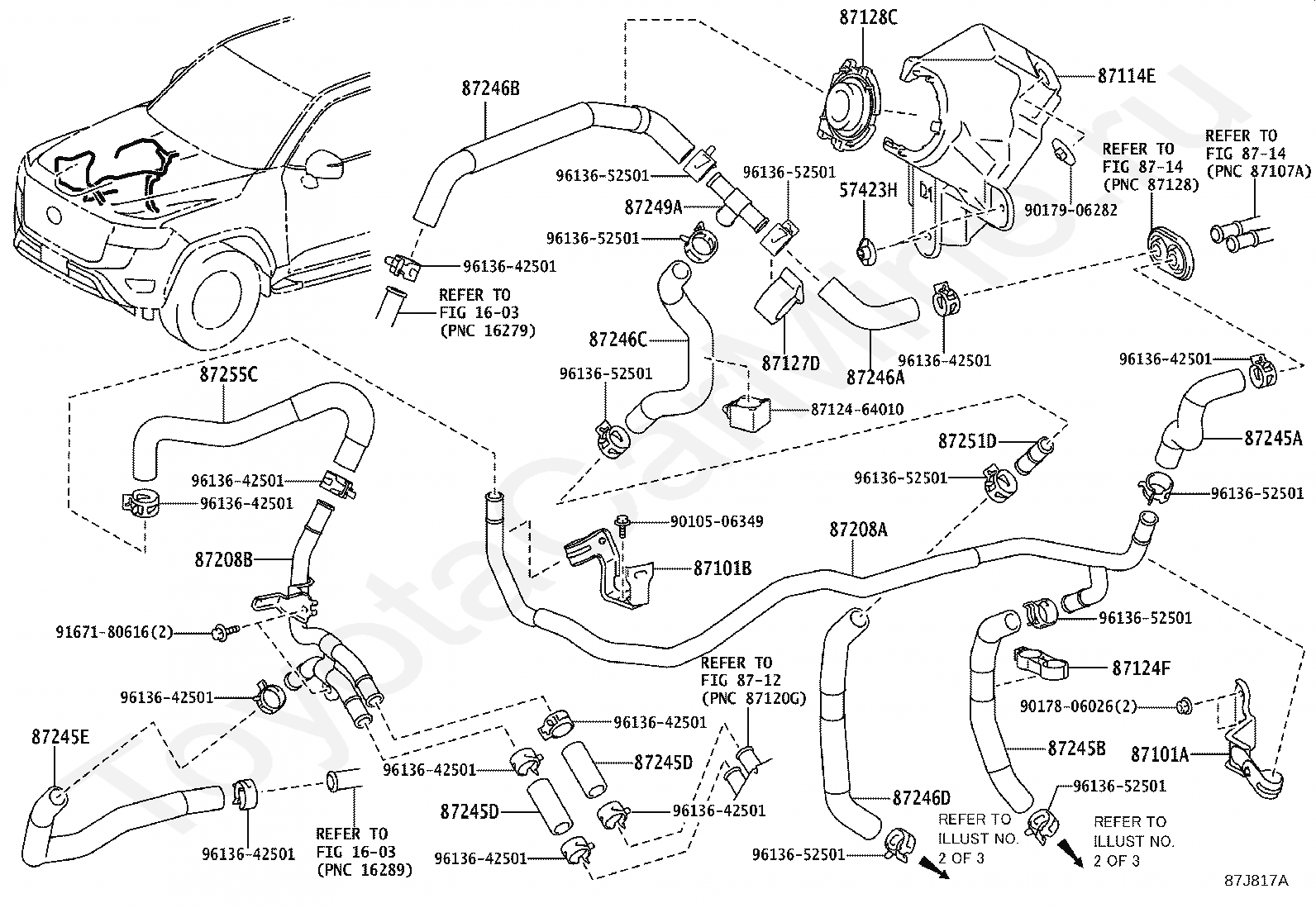

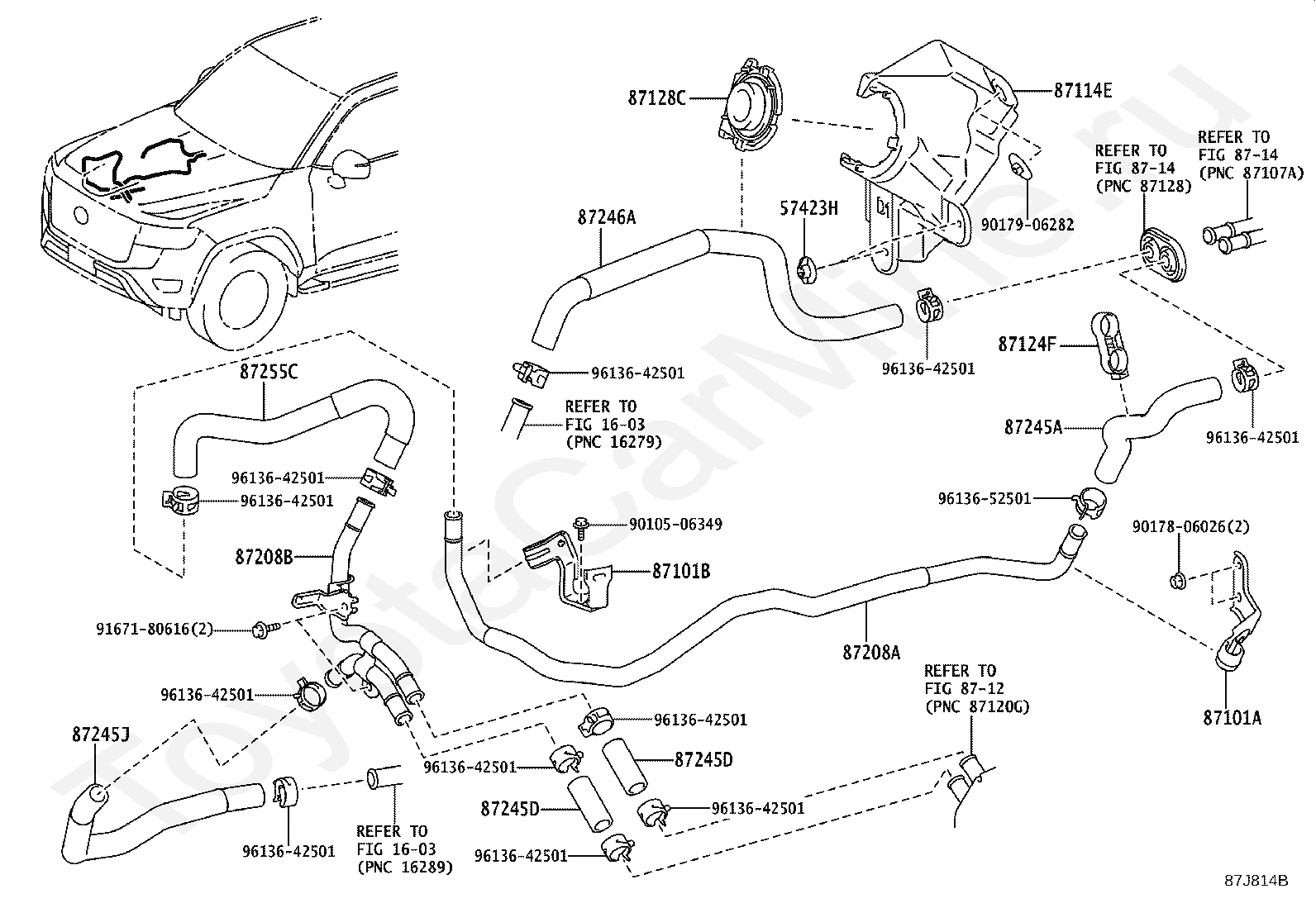

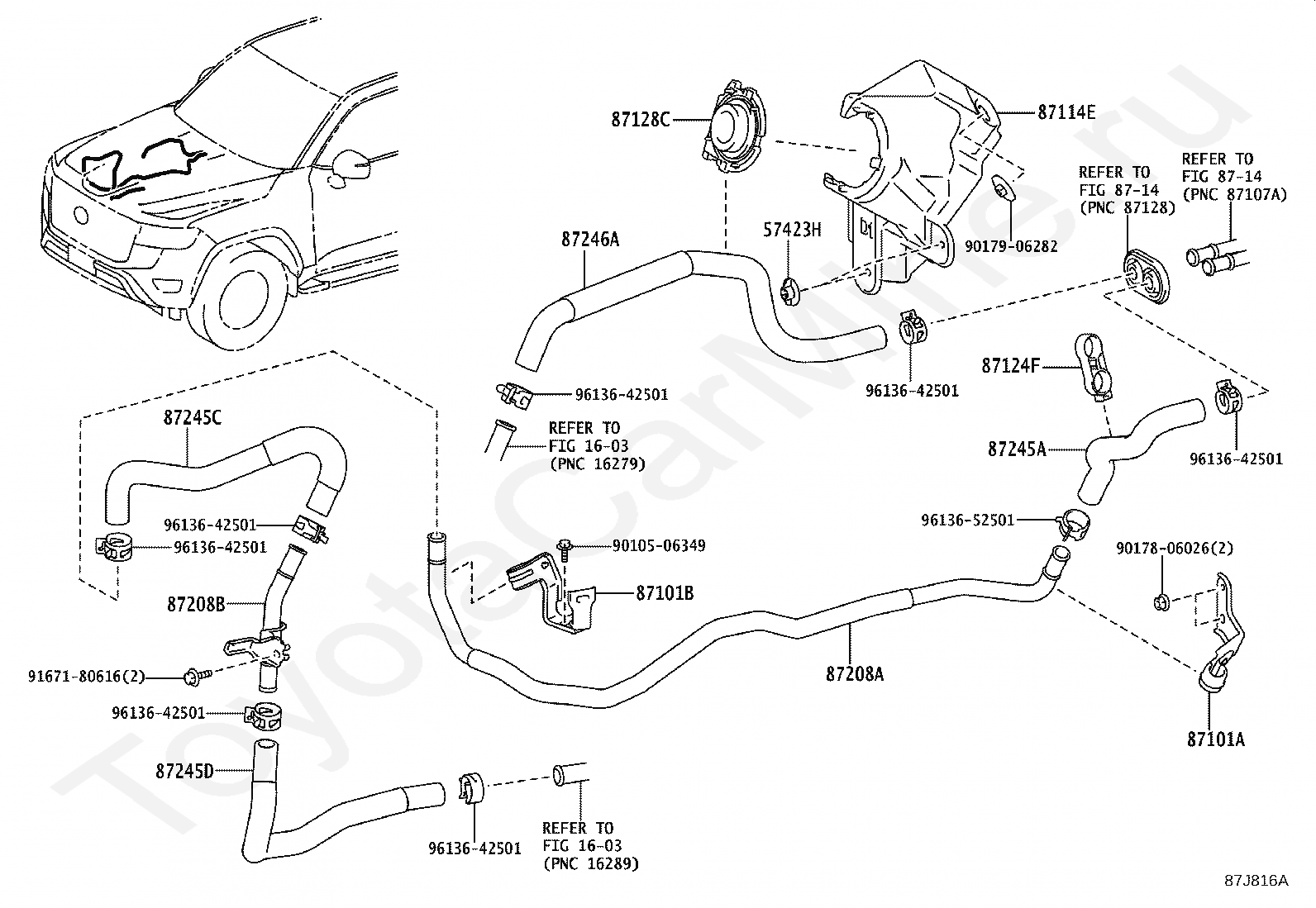

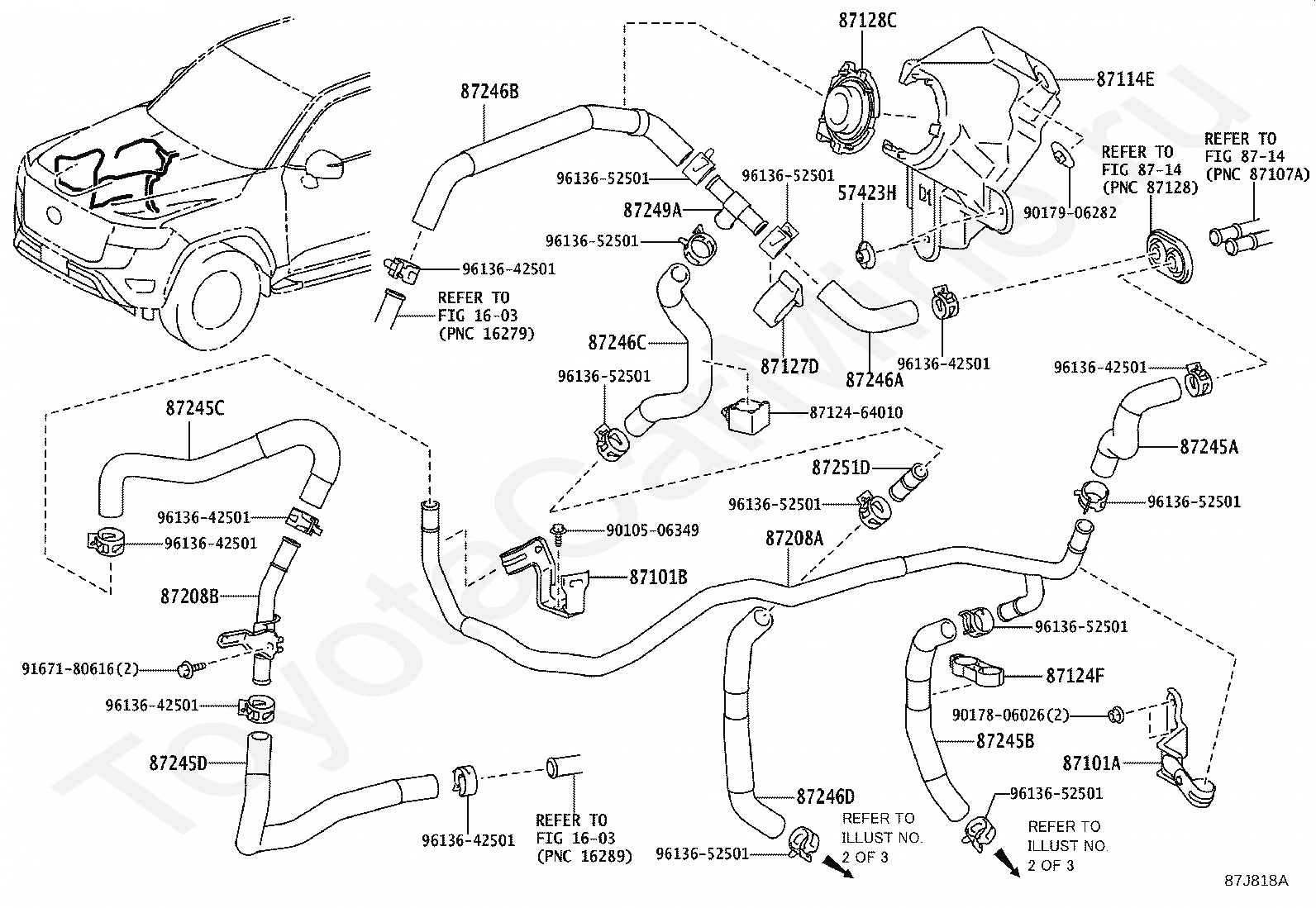

57423H
CLAMP, HEATER COVER
87101A
BRACKET SUB-ASSY, HEATER NO.1
87101B
BRACKET SUB-ASSY, HEATER NO.2
87114E
COVER, HEATER, NO.1
8712
переход к группе запчастей
87124F
CLAMP, HEATER HOSE, NO.1
87127D
PACKING, HEATER HOSE, NO.1
87128C
GROMMET, HEATER, NO.2
8714
переход к группе запчастей
8714
переход к группе запчастей
87208A
PIPE SUB-ASSY, HEATER WATER, A
87208B
PIPE SUB-ASSY, HEATER WATER, B
87245A
HOSE, HEATER WATER, INLET A
87245B
HOSE, HEATER WATER, INLET B
87245D
HOSE, HEATER WATER, INLET D
87245D
HOSE, HEATER WATER, INLET D
87245E
HOSE, HEATER WATER, INLET E
87246A
HOSE, HEATER WATER, OUTLET A
87246B
HOSE, HEATER WATER, OUTLET B
87246C
HOSE, HEATER WATER, OUTLET C
87246D
HOSE, HEATER WATER, OUTLET D
87249A
PIPE, HEATER WATER OUTLET, A
87251D
JOINT, WATER, NO.1
87255C
HOSE, REAR HEATER WATER INLET, C
