Европа

Модель

LAND CRUISER

VIN

Дата

1975/01

Двигатель

3 литра, дизель

Кузов

DECELERATION CONTROL SYSTEM

Фрейм

BJ40

КПП

МКПП, 4 ступени

Опции

левый руль TARPAULIN CANVAS TOP STANDARD SPECIFICATION WITHOUT ROLL BAR Европа COMPLETED VEHICLE

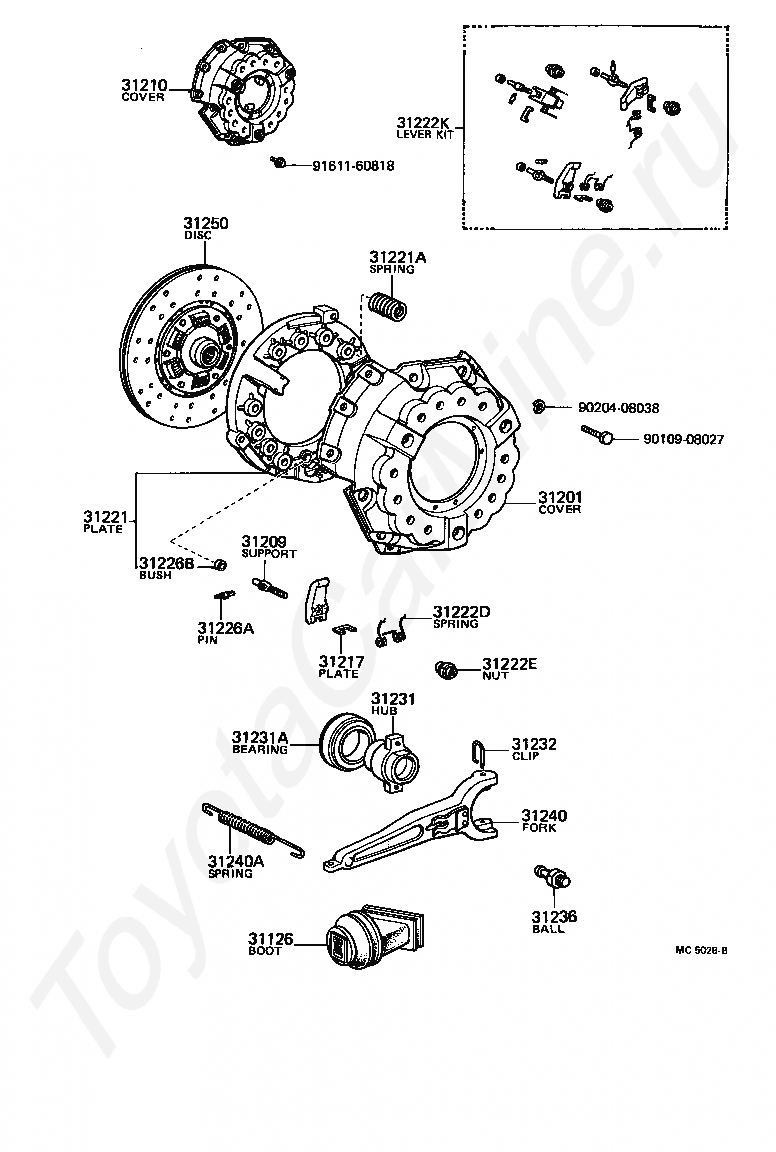

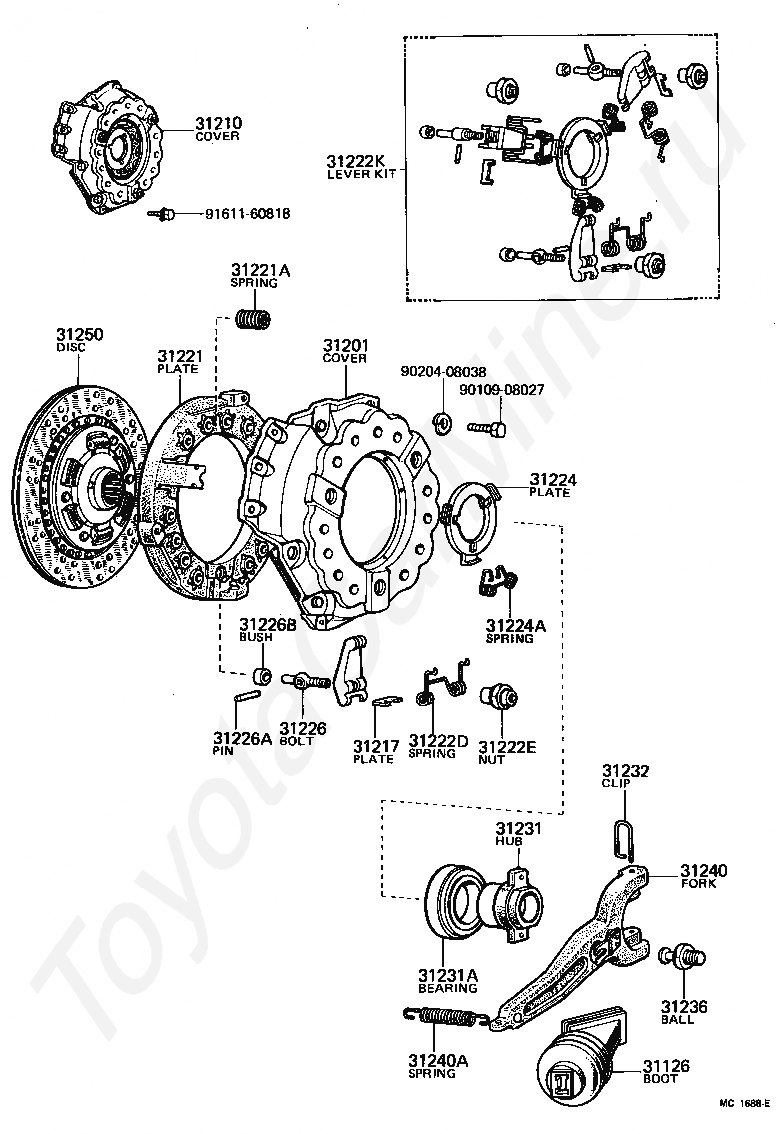

Сцепление TOYOTA LAND CRUISER

Код

Описание

31126

BOOT, CLUTCH RELEASE FORK

31201

COVER SUB-ASSY, CLUTCH

31210

COVER ASSY, CLUTCH

31217

PLATE, RELEASE LEVER SUPPORT

31221

PLATE, CLUTCH PRESSURE

31221A

SPRING, COMPRESSION(FOR CLUTCH)

31222D

SPRING, TENSION(FOR CLUTCH PRESSURE LEVER)

31222E

NUT(FOR CLUTCH PRESSURE LEVER ADJUST)

31222K

LEVER KIT, CLUTCH PRESSURE

31224

PLATE, CLUTCH RELEASE BEARING

31224A

SPRING(FOR CLUTCH RELEASE BEARING PLATE)

31226

BOLT, CLUTCH PRESSURE PLATE

31226A

RIVET OR PIN(FOR CLUTCH PRESSURE PLATE BOLT LOCK)

31226B

BUSH(FOR CLUTCH PRESSURE PLATE BOLT)

31231

HUB, CLUTCH RELEASE BEARING

31231A

BEARING, BALL(FOR CLUTCH RELEASE HUB)

31232

CLIP OR SPRING, RELEASE BEARING HUB

31236

BALL, RELEASE FORK

31240

FORK ASSY, CLUTCH RELEASE

31240A

SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

31250

DISC ASSY, CLUTCH

9010908027

Крепеж

9020408038

Крепеж

9161160818

Крепеж

Код

Описание

31126

BOOT, CLUTCH RELEASE FORK

31201

COVER SUB-ASSY, CLUTCH

31209

SUPPORT SUB-ASSY, CLUTCH RELEASE LEVER

31210

COVER ASSY, CLUTCH

31217

PLATE, RELEASE LEVER SUPPORT

31221

PLATE, CLUTCH PRESSURE

31221A

SPRING, COMPRESSION(FOR CLUTCH)

31222D

SPRING, TENSION(FOR CLUTCH PRESSURE LEVER)

31222E

NUT(FOR CLUTCH PRESSURE LEVER ADJUST)

31222K

LEVER KIT, CLUTCH PRESSURE

31226A

RIVET OR PIN(FOR CLUTCH PRESSURE PLATE BOLT LOCK)

31226B

BUSH(FOR CLUTCH PRESSURE PLATE BOLT)

31231

HUB, CLUTCH RELEASE BEARING

31231A

BEARING, BALL(FOR CLUTCH RELEASE HUB)

31232

CLIP OR SPRING, RELEASE BEARING HUB

31236

BALL, RELEASE FORK

31240

FORK ASSY, CLUTCH RELEASE

31240A

SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

31250

DISC ASSY, CLUTCH

9010908027

Крепеж

9020408038

Крепеж

9161160818

Крепеж
