Европа

Модель

LAND CRUISER

VIN

Дата

1975/01

Двигатель

3 литра, дизель

Кузов

DECELERATION CONTROL SYSTEM

Фрейм

BJ40

КПП

МКПП, 4 ступени

Опции

левый руль TARPAULIN CANVAS TOP STANDARD SPECIFICATION WITHOUT ROLL BAR Европа COMPLETED VEHICLE

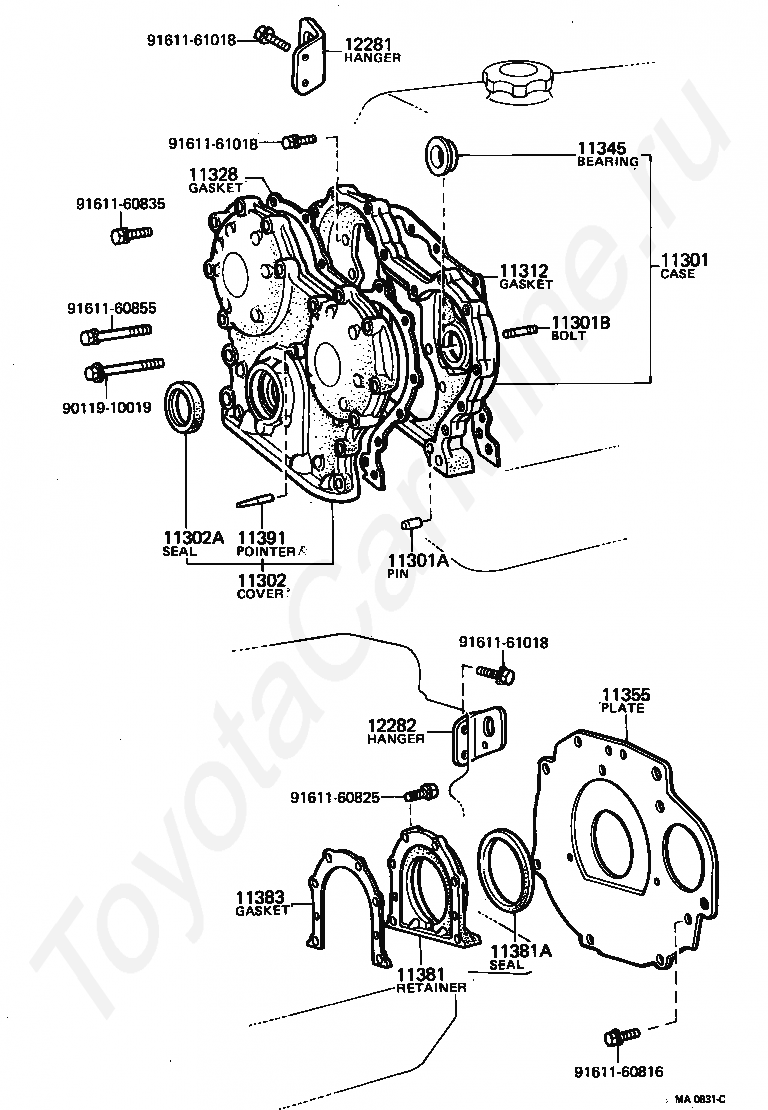

TIMING GEAR COVER & REAR END PLATE TOYOTA LAND CRUISER

Код

Описание

11301

CASE SUB-ASSY, TIMING GEAR

11301A

PIN, STRAIGHT(FOR TIMING GEAR CASE)

11301B

BOLT,STUD(FOR TIMING GEAR CASE)

11302

COVER SUB-ASSY, TIMING CHAIN OR BELT

11302A

SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

11312

GASKET, FRONT END PLATE

11328

GASKET, TIMING GEAR OR CHAIN COVER

11345

BEARING, INJECTION PUMP GEAR THRUST

11355

PLATE, REAR END

11381

RETAINER, ENGINE REAR OIL SEAL

11381A

SEAL, ENGINE REAR OIL

11383

GASKET, ENGINE REAR OIL SEAL RETAINER

11391

POINTER, TIMING

12281

HANGER, ENGINE, NO.1

12282

HANGER, ENGINE, NO.2

9011910019

Крепеж

9161160816

Крепеж

9161160825

Крепеж

9161160835

Крепеж

9161160855

Крепеж

9161161018

Крепеж

9161161018

Крепеж

9161161018

Крепеж

Код

Описание

11301

CASE SUB-ASSY, TIMING GEAR

11301A

PIN, STRAIGHT(FOR TIMING GEAR CASE)

11301B

BOLT,STUD(FOR TIMING GEAR CASE)

11302

COVER SUB-ASSY, TIMING CHAIN OR BELT

11302A

SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

11312

GASKET, FRONT END PLATE

11328

GASKET, TIMING GEAR OR CHAIN COVER

11345

BEARING, INJECTION PUMP GEAR THRUST

11355

PLATE, REAR END

11381

RETAINER, ENGINE REAR OIL SEAL

11381A

SEAL, ENGINE REAR OIL

11383

GASKET, ENGINE REAR OIL SEAL RETAINER

11391

POINTER, TIMING

12281

HANGER, ENGINE, NO.1

12282

HANGER, ENGINE, NO.2

1501

переход к группе запчастей

9011908145

Крепеж

9011910073

Крепеж

9161140814

Крепеж

9161160818

Крепеж

9161160825

Крепеж

9161160832

Крепеж

9161160840

Крепеж

9161161016

Крепеж

9161161020

Крепеж

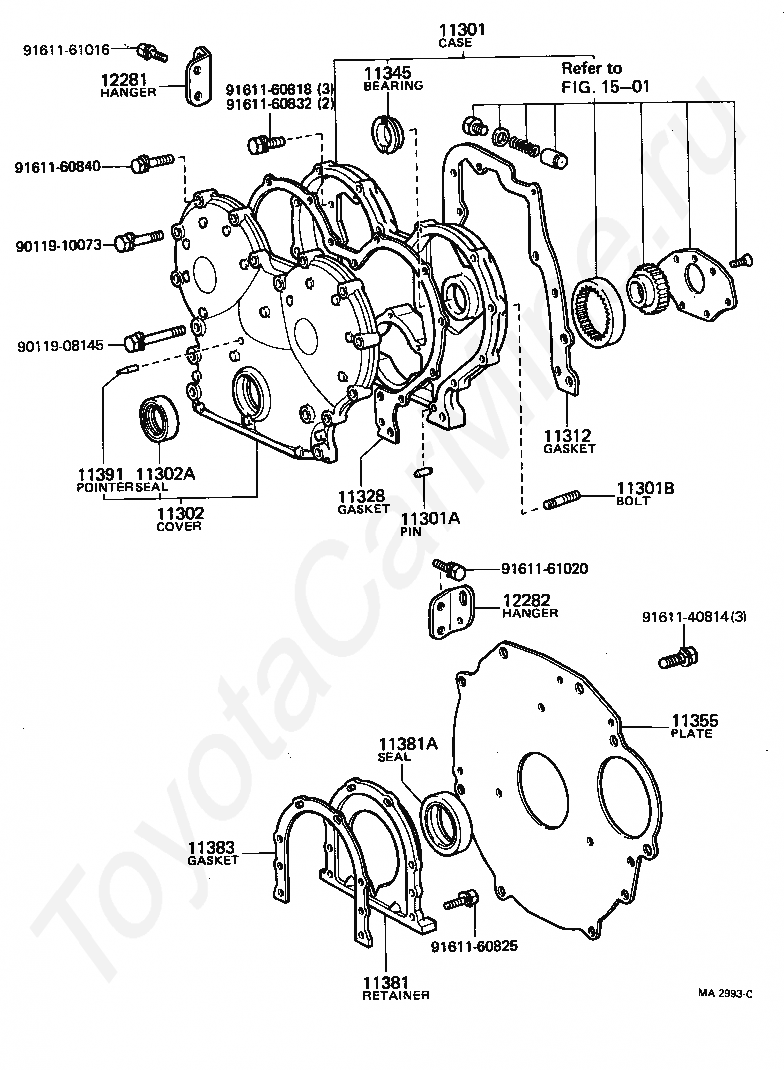

TIMING GEAR COVER & REAR END PLATE TOYOTA LAND CRUISER
