Япония

Модель

LAND CRUISER S/T,H/T

VIN

Дата

1992/08

Двигатель

2,4 литра, турбо-дизель

Кузов

фургон

Класс

SX-5 SPECIFICATION

Фрейм

LJ78

КПП

автомат

Опции

Q TYPE обычное пассажирское авто

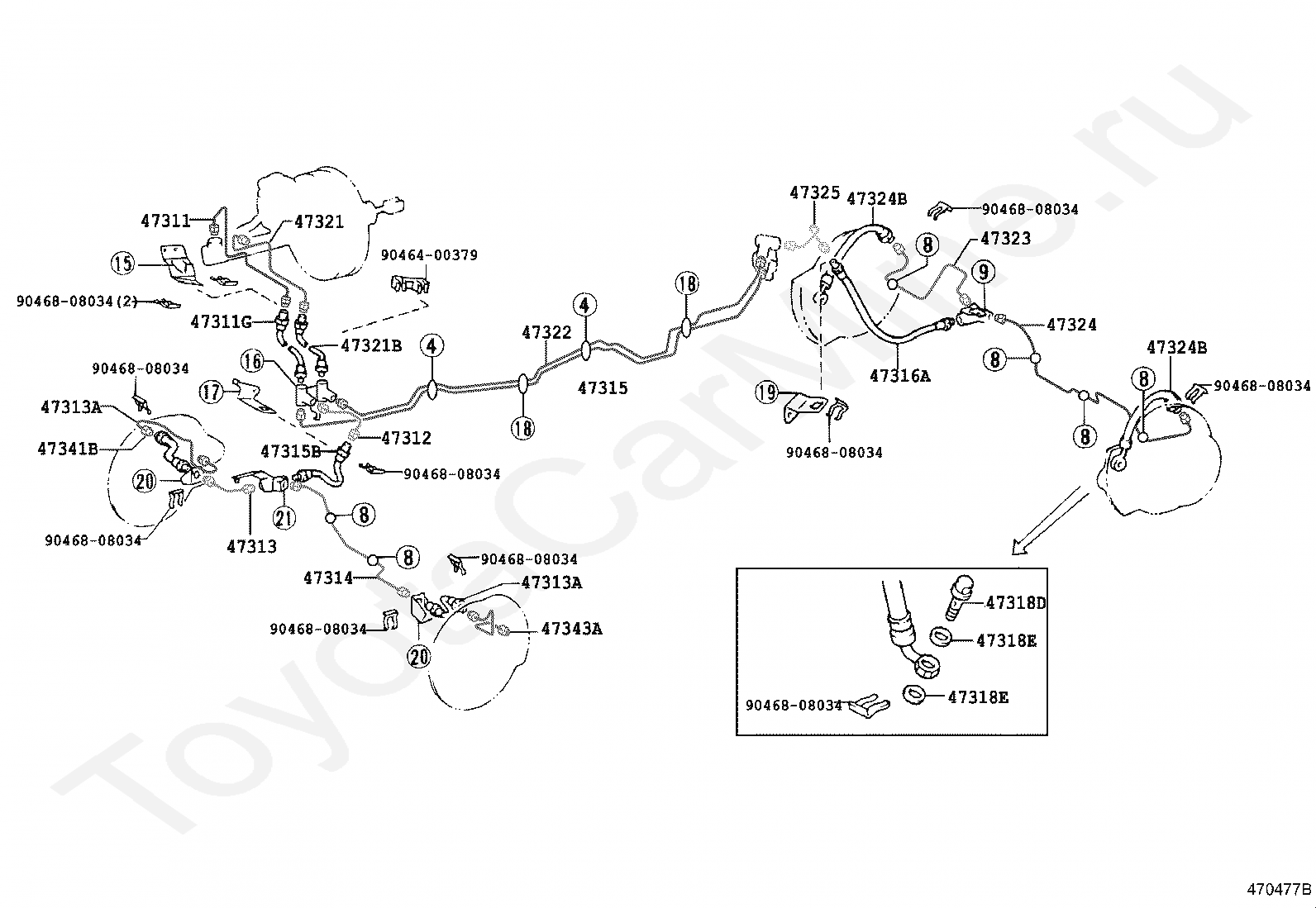

Тормозная магистраль TOYOTA LAND CRUISER S/T,H/T

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47315B

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47321

TUBE, REAR BRAKE, NO.1

47321B

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47324B

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

47324B

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

47325

TUBE, REAR BRAKE, NO.5

47341B

TUBE, WHEEL CYLINDER, FRONT RH NO.1

47343A

TUBE, WHEEL CYLINDER, FRONT LH NO.1

9046400379

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

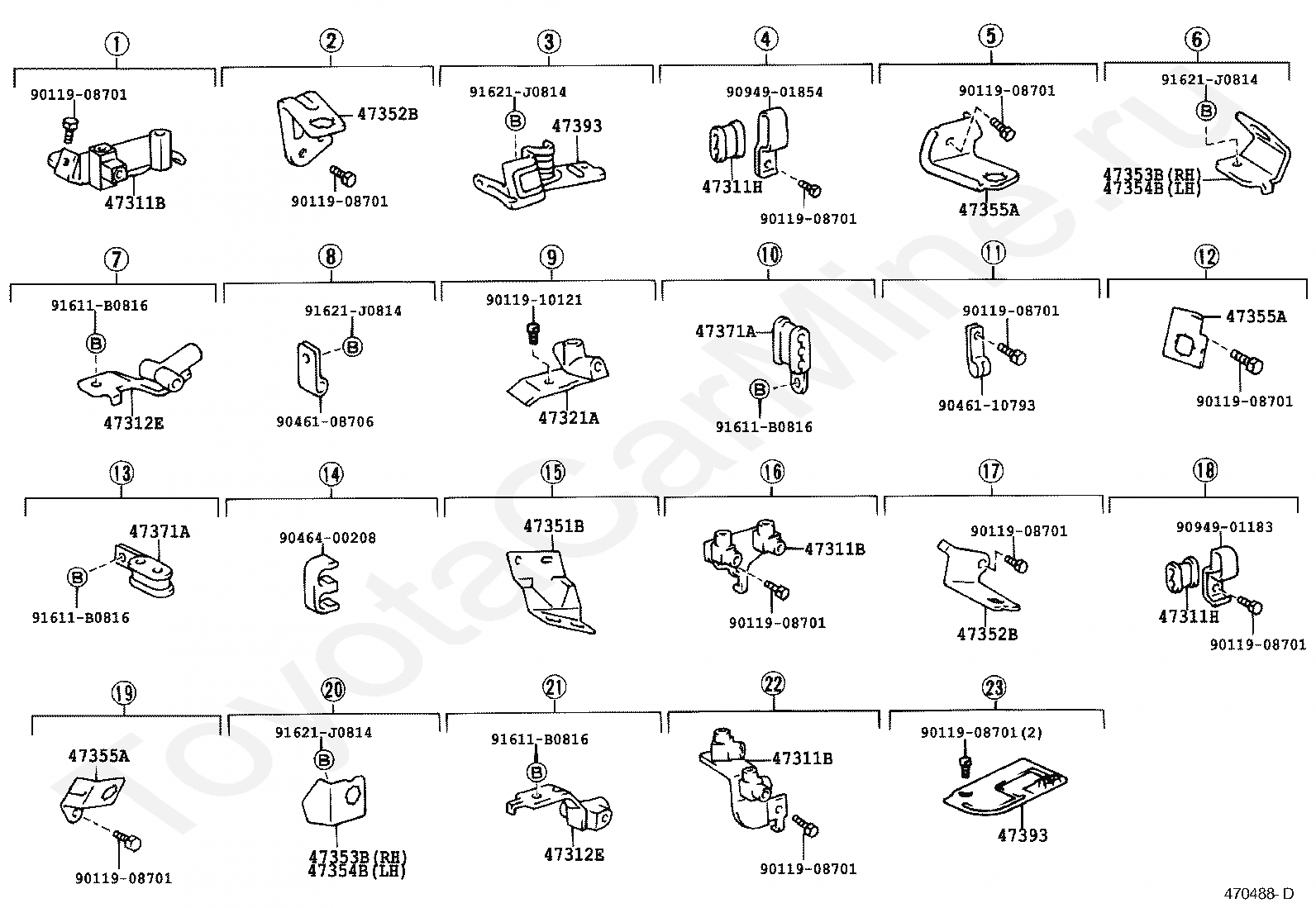

Код

Описание

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311H

GROMMET(FOR BRAKE TUBE)

47311H

GROMMET(FOR BRAKE TUBE)

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47321A

WAY(FOR REAR BRAKE TUBE)

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47355A

BRACKET, FLEXIBLE HOSE, NO.5

47355A

BRACKET, FLEXIBLE HOSE, NO.5

47355A

BRACKET, FLEXIBLE HOSE, NO.5

47371A

CLAMP, BRAKE TUBE, NO.1

47371A

CLAMP, BRAKE TUBE, NO.1

47393

INSULATOR, BRAKE TUBE HEAT

47393

INSULATOR, BRAKE TUBE HEAT

9011908701

Крепеж

9011908701

Крепеж

9011908701

Крепеж

9011908701

Крепеж

9011908701

Крепеж

9011908701

Крепеж

9011908701

Крепеж

9011908701

Крепеж

9011908701

Крепеж

9011908701

Крепеж

9011908701

Крепеж

9011908701

Крепеж

9011910121

Крепеж

9046108706

Крепеж

9046110793

Крепеж

9046400208

Крепеж

9094901183

Крепеж

9094901854

Крепеж

91611B0816

Крепеж

91611B0816

Крепеж

91611B0816

Крепеж

91611B0816

Крепеж

91621J0814

Крепеж

91621J0814

Крепеж

91621J0814

Крепеж

91621J0814

Крепеж

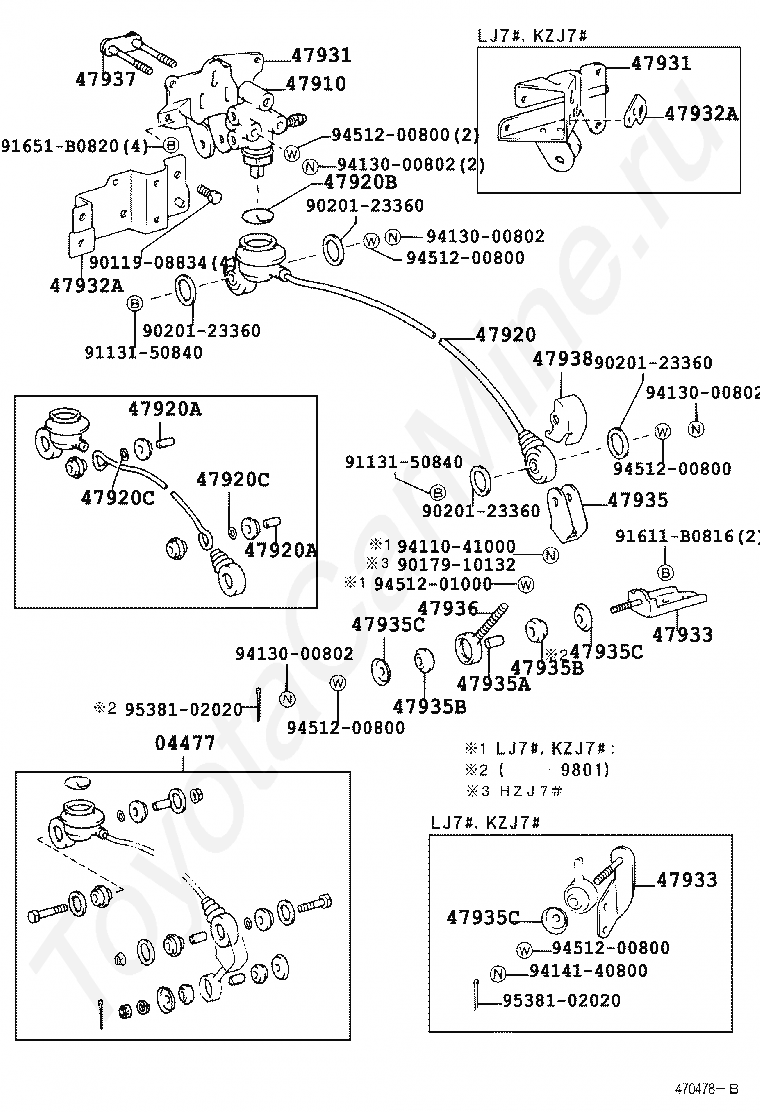

Код

Описание

04477

BUSH & BOOT KIT, LOAD SENSING SPRING

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47920C

WASHER(FOR LOAD SENSING SPRING)

47931

BRACKET, LOAD SENSING VALVE

47931

BRACKET, LOAD SENSING VALVE

47932A

BRACKET, LOAD SENSING VALVE UNION

47932A

BRACKET, LOAD SENSING VALVE UNION

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

47938

INSULATOR, LOAD SENSING SPRING SHACKLE HAET

9011908834

Крепеж

9017910132

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9113150840

Крепеж

9113150840

Крепеж

91611B0816

Крепеж

91651B0820

Крепеж

9411041000

Крепеж

9413000802

Крепеж

9413000802

Крепеж

9413000802

Крепеж

9413000802

Крепеж

9414140800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9538102020

Крепеж

9538102020

Крепеж

Тормозная магистраль TOYOTA LAND CRUISER S/T,H/T
