Япония

Модель

LAND CRUISER S/T,H/T

VIN

Дата

1994/01

Двигатель

4,2 литра, дизель

Кузов

HARD TOP SERIES

Класс

LX SPECIFICATION

Фрейм

HZJ77

КПП

механика

Опции

EMISSION REGULATION легкий грузовик

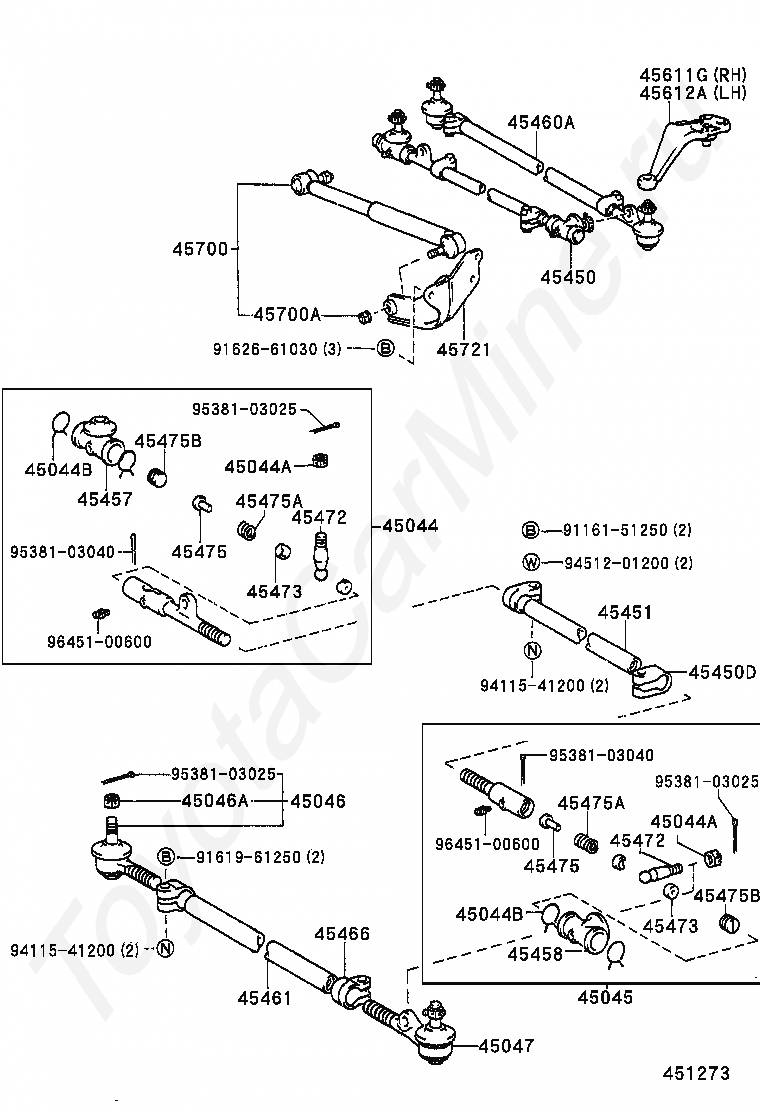

Рулевая рейка и наконечники TOYOTA LAND CRUISER S/T,H/T

Код

Описание

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

40110

GEAR ASSY,POWER STEERING,REBUILT

44110

GEAR ASSY, POWER STEERING

44251

ARM, PITMAN

45351A

NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

9010512104

Крепеж

9017912085

Крепеж

9451102200

Крепеж

Код

Описание

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107D

RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44108

COVER SUB-ASSY, SIDE

44108A

RING, O(FOR SIDE COVER)

44111

SHAFT, CROSS

44114A

RING(FOR POWER PISTON NUT)

44114B

RING, O(FOR POWER PISTON NUT)

44120

VALVE ASSY, W/BALL NUT

44142

NUT, LOCK

44152

PLUNGER, POWER PISTON

44152A

SPRING, COMPRESSION(FOR POWER PISTON PLUNGER)

44153

GUIDE, POWER PISTON PLUNGER

44154

NUT, POWER PISTON PLUNGER GUIDE

44154A

RING, O(FOR POWER PISTON PLUNGER GUIDE NUT)

44257A

WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)

45357

SCREW, SECTOR SHAFT ADJUSTING

9011910582

Крепеж

9011910582

Крепеж

9017010208

Крепеж

Код

Описание

45044

END SUB-ASSY, STEERING RELAY ROD, RH

45044A

NUT, CASTLE(FOR RELAY ROD)

45044A

NUT, CASTLE(FOR RELAY ROD)

45044B

RING, SET(FOR RELAY ROD)

45044B

RING, SET(FOR RELAY ROD)

45045

END SUB-ASSY, STEERING RELAY ROD, LH

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45450

ROD ASSY, STEERING RELAY

45450D

CLAMP, STEERING RELAY ROD END

45451

ROD, STEERING RELAY

45457

SEAL, STEERING LINK DUST, RH

45458

SEAL, STEERING LINK DUST, LH

45460A

ROD ASSY, TIE

45461

ROD, STEERING TIE

45466

CLAMP, TIE ROD END

45472

KNOB, STEERING LINK JOINT

45472

KNOB, STEERING LINK JOINT

45473

SEAT, BALL STUD

45473

SEAT, BALL STUD

45475

SEAT, STEERING LINK JOINT SPRING

45475

SEAT, STEERING LINK JOINT SPRING

45475A

SPRING, COMPRESSION(FOR STEERING LINK JOINT)

45475A

SPRING, COMPRESSION(FOR STEERING LINK JOINT)

45475B

PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)

45475B

PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)

45611G

ARM, STEERING KNUCKLE, NO.1

45612A

ARM, STEERING KNUCKLE, NO.2

45700

DAMPER ASSY, STEERING

45700A

NUT(FOR STEERING DAMPER)

45721

BRACKET, STEERING DAMPER

9116151250

Крепеж

9161961250

Крепеж

9162661030

Крепеж

9411541200

Крепеж

9411541200

Крепеж

9451201200

Крепеж

9538103025

Крепеж

9538103025

Крепеж

9538103025

Крепеж

9538103040

Крепеж

9538103040

Крепеж

9645100600

Крепеж

9645100600

Крепеж

Рулевая рейка и наконечники TOYOTA LAND CRUISER S/T,H/T
