Япония

Модель

LAND CRUISER S/T,H/T

VIN

Дата

1994/01

Двигатель

4,2 литра, дизель

Кузов

HARD TOP SERIES

Класс

LX SPECIFICATION

Фрейм

HZJ77

КПП

механика

Опции

EMISSION REGULATION легкий грузовик

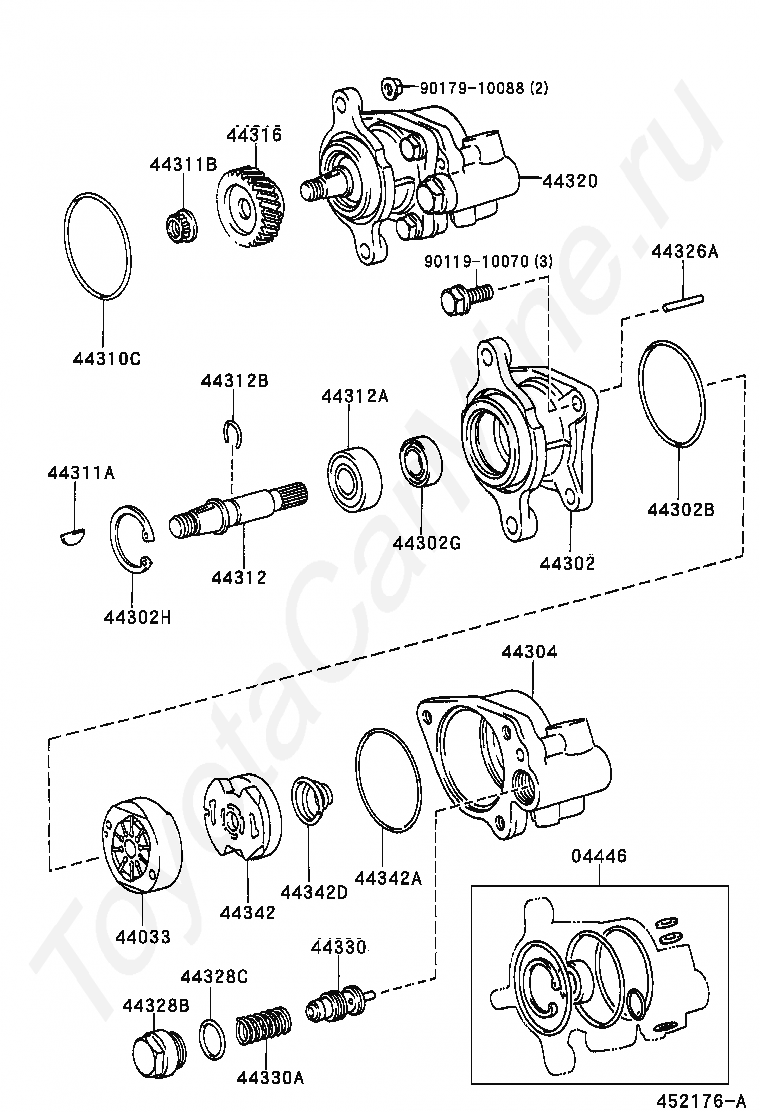

VANE PUMP & RESERVOIR (POWER STEERING) TOYOTA LAND CRUISER S/T,H/T

Код

Описание

04446

GASKET KIT, POWER STEERING PUMP

44033

ROTOR SUB-ASSY, W/CAM & VANE

44302

HOUSING SUB-ASSY, VANE PUMP, FRONT

44302B

RING, O, NO.1(FOR VANE PUMP HOUSING)

44302G

SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

44302H

RING, SNAP, NO.1(FOR VANE PUMP HOUSING)

44304

HOUSING SUB-ASSY, VANE PUMP, REAR

44310C

RING, O(FOR VANE PUMP)

44311A

KEY, VANE PUMP PULLEY

44311B

NUT(FOR VANE PUMP PULLEY)

44312

SHAFT, VANE PUMP

44312A

BEARING(FOR VANE PUMP SHAFT)

44312B

RING, SNAP, NO.1(FOR VANE PUMP SHAFT)

44316

GEAR, VANE PUMP

44320

PUMP ASSY, VANE

44326A

PIN, STRAIGHT(FOR VANE PUMP CAM RING)

44328B

END, VANE PUMP HOUSING

44328C

RING, O(FOR PUMP HOUSING END)

44330

VALVE ASSY, FLOW CONTROL

44330A

SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

44342

PLATE, VANE PUMP SIDE, REAR

44342A

RING, O(FOR VANE PUMP SIDE PLATE REAR)

44342D

SPRING, COMPRESSION(FOR PRESSURE PLATE)

9011910070

Крепеж

9017910088

Крепеж

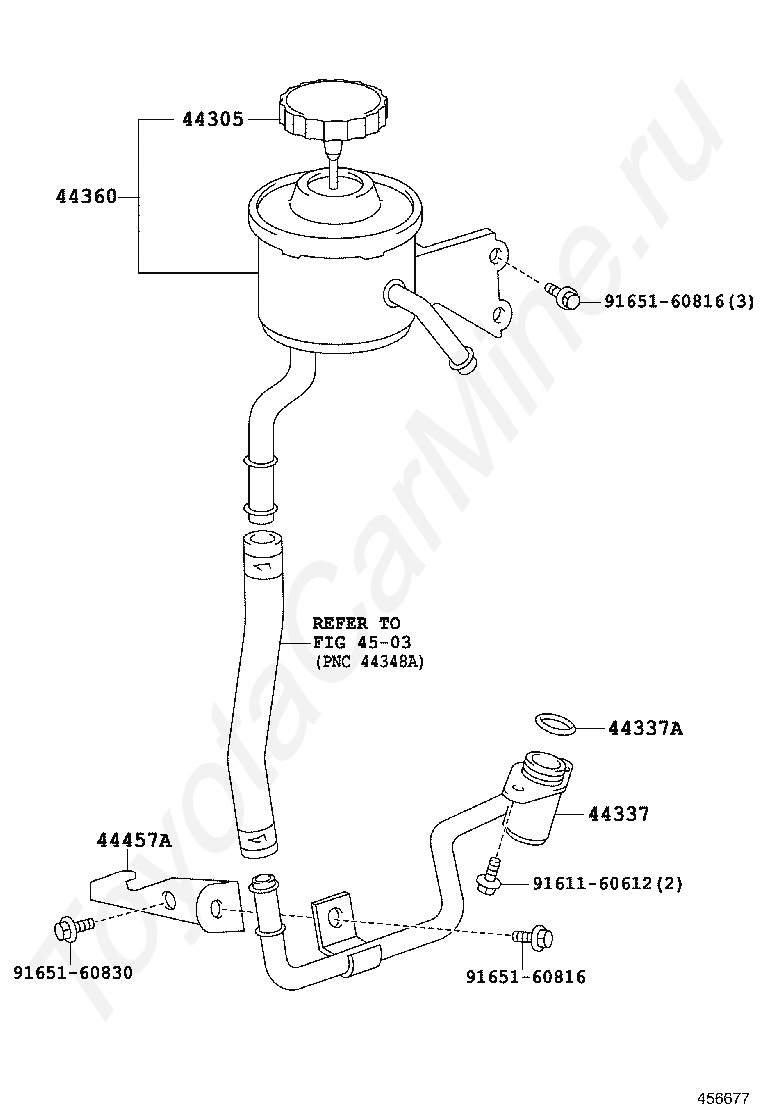

Код

Описание

44305

CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

44337

UNION, POWER STEERING SUCTION PORT

44337A

RING, O(FOR POWER STEERING SUCTION PORT)

44360

RESERVOIR ASSY, VANE PUMP OIL

44457A

BRACKET, TUBE SUPPORT, VANE PUMP

4503

переход к группе запчастей

9161160612

Крепеж

9165160816

Крепеж

9165160816

Крепеж

9165160830

Крепеж
