Каталог

Япония

Модель

LAND CRUISER S/T,H/T

VIN

Дата

1994/01

Двигатель

4,2 литра, дизель

Кузов

HARD TOP SERIES

Класс

LX SPECIFICATION

Фрейм

HZJ77

КПП

механика

Опции

EMISSION REGULATION легкий грузовик

Задний мост TOYOTA LAND CRUISER S/T,H/T

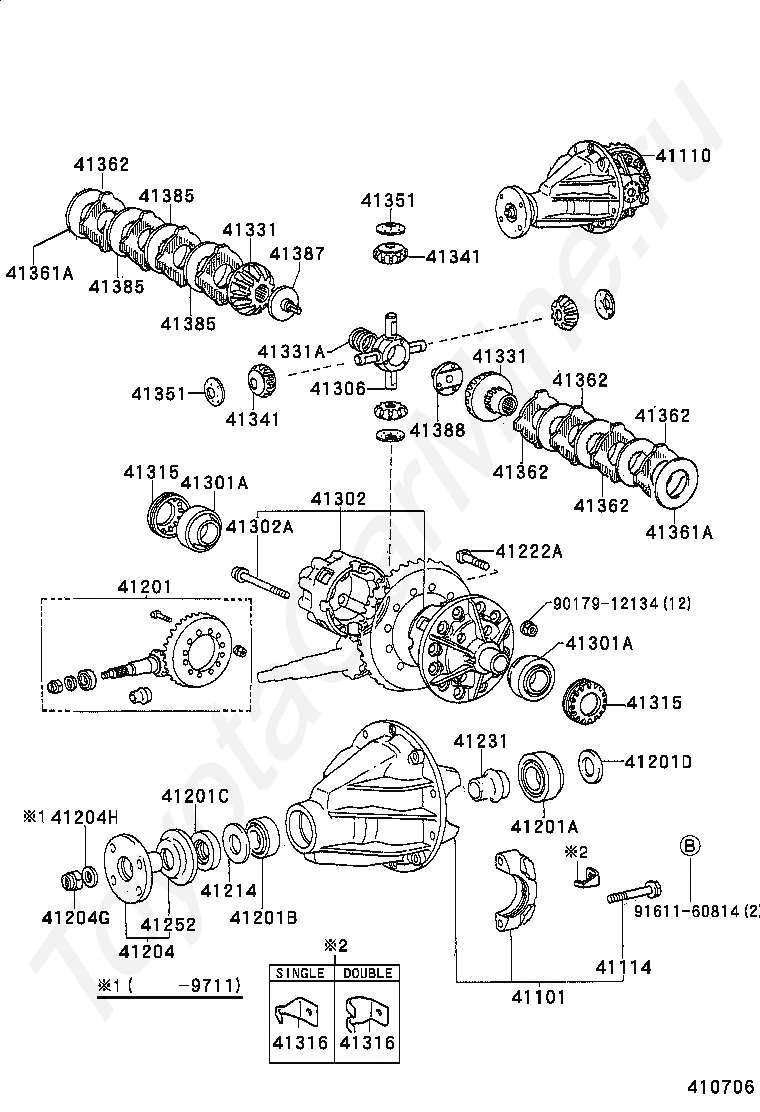

Код

Описание

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204G

NUT (FOR DRIVE PINION COMPANION FLANGE REAR)

41204H

WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41311J

CASE, REAR DIFFERENTIAL

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41331

GEAR, REAR DIFFERENTIAL SIDE

41331

GEAR, REAR DIFFERENTIAL SIDE

41341

PINION, REAR DIFFERENTIAL

41341

PINION, REAR DIFFERENTIAL

41342

SHAFT, REAR DIFFERENTIAL PINION

41343

PIN, REAR DIFFERENTIAL PINION SHAFT

41344

SPACER, DIFFERENTIAL PINION SHAFT

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

9017912134

Крепеж

9161160814

Крепеж

9451200800

Крепеж

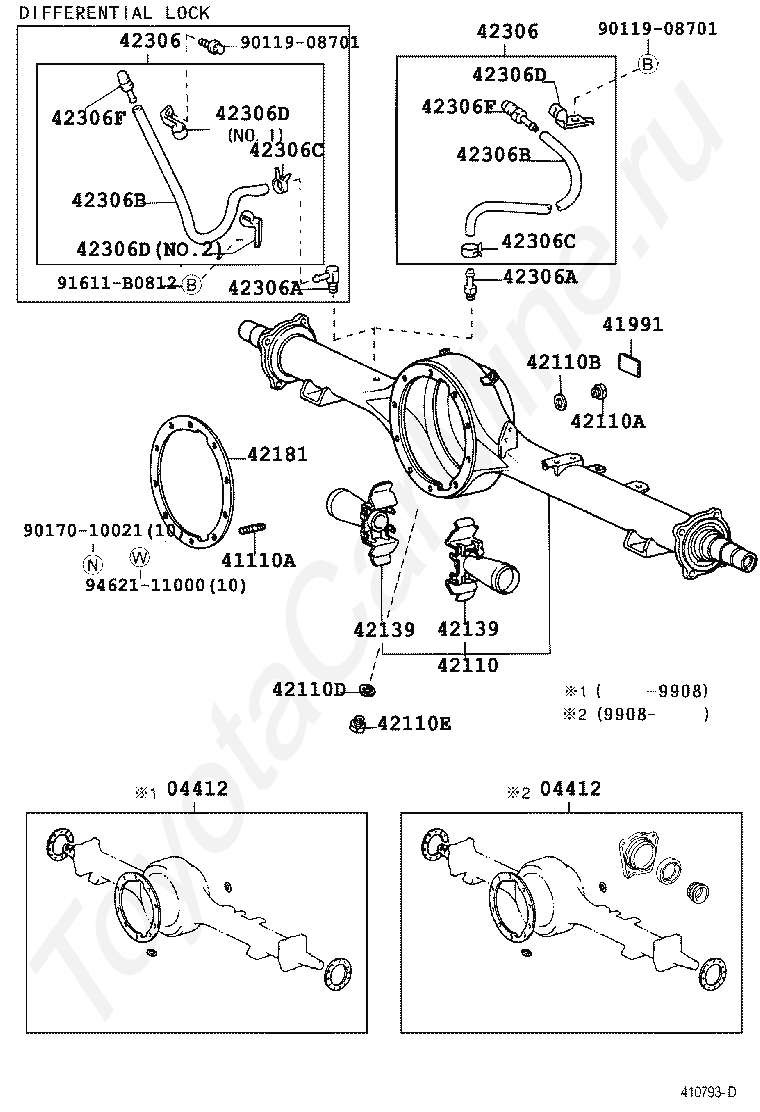

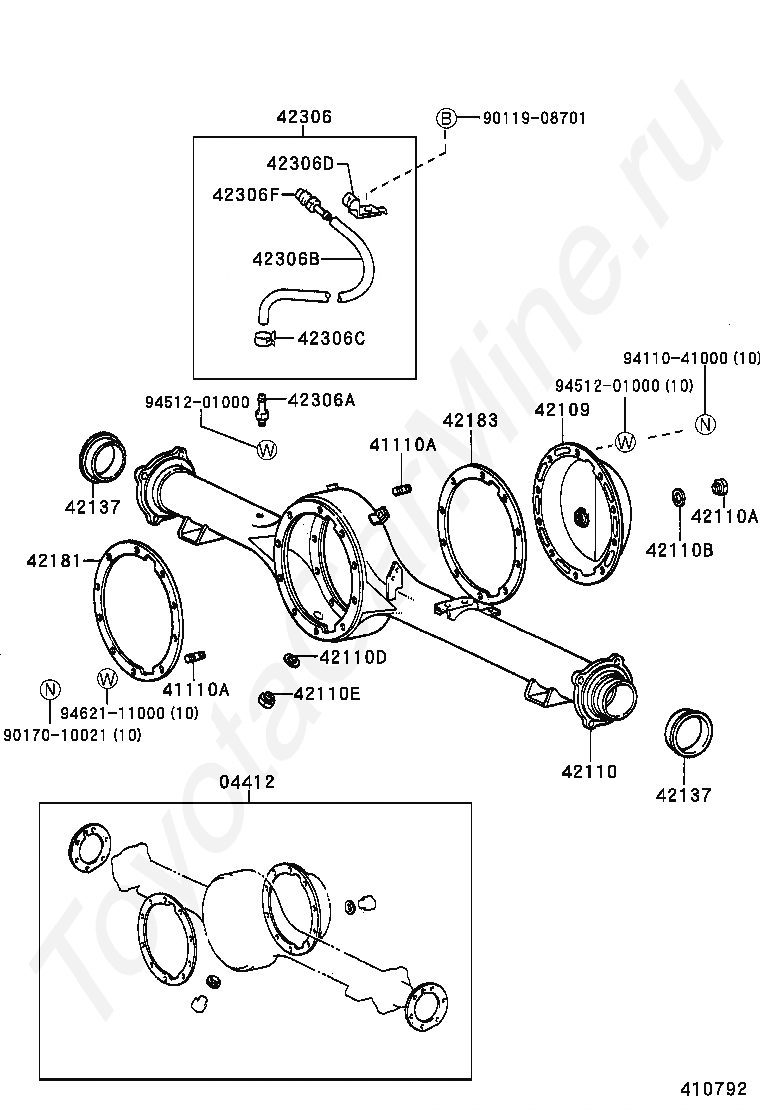

Код

Описание

04412

GASKET KIT, REAR DIFFERENTIAL CARRIER

41110A

BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

41110A

BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

42109

COVER SUB-ASSY, REAR AXLE HOUSING

42110

HOUSING ASSY, REAR AXLE

42110A

PLUG (FOR REAR AXLE HOUSING FILLER)

42110B

GASKET (FOR REAR AXLE HOUSING FILLER PLUG)

42110D

GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

42110E

PLUG (FOR REAR AXLE HOUSING DRAIN)

42137

COLLAR, REAR AXLE HOUSING SIDE

42137

COLLAR, REAR AXLE HOUSING SIDE

42181

GASKET, REAR DIFFERENTIAL CARRIER

42183

GASKET, REAR AXLE HOUSING COVER

42306

HOSE SUB-ASSY, REAR AXLE BREATHER

42306A

UNION (FOR REAR AXLE BREATHER HOUSE)

42306B

HOSE (FOR REAR AXLE BREATHER)

42306C

CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

42306D

CLAMP (FOR REAR AXLE BRATHER HOSE)

42306F

PLUG, BREATHER (FOR REAR AXLE)

9011908701

Крепеж

9017010021

Крепеж

9411041000

Крепеж

9451201000

Крепеж

9451201000

Крепеж

9462111000

Крепеж

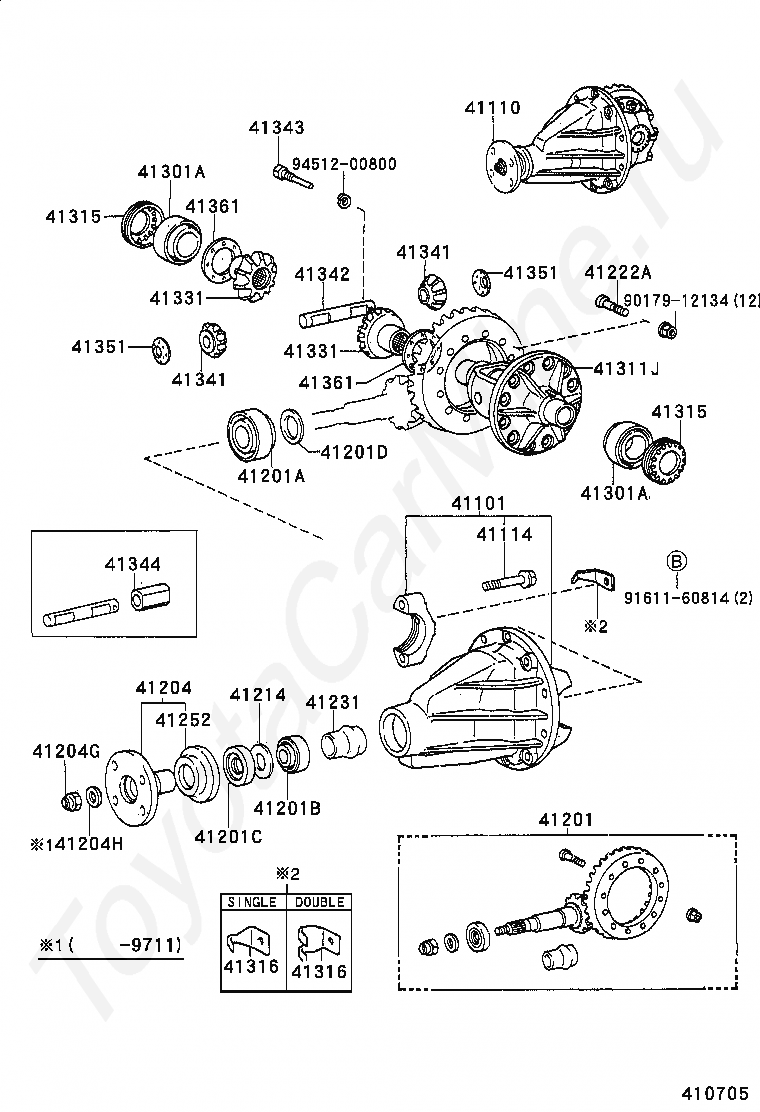

Код

Описание

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204G

NUT (FOR DRIVE PINION COMPANION FLANGE REAR)

41204H

WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41302

CASE SUB-ASSY, REAR DIFFERENTIAL

41302A

BOLT(FOR REAR DIFFERENTIAL CASE)

41306

SPIDER SUB-ASSY, FRONT DIFFERENTIAL

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41331

GEAR, REAR DIFFERENTIAL SIDE

41331

GEAR, REAR DIFFERENTIAL SIDE

41331A

SPRING, COMPRESSION

41341

PINION, REAR DIFFERENTIAL

41341

PINION, REAR DIFFERENTIAL

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361A

SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)

41361A

SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)

41362

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2

41362

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2

41362

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2

41362

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2

41362

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2

41385

PLATE, CLUTCH

41385

PLATE, CLUTCH

41385

PLATE, CLUTCH

41387

RETAINER, SPRING, RH

41388

RETAINER, SPRING, LH

9017912134

Крепеж

9161160814

Крепеж

Код

Описание

04412

GASKET KIT, REAR DIFFERENTIAL CARRIER

04412

GASKET KIT, REAR DIFFERENTIAL CARRIER

41110A

BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

41991

CAUTION PLATE, REAR DIFFERENTIAL

42110

HOUSING ASSY, REAR AXLE

42110A

PLUG (FOR REAR AXLE HOUSING FILLER)

42110B

GASKET (FOR REAR AXLE HOUSING FILLER PLUG)

42110D

GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

42110E

PLUG (FOR REAR AXLE HOUSING DRAIN)

42139

DEFLECTOR, REAR AXLE HOUSING OIL

42139

DEFLECTOR, REAR AXLE HOUSING OIL

42181

GASKET, REAR DIFFERENTIAL CARRIER

42306

HOSE SUB-ASSY, REAR AXLE BREATHER

42306

HOSE SUB-ASSY, REAR AXLE BREATHER

42306A

UNION (FOR REAR AXLE BREATHER HOUSE)

42306A

UNION (FOR REAR AXLE BREATHER HOUSE)

42306B

HOSE (FOR REAR AXLE BREATHER)

42306B

HOSE (FOR REAR AXLE BREATHER)

42306C

CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

42306C

CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

42306D

CLAMP (FOR REAR AXLE BRATHER HOSE)

42306D

CLAMP (FOR REAR AXLE BRATHER HOSE)

42306D

CLAMP (FOR REAR AXLE BRATHER HOSE)

42306F

PLUG, BREATHER (FOR REAR AXLE)

42306F

PLUG, BREATHER (FOR REAR AXLE)

9011908701

Крепеж

9011908701

Крепеж

9017010021

Крепеж

91611B0812

Крепеж

9462111000

Крепеж

Код

Описание

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204G

NUT (FOR DRIVE PINION COMPANION FLANGE REAR)

41204H

WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41301B

WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)

41301B

WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)

41302

CASE SUB-ASSY, REAR DIFFERENTIAL

41302A

BOLT(FOR REAR DIFFERENTIAL CASE)

41331

GEAR, REAR DIFFERENTIAL SIDE

41331

GEAR, REAR DIFFERENTIAL SIDE

41341

PINION, REAR DIFFERENTIAL

41341

PINION, REAR DIFFERENTIAL

41341

PINION, REAR DIFFERENTIAL

41341

PINION, REAR DIFFERENTIAL

41342

SHAFT, REAR DIFFERENTIAL PINION

41342

SHAFT, REAR DIFFERENTIAL PINION

41342

SHAFT, REAR DIFFERENTIAL PINION

41343

PIN, REAR DIFFERENTIAL PINION SHAFT

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41375

HOLDER, REAR DIFFERENTIAL PINION SHAFT

41450

ACTUATOR, DIFFERENTIAL LOCK SHIFT

41451

FORK, REAR DIFFERENTIAL LOCK SHIFT

41453

SLEEVE, REAR DIFFERENTIAL LOCK

41456

COVER, REAR DIFFERENTIAL LOCK

41460F

BOLT (FOR REAR DIFFERENTIAL LOCK CYLINDER SET)

41463B

BOLT (FOR REAR DIFFERENTIAL LOCK SHIFT FORK SHAFT SET)

41467

PROTECTOR, DIFFERENTIAL LOCK CYLINDER

41507

TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER

8401

переход к группе запчастей

9017912134

Крепеж

9162660816

Крепеж

9165160820

Крепеж

9418461001

Крепеж
