Япония

Модель

LAND CRUISER VAN

VIN

Дата

1995/01

Двигатель

4,2 литра, турбо-дизель

Класс

VX TYPE

Фрейм

HDJ81

КПП

механика

Опции

LIFT UP BACK DOOR TURBO DIESEL 4 VALVE

Кондиционер: охлаждающая система TOYOTA LAND CRUISER VAN

Код

Описание

8271195410

Крепеж

8711614010

Крепеж

87138C

RESISTOR, BLOWER

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88510

UNIT ASSY, COOLER

88510

UNIT ASSY, COOLER

88515

VALVE, COOLER EXPANSION

88539

HOSE, COOLER UNIT DRAIN, NO.1

8856960020

Крепеж

88605

HARNESS SUB-ASSY, COOLER WIRING, NO.1

88625

THERMISTOR, COOLER, NO.1

88630

RELAY ASSY, COOLER

88630

RELAY ASSY, COOLER

88630A

RELAY ASSY, COOLER

88630B

RELAY ASSY, COOLER

88630B

RELAY ASSY, COOLER

88650

AMPLIFIER ASSY, COOLER STABILIZER

88650

AMPLIFIER ASSY, COOLER STABILIZER

88710A

TUBE ASSY, AIR CONDITIONER

8889760010

Крепеж

9009904381

Крепеж

9015950144

Крепеж

9015960198

Крепеж

9017906054

Крепеж

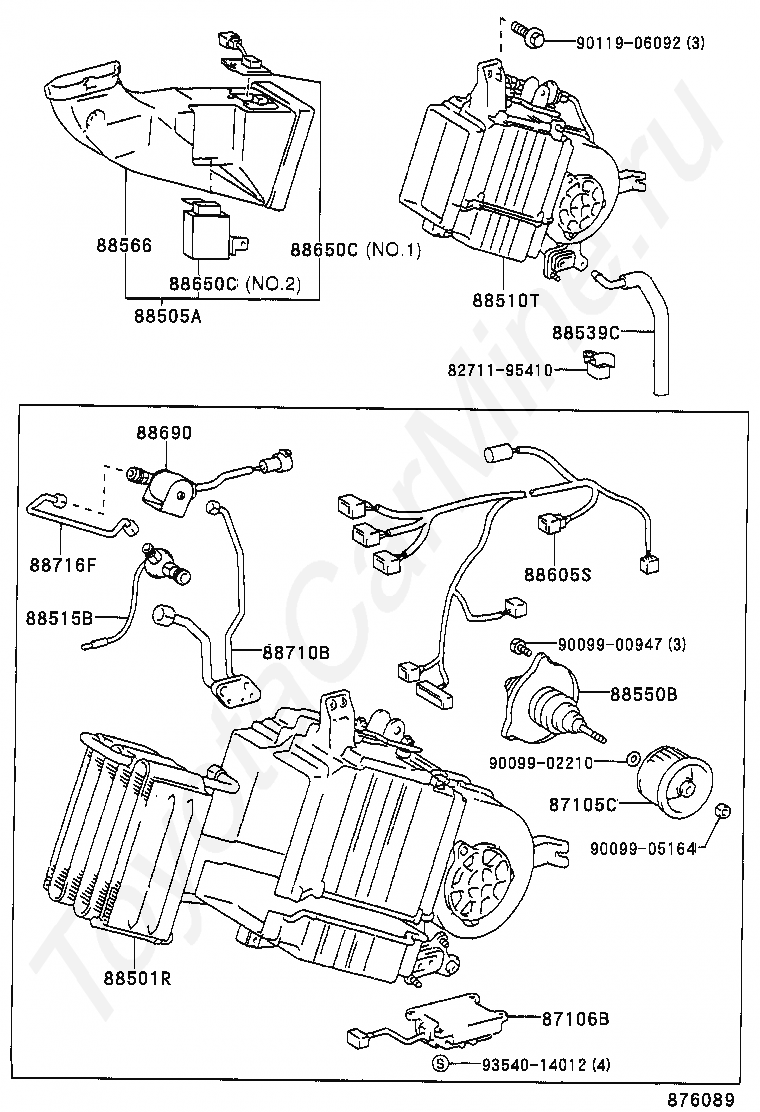

Код

Описание

8271195410

Крепеж

87105C

FAN SUB-ASSY, BLOWER, REAR

87106B

SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)

88501R

EVAPORATOR SUB-ASSY (REAR)

88505A

DUCT SUB-ASSY, AIR CONDITIONER

88510T

UNIT ASSY, COOLING (REAR)

88515B

VALVE, REAR COOLING UNIT EXPANSION

88539C

HOSE, COOLER UNIT DRAIN, NO.2

88550B

MOTOR ASSY, BLOWER

88566

DUCT, COOLER AIR, NO.1

88605S

HARNESS SUB-ASSY, WIRING AIR CONDITIONER

88650C

AMPLIFIER SUB-ASSY, AIRCONDITIONER

88650C

AMPLIFIER SUB-ASSY, AIRCONDITIONER

88690

VALVE ASSY, COOLER MAGNET

88710B

TUBE ASSY, AIR CONDITIONER

88716F

PIPE, COOLER REFRIGERANT LIQUID, F

9009900947

Крепеж

9009902210

Крепеж

9009905164

Крепеж

9011906092

Крепеж

9354014012

Крепеж

Код

Описание

58804B

PANEL SUB-ASSY, COOLING BOX, UPPER

58907A

HINGE SUB-ASSY, COOLING BOX DOOR

58908D

LOCK SUB-ASSY, COOLING BOX DOOR

58964A

STOPPER, COOLING BOX DOOR, NO.1

58964B

STOPPER, COOLING BOX DOOR, NO.2

88306

MOTOR SUB-ASSY, COOLER BLOWER, NO.1

88361

FAN, COOLER BLOWER, NO.1

88501E

EVAPOLATOR SUB-ASSY, COOLER (COOL BOX)

88502

CASE SUB-ASSY, COOLING UNIT

88515C

VALVE, COOLING BOX EXPANSION

88520

BOX ASSY, COOLING

88521D

CASE, ICE

88522

DOOR, COOLING UNIT

88529

TRAY, COOLING BOX

88529

TRAY, COOLING BOX

88539C

HOSE, COOLER UNIT DRAIN, NO.2

88601

SWITCH SUB-ASSY, COOLER CONTROL

88605C

HARNESS SUB-ASSY, COOLER WIRING, NO.2

88625A

THERMISTOR, COOLER NO.2

88650E

AMPLIFIER ASSY, AIR CONDITIONER, NO.1

8868860260

Крепеж

8868860270

Крепеж

88710H

TUBE & ACCESSORY ASSY, AIR CONDITIONER

9010508253

Крепеж

9010508253

Крепеж

9016126008

Крепеж

9054104079

Крепеж

9356054012

Крепеж

9356854512

Крепеж

9616000500

Крепеж
