Япония

Модель

LAND CRUISER VAN

VIN

Дата

1995/01

Двигатель

4,2 литра, турбо-дизель

Класс

VX TYPE

Фрейм

HDJ81

КПП

механика

Опции

LIFT UP BACK DOOR TURBO DIESEL 4 VALVE

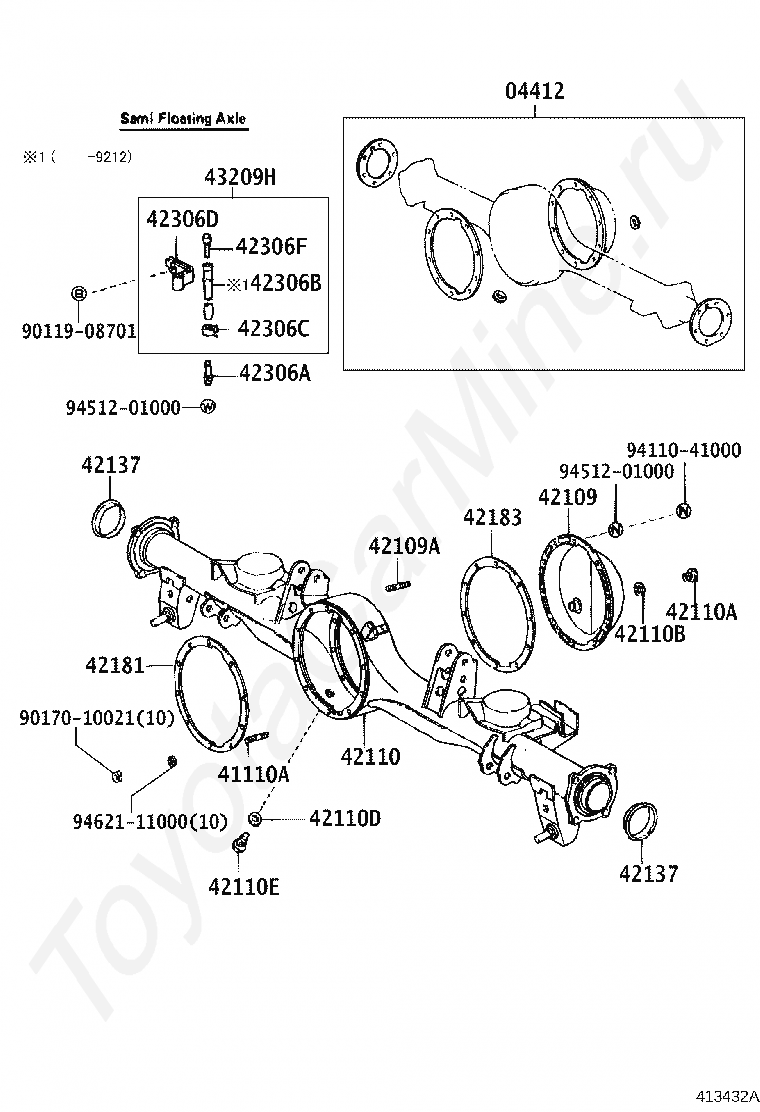

Задний мост TOYOTA LAND CRUISER VAN







Код

Описание

04412

GASKET KIT, REAR DIFFERENTIAL CARRIER

41110A

BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

42109

COVER SUB-ASSY, REAR AXLE HOUSING

42109A

BOLT (FOR REAR AXLE HOUSING COVER SETTING)

42110

HOUSING ASSY, REAR AXLE

42110A

PLUG (FOR REAR AXLE HOUSING FILLER)

42110B

GASKET (FOR REAR AXLE HOUSING FILLER PLUG)

42110D

GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

42110E

PLUG (FOR REAR AXLE HOUSING DRAIN)

42137

COLLAR, REAR AXLE HOUSING SIDE

42137

COLLAR, REAR AXLE HOUSING SIDE

42181

GASKET, REAR DIFFERENTIAL CARRIER

42183

GASKET, REAR AXLE HOUSING COVER

42306A

UNION (FOR REAR AXLE BREATHER HOUSE)

42306B

HOSE (FOR REAR AXLE BREATHER)

42306C

CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

42306D

CLAMP (FOR REAR AXLE BRATHER HOSE)

42306F

PLUG, BREATHER (FOR REAR AXLE)

43209H

HOSE, FRONT AXLE BREATHER

9011908701

Крепеж

9017010021

Крепеж

9411041000

Крепеж

9451201000

Крепеж

9451201000

Крепеж

9462111000

Крепеж

Код

Описание

04412

GASKET KIT, REAR DIFFERENTIAL CARRIER

41110A

BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

41991

CAUTION PLATE, REAR DIFFERENTIAL

42110

HOUSING ASSY, REAR AXLE

42110A

PLUG (FOR REAR AXLE HOUSING FILLER)

42110B

GASKET (FOR REAR AXLE HOUSING FILLER PLUG)

42110D

GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

42110E

PLUG (FOR REAR AXLE HOUSING DRAIN)

42139

DEFLECTOR, REAR AXLE HOUSING OIL

42139

DEFLECTOR, REAR AXLE HOUSING OIL

42181

GASKET, REAR DIFFERENTIAL CARRIER

42306A

UNION (FOR REAR AXLE BREATHER HOUSE)

42306B

HOSE (FOR REAR AXLE BREATHER)

42306C

CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

42306D

CLAMP (FOR REAR AXLE BRATHER HOSE)

42306F

PLUG, BREATHER (FOR REAR AXLE)

43209H

HOSE, FRONT AXLE BREATHER

9011908701

Крепеж

9017010021

Крепеж

9451201000

Крепеж

9462111000

Крепеж

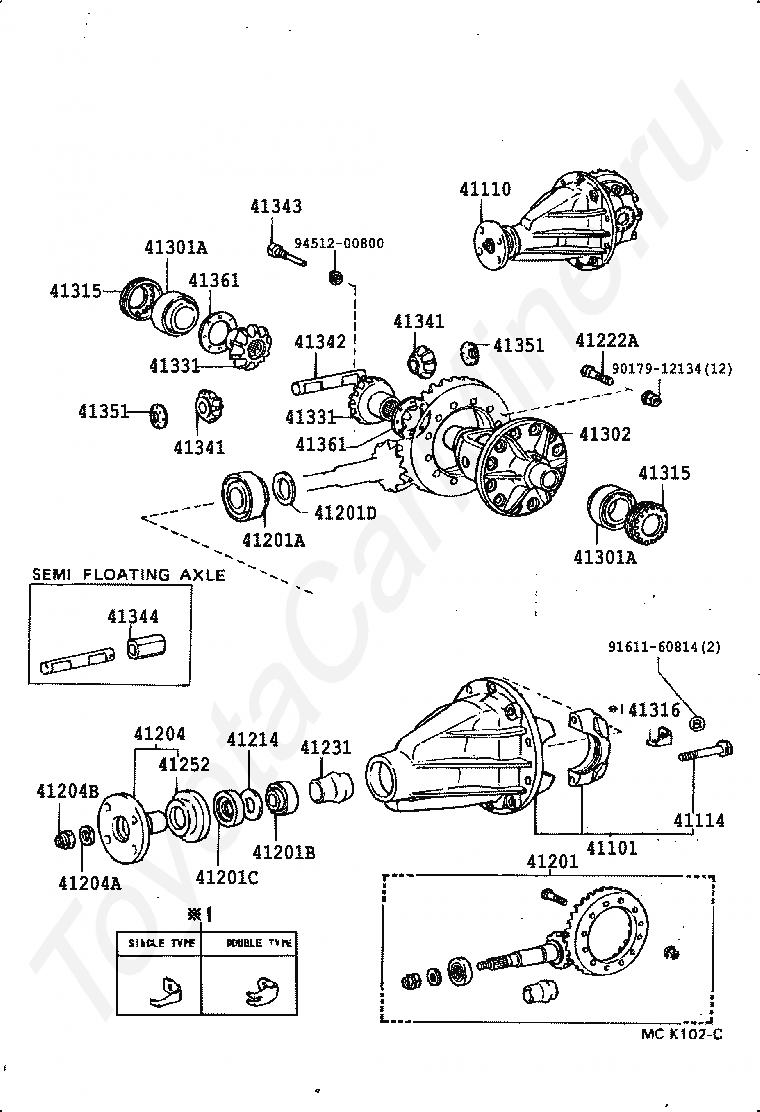

Код

Описание

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204A

WASHER, PLATE (FOR REAR DRIVE PINION)

41204B

NUT (FOR REAR DRIVE PINION)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41302

CASE SUB-ASSY, REAR DIFFERENTIAL

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41331

GEAR, REAR DIFFERENTIAL SIDE

41331

GEAR, REAR DIFFERENTIAL SIDE

41341

PINION, REAR DIFFERENTIAL

41341

PINION, REAR DIFFERENTIAL

41342

SHAFT, REAR DIFFERENTIAL PINION

41343

PIN, REAR DIFFERENTIAL PINION SHAFT

41344

SPACER, DIFFERENTIAL PINION SHAFT

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

9017912134

Крепеж

9161160814

Крепеж

9451200800

Крепеж

Код

Описание

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204A

WASHER, PLATE (FOR REAR DRIVE PINION)

41204B

NUT (FOR REAR DRIVE PINION)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41302

CASE SUB-ASSY, REAR DIFFERENTIAL

41302A

BOLT(FOR REAR DIFFERENTIAL CASE)

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41331

GEAR, REAR DIFFERENTIAL SIDE

41331

GEAR, REAR DIFFERENTIAL SIDE

41341

PINION, REAR DIFFERENTIAL

41341

PINION, REAR DIFFERENTIAL

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361A

SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)

41361A

SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)

41371

SPIDER, REAR DIFFERENTIAL

41385

PLATE, CLUTCH

41385

PLATE, CLUTCH

41385

PLATE, CLUTCH

41387

RETAINER, SPRING, RH

41388

RETAINER, SPRING, LH

41465B

SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINER)

9017912134

Крепеж

9161160814

Крепеж

Код

Описание

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41201D

WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204A

WASHER, PLATE (FOR REAR DRIVE PINION)

41204B

NUT (FOR REAR DRIVE PINION)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41301B

WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)

41301B

WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)

41302

CASE SUB-ASSY, REAR DIFFERENTIAL

41331

GEAR, REAR DIFFERENTIAL SIDE

41331

GEAR, REAR DIFFERENTIAL SIDE

41341

PINION, REAR DIFFERENTIAL

41341

PINION, REAR DIFFERENTIAL

41341

PINION, REAR DIFFERENTIAL

41341

PINION, REAR DIFFERENTIAL

41342

SHAFT, REAR DIFFERENTIAL PINION

41342M

SHAFT, REAR DIFFERENTIAL PINION, NO.2

41342M

SHAFT, REAR DIFFERENTIAL PINION, NO.2

41343

PIN, REAR DIFFERENTIAL PINION SHAFT

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41375

HOLDER, REAR DIFFERENTIAL PINION SHAFT

41467

PROTECTOR, DIFFERENTIAL LOCK CYLINDER

9010910091

Крепеж

9017912134

Крепеж

9165160820

Крепеж

9418461000

Крепеж

Код

Описание

41450

ACTUATOR, DIFFERENTIAL LOCK SHIFT

41451

FORK, REAR DIFFERENTIAL LOCK SHIFT

41453

SLEEVE, REAR DIFFERENTIAL LOCK

41456

COVER, REAR DIFFERENTIAL LOCK

41463B

BOLT (FOR REAR DIFFERENTIAL LOCK SHIFT FORK SHAFT SET)

41507

TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER

8401

переход к группе запчастей

9010508114

Крепеж

9165160820

Крепеж
