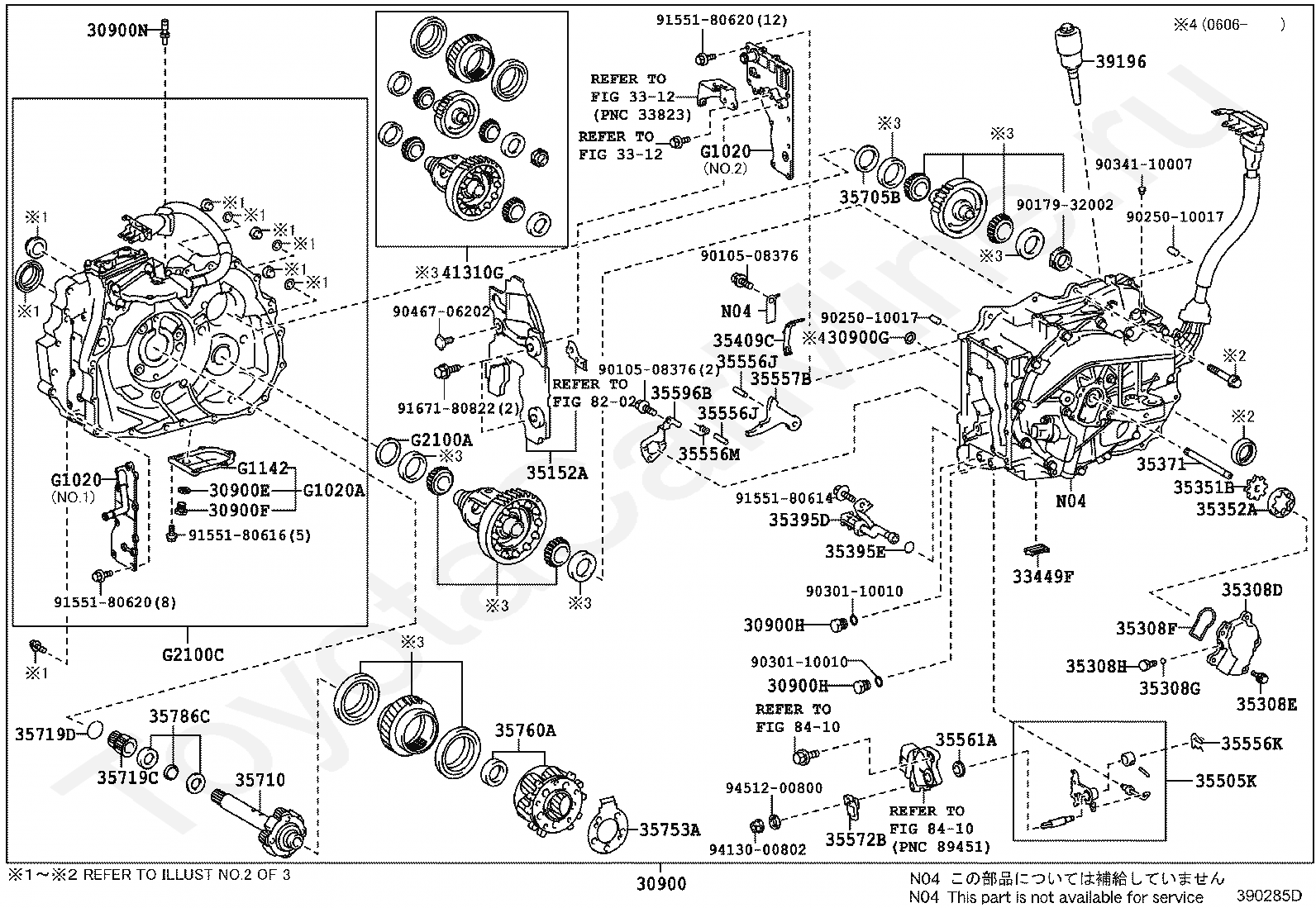

30900
TRANSAXLE ASSY, HYBRID VEHICLE
30900E
GASKET(FOR TRANSAXLE HOUSING & CASE)
30900F
PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900G
GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900H
PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)
30900H
PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)
30900N
PLUG, BREATHER(FOR TRANSAXLE)
3312
переход к группе запчастей
3312
переход к группе запчастей
33449F
MAGNET, TRANSMISSION NO.1
35152A
COVER, AUTOMATIC TRANSMISSION CASE, NO.2
35308D
COVER SUB-ASSY, TRANSMISSION OIL PUMP
35308E
BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER)
35308F
RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308G
RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308H
PLUG (FOR TRANSMISSION OIL PUMP COVER)
35351B
ROTOR, TRANSAXLE OIL PUMP DRIVE
35352A
ROTOR, TRANSMISSION OIL PUMP DRIVEN
35371
SHAFT, OIL PUMP DRIVE
35395D
STRAINER, TRANSMISSION OIL
35395E
RING, O(FOR TRANSAXLE OIL STRAINER)
35409C
SPRING SUB-ASSY, MANUAL DETENT
35505K
LEVER SUB-ASSY, PARKING LOCK, NO.1
35556J
SHAFT, PARKING LOCK PAWL
35556J
SHAFT, PARKING LOCK PAWL
35557B
PAWL, PARKING LOCK
35561A
SEAL, TYPE T OIL(FOR PARKING LOCK SHAFT)
35572B
LEVER, TRANSMISSION, OUTER
35596B
PLATE, PAWL STOPPER
35705B
SHIM(FOR COUNTER DRIVEN GEAR)
35719C
GEAR, PLANETARY SUN
35719D
RING, SNAP(FOR PLANETARY SUN GEAR)
35753A
RECEIVER, PLANETARY OIL
35760A
GEAR ASSY, REAR PLANETARY NO.1
35786C
RACE, THRUST BEARING, NO.1
39196
DAMPER, HV TRANSMISSION MASS
41310G
GEAR KIT, DIFFERENTIAL & COUNTER DRIVEN
8202
переход к группе запчастей
8410
переход к группе запчастей
8410
переход к группе запчастей
G1020
COVER ASSY, MOTOR WATER JACKET, NO.1
G1020
COVER ASSY, MOTOR WATER JACKET, NO.1
G1020A
COVER ASSY, MOTOR WATER JACKET, NO.2
G1142
COVER, MOTOR WATERJACET
G2100A
SHIM(FOR DIFFERENTIAL CASE RH)
G2100C
GENERATOR ASSY, HYBRID VEHICLE
