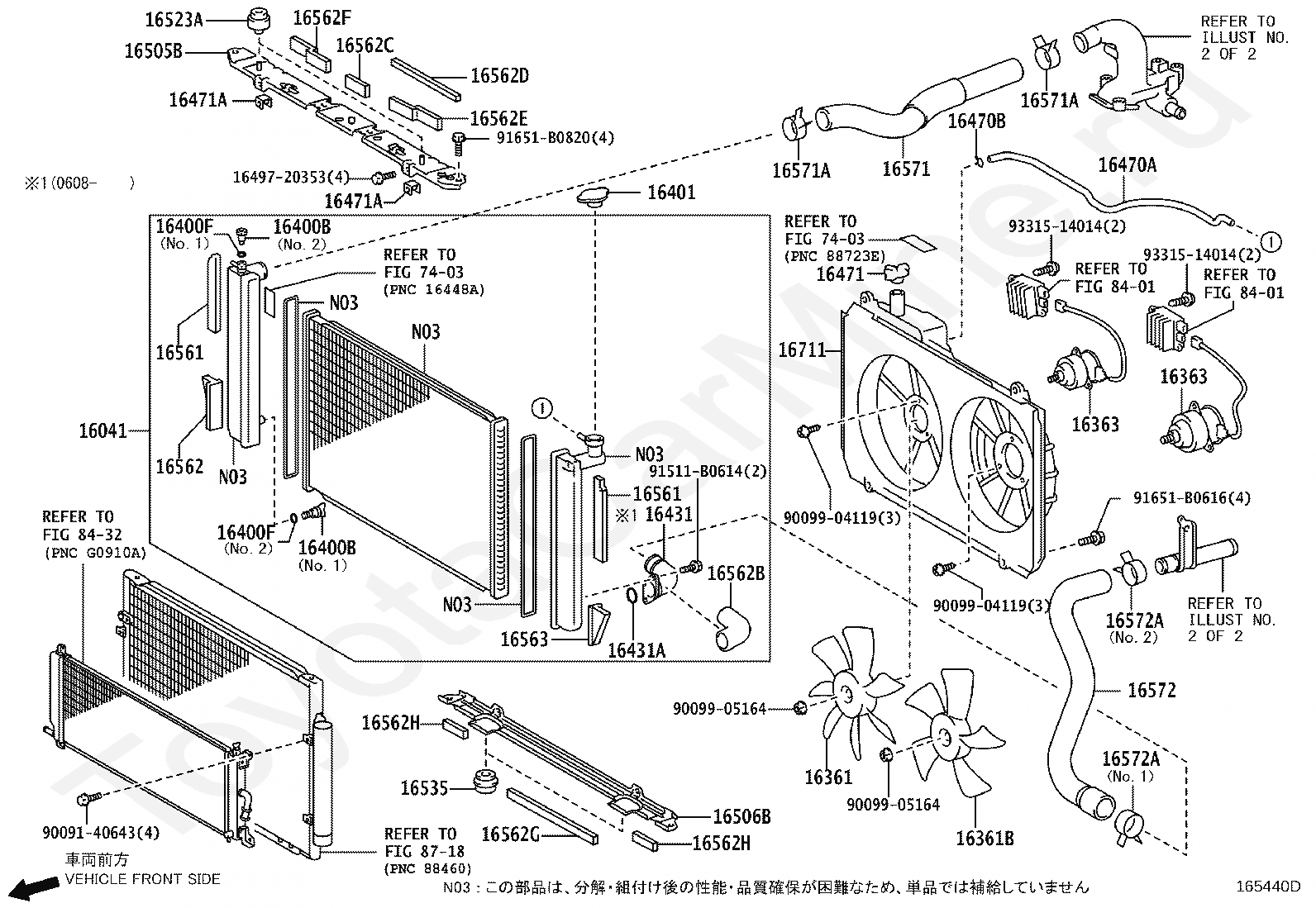

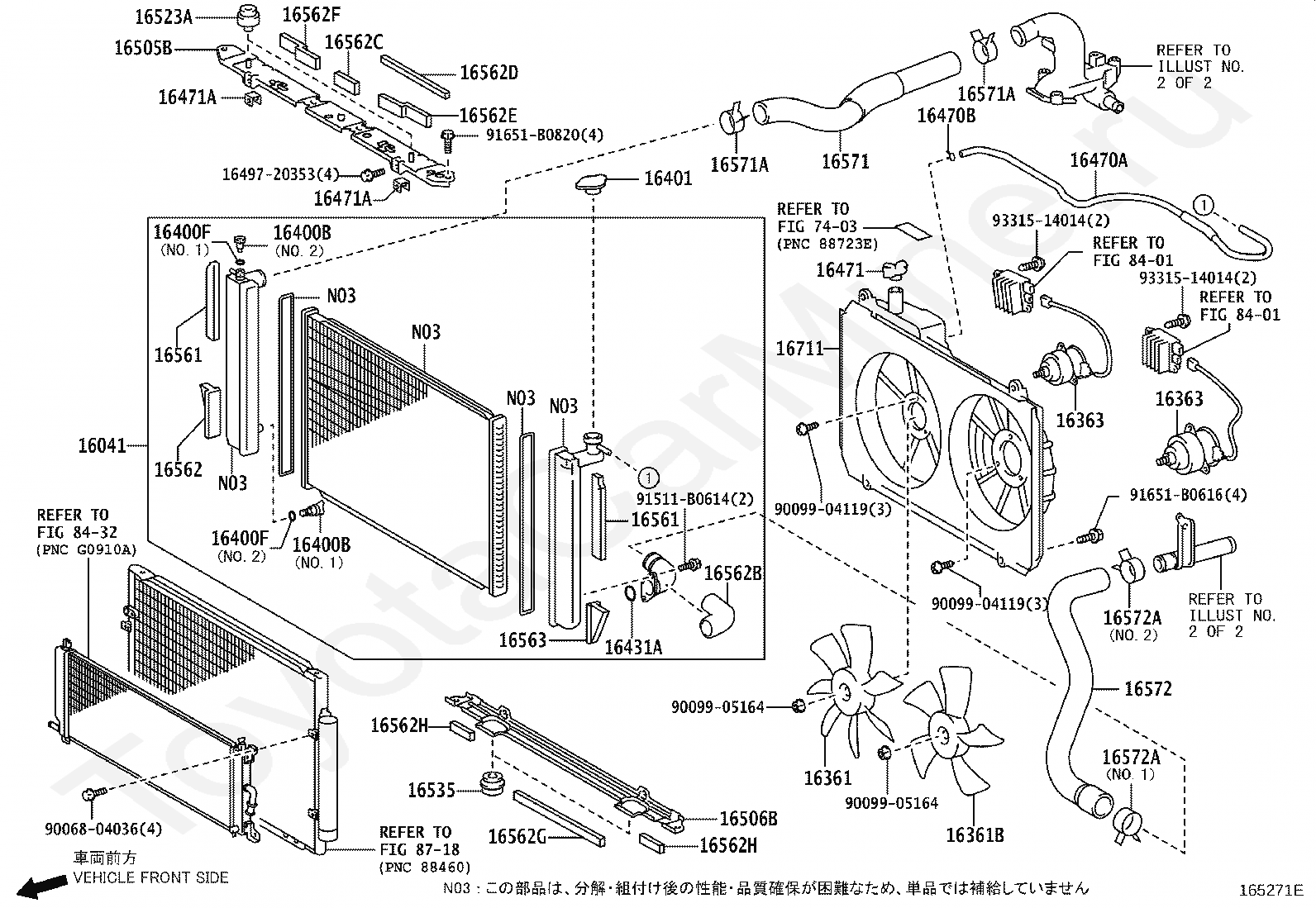

16041
RADIATOR ASSY, NO.2
16400B
PLUG, RADIATOR DRAIN COCK
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16431
INLET, RADIATOR WATER
16431A
RING, O(FOR RADIATOR WATER INLET)
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471
CAP SUB-ASSY, RESERVE TANK
16505B
SUPPORT SUB-ASSY, RADIATOR, UPPER RH
16506B
SUPPORT SUB-ASSY, RADIATOR, LOWER RH
16523A
CUSHION, RADIATOR SUPPORT
16535
SUPPORT, RADIATOR, LOWER
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16562
SEAL, RADIATOR TO SUPPORT, NO.2
16562B
SEAL, RADIATOR TO SUPPORT, NO.4
16562C
SEAL, RADIATOR TO SUPPORT, NO.5
16562D
SEAL, RADIATOR TO SUPPORT, NO.6
16562E
SEAL, RADIATOR TO SUPPORT, NO.7
16562F
SEAL, RADIATOR TO SUPPORT, NO.8
16562G
SEAL, RADIATOR TO SUPPORT, NO.9
16562H
SEAL, RADIATOR TO SUPPORT, NO.10
16562H
SEAL, RADIATOR TO SUPPORT, NO.10
16563
SEAL, RADIATOR TO SUPPORT, NO.3
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
