Ближний Восток

Модель

IZOA

VIN

Дата

2020/05

Двигатель

электромотор 150 кВт

Фрейм

KPX10

Опции

левый руль D(MODEL MARK) 783W

Аккумулятор и кабель TOYOTA IZOA







Код

Описание

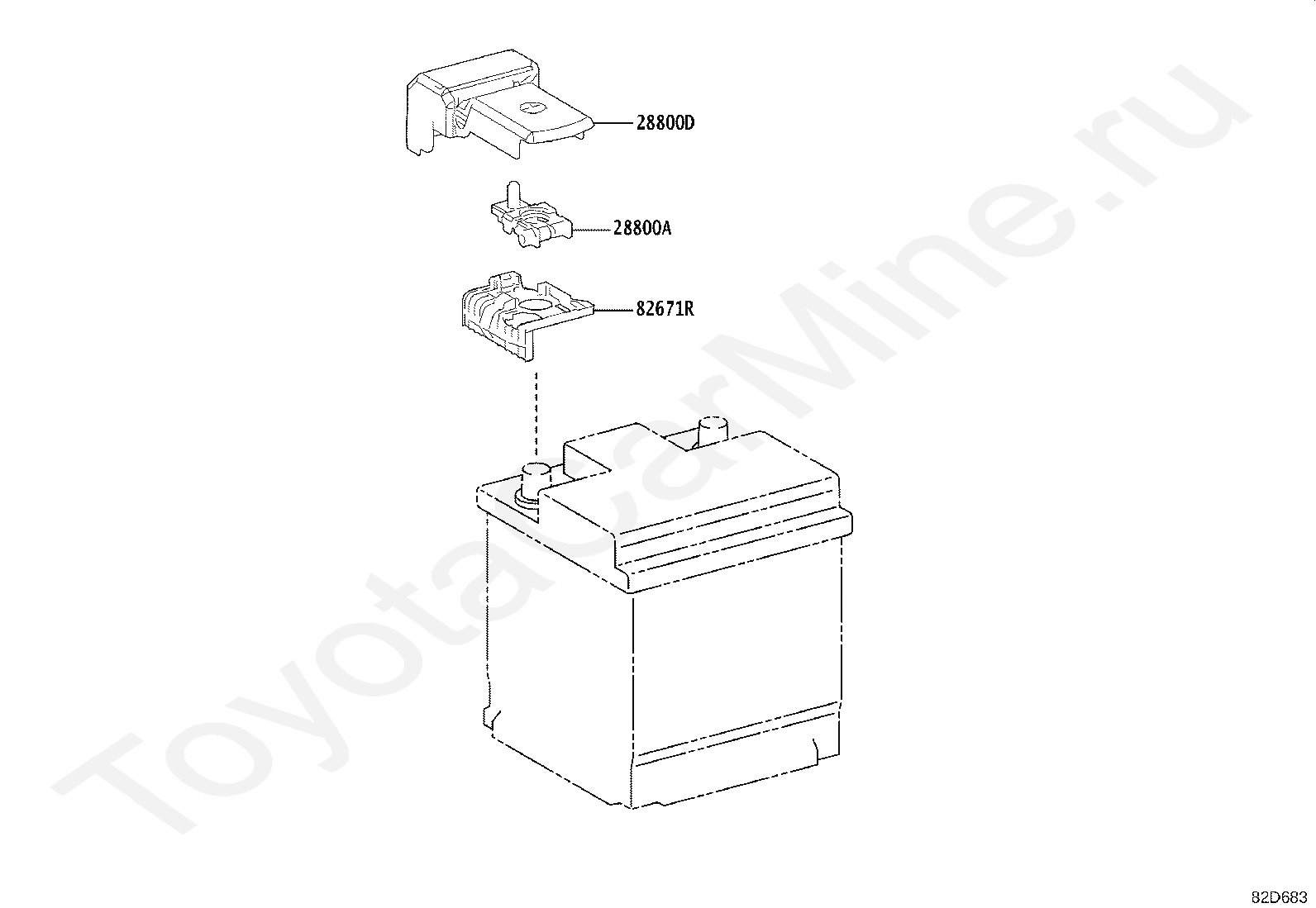

28800A

TERMINAL, BATTERY POSITIVE

28800D

COVER, CONNECTOR(FOR BATTERY TERMINAL)

82671R

STOPPER, BATTERY TERMINAL

Код

Описание

82821K

COVER, CONNECTOR

82821Z

COVER, CONNECTOR

90105C0083

Крепеж

90105C0083

Крепеж

9011906A06

Крепеж

9011906A06

Крепеж

9011910A20

Крепеж

9011910A21

Крепеж

9011910A21

Крепеж

9011910A22

Крепеж

90119C0107

Крепеж

90119C0107

Крепеж

90119C0236

Крепеж

90119C0307

Крепеж

90119C0307

Крепеж

90119C0572

Крепеж

90119C0573

Крепеж

90119C0573

Крепеж

90119C0574

Крепеж

9017810035

Крепеж

9017810035

Крепеж

9017810035

Крепеж

9017810035

Крепеж

90178C0137

Крепеж

90178C0137

Крепеж

90178C0137

Крепеж

90178C0137

Крепеж

9155180630

Крепеж

9155180630

Крепеж

9167380616

Крепеж

9167380616

Крепеж

91673A0620

Крепеж

G3855

PLUG , TRACTION BATTERY DEVICE

G9295B

STRIKER, BATTERY COVER LOCK

G9510B

BATTERY ASSY, EV SUPPLY

G9631

BRACKET, TRACTION BATTERY, NO.1

G9639

BRACKET, TRACTION BATTERY, NO.9

G963L

BRACKET, TRACTION BATTERY, NO.20

G963M

BRACKET, TRACTION BATTERY, NO.21

Код

Описание

8271106180

Крепеж

827112D350

Крепеж

8271134490

Крепеж

8271141080

Крепеж

8271141080

Крепеж

8271147190

Крепеж

89890A

COMPUTER ASSY, BATTERY

89892A

SENSOR, BATTERY VOLTAGE

9010506345

Крепеж

9010506345

Крепеж

90105C0214

Крепеж

90105C0214

Крепеж

90119C0104

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

91551A0516

Крепеж

91551A0516

Крепеж

91671A0616

Крепеж

91671A0625

Крепеж

91674A0625

Крепеж

9261660620

Крепеж

G384B

BOX, TRACTION BATTERY DEVICE, NO.1

G3860

BOX ASSY, TRACTION BATTERY DEVICE, NO.2

G929N

PLUG, BATTERY DRAIN

G92DB

SEAL, HYBRID BATTERY, NO.1

G92DC

SEAL, HV BATTERY, NO.2

G92HAA

SUPPORT, EV BATTERY, NO.4

G92HBB

SUPPORT, EV BATTERY, NO.5

G9502

BATTERY SUB-ASSY, EV SUPPLY, UPR

G9622

COVER, TRACTION BATTERY, NO.2

G9633

BRACKET, TRACTION BATTERY, NO.3

G9634

BRACKET, TRACTION BATTERY, NO.4

G9635

BRACKET, TRACTION BATTERY, NO.5

G9636

BRACKET, TRACTION BATTERY, NO.6

G9637

BRACKET, TRACTION BATTERY, NO.7

G9638

BRACKET, TRACTION BATTERY, NO.8

G9669

WIRE, TRACTION BATTRY VOLTAGE DETECTOR, NO.9

G96A2

CABLE, TRACTION BATTERY, NO.2

G96A3

CABLE, TRACTION BATTERY, NO.3

G96A4

CABLE, TRACTION BATTERY, NO.4

G96A5

CABLE, TRACTION BATTERY, NO.5

G96B1

WIRE, TRACTION BATTERY, NO.1

G96B2

WIRE, TRACTION BATTERY, NO.2

G96C1

CABLE, TRACTION BATTERY PLUG

G96E6

COVER, TRACTION BATTERY WIRE, NO.1

G96G2

HOUSING, TRACTION BATTERY CONNECTOR, NO.2

Код

Описание

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9046707214

Крепеж

9046707214

Крепеж

90467C0041

Крепеж

90467C0041

Крепеж

G9230

BLOWER ASSY, BATTERY COOLING

G9230

BLOWER ASSY, BATTERY COOLING

G9632

BRACKET, TRACTION BATTERY, NO.2

G9641

DUCT, TRACTION BATTERY, NO.1

G9642

DUCT, TRACTION BATTERY, NO.2

G9643

DUCT, TRACTION BATTERY, NO.3

G9644

DUCT, TRACTION BATTERY, NO.4

G964A

DUCT, TRACTION BATTERY, NO.10

G964B

DUCT, TRACTION BATTERY, NO.11

G964C

DUCT, TRACTION BATTERY, NO.12

G964D

DUCT, TRACTION BATTERY, NO.13

G96J1

RELAY, TRACTION BATTERY HEATER, NO.1

G96J2

RELAY, TRACTION BATTERY HEATER, NO.2

Код

Описание

8271106180

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806006

Крепеж

9017806023

Крепеж

9017806023

Крепеж

9017808006

Крепеж

9017808006

Крепеж

90178C0071

Крепеж

90178C0071

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

G9611

CARRIER, TRACTION BATTERY, NO.1

G963A

BRACKET, TRACTION BATTERY, NO.10

G963B

BRACKET, TRACTION BATTERY, NO.11

G963C

BRACKET, TRACTION BATTERY, NO.12

G963C

BRACKET, TRACTION BATTERY, NO.12

G963D

BRACKET, TRACTION BATTERY, NO.13

G963E

BRACKET, TRACTION BATTERY, NO.14

G963E

BRACKET, TRACTION BATTERY, NO.14

G963F

BRACKET, TRACTION BATTERY, NO.15

G963F

BRACKET, TRACTION BATTERY, NO.15

G963G

BRACKET, TRACTION BATTERY, NO.16

G963H

BRACKET, TRACTION BATTERY, NO.17

G963J

BRACKET, TRACTION BATTERY, NO.18

G963K

BRACKET, TRACTION BATTERY, NO.19

G9691

BLOCK, TRACTION BATTERY BUS-BAR, NO.1

G9691

BLOCK, TRACTION BATTERY BUS-BAR, NO.1

G9691

BLOCK, TRACTION BATTERY BUS-BAR, NO.1

G9691

BLOCK, TRACTION BATTERY BUS-BAR, NO.1

G96A1

CABLE, TRACTION BATTERY, NO.1

G96EN

COVER, TRACTION BATTERY WIRE, NO.17

G96H1

HEATER, TRACTION BATTERY, NO.1

G96H2

HEATER, TRACTION BATTERY, NO.2

G96H3

HEATER, TRACTION BATTERY, NO.3

Код

Описание

9017805002

Крепеж

9017805002

Крепеж

9017805002

Крепеж

9017805002

Крепеж

9017805002

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G9508B

BATTERY SUB-ASSY, SUPPLY, NO.1

G9508C

BATTERY SUB-ASSY, SUPPLY, NO.2

G9508C

BATTERY SUB-ASSY, SUPPLY, NO.2

G9508D

BATTERY SUB-ASSY, SUPPLY, NO.3

G9508D

BATTERY SUB-ASSY, SUPPLY, NO.3

G9645

DUCT, TRACTION BATTERY, NO.5

G9645

DUCT, TRACTION BATTERY, NO.5

G9645

DUCT, TRACTION BATTERY, NO.5

G9646

DUCT, TRACTION BATTERY, NO.6

G9646

DUCT, TRACTION BATTERY, NO.6

Код

Описание

8271116820

Крепеж

8271134480

Крепеж

9017805002

Крепеж

9017805002

Крепеж

9017805002

Крепеж

9017805002

Крепеж

9017805002

Крепеж

9017805002

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

91671J0816

Крепеж

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G92K3

BRACKET, HYBRID BATTERY CARRIER, NO.1

G9509B

BATTERY SUB-ASSY, SUPPLY, NO.4

G9509B

BATTERY SUB-ASSY, SUPPLY, NO.4

G950BA

BATTERY SUB-ASSY, SUPPLY, NO.5

G950BA

BATTERY SUB-ASSY, SUPPLY, NO.5

G950CA

BATTERY SUB-ASSY, SUPPLY, NO.6

G950CA

BATTERY SUB-ASSY, SUPPLY, NO.6

G9645

DUCT, TRACTION BATTERY, NO.5

G9646

DUCT, TRACTION BATTERY, NO.6

G9646

DUCT, TRACTION BATTERY, NO.6

G9647

DUCT, TRACTION BATTERY, NO.7

G9648

DUCT, TRACTION BATTERY, NO.8

G9648

DUCT, TRACTION BATTERY, NO.8
