Каталог
Модель
VIN
Дата
Двигатель
Класс
Фрейм
Опции
Код
Описание

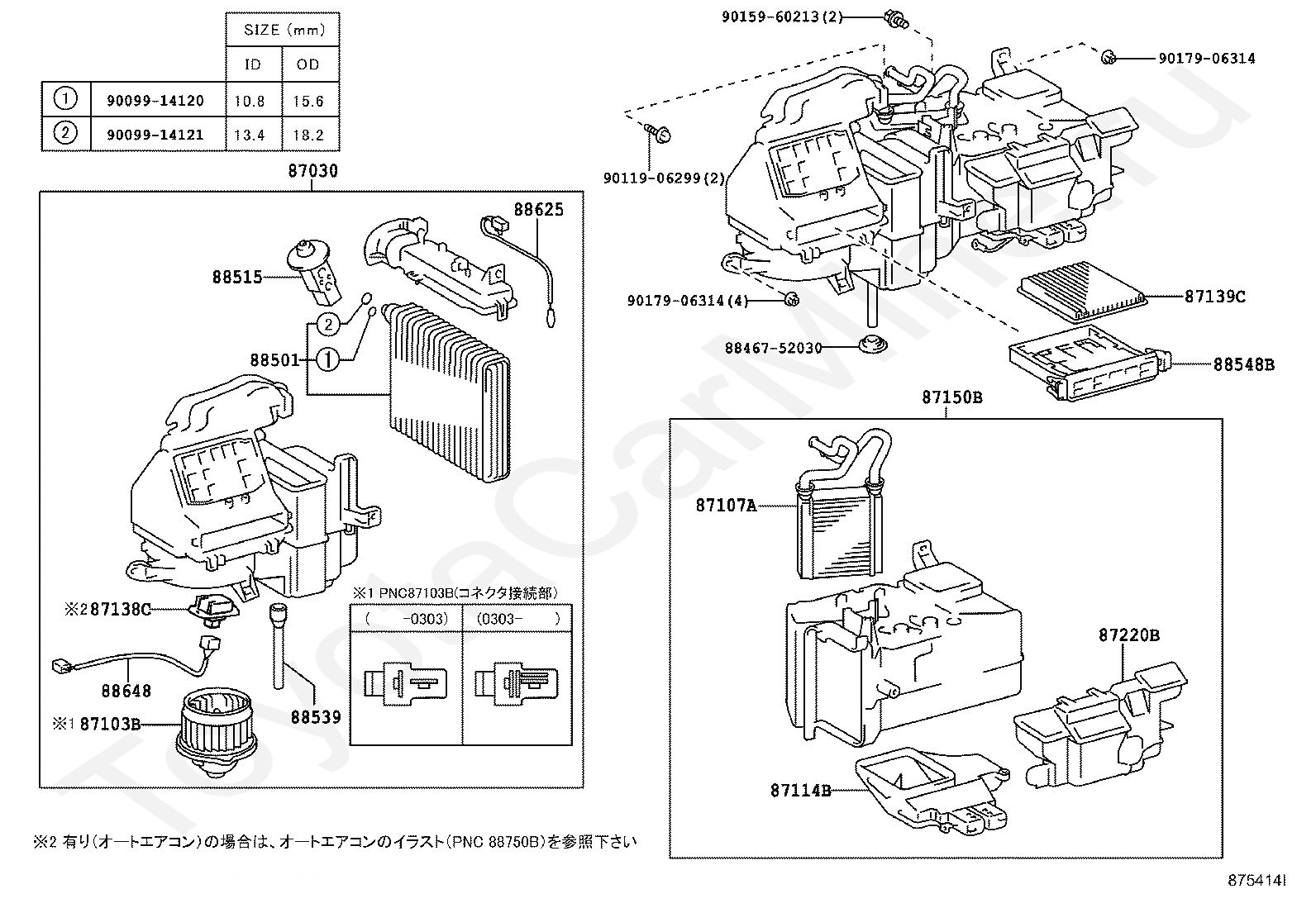

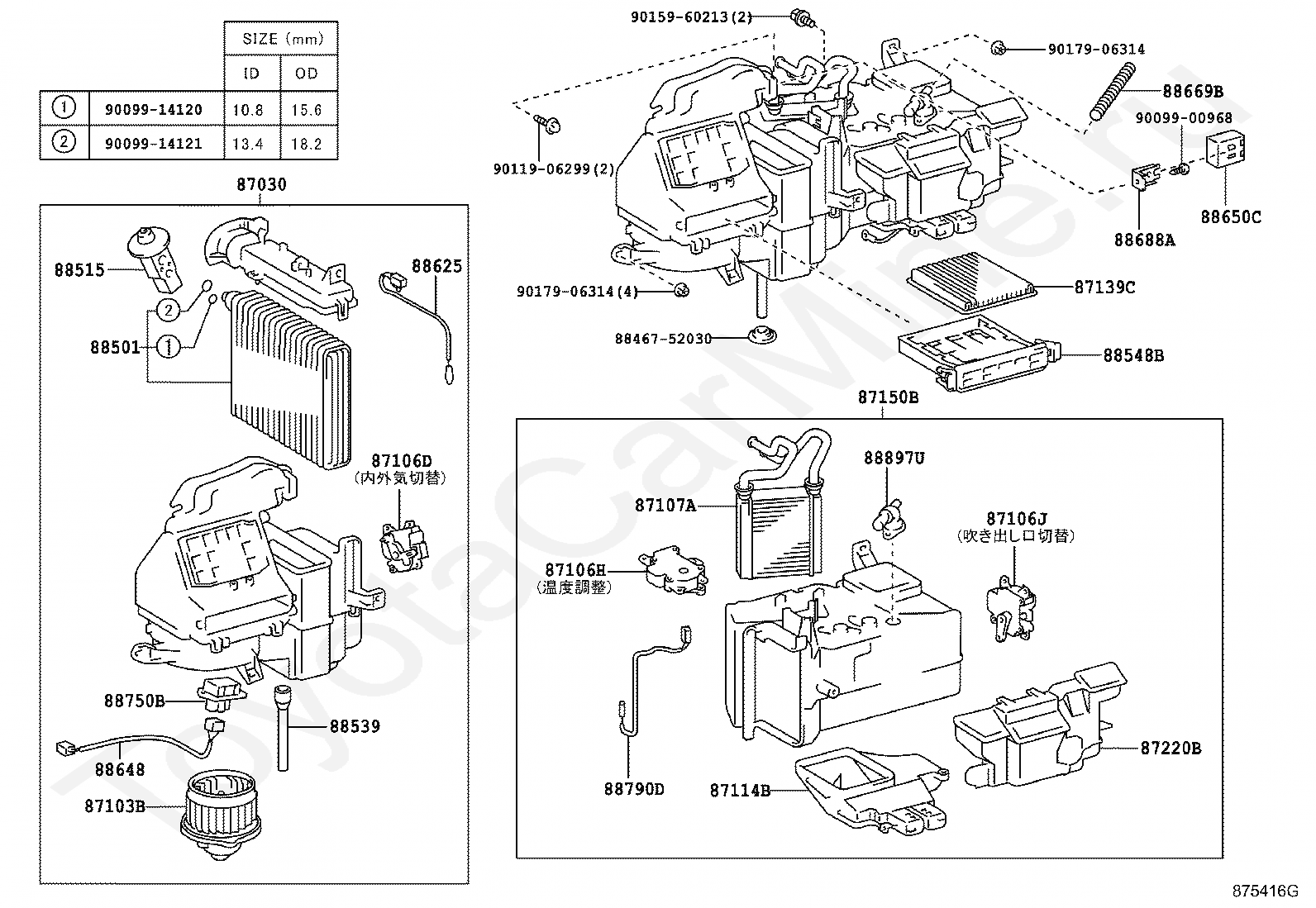

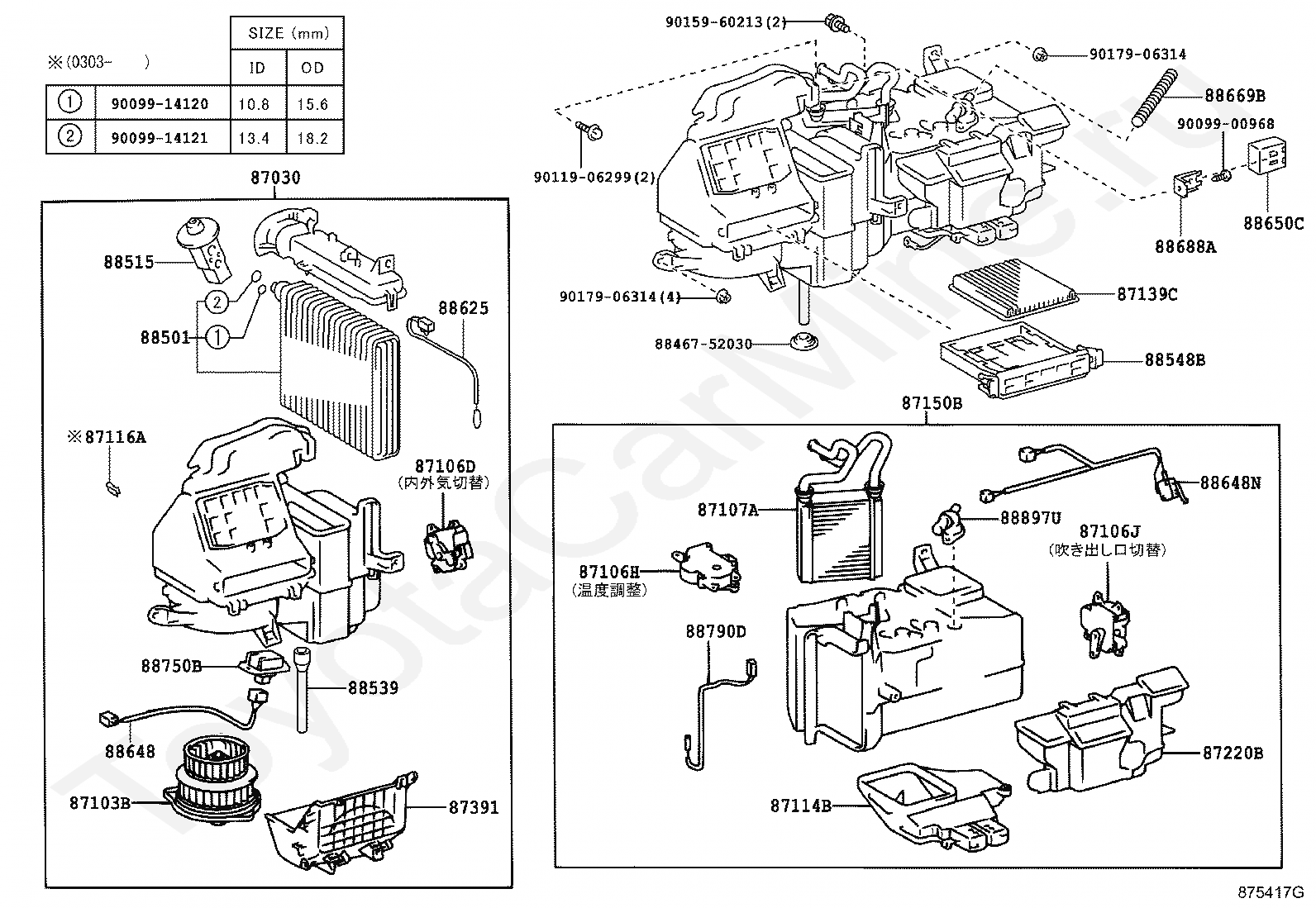

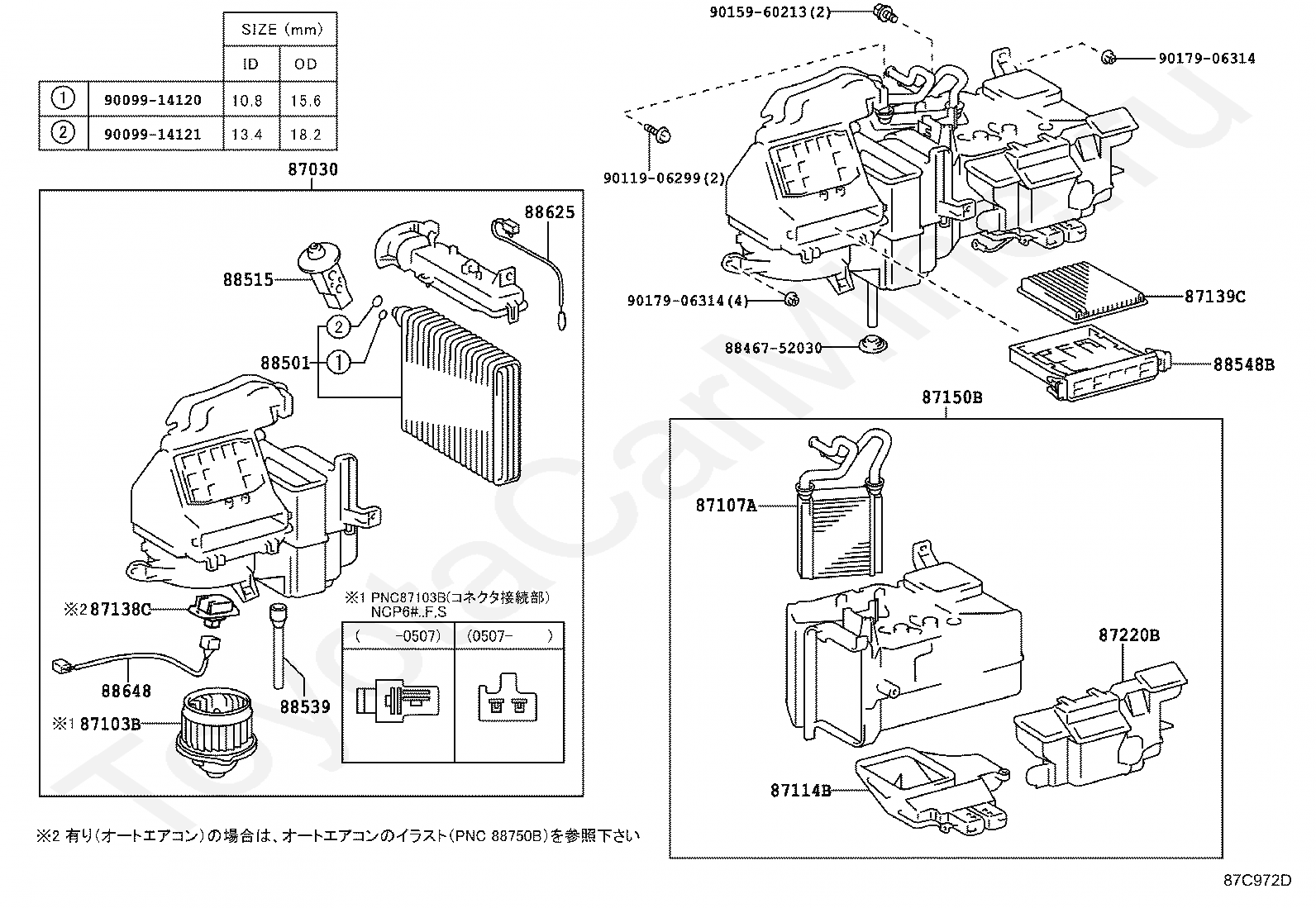

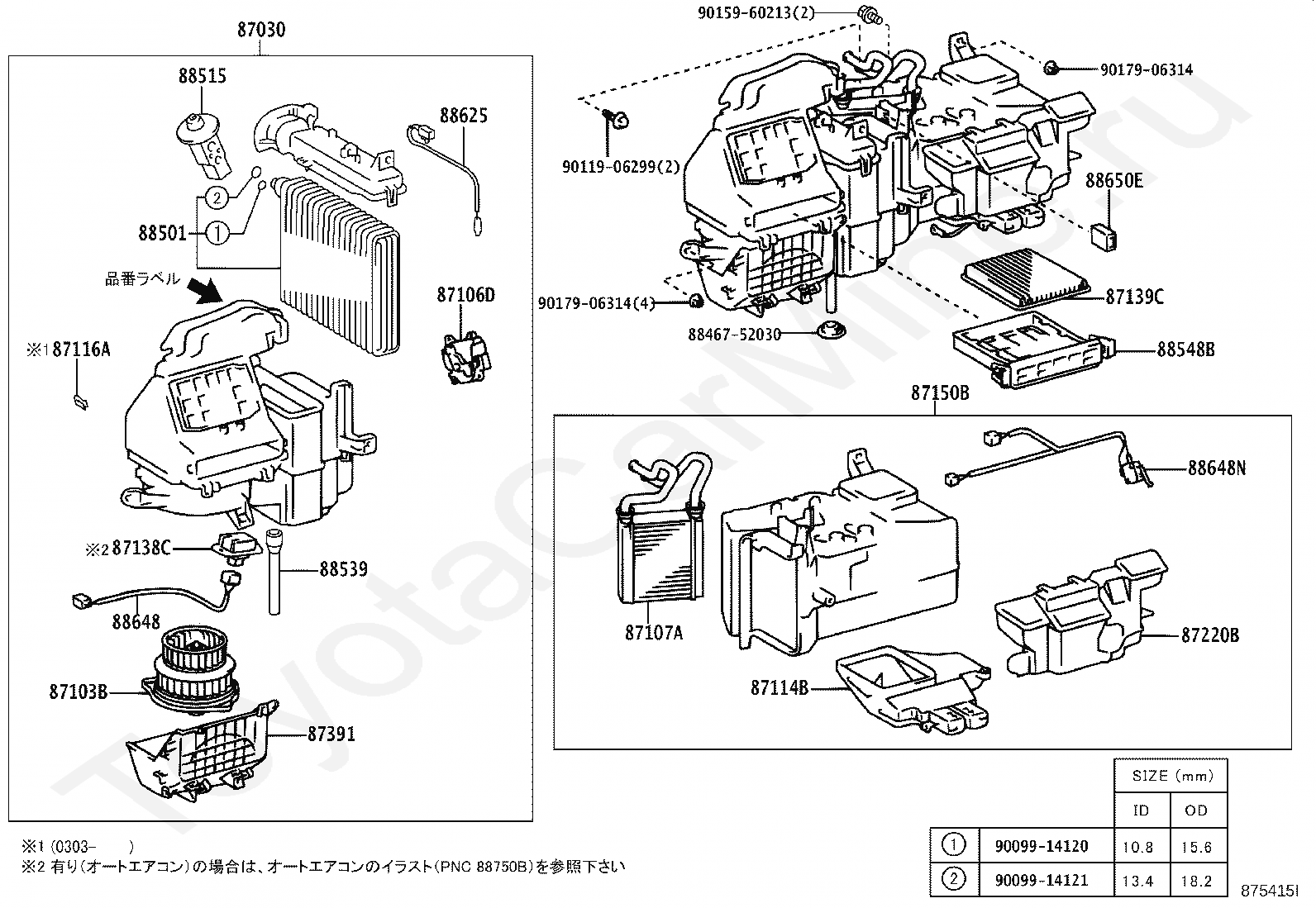

87030
BLOWER ASSY, AIR CONDITIONER
87103B
MOTOR SUB-ASSY, BLOWER W/FAN
87107A
UNIT SUB-ASSY, HEATER RADIATOR
87114B
COVER, HEATER
87138C
RESISTOR, BLOWER
87139C
FILTER, CLEAN AIR
87150B
RADIATOR ASSY, HEATER
87220B
DUCT ASSY, AIR
8846752030
Крепеж
88501
EVAPORATOR SUB-ASSY, COOLER, NO.1
88515
VALVE, COOLER EXPANSION
88539
HOSE, COOLER UNIT DRAIN, NO.1
88548B
CASE, AIR FILTER
88625
THERMISTOR, COOLER, NO.1
88648
WIRING, COOLER, NO.1
9009914120
9009914121
9011906299
9015960213
9017906314
87106D
SERVO SUB-ASSY, DAMPER, NO.1
87116A
SPRING, HOLDING (FOR COOLER UNIT CASE)
87391
COVER, BLOWER MOTOR
88648N
WIRING, COOLER, NO.2
88650E
AMPLIFIER ASSY, AIR CONDITIONER, NO.1
87106H
SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106J
SERVO SUB-ASSY, DAMPER(FOR MODE)
88650C
AMPLIFIER SUB-ASSY, AIRCONDITIONER
88669B
HOSE, COOLER AIR
88688A
BRACKET, COOLER STABILIZER AMPLIFIER
88750B
TRANSISTOR ASSY, BLOWER RESISTOR
88790D
THERMISTOR ASSY
88897U
PIPE, ASPIRATOR
9009900968
