Код
Описание

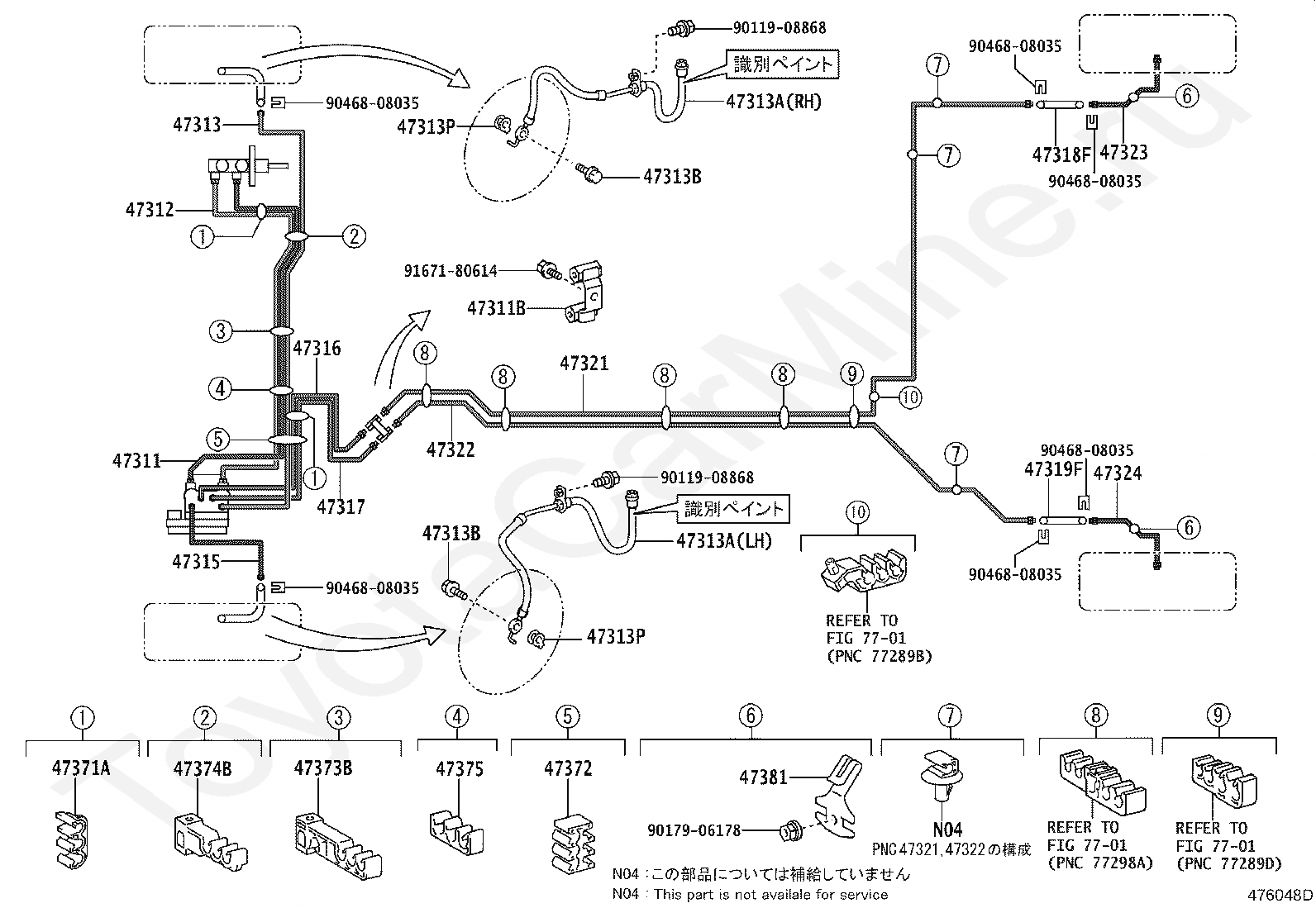

47311
TUBE, FRONT BRAKE, NO.1
47311B
WAY, NO.1(FOR FRONT BRAKE TUBE)
47312
TUBE, FRONT BRAKE, NO.2
47313
TUBE, FRONT BRAKE, NO.3
47313A
HOSE, FLEXIBLE, NO.1(FOR FRONT)
47313B
BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313P
GASKET(FOR FRONT FLEXIBLE HOSE)
47315
TUBE, FRONT BRAKE, NO.5
47316
TUBE, FRONT BRAKE, NO.6
47317
TUBE, FRONT BRAKE, NO.7
47318F
HOSE, FLEXIBLE(FOR REAR RH)
47319F
HOSE, FLEXIBLE(FOR REAR LH)
47321
TUBE, REAR BRAKE, NO.1
47322
TUBE, REAR BRAKE, NO.2
47323
TUBE, REAR BRAKE, NO.3
47324
TUBE, REAR BRAKE, NO.4
47371A
CLAMP, BRAKE TUBE, NO.1
47372
CLAMP, BRAKE TUBE, NO.2
47373B
CLAMP, BRAKE TUBE, NO.3
47374B
CLAMP, BRAKE TUBE, NO.4
47375
CLAMP, BRAKE TUBE, NO.5
47381
BRACKET, BRAKE TUBE CLAMP NO.1
7701
переход к группе запчастей
9011908868
Крепеж
9017906178
9046808035
9167180614
44510
ACTUATOR ASSY, BRAKE
4452112050
44546A
CUSHION, BRAKE ACTUATOR BOLT
44590
BRACKET ASSY, BRAKE ACTUATOR
9011906844
9163160825
