Япония

Модель

ISIS

VIN

Дата

2009/09

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

PLATANA TYPE

Фрейм

ZGM11

Опции

485W

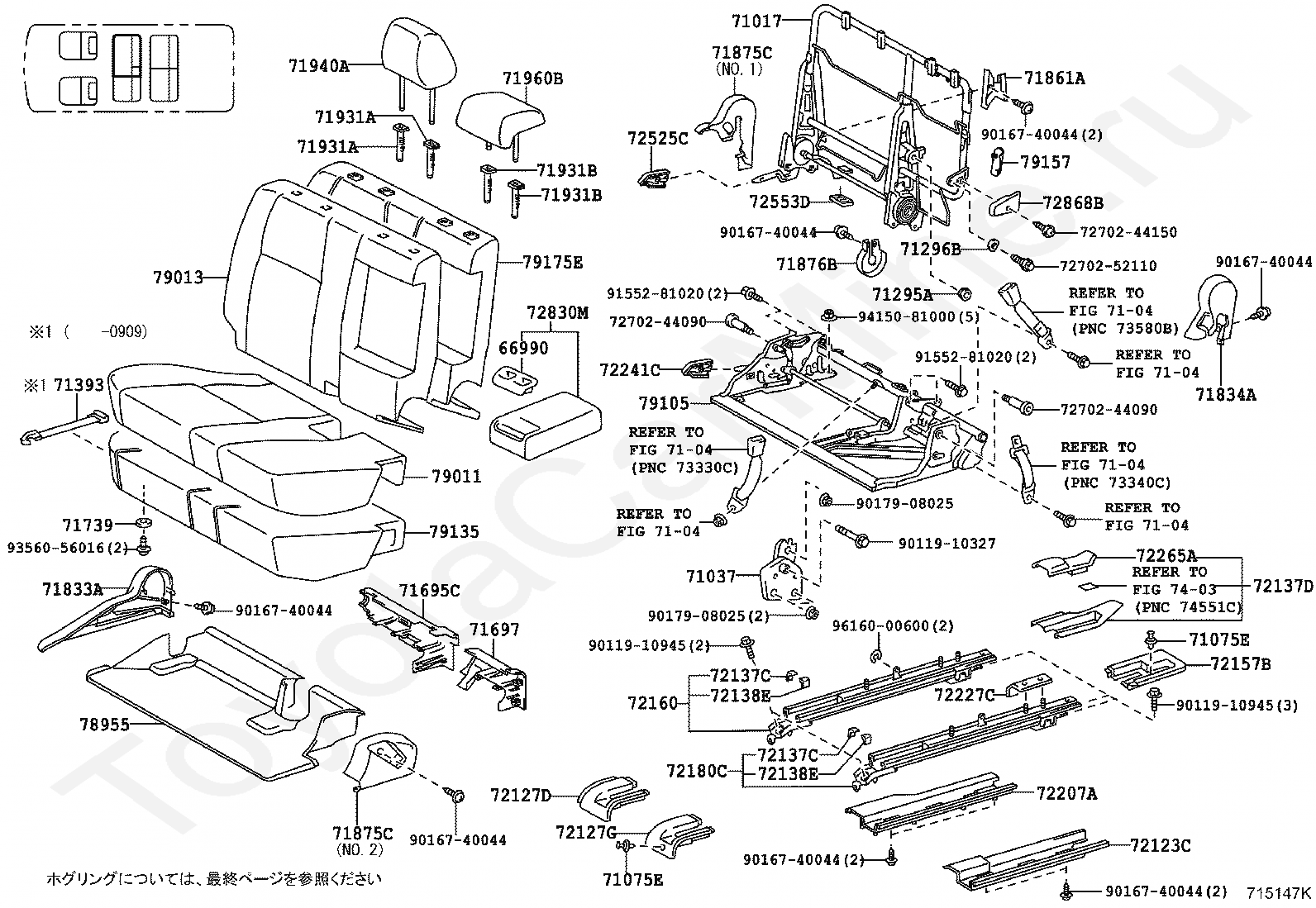

Задние кресла TOYOTA ISIS







Код

Описание

66990

HOLDER ASSY, CUP

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71037

HINGE SUB-ASSY, CENTER SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71075E

CLIP(FOR REAR SEAT)

71075E

CLIP(FOR REAR SEAT)

71295A

PLATE, REAR SEAT BACK, UPPER RH

71296B

PLATE, REAR SEAT BACK, UPPER LH

71393

BAND, REAR SEAT CUSHION

71695C

PROTECTOR, REAR SEAT, NO.1

71697

PROTECTOR, REAR SEAT BACK EDGE

71739

CUSHION, SEAT SUPPORT

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71861A

SHIELD, REAR SEAT CUSHION, INNER RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127D

COVER, SEAT TRACK BRACKET, FRONT, RH

72127G

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137C

COVER, SEAT TRACK INNER, RH

72137C

COVER, SEAT TRACK INNER, RH

72137D

COVER, REAR SEAT TRACK, RH

72138E

COVER, SEAT TRACK, INNER LH

72138E

COVER, SEAT TRACK, INNER LH

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72207A

PLATE, SEAT TRACK STOP RH

72227C

BRACKET, SEAT TRACK, UPPER RR

72241C

LEVER, OUTER SEAT TRACK LOCK, RH

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72553D

COVER, RECLINING PEDAL, RH

7270244090

Крепеж

7270244090

Крепеж

7270244150

Крепеж

7270252110

Крепеж

72830M

ARMREST ASSY, SEAT CENTER, RH

72868B

COVER, CENTER ARMREST HINGE

7403

переход к группе запчастей

78955

COVER, REAR SEAT UNDER TRAY RH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79135

PAD, NO.1 SEAT CUSHION

79157

COVER, NO.1 SEAT BACK

79175E

PAD, NO.1 SEAT BACK, RH

9011910327

Крепеж

9011910945

Крепеж

9011910945

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908025

Крепеж

9017908025

Крепеж

9155281020

Крепеж

9155281020

Крепеж

9356056016

Крепеж

9415081000

Крепеж

9616000600

Крепеж

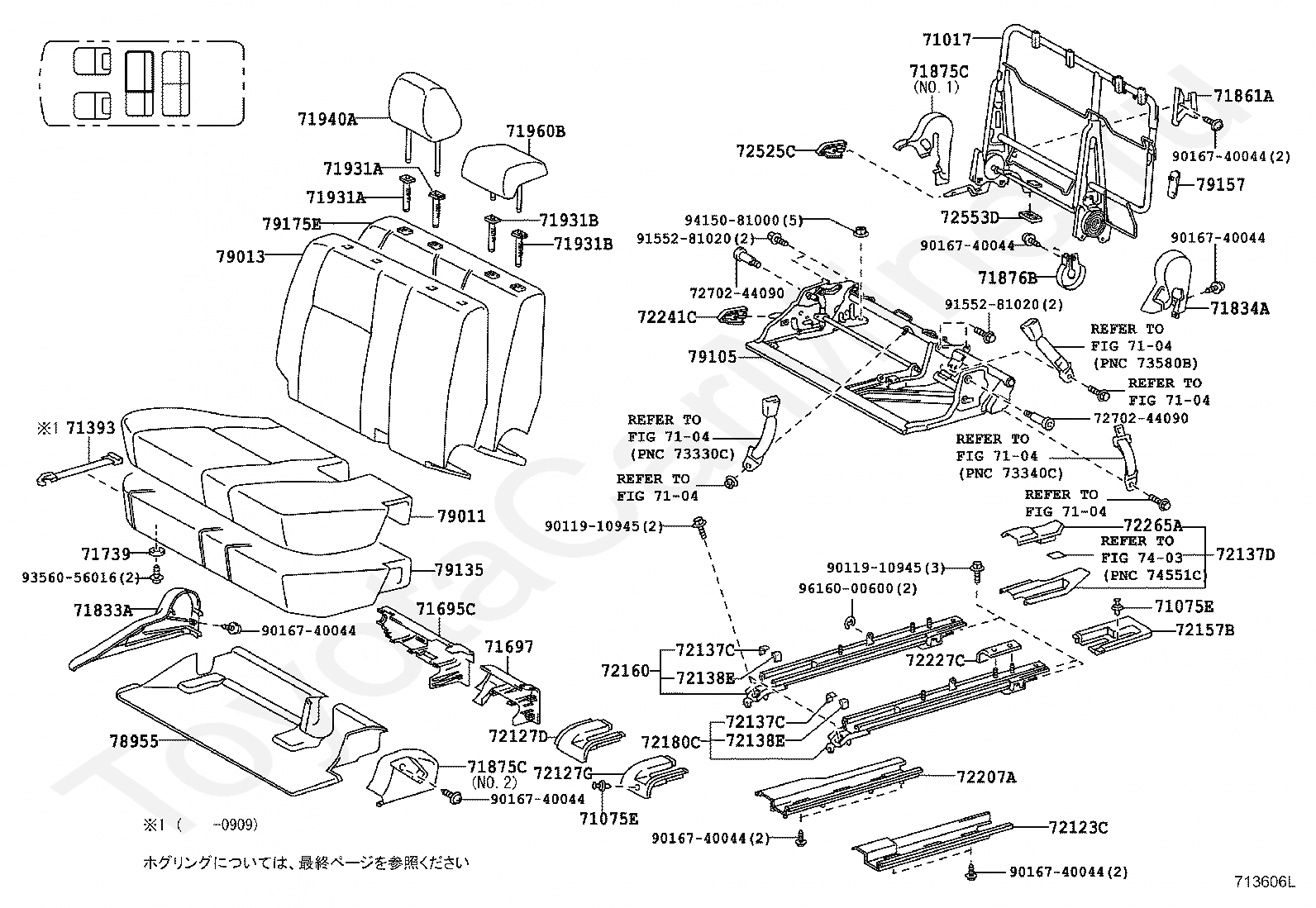

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71075E

CLIP(FOR REAR SEAT)

71075E

CLIP(FOR REAR SEAT)

71393

BAND, REAR SEAT CUSHION

71695C

PROTECTOR, REAR SEAT, NO.1

71697

PROTECTOR, REAR SEAT BACK EDGE

71739

CUSHION, SEAT SUPPORT

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71861A

SHIELD, REAR SEAT CUSHION, INNER RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127D

COVER, SEAT TRACK BRACKET, FRONT, RH

72127G

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137C

COVER, SEAT TRACK INNER, RH

72137C

COVER, SEAT TRACK INNER, RH

72137D

COVER, REAR SEAT TRACK, RH

72138E

COVER, SEAT TRACK, INNER LH

72138E

COVER, SEAT TRACK, INNER LH

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72207A

PLATE, SEAT TRACK STOP RH

72227C

BRACKET, SEAT TRACK, UPPER RR

72241C

LEVER, OUTER SEAT TRACK LOCK, RH

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72553D

COVER, RECLINING PEDAL, RH

7270244090

Крепеж

7270244090

Крепеж

7403

переход к группе запчастей

78955

COVER, REAR SEAT UNDER TRAY RH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79135

PAD, NO.1 SEAT CUSHION

79157

COVER, NO.1 SEAT BACK

79175E

PAD, NO.1 SEAT BACK, RH

9011910945

Крепеж

9011910945

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9155281020

Крепеж

9155281020

Крепеж

9356056016

Крепеж

9415081000

Крепеж

9616000600

Крепеж

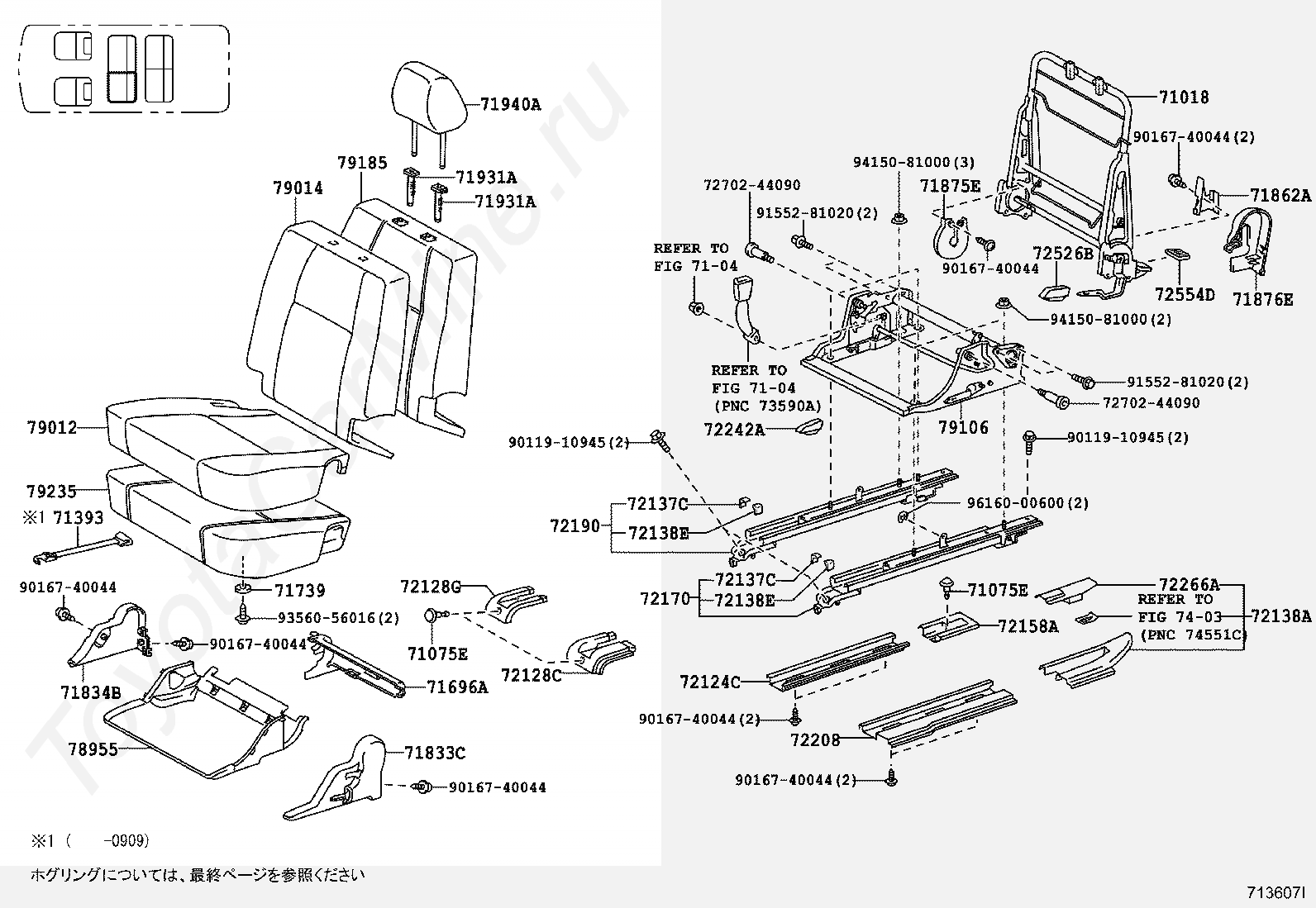

Код

Описание

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

71075E

CLIP(FOR REAR SEAT)

71075E

CLIP(FOR REAR SEAT)

71393

BAND, REAR SEAT CUSHION

71696A

PROTECTOR, REAR SEAT, NO.2 LH

71739

CUSHION, SEAT SUPPORT

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71862A

SHIELD, REAR SEAT CUSHION, INNER LH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72124C

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128C

COVER, SEAT TRACK BRACKET, FRONT, LH

72128G

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137C

COVER, SEAT TRACK INNER, RH

72137C

COVER, SEAT TRACK INNER, RH

72138A

COVER, REAR SEAT TRACK, LH

72138E

COVER, SEAT TRACK, INNER LH

72138E

COVER, SEAT TRACK, INNER LH

72158A

COVER, REAR SEAT TRACK BRACKET, INNER LH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72208

PLATE, SEAT TRACK STOP, LH

72242A

LEVER, OUTER SEAT TRACK LOCK, LH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72554D

COVER, RECLINING PEDAL, LH

7270244090

Крепеж

7270244090

Крепеж

7403

переход к группе запчастей

78955

COVER, REAR SEAT UNDER TRAY RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79185

PAD, NO.1 SEAT BACK, LH

79235

PAD, NO.2 SEAT CUSHION

9011910945

Крепеж

9011910945

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9155281020

Крепеж

9155281020

Крепеж

9356056016

Крепеж

9415081000

Крепеж

9415081000

Крепеж

9616000600

Крепеж

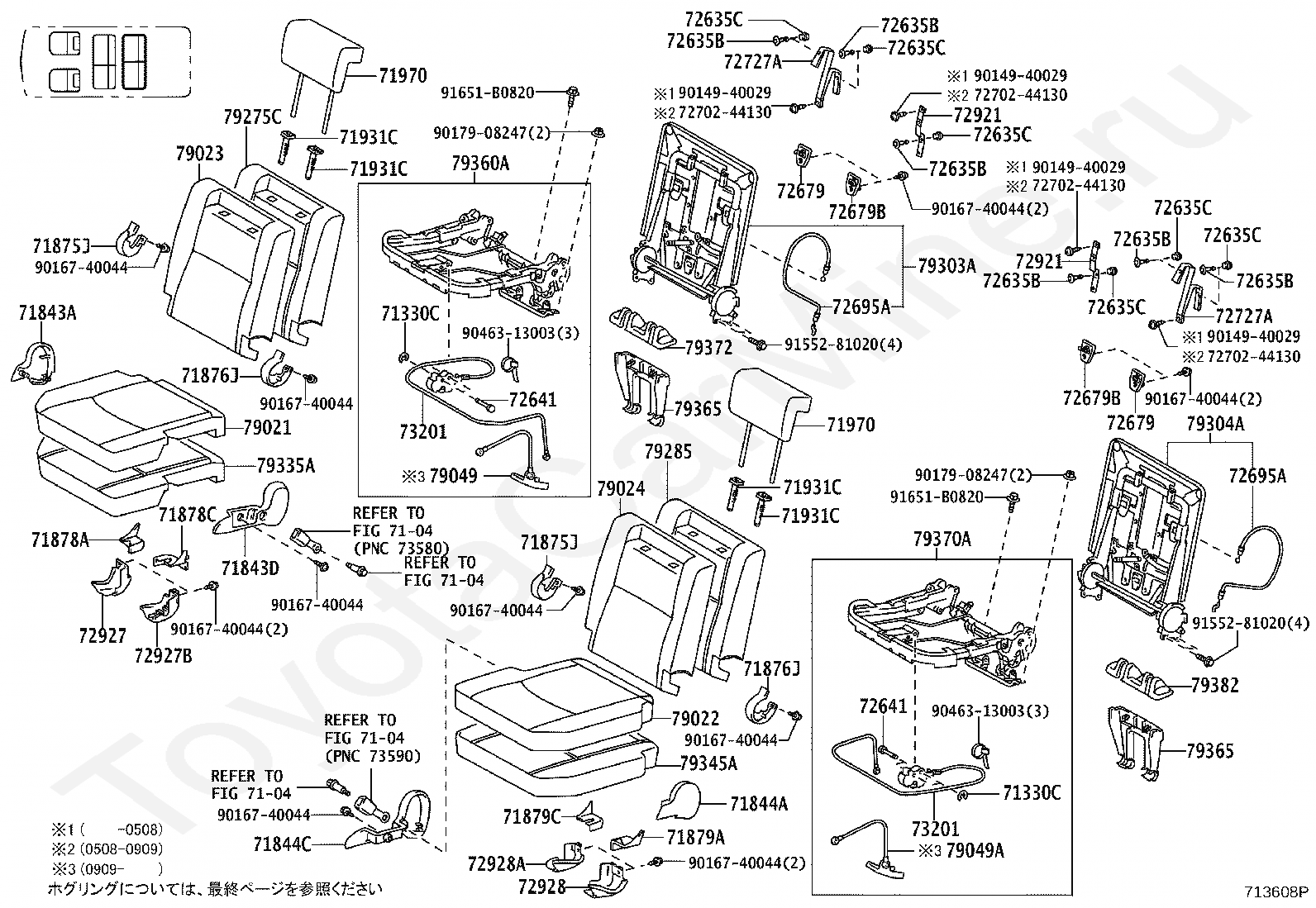

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71330C

RING, RETAINING (FOR REAR SEAT CUSHION HINGE)

71330C

RING, RETAINING (FOR REAR SEAT CUSHION HINGE)

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71843D

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71844C

COVER, REAR SEAT RECLINING, NO.2 LH

71875J

COVER, RECLINING ADJUSTER INSIDE, RH

71875J

COVER, RECLINING ADJUSTER INSIDE, RH

71876J

COVER, RECLINING ADJUSTER INSIDE, LH

71876J

COVER, RECLINING ADJUSTER INSIDE, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71878C

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71879C

COVER, REAR SEAT RECLINING, INNER LH

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

71970

HEADREST ASSY, REAR SEAT

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

72641

PIN, REAR SEAT BACK LOCK

72641

PIN, REAR SEAT BACK LOCK

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72679B

BEZEL, REAR SEAT BACK LOCK CONTROL

72679B

BEZEL, REAR SEAT BACK LOCK CONTROL

72695A

CABLE, REAR SEAT LOCK CONTROL

72695A

CABLE, REAR SEAT LOCK CONTROL

7270244130

Крепеж

7270244130

Крепеж

7270244130

Крепеж

7270244130

Крепеж

72727A

KNOB, REAR SEAT RECLINING CONTROL LEVER

72727A

KNOB, REAR SEAT RECLINING CONTROL LEVER

72921

STRAP, 3RD SEAT

72921

STRAP, 3RD SEAT

72927

COVER, REAR SEAT CUSHION UNDER, RH

72927B

COVER, REAR SEAT CUSHION UNDER

72928

COVER, REAR SEAT CUSHION UNDER, LH

72928A

COVER, REAR SEAT CUSHION UNDER, NO.2

73201

LOCK SUB-ASSY, REAR SEAT CUSHION

73201

LOCK SUB-ASSY, REAR SEAT CUSHION

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79049

WIRE SUB-ASSY, REAR SEAT CUSHION, RH

79049A

WIRE SUB-ASSY, REAR SEAT CUSHION, LH

79275C

PAD, NO.2 SEAT BACK, RH

79285

PAD, NO.2 SEAT BACK, LH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79304A

FRAME SUB-ASSY, NO.3 SEAT BACK, LH

79335A

PAD, NO.3 SEAT CUSHION, RH

79345A

PAD, NO.3 SEAT CUSHION, LH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79365

COVER, NO.3 SEAT LEG BRACKET

79365

COVER, NO.3 SEAT LEG BRACKET

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

9014940029

Крепеж

9014940029

Крепеж

9014940029

Крепеж

9014940029

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908247

Крепеж

9017908247

Крепеж

9046313003

Крепеж

9046313003

Крепеж

9155281020

Крепеж

9155281020

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти ISIS > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
