Япония

Модель

ISIS

VIN

Дата

2009/09

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

PLATANA TYPE

Фрейм

ZGM11

Опции

485W

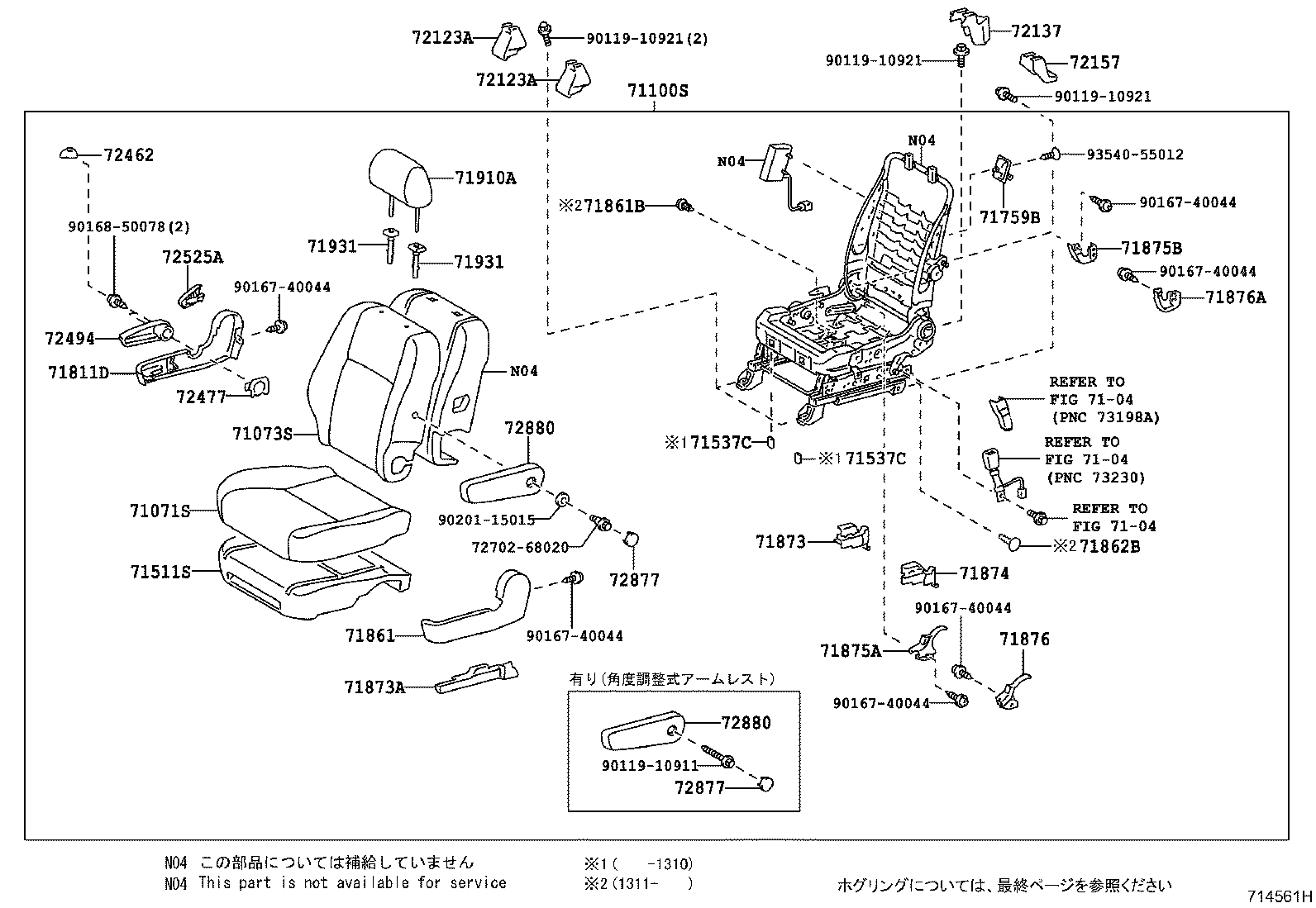

Передние кресла TOYOTA ISIS

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72157

COVER, SEAT TRACK BRACKET, INNER

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270268020

Крепеж

72877

COVER, SEAT ARMREST, RH

72877

COVER, SEAT ARMREST, RH

72880

ARMREST ASSY, SEAT, C RH

72880

ARMREST ASSY, SEAT, C RH

9011910911

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9354055012

Крепеж

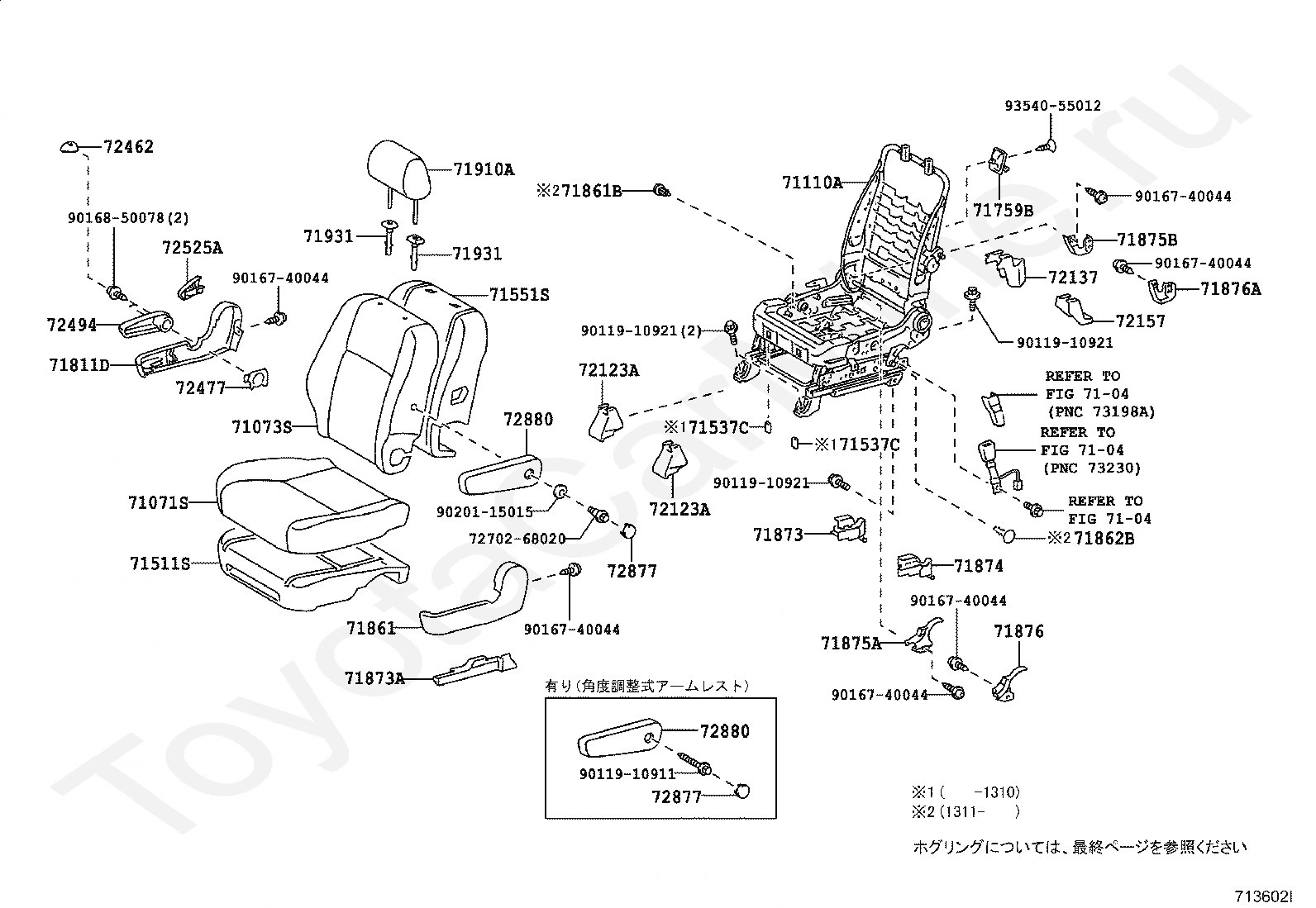

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72157

COVER, SEAT TRACK BRACKET, INNER

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270268020

Крепеж

72877

COVER, SEAT ARMREST, RH

72877

COVER, SEAT ARMREST, RH

72880

ARMREST ASSY, SEAT, C RH

72880

ARMREST ASSY, SEAT, C RH

9011910911

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9354055012

Крепеж

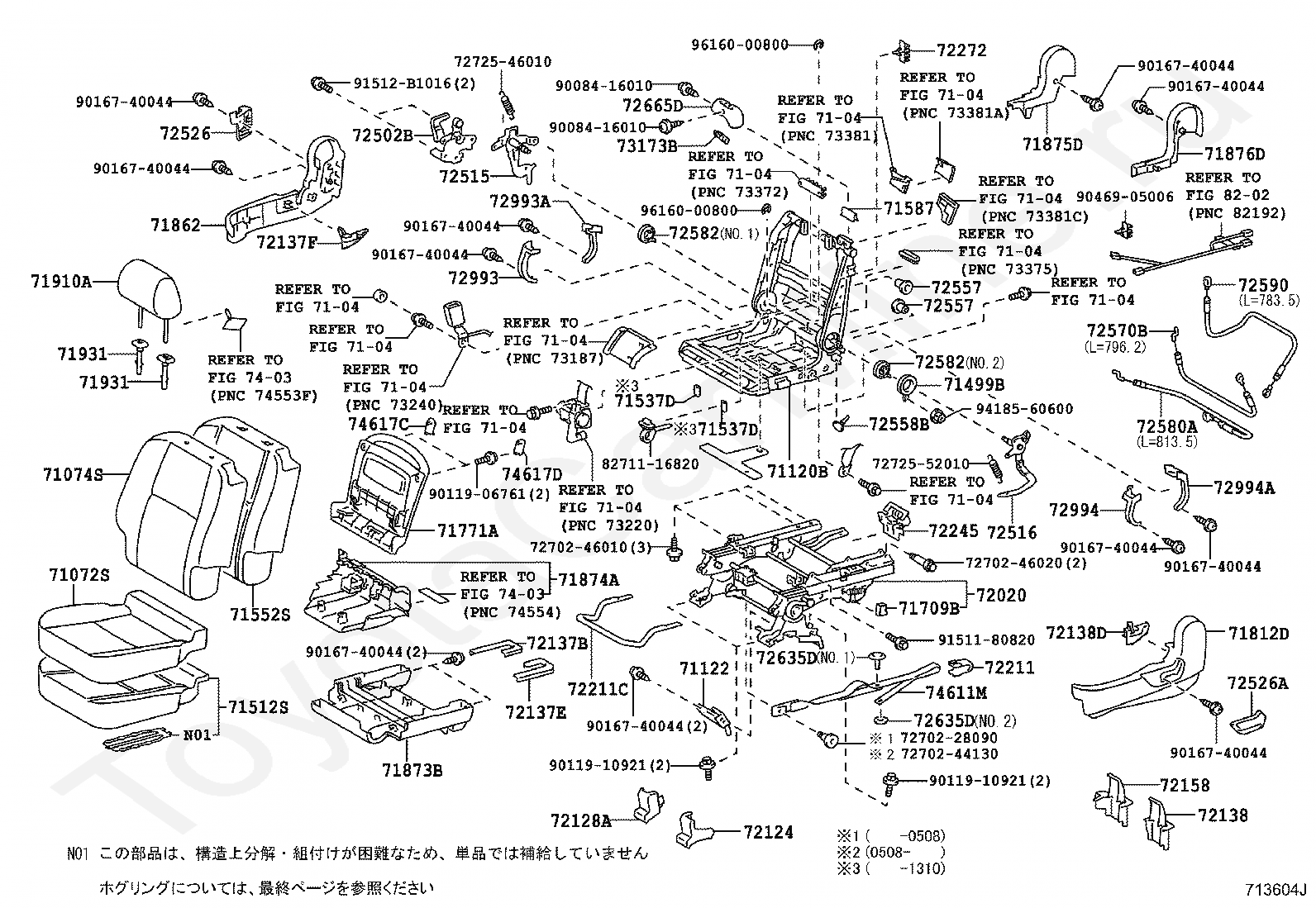

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71122

BRACKET, FRONT SEAT CUSHION, LH

71200S

SEAT ASSY, FRONT LH

71499B

DAMPER, SEAT CUSHION SPRING

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71587

PROTECTOR, FRONT SEAT BACK EDGE

71709B

CUSHION SUB-ASSY, SEAT SUPPORT

71771A

BOARD, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873B

SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875D

COVER, RECLINING ADJUSTER OUTSIDE, RH

71876D

COVER, RECLINING ADJUSTER OUTSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137B

COVER, SEAT TRACK, RH

72137E

COVER, SEAT TRACK, NO.1

72137F

COVER, SEAT TRACK, NO.2

72138

COVER, SEAT TRACK, OUTER LH

72138D

COVER, SEAT TRACK, OUTER, LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211

HANDLE, SEAT TRACK ADJUSTING

72211C

HANDLE, SEAT TRACK ADJUSTING

72245

LEVER, SEAT TRACK LOCK OPEN, RH

72272

CLAMP, SEAT TRACK CONTROL CABLE

72502B

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72515

ARM,RECLINING ADJUSTER RELEAS, NO.1

72516

ARM, RECLINING ADJUSTER RELEAS, NO.2

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72557

SPACER, RECLINING ADJUSTER

72557

SPACER, RECLINING ADJUSTER

72558B

STOPPER, RECLINING (FRONT SEAT)

72570B

CABLE ASSY, RECLINING ADJUSTING, RH

72580A

CABLE ASSY, RECLINING ADJUSTING, LH

72582

BAR, RECLINING TORSION

72582

BAR, RECLINING TORSION

72590

CABLE ASSY, SEAT BACK CONTROL

72635D

HOOK, SEAT BACK LOCK

72635D

HOOK, SEAT BACK LOCK

72665D

COVER, FRONT SEAT BACK LOCK

7270228090

Крепеж

7270244130

Крепеж

7270246010

Крепеж

7270246020

Крепеж

7272546010

Крепеж

7272552010

Крепеж

72993

COVER, FRONT SEAT BACK

72993A

COVER, FRONT SEAT BACK

72994

COVER, FRONT SEAT BACK

72994A

COVER, FRONT SEAT BACK

73173B

COVER, FRONT SEAT BELT HOLE

7403

переход к группе запчастей

7403

переход к группе запчастей

74611M

STRAP, ASSIST GRIP

74617C

PLUG, ASSIST GRIP

74617D

PLUG, ASSIST GRIP

8202

переход к группе запчастей

8271116820

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9011906761

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9046905006

Крепеж

9151180820

Крепеж

91512B1016

Крепеж

9418560600

Крепеж

9616000800

Крепеж

9616000800

Крепеж

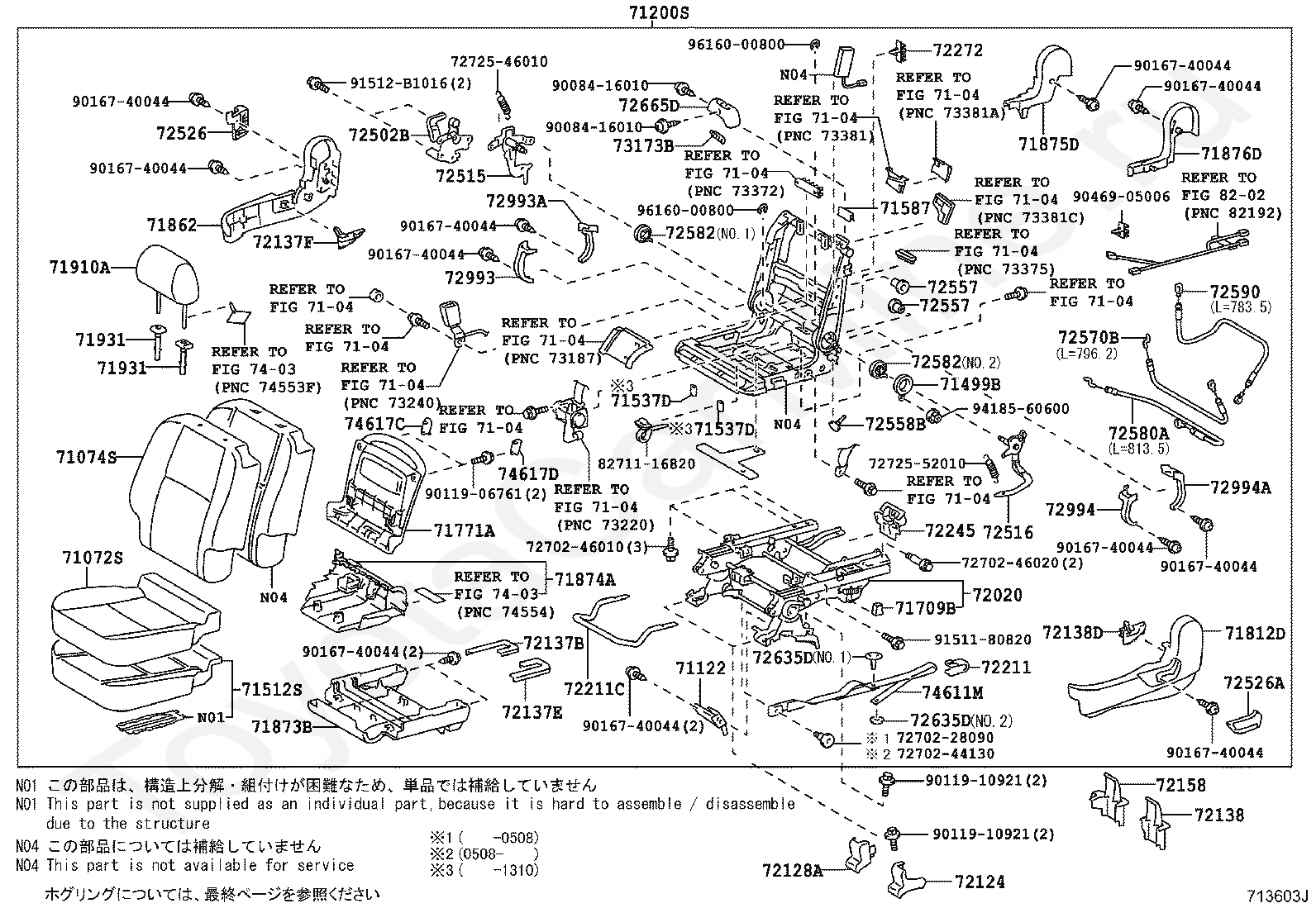

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71122

BRACKET, FRONT SEAT CUSHION, LH

71499B

DAMPER, SEAT CUSHION SPRING

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71709B

CUSHION SUB-ASSY, SEAT SUPPORT

71771A

BOARD, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873B

SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875D

COVER, RECLINING ADJUSTER OUTSIDE, RH

71876D

COVER, RECLINING ADJUSTER OUTSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137B

COVER, SEAT TRACK, RH

72137E

COVER, SEAT TRACK, NO.1

72137F

COVER, SEAT TRACK, NO.2

72138

COVER, SEAT TRACK, OUTER LH

72138D

COVER, SEAT TRACK, OUTER, LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211

HANDLE, SEAT TRACK ADJUSTING

72211C

HANDLE, SEAT TRACK ADJUSTING

72245

LEVER, SEAT TRACK LOCK OPEN, RH

72272

CLAMP, SEAT TRACK CONTROL CABLE

72502B

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72515

ARM,RECLINING ADJUSTER RELEAS, NO.1

72516

ARM, RECLINING ADJUSTER RELEAS, NO.2

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72557

SPACER, RECLINING ADJUSTER

72557

SPACER, RECLINING ADJUSTER

72558B

STOPPER, RECLINING (FRONT SEAT)

72570B

CABLE ASSY, RECLINING ADJUSTING, RH

72580A

CABLE ASSY, RECLINING ADJUSTING, LH

72582

BAR, RECLINING TORSION

72582

BAR, RECLINING TORSION

72590

CABLE ASSY, SEAT BACK CONTROL

72635D

HOOK, SEAT BACK LOCK

72635D

HOOK, SEAT BACK LOCK

72665D

COVER, FRONT SEAT BACK LOCK

7270228090

Крепеж

7270244130

Крепеж

7270246010

Крепеж

7270246020

Крепеж

7272546010

Крепеж

7272552010

Крепеж

72993

COVER, FRONT SEAT BACK

72993A

COVER, FRONT SEAT BACK

72994

COVER, FRONT SEAT BACK

72994A

COVER, FRONT SEAT BACK

73173B

COVER, FRONT SEAT BELT HOLE

7403

переход к группе запчастей

7403

переход к группе запчастей

74611M

STRAP, ASSIST GRIP

74617C

PLUG, ASSIST GRIP

74617D

PLUG, ASSIST GRIP

8202

переход к группе запчастей

8271116820

Крепеж

9008416010

Крепеж

9008416010

Крепеж

9011906761

Крепеж

9011910921

Крепеж

9011910921

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9046905006

Крепеж

9151180820

Крепеж

91512B1016

Крепеж

9418560600

Крепеж

9616000800

Крепеж

9616000800

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA ISIS

Купить

Поиск
