2009/05

Двигатель

1,3 литра, 16 клапанов DOHC, EFI

Класс

N(MODEL MARK)

Фрейм

NGJ10

КПП

автомат бесступенчатая АКПП

Опции

левый руль 432W

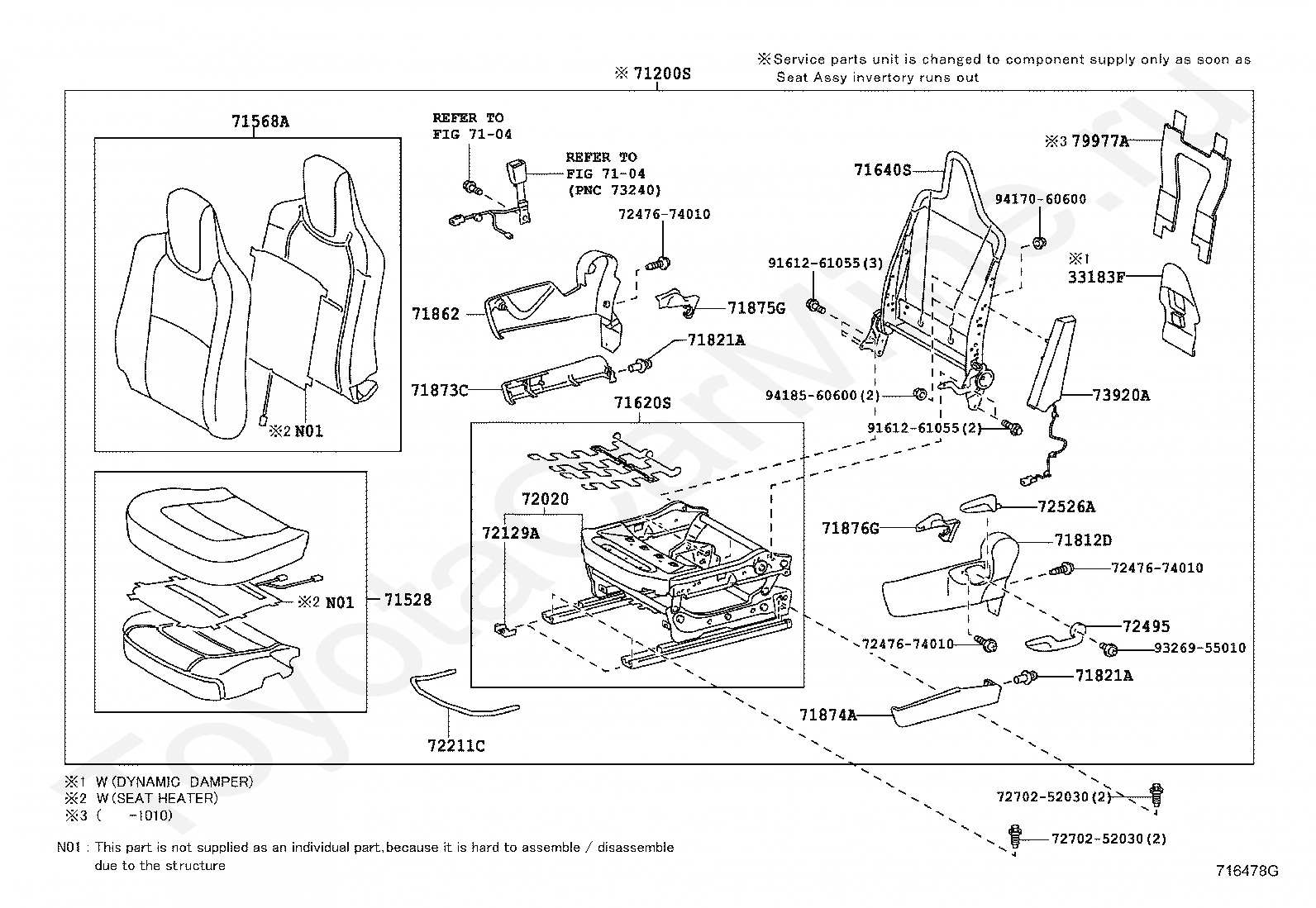

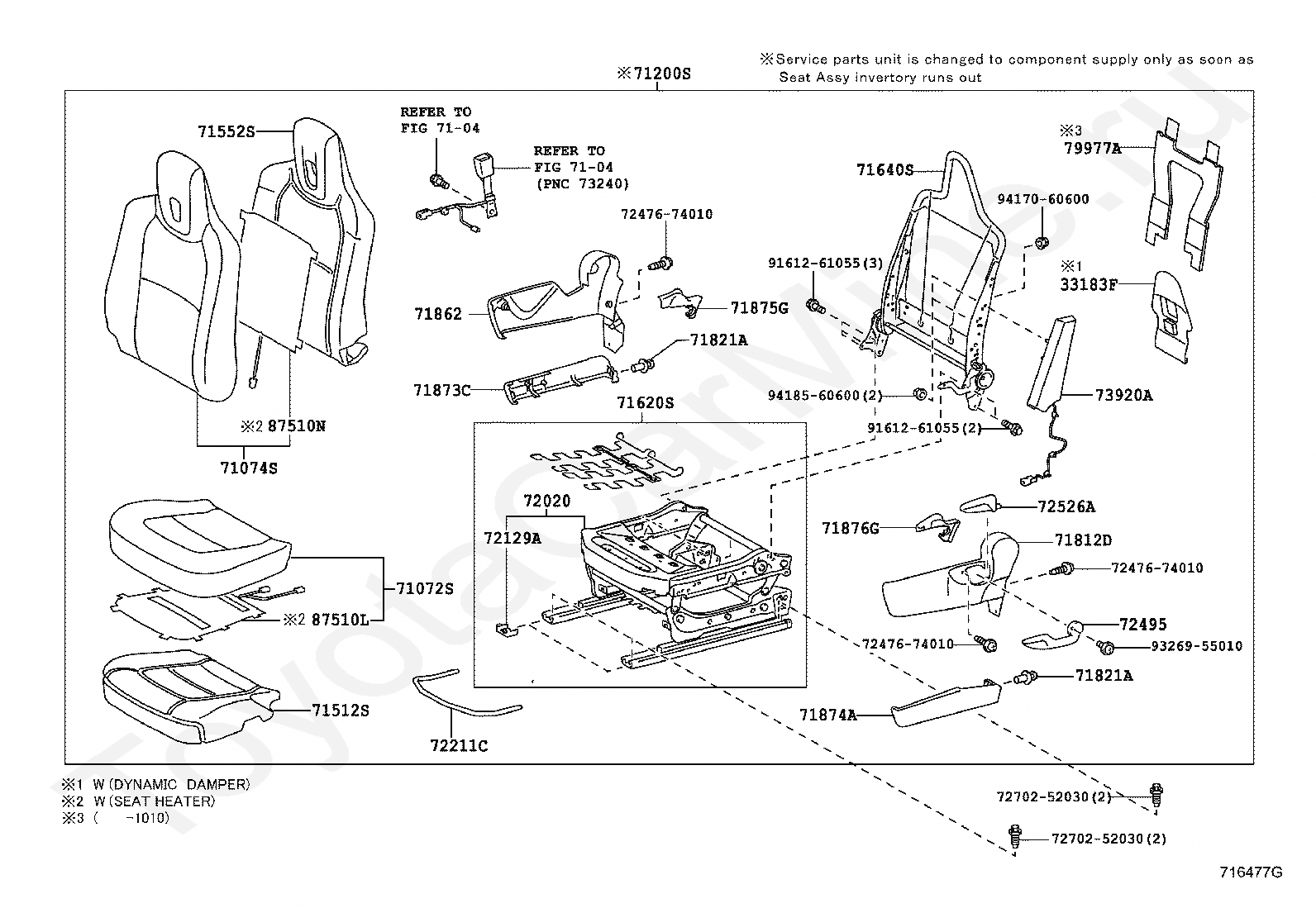

Передние кресла TOYOTA IQ

Код

Описание

33183F

DAMPER, DYNAMIC

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

72010

ADJUSTER ASSY, FRONT SEAT, RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72245

LEVER, SEAT TRACK LOCK OPEN, RH

7247674010

Крепеж

7247674010

Крепеж

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270252030

Крепеж

73905

AIR BAG SUB-ASSY, FRONT SEAT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

827111E360

Крепеж

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910409

Крепеж

9011910409

Крепеж

904670504522

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

9616000800

Крепеж

Код

Описание

33183F

DAMPER, DYNAMIC

7104

переход к группе запчастей

7104

переход к группе запчастей

71100S

SEAT ASSY, FRONT RH

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71513B

PAD, FRONT SEAT CUSHION, B

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

72010

ADJUSTER ASSY, FRONT SEAT, RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72245

LEVER, SEAT TRACK LOCK OPEN, RH

7247674010

Крепеж

7247674010

Крепеж

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270252030

Крепеж

73905

AIR BAG SUB-ASSY, FRONT SEAT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

827111E360

Крепеж

9011910409

Крепеж

9011910409

Крепеж

904670504522

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

9616000800

Крепеж

Код

Описание

33183F

DAMPER, DYNAMIC

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71821A

CLIP (FOR FRONT SEAT SIDE SHIELD)

71821A

CLIP (FOR FRONT SEAT SIDE SHIELD)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873C

SHIELD, REAR SEAT CUSHION, LOWER RH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72020

ADJUSTER ASSY, FRONT SEAT, LH

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72211C

HANDLE, SEAT TRACK ADJUSTING

7247674010

Крепеж

7247674010

Крепеж

7247674010

Крепеж

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

7270252030

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977A

FELT, SEAT BACK

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9161261055

Крепеж

9161261055

Крепеж

9326955010

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

33183F

DAMPER, DYNAMIC

7104

переход к группе запчастей

7104

переход к группе запчастей

71200S

SEAT ASSY, FRONT LH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71821A

CLIP (FOR FRONT SEAT SIDE SHIELD)

71821A

CLIP (FOR FRONT SEAT SIDE SHIELD)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873C

SHIELD, REAR SEAT CUSHION, LOWER RH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72020

ADJUSTER ASSY, FRONT SEAT, LH

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72211C

HANDLE, SEAT TRACK ADJUSTING

7247674010

Крепеж

7247674010

Крепеж

7247674010

Крепеж

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

7270252030

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977A

FELT, SEAT BACK

9161261055

Крепеж

9161261055

Крепеж

9326955010

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

33183F

DAMPER, DYNAMIC

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71200S

SEAT ASSY, FRONT LH

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72020

ADJUSTER ASSY, FRONT SEAT, LH

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72246

LEVER, SEAT TRACK LOCK OPEN, LH

7247674010

Крепеж

7247674010

Крепеж

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

7270252030

Крепеж

73906

AIR BAG SUB-ASSY, FRONT SEAT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

827111E360

Крепеж

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9011910409

Крепеж

9011910409

Крепеж

904670504522

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

9616000800

Крепеж

Код

Описание

33183F

DAMPER, DYNAMIC

7104

переход к группе запчастей

7104

переход к группе запчастей

71200S

SEAT ASSY, FRONT LH

71430C

CLIP

71430C

CLIP

71430C

CLIP

71430C

CLIP

71513B

PAD, FRONT SEAT CUSHION, B

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72020

ADJUSTER ASSY, FRONT SEAT, LH

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72246

LEVER, SEAT TRACK LOCK OPEN, LH

7247674010

Крепеж

7247674010

Крепеж

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

7270252030

Крепеж

73906

AIR BAG SUB-ASSY, FRONT SEAT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

827111E360

Крепеж

9011910409

Крепеж

9011910409

Крепеж

904670504522

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9418560600

Крепеж

9616000800

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
