Ходовые запчасти

Каталог

Европа

Модель

IQ

VIN

Дата

2009/05

Двигатель

1,3 литра, 16 клапанов DOHC, EFI

Класс

N(MODEL MARK)

Фрейм

NGJ10

КПП

автомат бесступенчатая АКПП

Опции

левый руль 432W

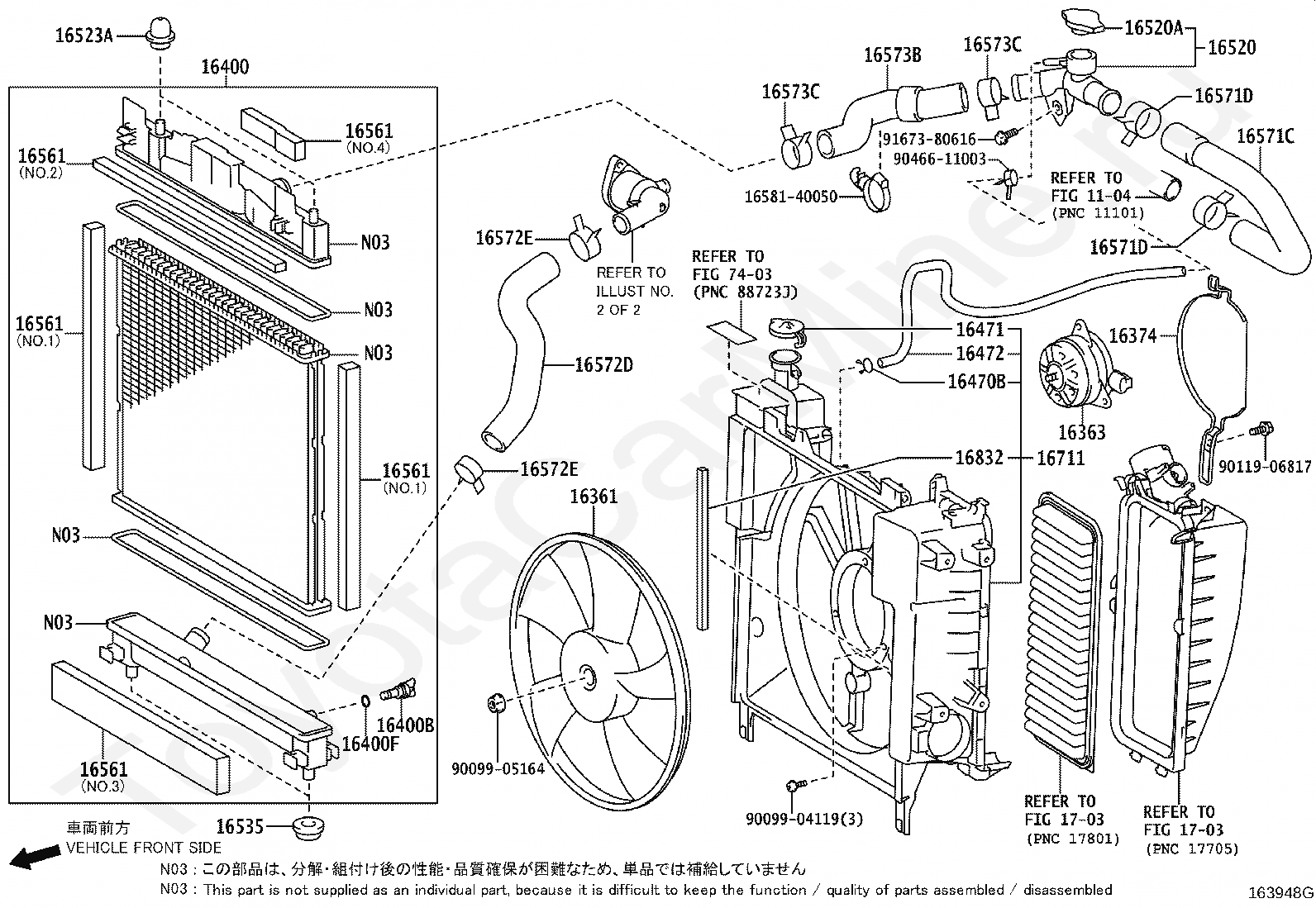

Радиатор и шланги TOYOTA IQ

Код

Описание

1104

переход к группе запчастей

16361

FAN

16363

MOTOR, COOLING FAN

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16520

FILLER ASSY, WATER

16520A

CAP SUB-ASSY, WATER FILLER

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16573B

HOSE, RADIATOR, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

1658140050

Крепеж

16711

SHROUD, FAN

16832

SEAL, FAN SHROUD

1703

переход к группе запчастей

1703

переход к группе запчастей

7403

переход к группе запчастей

9009904119

Крепеж

9009905164

Крепеж

9011906817

Крепеж

9046611003

Крепеж

9167380616

Крепеж

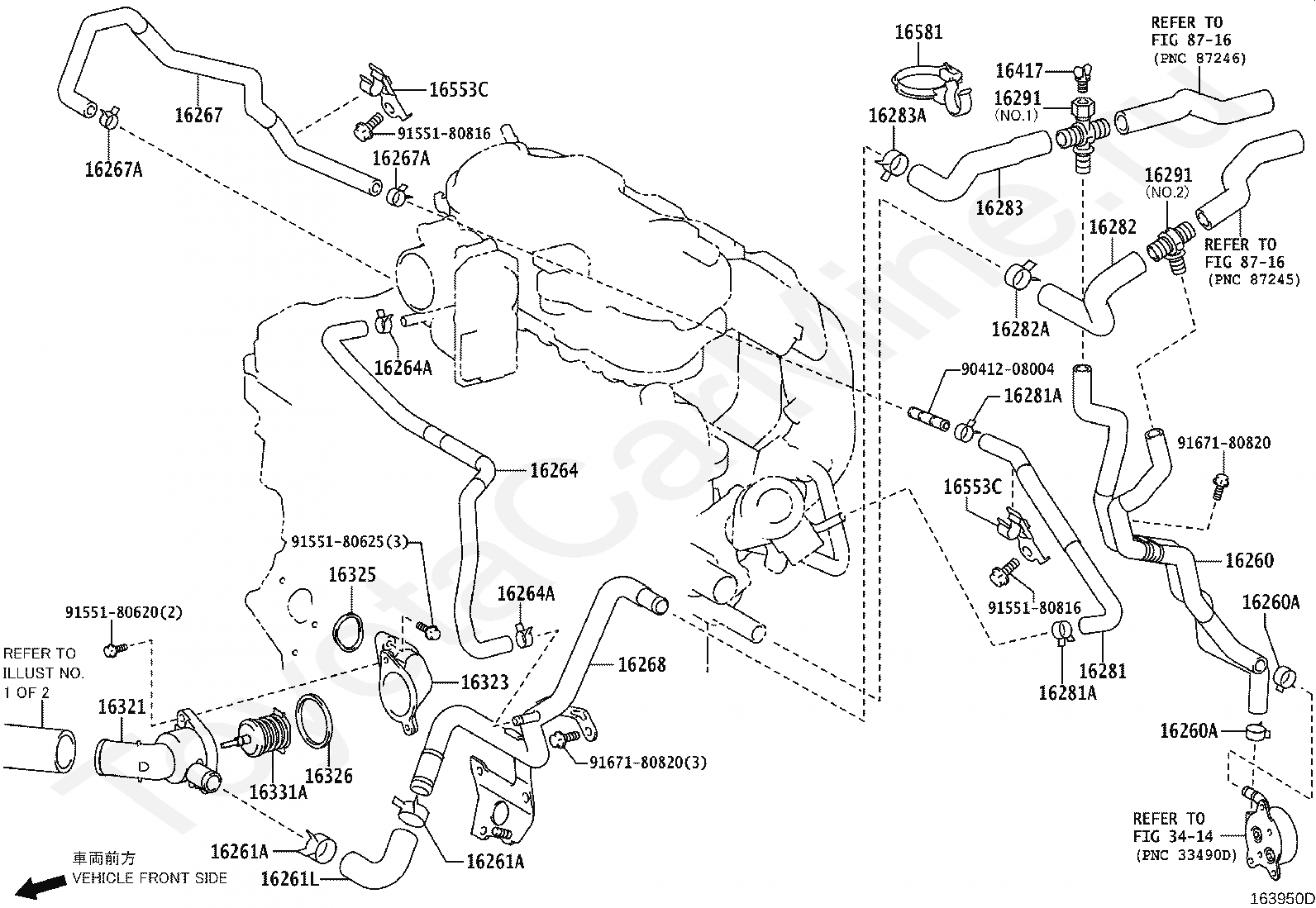

Код

Описание

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261L

HOSE, WATER BY-PASS

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16291

JOINT, WATER HOSE

16291

JOINT, WATER HOSE

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

16417

COCK

16553C

CLAMP, HOSE

16553C

CLAMP, HOSE

16581

CLAMP, HOSE(FOR WATER HOSE)

3414

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9041208004

Крепеж

9155180620

Крепеж

9155180625

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9167180820

Крепеж

9167180820

Крепеж
