Япония

Модель

IPSUM

VIN

Дата

1996/05

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

L TYPE

Фрейм

SXM15

КПП

автомат

Опции

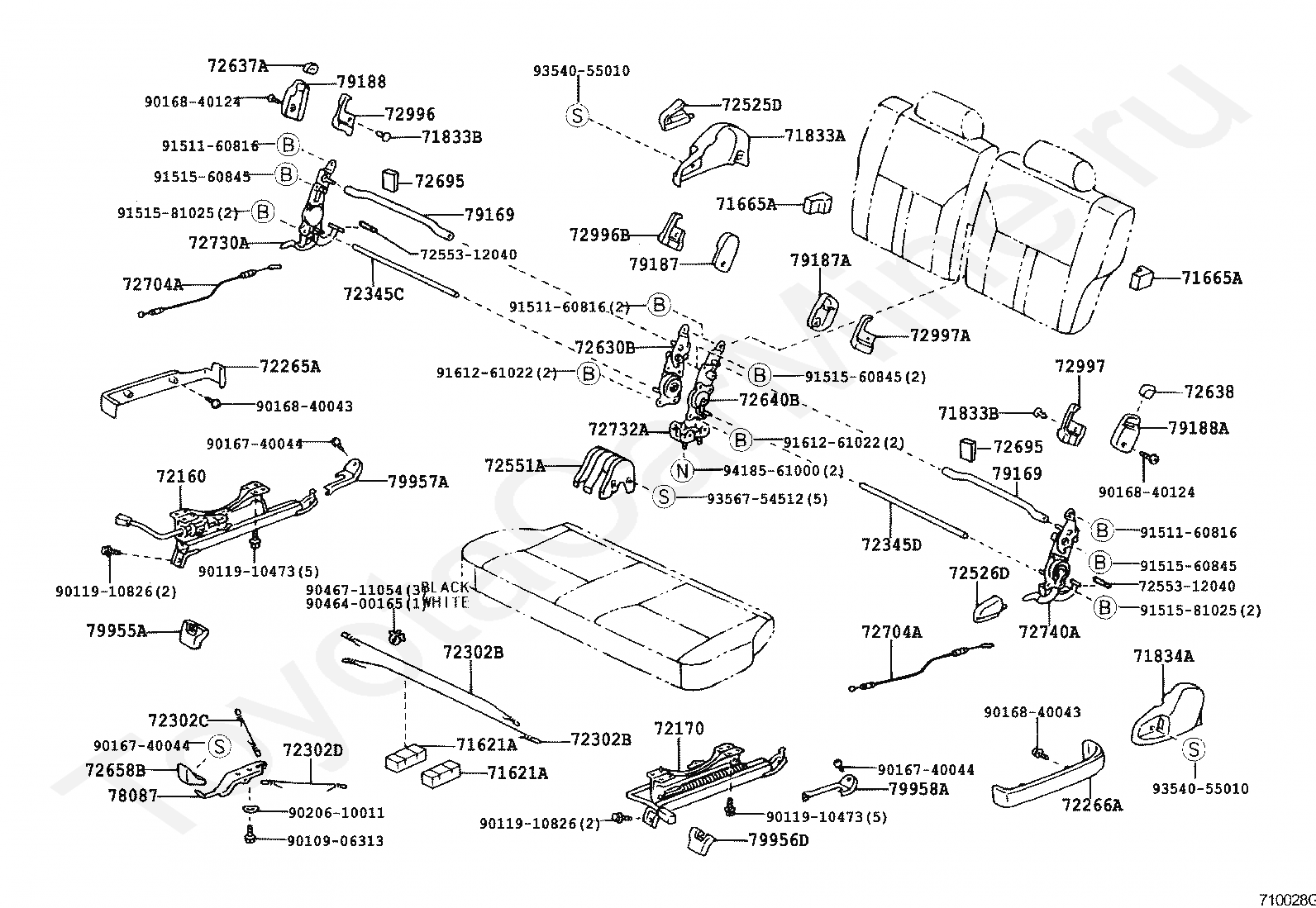

Задние кресла TOYOTA IPSUM







Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71881

BOARD, REAR SEAT BACK, RH

71882A

BOARD, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79101

FRAME SUB-ASSY, NO.1 SEAT CUSHION

79120A

CUSHION ASSY, NO.1 SEAT

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

9016740044

Крепеж

9016740044

Крепеж

Код

Описание

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71665A

PAD, REAR SEAT BACK, SIDE A

71665A

PAD, REAR SEAT BACK, SIDE A

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72302B

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

72302C

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH

72302D

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH

72345C

PIPE,RECLINING CONNECTING, RH

72345D

PIPE, RECLINING CONNECTING, LH

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72526D

HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH

72551A

COVER, RECLINING HINGE

7255312040

Крепеж

7255312040

Крепеж

72630B

ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH

72637A

HANDLE, REAR SEAT LOCK

72638

HANDLE, REAR SEAT LOCK, LH

72640B

ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH

72658B

KNOB, REAR SEAT LOCK HANDLE

72695

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72695

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72704A

CABLE, REAR SEAT RECLINING CONTROL

72704A

CABLE, REAR SEAT RECLINING CONTROL

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72732A

BRACKET, REAR SEAT ADJUSTER, INNER

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72996

COVER, REAR SEAT BACK, RH

72996B

COVER, REAR SEAT BACK, INNER RH

72997

COVER, REAR SEAT BACK, LH

72997A

COVER, REAR SEAT BACK, INNER LH

78087

LEVER SUB-ASSY, SUB SEAT LOCK

79169

ROD, REAR SEAT HINGE CONNECTOR

79169

ROD, REAR SEAT HINGE CONNECTOR

79187

COVER, NO.1 SEAT INNER BRACKET

79187A

COVER, NO.1 SEAT INNER BRACKET, LH

79188

COVER, NO.1 SEAT OUTER BRACKET

79188A

COVER, NO.1 SEAT OUTER BRACKET, LH

79955A

COVER, REAR SEAT FRONT BRACKET, RH

79956D

COVER, REAR SEAT FRONT BRACKET, LH

79957A

COVER, REAR SEAT REAR BRACKET, RH

79958A

COVER, REAR SEAT REAR BRACKET, LH

9010906313

Крепеж

9011910473

Крепеж

9011910473

Крепеж

9011910826

Крепеж

9011910826

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840124

Крепеж

9016840124

Крепеж

9020610011

Крепеж

9046400165

Крепеж

9046711054

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151160816

Крепеж

9151560845

Крепеж

9151560845

Крепеж

9151560845

Крепеж

9151581025

Крепеж

9151581025

Крепеж

9161261022

Крепеж

9161261022

Крепеж

9354055010

Крепеж

9354055010

Крепеж

9356754512

Крепеж

9418561000

Крепеж

Код

Описание

71453A

KNOB, REAR SEAT HINGE

71628E

SPACER, REAR SEAT CUSHION

71663

PAD, REAR SEAT BACK, LOWER

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

71940E

HEADREST ASSY, NO.2 SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72068

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

72345E

PIPE, RECLINING CONNECTING

72553A

PROTECTOR, RECLINING COVER, RH

72554A

PROTECTOR, RECLINING COVER, LH

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72748

WIRE, REAR SEAT RECLINING CONTROL

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

72951

LINK, NO.2 SEAT, UPR RH

72952

LINK, NO.2 SEAT UPR LH

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79203

FRAME SUB-ASSY, NO.2 SEAT BACK

79209

BOARD SUB-ASSY, NO.2 SEAT BACK

79220A

CUSHION ASSY, NO.2 SEAT

79235

PAD, NO.2 SEAT CUSHION

79240A

BACK ASSY, NO.2 SEAT

79260

SPRING ASSY, NO.2 SEAT CUSHION

79275

PAD, NO.2 SEAT BACK

79955B

COVER, NO.2 SEAT FRONT BRACKET, RH

79956L

COVER, NO.2 SEAT FRONT BRACKET, LH

9010910164

Крепеж

9010910164

Крепеж

9011910827

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9015960133

Крепеж

9015960280

Крепеж

9016840043

Крепеж

9016840124

Крепеж

9038614013

Крепеж

9046708193

Крепеж

9090540016

Крепеж

9151281018

Крепеж

9151281018

Крепеж

9161260612

Крепеж

9356016012

Крепеж

Код

Описание

56590

CHAIR ASSY, OUTDOOR

71499

STOPPER, REAR SEAT BACK

71628E

SPACER, REAR SEAT CUSHION

71663

PAD, REAR SEAT BACK, LOWER

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72345H

CAP, SEAT STAND FRAME

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72553A

PROTECTOR, RECLINING COVER, RH

72554A

PROTECTOR, RECLINING COVER, LH

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

72728

PROTECTOR, REAR SEAT RECLINING, INNER RH

72951

LINK, NO.2 SEAT, UPR RH

72952

LINK, NO.2 SEAT UPR LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79220A

CUSHION ASSY, NO.2 SEAT

79230

CUSHION ASSY, NO.2 SEAT, LH

79235D

PAD, NO.2 SEAT CUSHION, RH

79240

BACK ASSY, NO.2 SEAT, RH

79245C

PAD, NO.2 SEAT CUSHION, LH

79250

BACK ASSY, NO.2 SEAT, LH

79255B

PLATE, NO.2 SEAT BACK, REAR

79257

BOARD, NO.2 SEAT

79275C

PAD, NO.2 SEAT BACK, RH

79285

PAD, NO.2 SEAT BACK, LH

9010910164

Крепеж

9010910164

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9016840124

Крепеж

9017906007

Крепеж

9038614013

Крепеж

9090540016

Крепеж

9151281018

Крепеж

9151281018

Крепеж

9161160616

Крепеж

9356016012

Крепеж

9356016012

Крепеж

9356056012

Крепеж

9356056020

Крепеж

Код

Описание

72067

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

72068

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

72345E

PIPE, RECLINING CONNECTING

72748

WIRE, REAR SEAT RECLINING CONTROL

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72750F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH

72760E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

79955C

COVER, REAR SEAT FRONT BRACKET, RH

79955D

COVER, REAR SEAT FRONT BRACKET, RH

79956N

COVER, REAR SEAT FRONT BRACKET, LH

79956P

COVER, REAR SEAT FRONT BRACKET, LH

9011910827

Крепеж

9011910827

Крепеж

9014940012

Крепеж

9161160612

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
