Каталог

Ближний Восток

Модель

INNOVA/KIJANG INNOVA

VIN

Дата

2012/02

Двигатель

2 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

GL SPECIFICATION

Фрейм

TGN40

КПП

МКПП, 5 скоростей

Опции

левый руль 5 дверей HIGH EFFICIENCY TWIN CAM Филиппины COMPLETED VEHICLE 520W

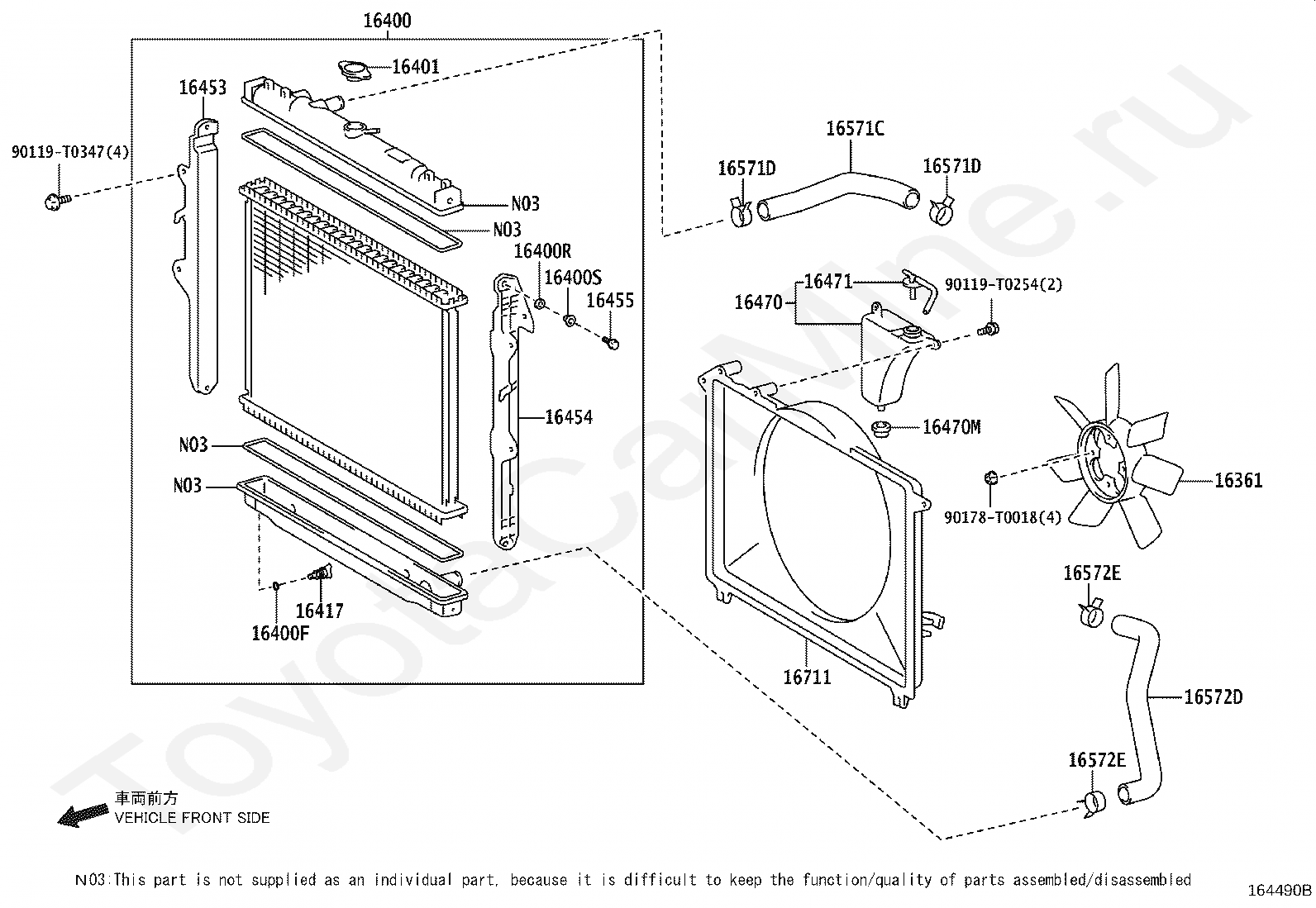

Радиатор и шланги TOYOTA INNOVA/KIJANG INNOVA

Код

Описание

16361

FAN

16400

RADIATOR ASSY

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400R

BUSHING(FOR RADIATOR)

16400S

COLLAR(FOR RADIATOR)

16401

CAP SUB-ASSY, RADIATOR

16417

COCK

16453

PLATE, RADIATOR SIDE

16454

PLATE, RADIATOR SIDE

16455

BOLT, RADIATOR SIDE SUPPORT PLATE

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16471

CAP SUB-ASSY, RESERVE TANK

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16711

SHROUD, FAN

90119T0254

Крепеж

90119T0347

Крепеж

90178T0018

Крепеж

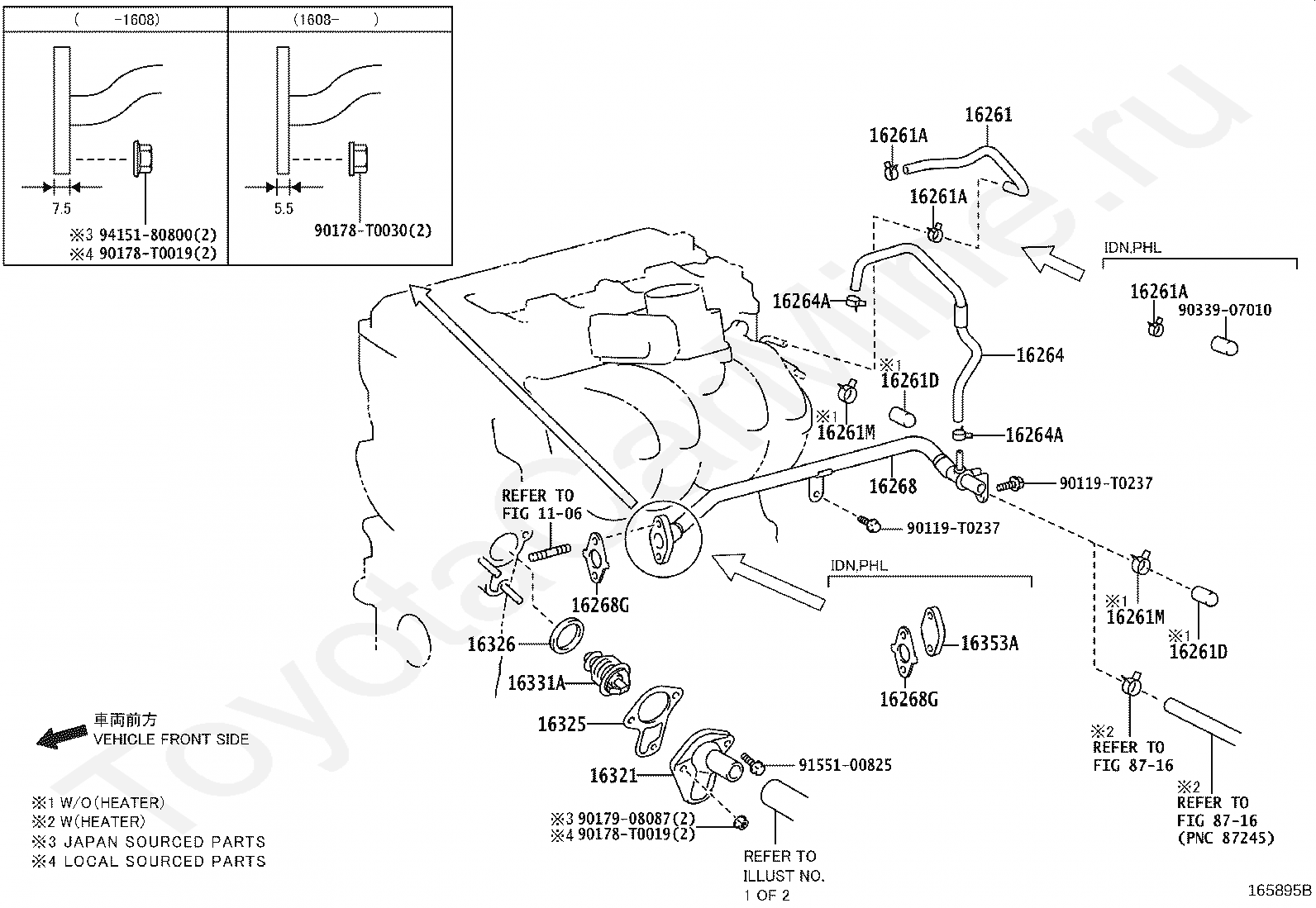

Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261D

PLUG, W/O HEATER

16261D

PLUG, W/O HEATER

16261M

CLIP, W/O HEATER PLUG

16261M

CLIP, W/O HEATER PLUG

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16268

PIPE, WATER BY-PASS, NO.1

16268G

GASKET(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

8716

переход к группе запчастей

8716

переход к группе запчастей

90105T0120

Крепеж

90119T0237

Крепеж

90178T0019

Крепеж

90178T0019

Крепеж

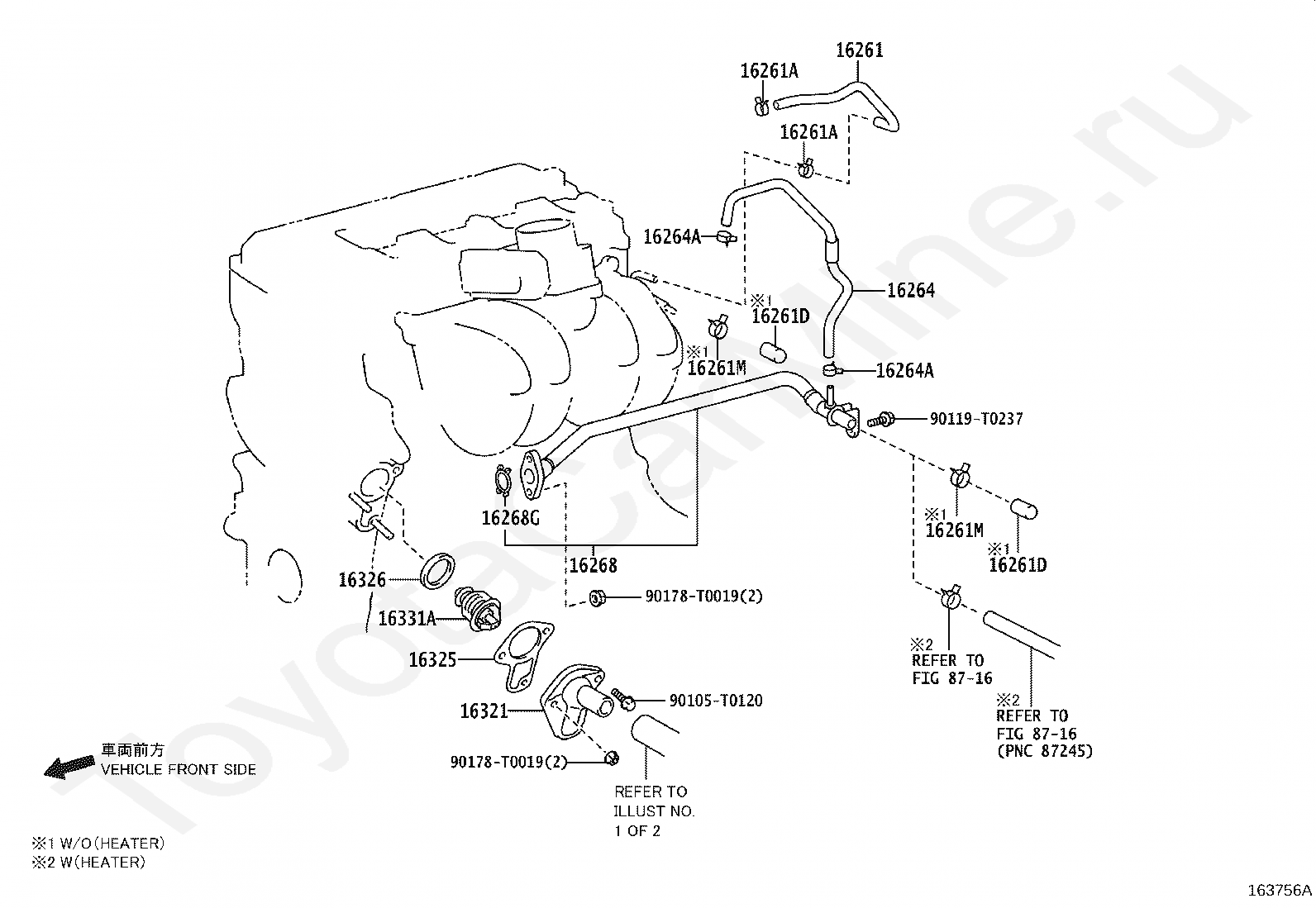

Код

Описание

1106

переход к группе запчастей

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261D

PLUG, W/O HEATER

16261D

PLUG, W/O HEATER

16261M

CLIP, W/O HEATER PLUG

16261M

CLIP, W/O HEATER PLUG

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16268G

GASKET(FOR WATER BY-PASS PIPE)

16268G

GASKET(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

16353A

FLANGE, WATER BY-PASS

8716

переход к группе запчастей

8716

переход к группе запчастей

90105T0120

Крепеж

90119T0237

Крепеж

90119T0237

Крепеж

90178T0019

Крепеж

90178T0019

Крепеж

9033907010

Крепеж

9415180800

Крепеж

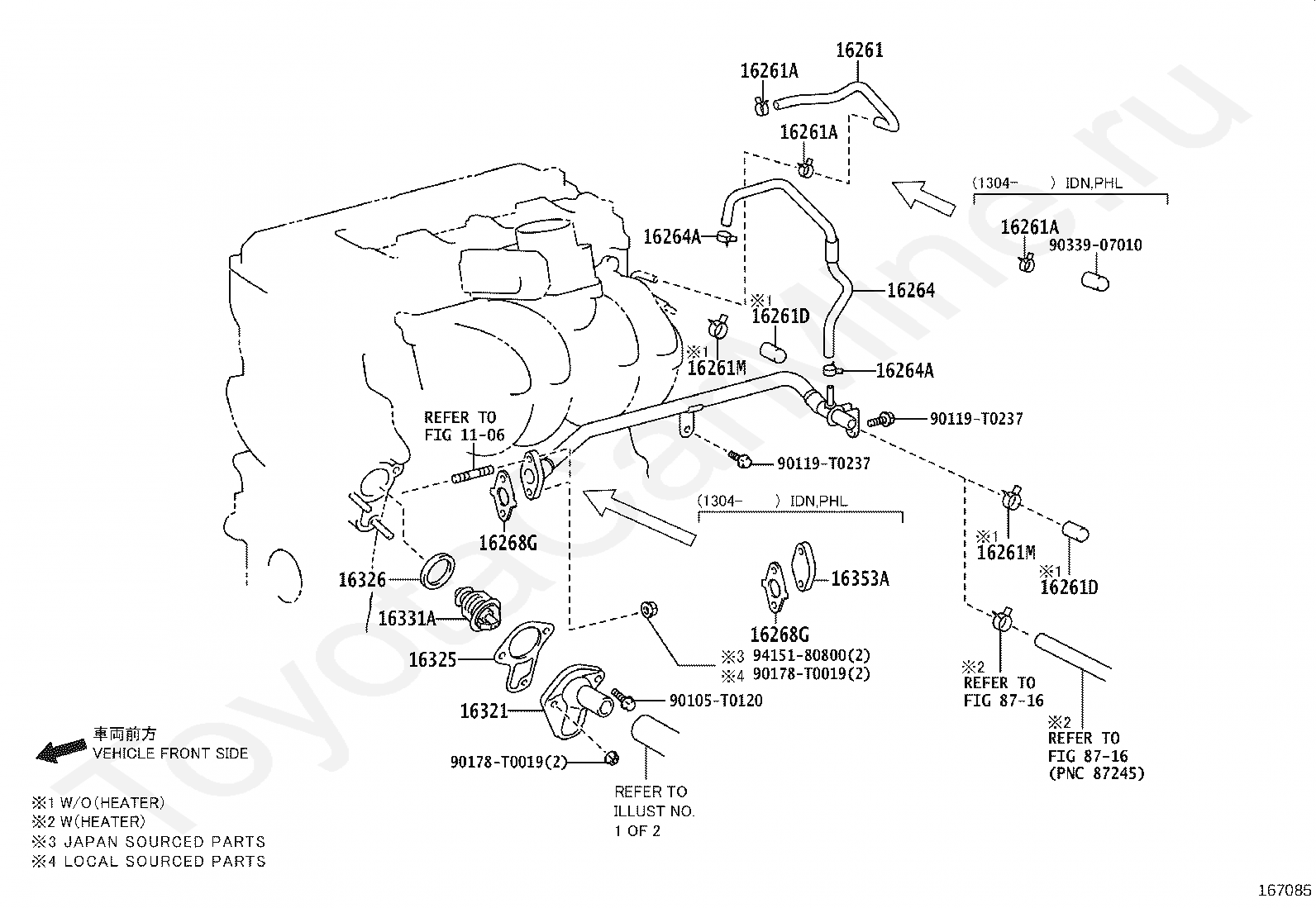

Код

Описание

1106

переход к группе запчастей

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261D

PLUG, W/O HEATER

16261D

PLUG, W/O HEATER

16261M

CLIP, W/O HEATER PLUG

16261M

CLIP, W/O HEATER PLUG

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16268

PIPE, WATER BY-PASS, NO.1

16268G

GASKET(FOR WATER BY-PASS PIPE)

16268G

GASKET(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

16353A

FLANGE, WATER BY-PASS

8716

переход к группе запчастей

8716

переход к группе запчастей

90119T0237

Крепеж

90119T0237

Крепеж

90178T0019

Крепеж

90178T0019

Крепеж

90178T0030

Крепеж

9017908087

Крепеж

9033907010

Крепеж

9155100825

Крепеж

9415180800

Крепеж

Радиатор и шланги TOYOTA INNOVA/KIJANG INNOVA
