Ближний Восток

Модель

INNOVA

VIN

Дата

2020/09

Двигатель

2,4 литра, турбо-дизель

Класс

2.4V TYPE

Фрейм

GUN142

КПП

автомат АКПП, 6 скоростей

Опции

правый руль Индонезия INDONESIA PRODUCT система впрыска дизельного топлива (низкое загрязнение) 758W

Реле и кнопки TOYOTA INNOVA







Код

Описание

1708

переход к группе запчастей

1708

переход к группе запчастей

1708

переход к группе запчастей

1708

переход к группе запчастей

1708

переход к группе запчастей

1708

переход к группе запчастей

8271571200

Крепеж

83520

GAGE ASSY,OIL PRESSURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425B

SENSOR, EXHAUST GAS TEMPERATURE, NO.3

89425C

SENSOR, EXHAUST GAS TEMPERATURE, NO.4

89439

BRACKET, SENSOR

89439D

BRACKET, SENSOR, NO.1

89439J

BRACKET, SENSOR, NO.2

89439K

BRACKET, SENSOR, NO.3

89463A

SENSOR, NITROGEN OXIDES

89467B

SENSOR, AIR FUEL RATIO

89481B

SENSOR, DIFFERENTIAL PRESSURE

89491

SENSOR, ENGINE OIL LEVEL

90105T0066

Крепеж

90119T0134

Крепеж

90119T0260

Крепеж

90119T0287

Крепеж

90119T0287

Крепеж

90119T0287

Крепеж

90178T0007

Крепеж

90178T0055

Крепеж

9167380820

Крепеж

9167380820

Крепеж

9167380820

Крепеж

9415180600

Крепеж

9415180840

Крепеж

9622110706

Крепеж

Код

Описание

33576D

BRACKET, BACK-UP LAMP SWITCH, NO.1

33576E

BRACKET, BACK-UP LAMP SWITCH, NO.2

33576F

BRACKET, BACK-UP LAMP SWITCH, NO.3

827150K680

Крепеж

8271571120

Крепеж

84210

SWITCH ASSY, BACK-UP LAMP

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

84545

SWITCH, NEUTRAL POSITION

90105T0070

Крепеж

90105T0070

Крепеж

90105T0070

Крепеж

9011908C62

Крепеж

9043018008

Крепеж

9043018008

Крепеж

9043018032

Крепеж

Код

Описание

28551

CONTROLLER, GLOW PLUG

28551

CONTROLLER, GLOW PLUG

28559

BRACKET, GLOW PLUG CONTROLLER, NO.1

28559

BRACKET, GLOW PLUG CONTROLLER, NO.1

28559A

BRACKET, GLOW PLUG CONTROLLER, NO.2

28559A

BRACKET, GLOW PLUG CONTROLLER, NO.2

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

90105T0066

Крепеж

90105T0066

Крепеж

90105T0066

Крепеж

90153T0001

Крепеж

90153T0001

Крепеж

90153T0001

Крепеж

90153T0001

Крепеж

90178T0056

Крепеж

9415180801

Крепеж

Код

Описание

28300

RELAY ASSY, STARTER

28300

RELAY ASSY, STARTER

28300F

RELAY ASSY, STARTER, NO.2

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

82210M

FUSIBLE LINK

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82616

PULLER, FUSE

82630

HOLDER ASSY, FUSE

82661

COVER, RELAY BLOCK, NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

82666

HOLDER, CONNECTOR

82741

BLOCK, ENGINE ROOM RELAY

8404

переход к группе запчастей

8404

переход к группе запчастей

8405

переход к группе запчастей

85916P

RELAY, HEADLAMP

85926

RELAY, HEADLAMP DIMMER

85934A

RELAY CONDENSER FAN

86530

RELAY ASSY, HORN

90119T0313

Крепеж

90119T0313

Крепеж

90119T0313

Крепеж

9167380620

Крепеж

9167380620

Крепеж

9167380620

Крепеж

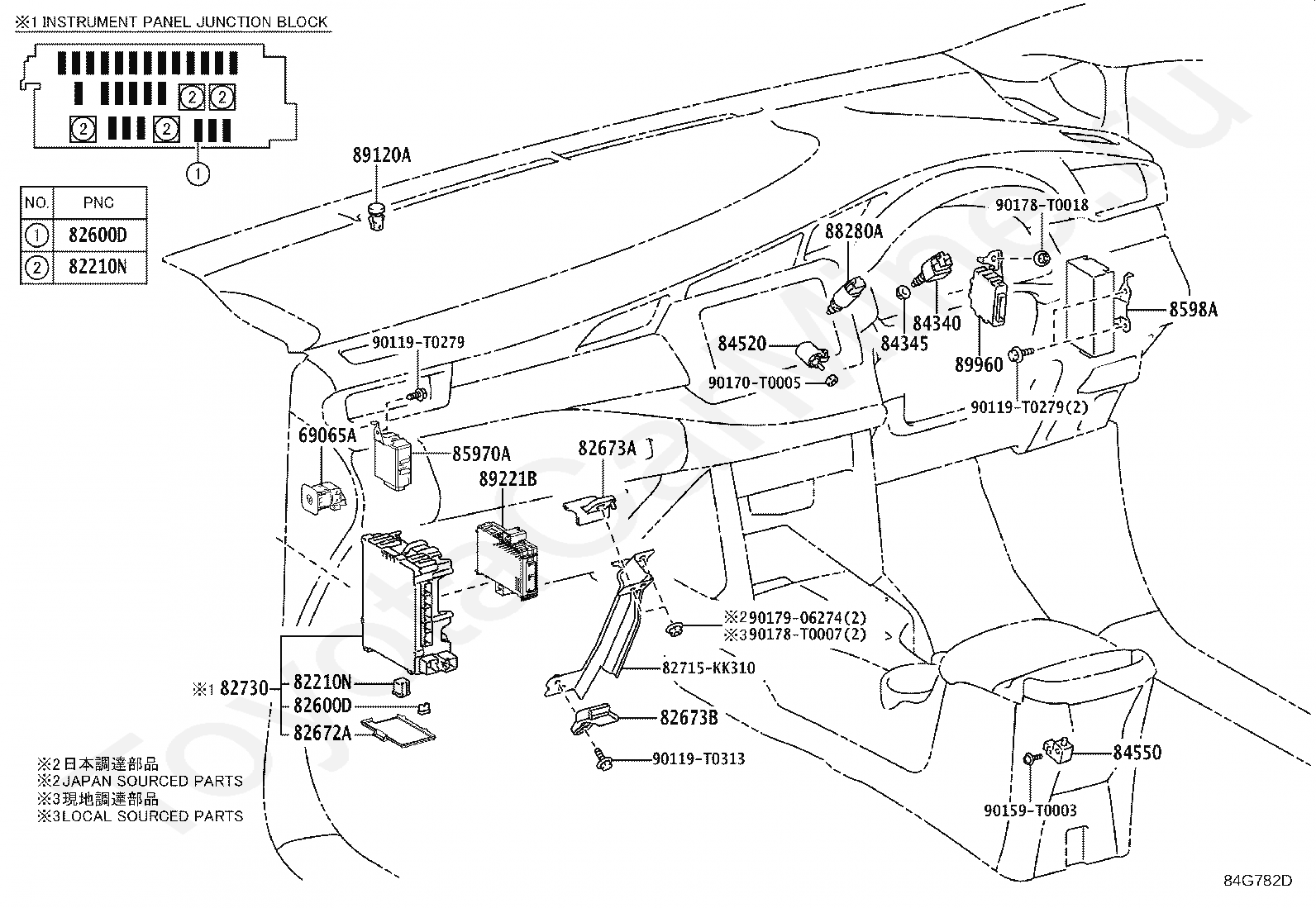

Код

Описание

69065A

CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82715KK310

Крепеж

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84520

SWITCH ASSY, CLUTCH START

84550

SWITCH ASSY, PARKING BRAKE

85970A

RELAY ASSY, DOUBLE LOCK DOOR CONTROL

8598A

BATTERY, DOOR CONTROL

88280A

SWITCH ASSY, CLUTCH

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221B

COMPUTER, BODY

89960

COMPUTER ASSY, HEADLAMP LEVELING

90119T0279

Крепеж

90119T0279

Крепеж

90119T0313

Крепеж

90159T0003

Крепеж

90170T0005

Крепеж

90178T0007

Крепеж

90178T0018

Крепеж

9017906274

Крепеж

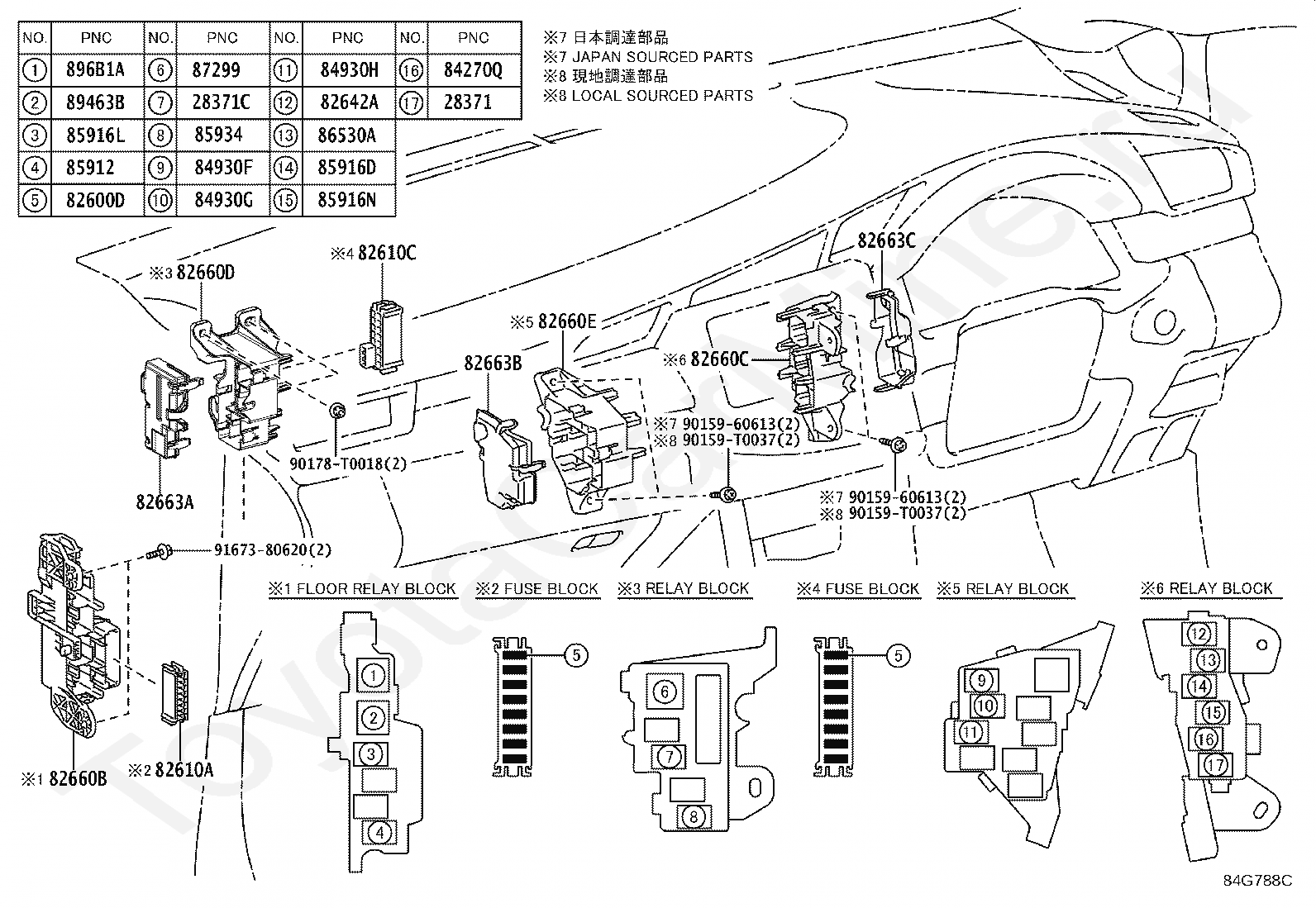

Код

Описание

28371

RELAY, IGNITION, NO.1

28371C

RELAY, IGNITION, NO.2

82600D

INSTRUMENT PANEL FUSE

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82642A

RELAY, RUNNING LIGHT

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

84270Q

RELAY, LAMP CUT

84930F

RELAY, DOOR LOCK CONTOROL

84930G

RELAY, DOOR LOCK CONTROL, NO.2

84930H

RELAY, DOOR LOCK CONTROL, NO.3

85912

RELAY, DEFOGGER

85916D

RELAY, FOG LAMP

85916L

RELAY, REAR FOG LAMP

85916N

RELAY, TAIL LAMP

85934

RELAY, MAGNET-CLUTCH

86530A

RELAY, HORN

87299

RELAY, HEATER

89463B

RELAY, NITROGEN OXIDES

896B1A

RELAY, DCU MAIN

9015960613

Крепеж

9015960613

Крепеж

90159T0037

Крепеж

90159T0037

Крепеж

90178T0018

Крепеж

9167380620

Крепеж

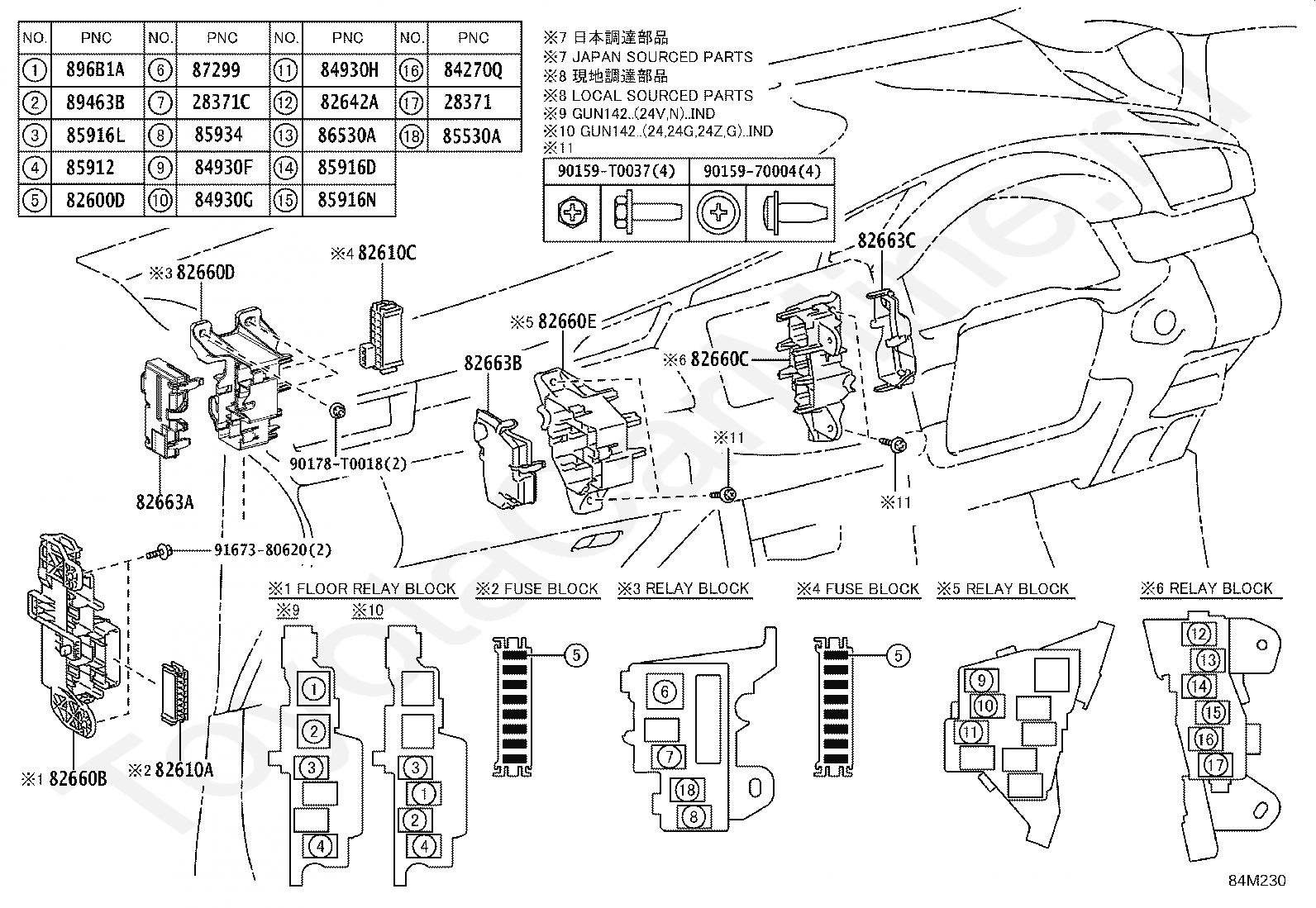

Код

Описание

28371

RELAY, IGNITION, NO.1

28371C

RELAY, IGNITION, NO.2

82600D

INSTRUMENT PANEL FUSE

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82642A

RELAY, RUNNING LIGHT

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

84270Q

RELAY, LAMP CUT

84930F

RELAY, DOOR LOCK CONTOROL

84930G

RELAY, DOOR LOCK CONTROL, NO.2

84930H

RELAY, DOOR LOCK CONTROL, NO.3

85530A

RELAY, POWER OUTLET SOCKET

85912

RELAY, DEFOGGER

85916D

RELAY, FOG LAMP

85916L

RELAY, REAR FOG LAMP

85916N

RELAY, TAIL LAMP

85934

RELAY, MAGNET-CLUTCH

86530A

RELAY, HORN

87299

RELAY, HEATER

89463B

RELAY, NITROGEN OXIDES

896B1A

RELAY, DCU MAIN

9015970004

Крепеж

90159T0037

Крепеж

90178T0018

Крепеж

9167380620

Крепеж

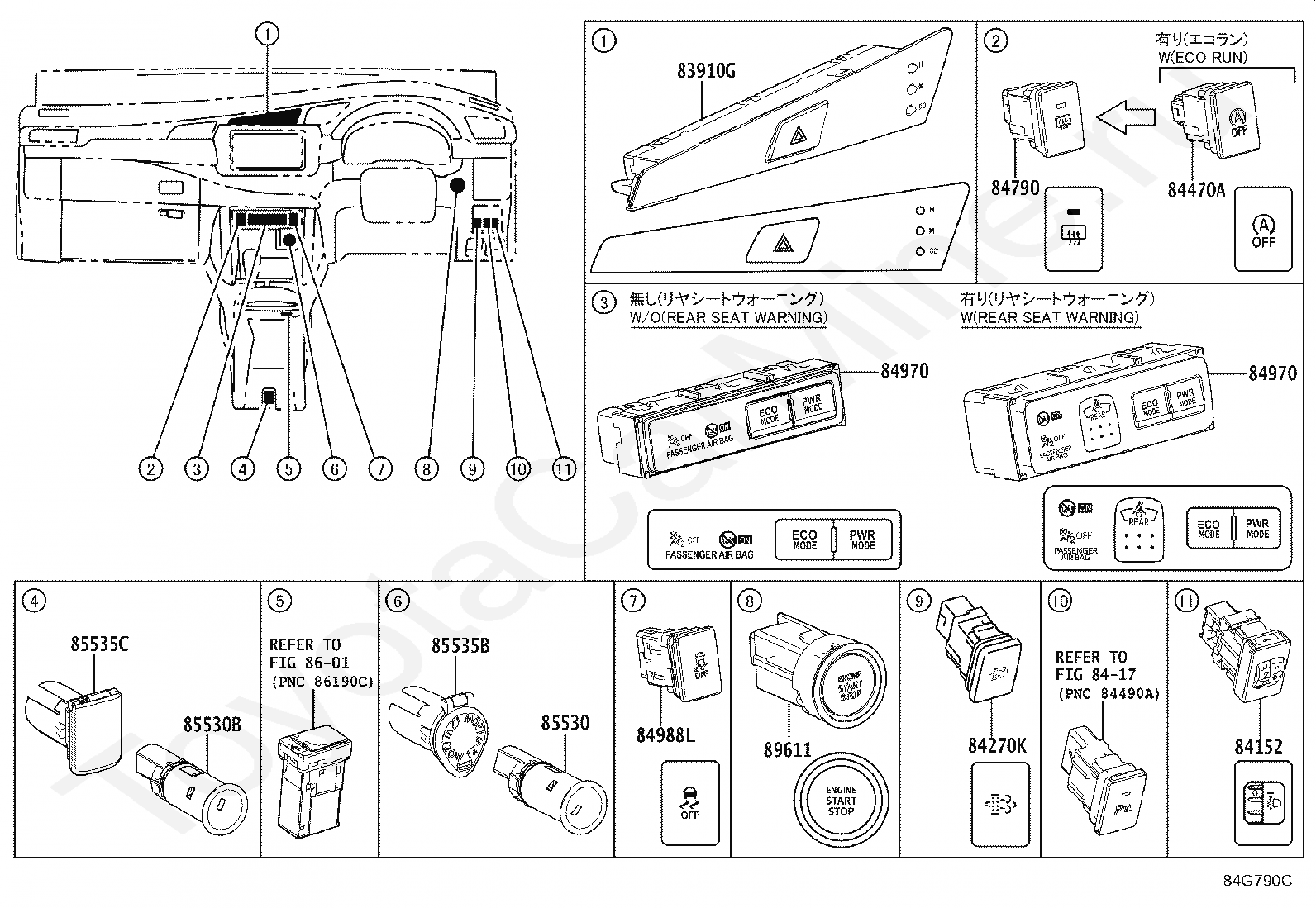

Код

Описание

83910G

CLOCK ASSY

84152

SWITCH, HEADLAMP LEVELING

8417

переход к группе запчастей

84270K

SWITCH ASSY, DPR

84470A

SWITCH ASSY, ECORUN CANCEL

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84970

SWITCH ASSY, COMBINATION

84970

SWITCH ASSY, COMBINATION

84988L

SWITCH, VSC OFF

85530

SOCKET ASSY, POWER OUTLET, NO.1

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85535B

COVER, POWER OUTLET SOCKET, NO.1

85535C

COVER, POWER OUTLET SOCKET, REAR

8601

переход к группе запчастей

89611

SWITCH, PUSH START

Код

Описание

4501

переход к группе запчастей

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84140

SWITCH ASSY, HEADLAMP DIMMER

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84306

CABLE SUB-ASSY, SPIRAL

84307

CABLE SUB-ASSY, SPIRAL W/SENSOR

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89245B

SENSOR, STEERING

9015950199

Крепеж

9016840129

Крепеж

9016840129

Крепеж

90168T0004

Крепеж

90168T0004

Крепеж

Код

Описание

84921C

KNOB, POWER SEAT SWITCH, RH

84921D

KNOB, POWER SEAT SWITCH, LH

84921J

KNOB, POWER SEAT SWITCH, RH

84921K

KNOB, POWER SEAT SWITCH, LH

84922B

SWITCH, FRONT POWER SEAT, RH

84922C

SWITCH, FRONT POWER SEAT, LH

9356014010

Крепеж

9356014010

Крепеж

Код

Описание

83320

GAGE ASSY, FUEL SENDER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84840G

SWITCH ASSY, BACK DOOR OPENER

84870A

SWITCH ASSY, OUTER MIRROR

84870A

SWITCH ASSY, OUTER MIRROR

88630Y

RELAY, REAR COOLER

89222A

COMPUTER, MULTIPLEX NETWORK DOOR

89677A

BRACKET, UREA PUMP CONTROL, NO.1

89677B

BRACKET, UREA PUMP CONTROL, NO.3

89678A

BRACKET, UREA PUMP CONTROL, NO.2

896B1

COMPUTER, UREA PUMP CONTROL

90119T0126

Крепеж

90119T0126

Крепеж

9015350015

Крепеж

9015350015

Крепеж

9016440103

Крепеж

9016440103

Крепеж

90164T0005

Крепеж

90164T0005

Крепеж

9016660005

Крепеж

9016670001

Крепеж

90166T0003

Крепеж

9167380616

Крепеж
