Европа

Модель

HILUX

VIN

Дата

1997/08

Двигатель

2,4 литра, турбо-дизель

Класс

SR SPECIFICATION

Фрейм

LN165

КПП

механика

Опции

левый руль DOOR CONTROL BATTERY COMPLETED VEHICLE

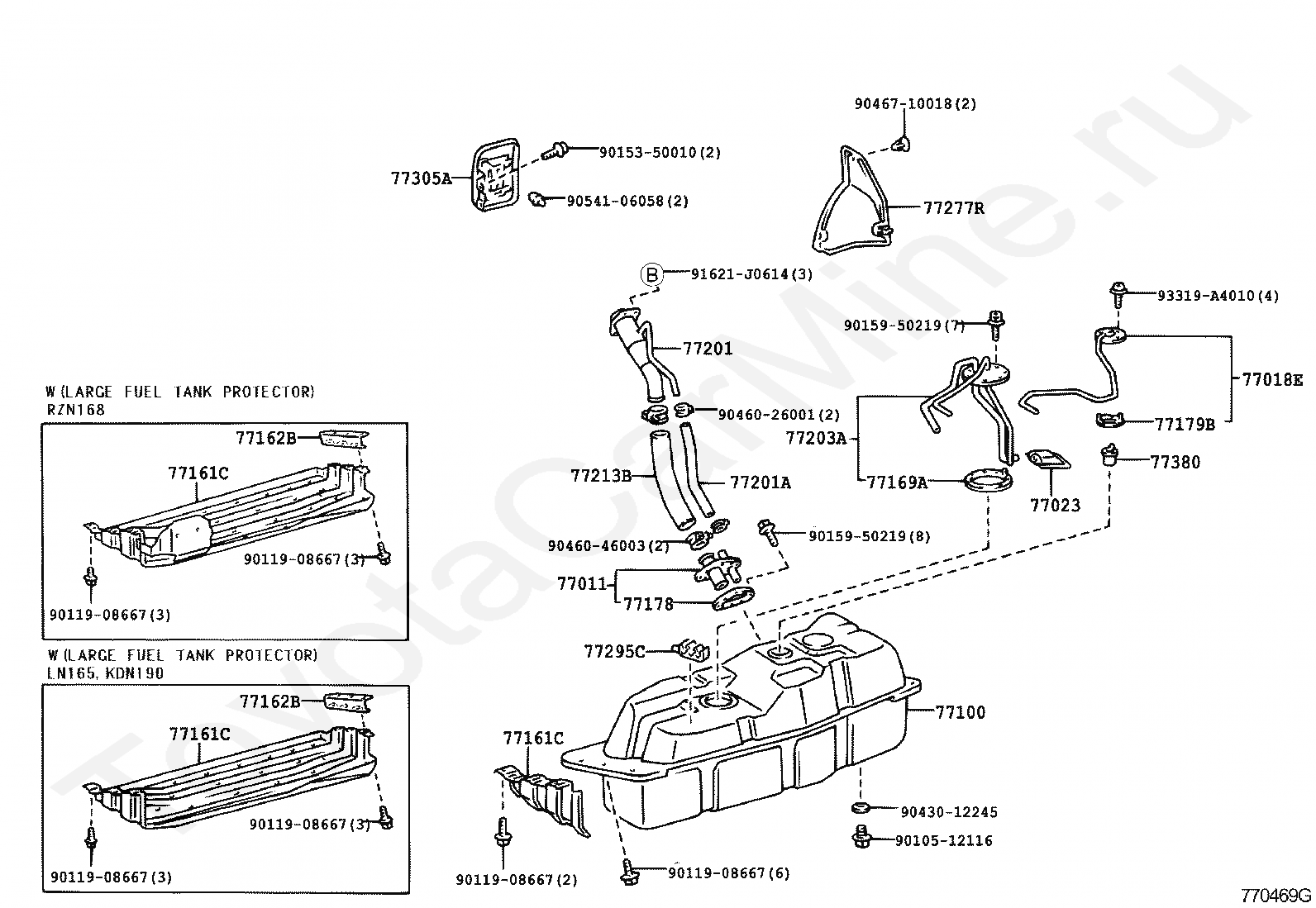

Топливный бак и горловина TOYOTA HILUX

Код

Описание

77011

PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

77018E

TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77100

TANK ASSY, FUEL

77161C

PROTECTOR, FUEL TANK, LOWER

77161C

PROTECTOR, FUEL TANK, LOWER

77161C

PROTECTOR, FUEL TANK, LOWER

77162B

BRACKET, FUEL TANK REAR PROTECTOR

77162B

BRACKET, FUEL TANK REAR PROTECTOR

77169A

GASKET, FUEL SUCTION TUBE SET

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77179B

GASKET, FUEL TANK EVAPORATION VENT TUBE

77201

PIPE SUB-ASSY, FUEL TANK INLET

77201A

HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

77203A

TUBE SUB-ASSY, FUEL SUCTION

77213B

HOSE, FUEL TANK TO FILLER PIPE

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77295C

GROMMET, FUEL TUBE

77305A

LID SUB-ASSY, FUEL FILLER OPENING

77380

VALVE ASSY, FUEL CUT OFF

9010512116

Крепеж

9011908667

Крепеж

9011908667

Крепеж

9011908667

Крепеж

9011908667

Крепеж

9011908667

Крепеж

9011908667

Крепеж

9015350010

Крепеж

9015950219

Крепеж

9015950219

Крепеж

9043012245

Крепеж

9046026001

Крепеж

9046046003

Крепеж

9046710018

Крепеж

9054106058

Крепеж

91621J0614

Крепеж

93319A4010

Крепеж

Код

Описание

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241C

HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

77241D

HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)

77249

HOSE, FUEL EMISSION

77251B

TUBE, FUEL MAIN

77252A

TUBE, FUEL MAIN, NO.2

77255D

TUBE, FUEL RETURN

77256C

TUBE, FUEL RETURN, NO.2

77262B

TUBE, FUEL TANK TO CANISTER, NO.2

77273A

CLAMP, FUEL TUBE W/GROMMET, NO.6

77285D

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77286F

CLAMP, FUEL TUBE, NO.2

77289B

CLAMP, FUEL TUBE, NO.3

77295D

GROMMET, FUEL TUBE

77295E

GROMMET, FUEL TUBE

77298A

CLAMP, FUEL TUBE, NO.4

77439

HOSE, FUEL RETURN

77439

HOSE, FUEL RETURN

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9017906161

Крепеж

9017906161

Крепеж

9017906161

Крепеж

9017906161

Крепеж

9017906161

Крепеж

9046110781

Крепеж

91611B0614

Крепеж

91641H0820

Крепеж

9613251100

Крепеж

9613251100

Крепеж

9613251100

Крепеж

9613251100

Крепеж

9613251300

Крепеж

9613251300

Крепеж

9613251300

Крепеж
