Европа

Модель

HILUX

VIN

Дата

2011/08

Двигатель

2,5 литра, турбо-дизель

Класс

DELUX SPECIFICATION

Фрейм

KUN25

КПП

МКПП, 5 скоростей

Опции

правый руль DOOR CONTROL BATTERY SLIDE DOOR система впрыска дизельного топлива высокой мощности CBU EUR 520W

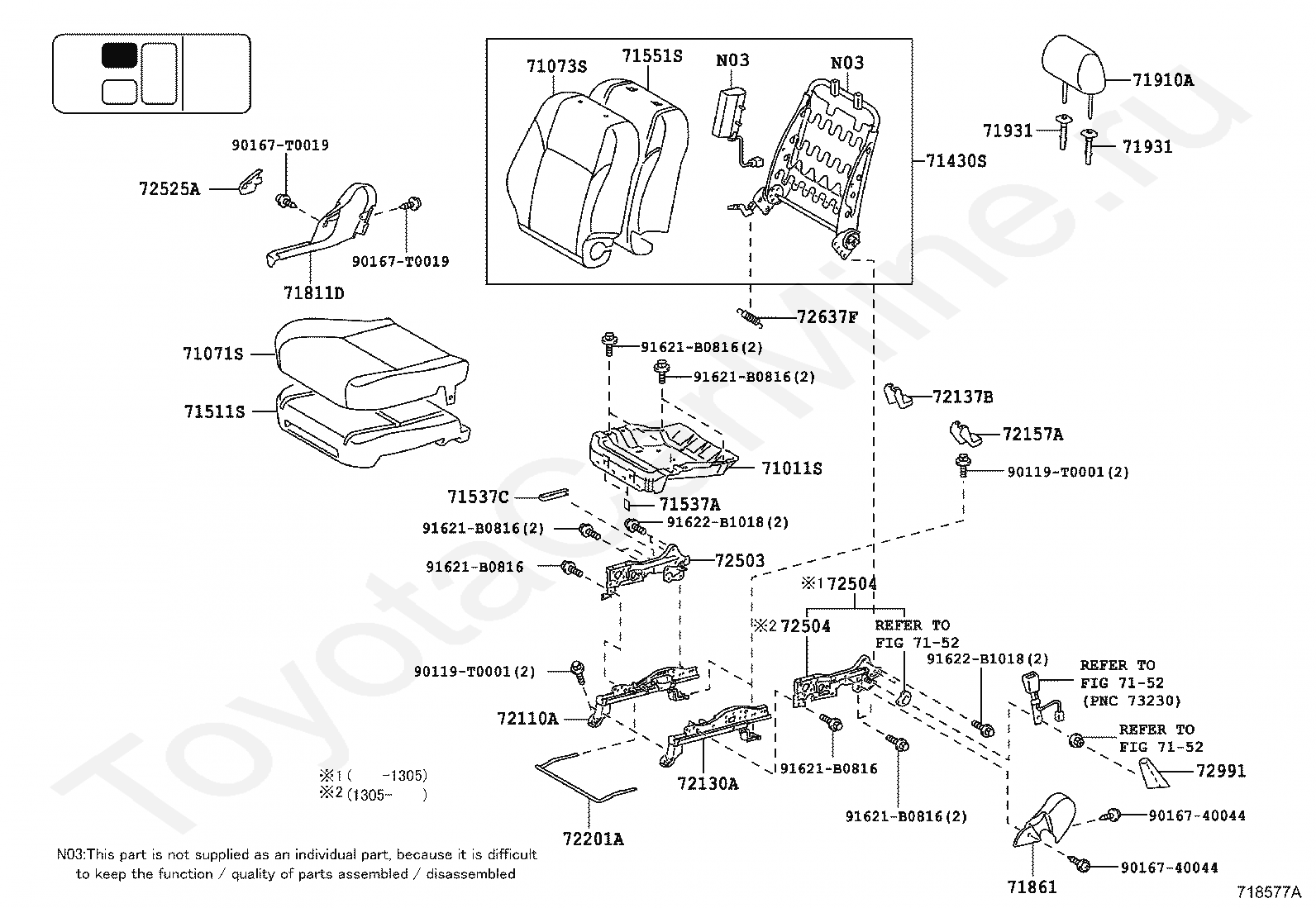

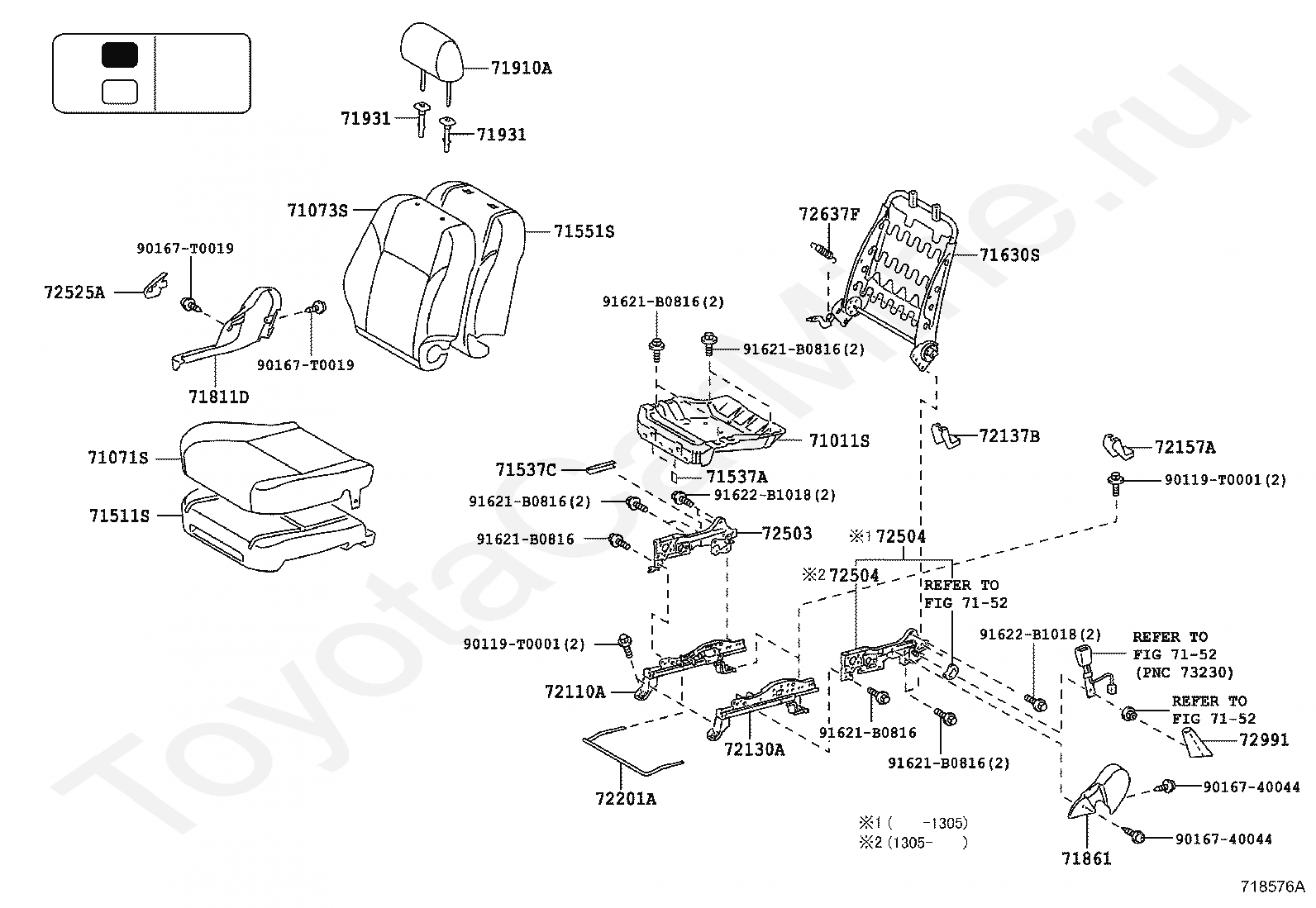

Кресла TOYOTA HILUX

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137B

COVER, SEAT TRACK, RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72503

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH

72504

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH

72504

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72637F

SPRING, SEAT BACK, RH

72991

COVER, FRONT SEAT CUSHION, RH

90119T0001

Крепеж

90119T0001

Крепеж

9016740044

Крепеж

9016740044

Крепеж

90167T0019

Крепеж

90167T0019

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91622B1018

Крепеж

91622B1018

Крепеж

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137B

COVER, SEAT TRACK, RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72503

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH

72504

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH

72504

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72637F

SPRING, SEAT BACK, RH

72991

COVER, FRONT SEAT CUSHION, RH

90119T0001

Крепеж

90119T0001

Крепеж

9016740044

Крепеж

9016740044

Крепеж

90167T0019

Крепеж

90167T0019

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91622B1018

Крепеж

91622B1018

Крепеж

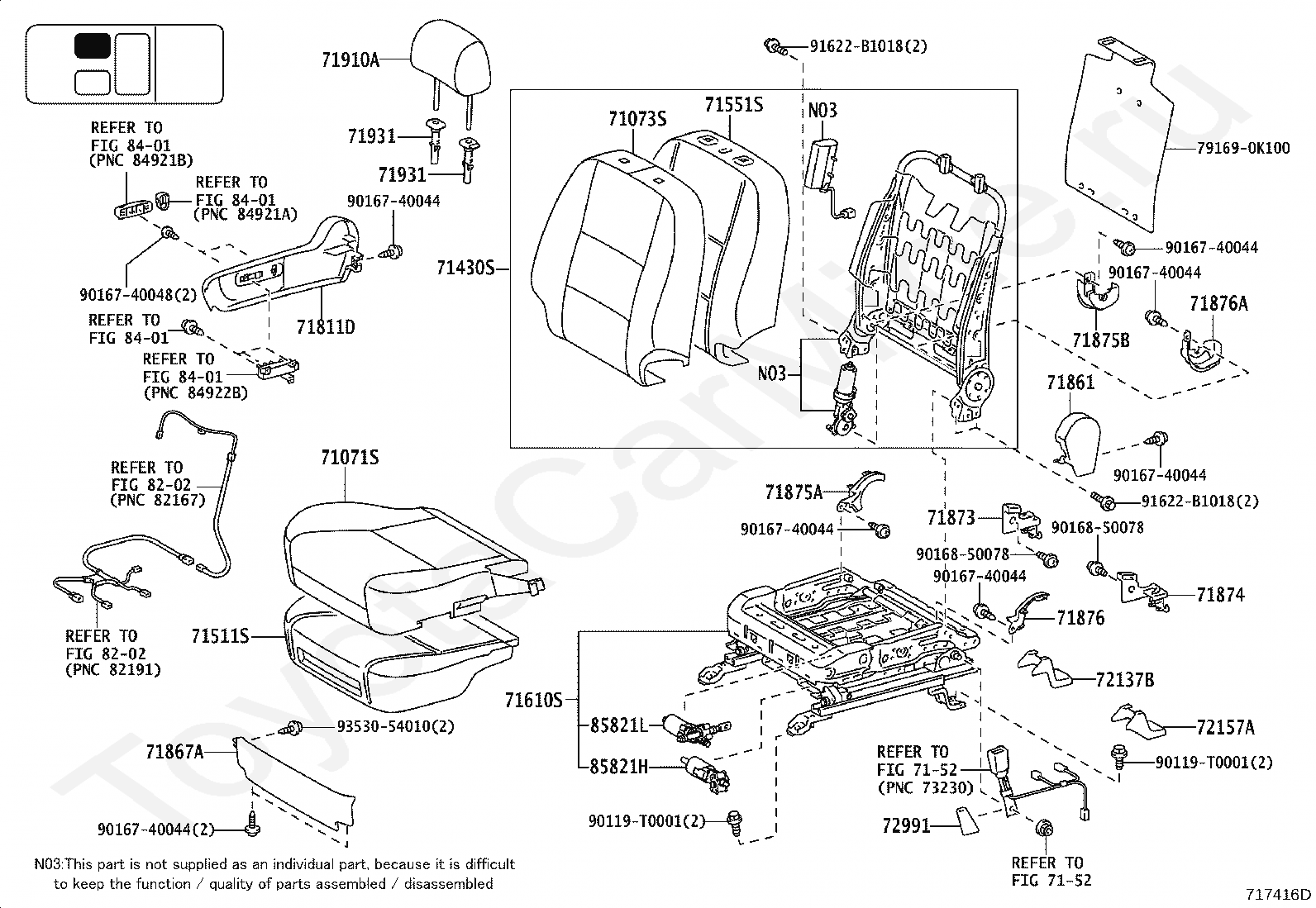

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72137B

COVER, SEAT TRACK, RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72991

COVER, FRONT SEAT CUSHION, RH

791690K100

Крепеж

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

85821H

MOTOR ASSY, POWER SEAT SLIDE, RH

85821L

MOTOR ASSY, POWER SEAT LIFTER, RH

90119T0001

Крепеж

90119T0001

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740048

Крепеж

9016850078

Крепеж

9016850078

Крепеж

91622B1018

Крепеж

91622B1018

Крепеж

9353054010

Крепеж

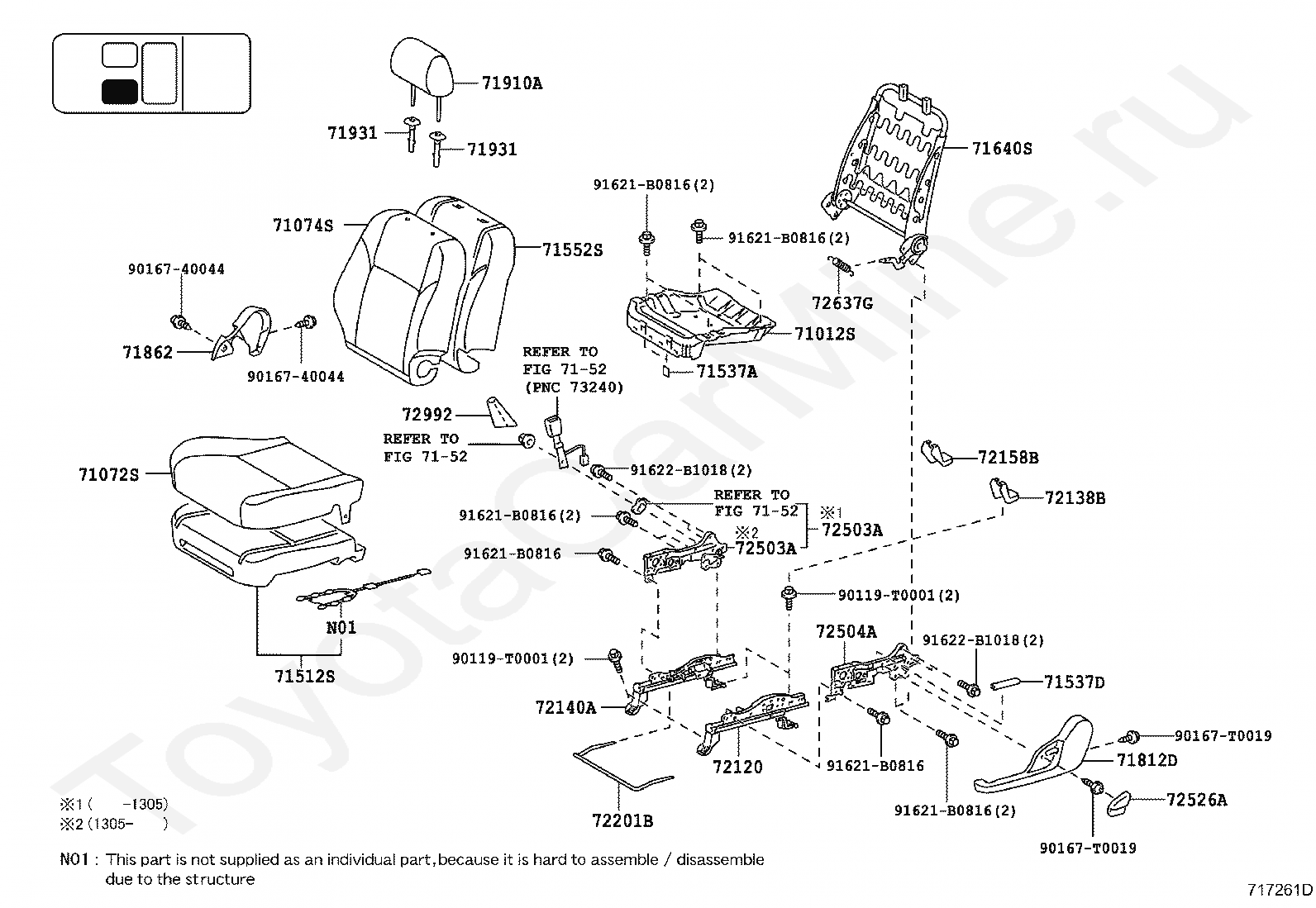

Код

Описание

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72503A

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH

72503A

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH

72504A

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72637G

SPRING, SEAT BACK, LH

72992

COVER, FRONT SEAT CUSHION, LH

90119T0001

Крепеж

90119T0001

Крепеж

9016740044

Крепеж

9016740044

Крепеж

90167T0019

Крепеж

90167T0019

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91622B1018

Крепеж

91622B1018

Крепеж

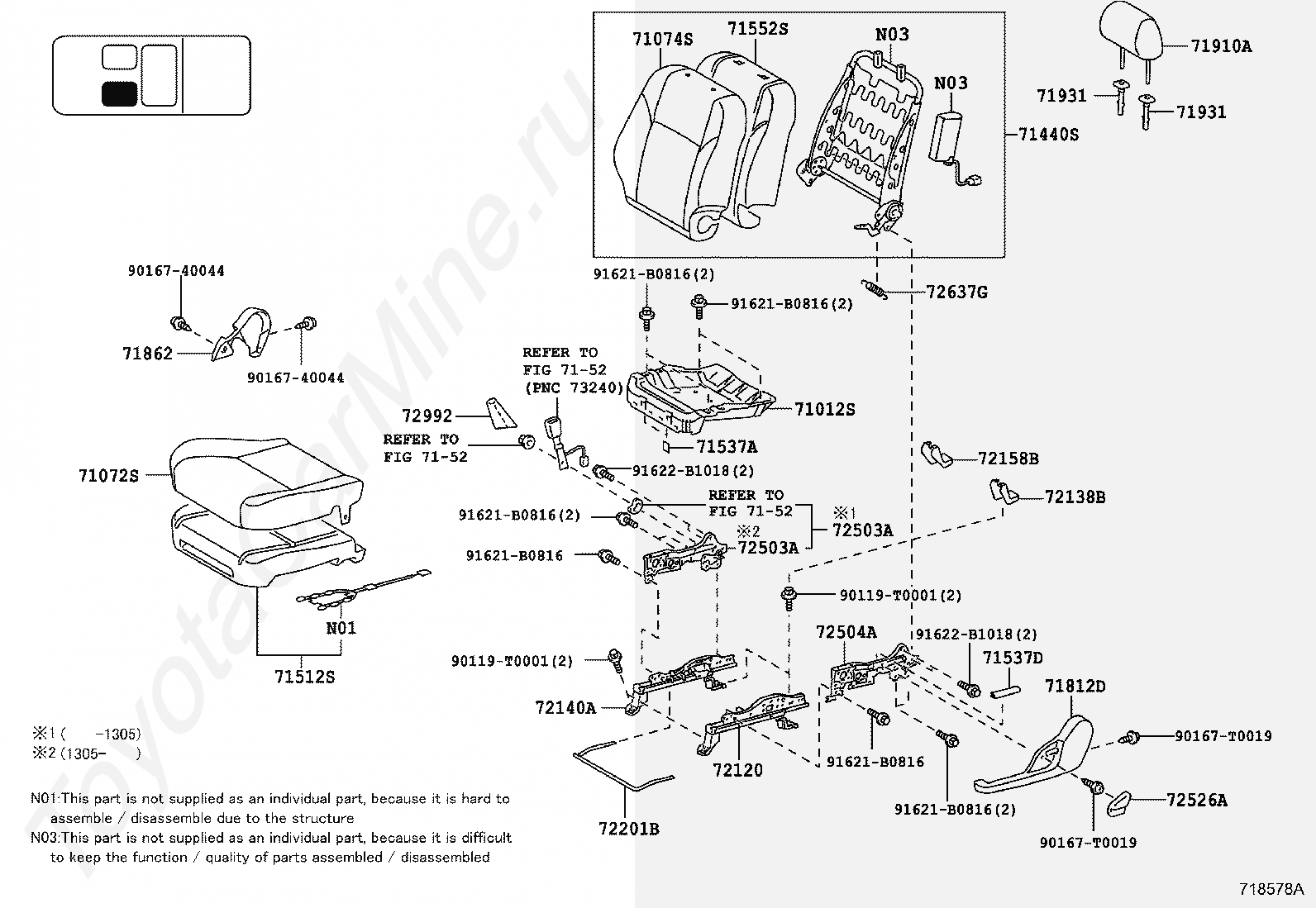

Код

Описание

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72503A

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH

72503A

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH

72504A

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72637G

SPRING, SEAT BACK, LH

72992

COVER, FRONT SEAT CUSHION, LH

90119T0001

Крепеж

90119T0001

Крепеж

9016740044

Крепеж

9016740044

Крепеж

90167T0019

Крепеж

90167T0019

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91621B0816

Крепеж

91622B1018

Крепеж

91622B1018

Крепеж

Код

Описание

71222B

WIRE, RR SEAT CUSHION CONNECTING

71324A

CUSHION, REAR SEAT

71324A

CUSHION, REAR SEAT

71485C

COVER, REAR SEAT HINGE, RH

71486C

COVER, REAR SEAT HINGE, LH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72645

CUSHION, REAR SEAT BACK LOCK

72645

CUSHION, REAR SEAT BACK LOCK

72995B

COVER, NO.1 SEAT CUSHION, RH

72998

COVER, REAR SEAT CUSHION, LH

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103A

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

79318

BRACKET, NO.3 SEAT LEG

79328

BRACKET, REAR SEAT LEG, FRONT RH

79977A

FELT, SEAT BACK

9009905179

Крепеж

9010908127

Крепеж

90119T0206

Крепеж

90119T0206

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017908275

Крепеж

9017908275

Крепеж

9356055018

Крепеж

9356055018

Крепеж

Кресла TOYOTA HILUX
