Ближний Восток

Модель

HILUX 2WD

VIN

Дата

1988/08

Двигатель

1,8 литра

Кузов

RENT-A-CAR SPECIFICATION PACKAGE B

Класс

STANDARD TYPE

Фрейм

YN85

КПП

механика МКПП, 4 ступени

Опции

правый руль LOW DECK (STANDARD DECK) STANDARD CARBURETOR SPECIFICATION GENERAL COUNTRIES COMPLETED VEHICLE

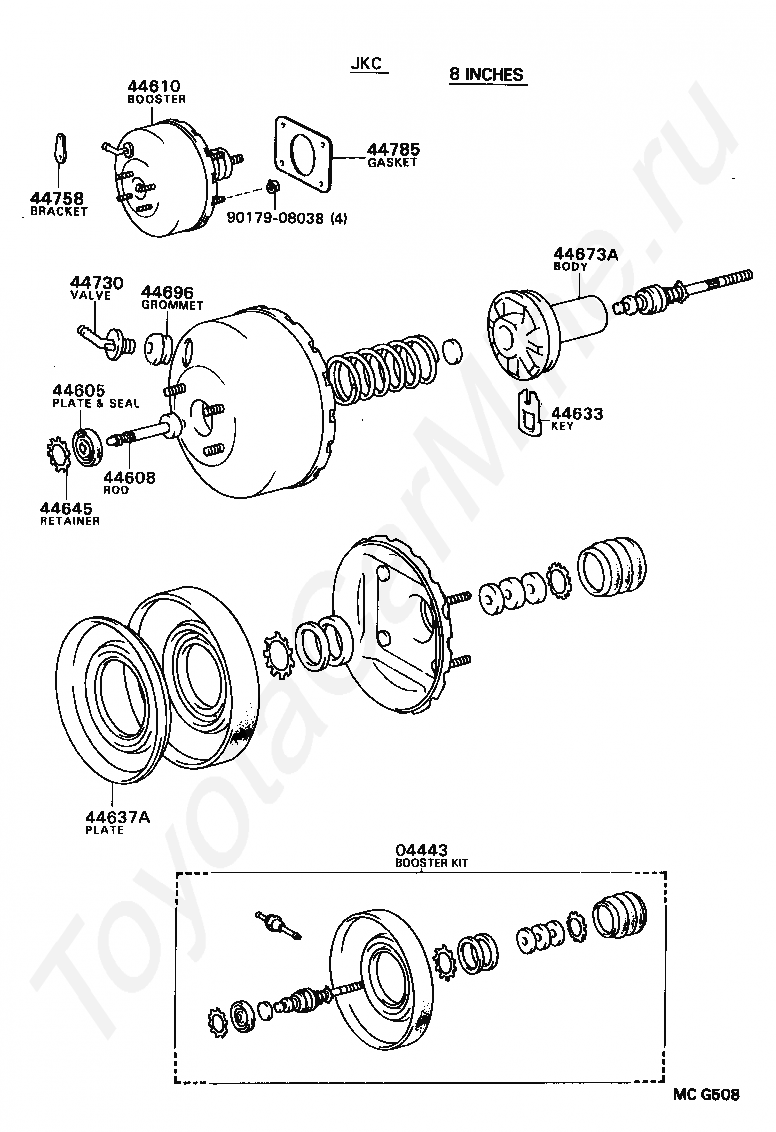

Вакуумный тормозной цилиндр TOYOTA HILUX 2WD

Код

Описание

04443

BOOSTER KIT, BRAKE

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44637A

PLATE, BOOSTER DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44673A

BODY, BOOSTER VALVE

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

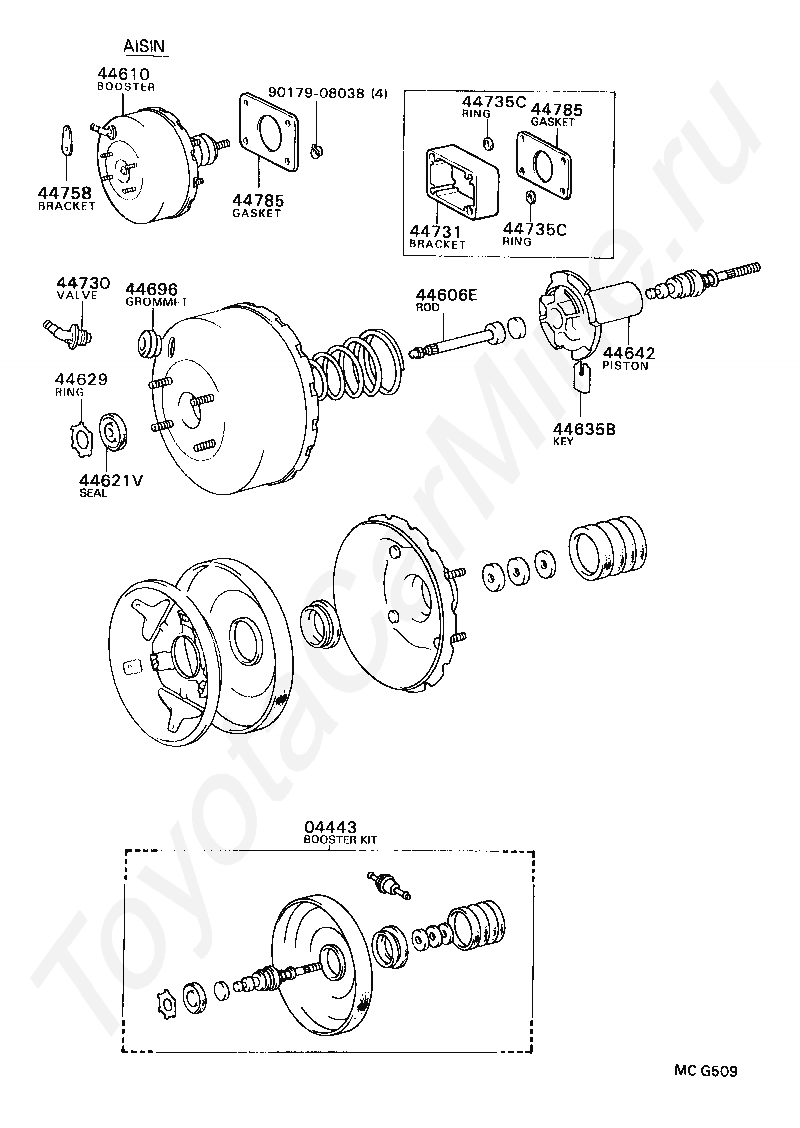

Код

Описание

04443

BOOSTER KIT, BRAKE

44606E

ROD SUB-ASSY, BRAKE BOOSTER PISTON

44610

BOOSTER ASSY, BRAKE

44621V

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44635B

KEY, VALVE STOPPER

44642

PISTON, BRAKE BOOSTER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44735C

RING, BOOSTER BRACKET STOPPER

44735C

RING, BOOSTER BRACKET STOPPER

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

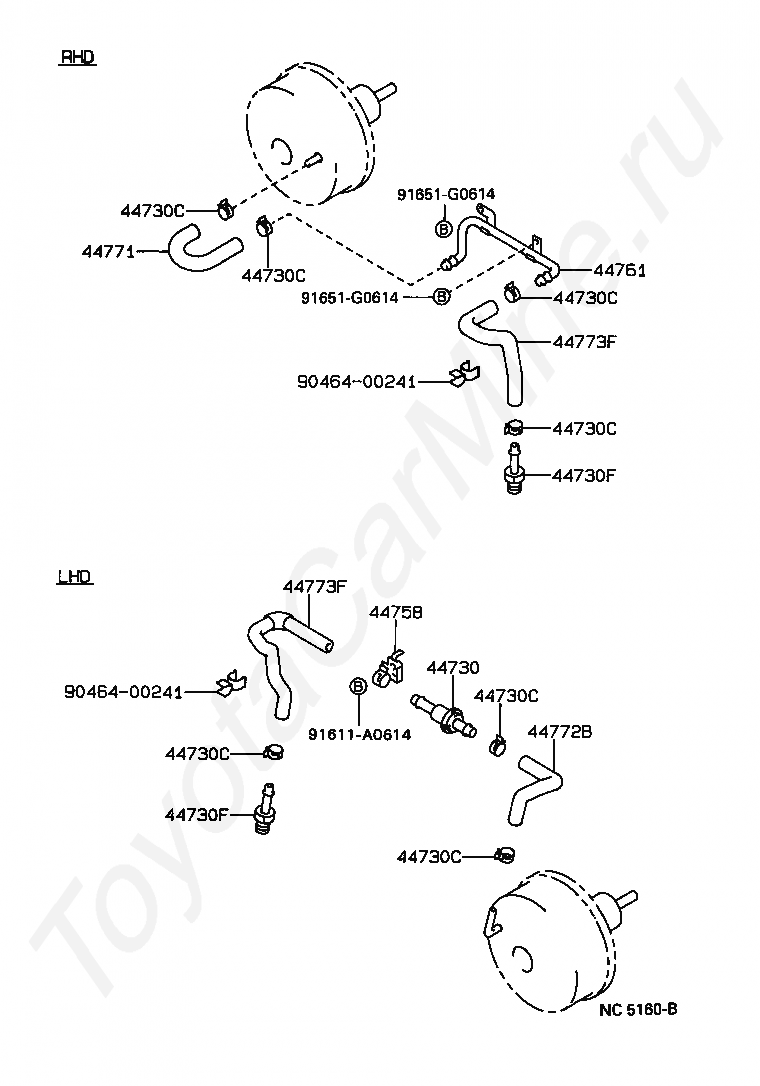

Код

Описание

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44758

BRACKET, VACUUM CHECK VALVE

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44771

HOSE, VACUUM TUBE CONNECTOR

44772B

HOSE, CHECK VALVE TO BRAKE BOOSTER

44773F

HOSE, UNION TO CHECK VALVE

44773F

HOSE, UNION TO CHECK VALVE

9046400241

Крепеж

9046400241

Крепеж

91611A0614

Крепеж

91651G0614

Крепеж

91651G0614

Крепеж

Вакуумный тормозной цилиндр TOYOTA HILUX 2WD
