Модель

HILUX 2WD

VIN

Дата

1988/08

Двигатель

1,8 литра

Кузов

RENT-A-CAR SPECIFICATION PACKAGE B

Класс

STANDARD TYPE

Фрейм

YN85

КПП

механика МКПП, 4 ступени

Опции

правый руль LOW DECK (STANDARD DECK) STANDARD CARBURETOR SPECIFICATION GENERAL COUNTRIES COMPLETED VEHICLE

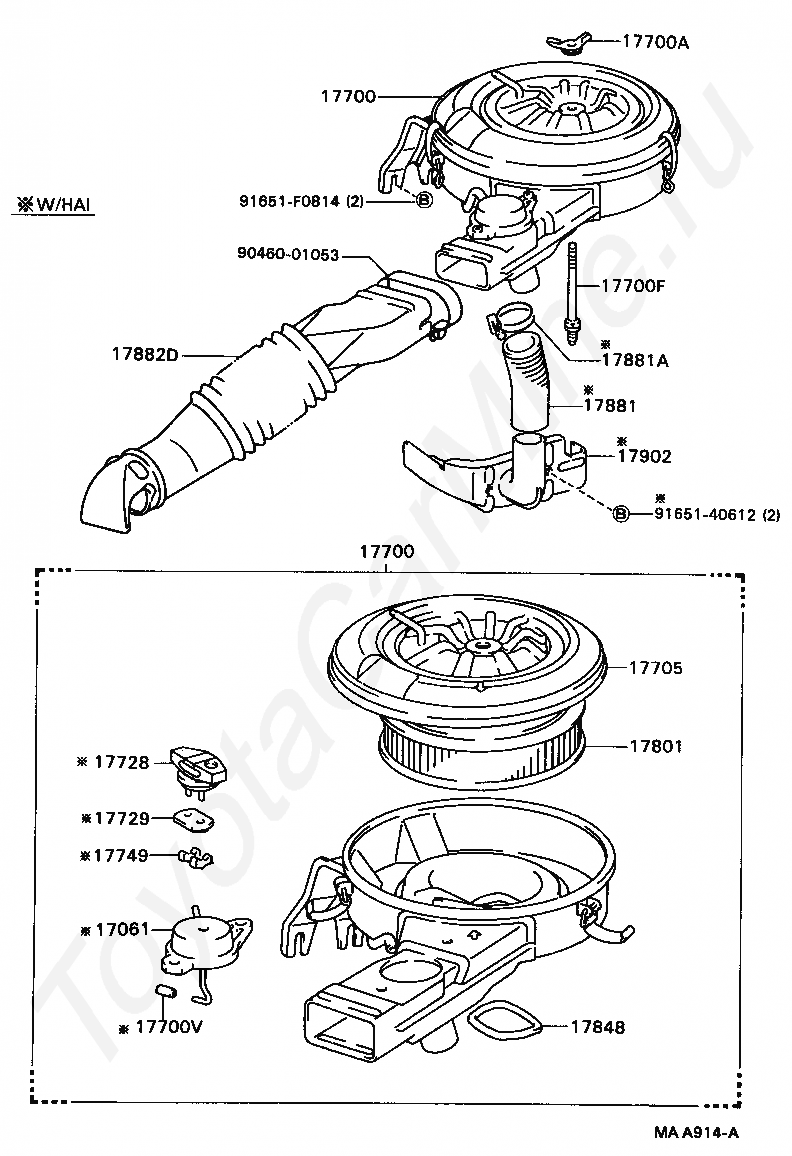

Воздушный фильтр TOYOTA HILUX 2WD

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700V

BUSH(FOR AIR CLEANER)

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17729

GASKET, THERMOSTAT VALVE

17749

SUPPORT, THERMOSTAT VALVE

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882D

HOSE, COOL AIR INTAKE

17902

INLET SUB-ASSY, HOT AIR INTAKE, NO.1

9046001053

Крепеж

9165140612

Крепеж

91651F0814

Крепеж

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700V

BUSH(FOR AIR CLEANER)

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17729

GASKET, THERMOSTAT VALVE

17749

SUPPORT, THERMOSTAT VALVE

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882D

HOSE, COOL AIR INTAKE

17902

INLET SUB-ASSY, HOT AIR INTAKE, NO.1

9046001053

Крепеж

9165140612

Крепеж

91651F0814

Крепеж

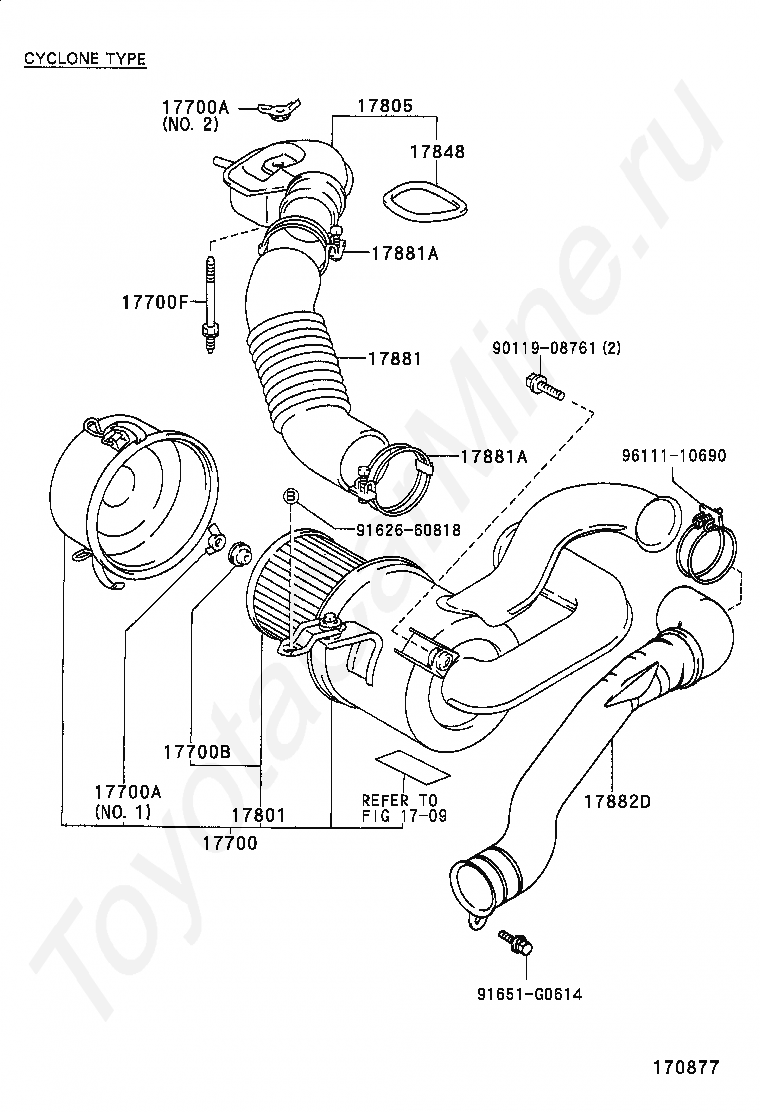

Код

Описание

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882D

HOSE, COOL AIR INTAKE

9011908761

Крепеж

9162660818

Крепеж

91651G0614

Крепеж

9611110690

Крепеж

Код

Описание

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882D

HOSE, COOL AIR INTAKE

9011908761

Крепеж

9162660818

Крепеж

91651G0614

Крепеж

9611110690

Крепеж
