Каталог

Япония

Модель

HILUX

VIN

Дата

1988/09

Двигатель

2 литра

Кузов

DOOR CONTROL BATTERY

Класс

SR SPECIFICATION

Фрейм

YN105

КПП

механика МКПП, 5 скоростей

Опции

STANDARD CARBURETOR SPECIFICATION COMPLETED VEHICLE DOUBLE CAB TRUCK (STANDARD)

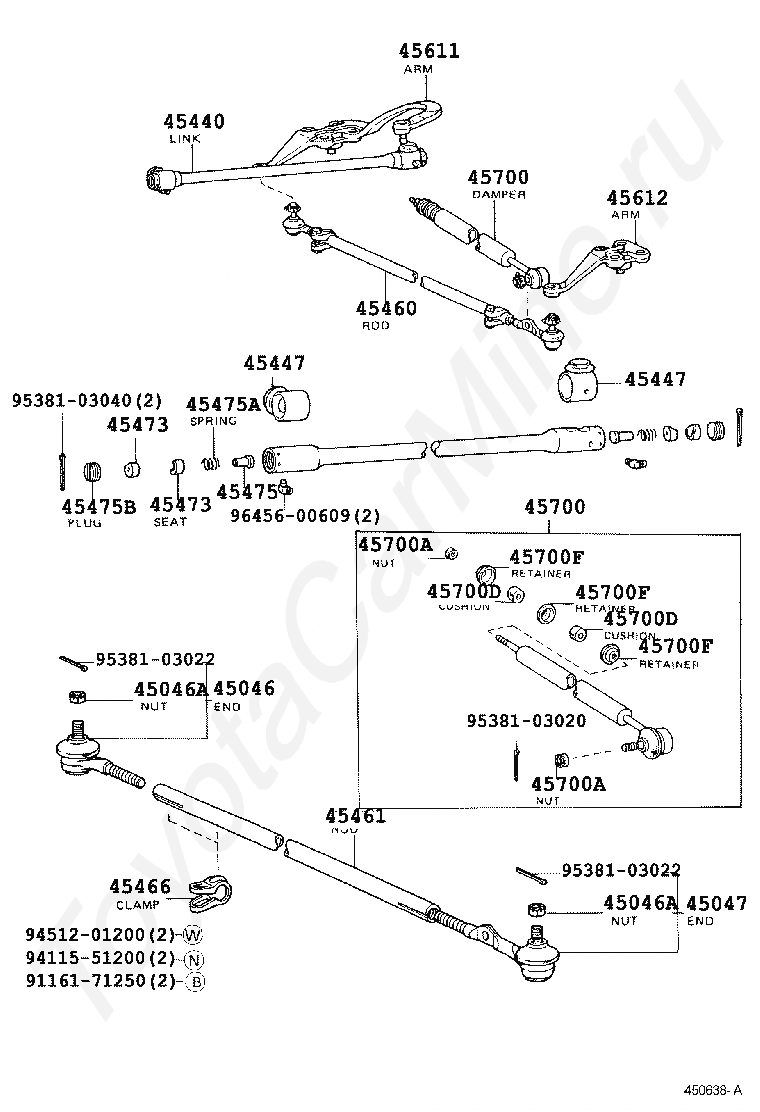

Рулевая рейка и наконечники TOYOTA HILUX







Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45440

LINK ASSY, STEERING DRAG

45447

SEAL, DRAG LINK DUST

45447

SEAL, DRAG LINK DUST

45460

ROD ASSY, TIE, RH

45461

ROD, STEERING TIE

45466

CLAMP, TIE ROD END

45473

SEAT, BALL STUD

45473

SEAT, BALL STUD

45475

SEAT, STEERING LINK JOINT SPRING

45475A

SPRING, COMPRESSION(FOR STEERING LINK JOINT)

45475B

PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)

45611

ARM, STEERING KNUCKLE, RH

45612

ARM, STEERING KNUCKLE, LH

45700

DAMPER ASSY, STEERING

45700

DAMPER ASSY, STEERING

45700A

NUT(FOR STEERING DAMPER)

45700A

NUT(FOR STEERING DAMPER)

45700D

CUSHION, STEERING DAMPER

45700D

CUSHION, STEERING DAMPER

45700F

RETAINER, STEERING DAMPER CUSHION

45700F

RETAINER, STEERING DAMPER CUSHION

45700F

RETAINER, STEERING DAMPER CUSHION

9116171250

Крепеж

9411551200

Крепеж

9451201200

Крепеж

9538103020

Крепеж

9538103022

Крепеж

9538103022

Крепеж

9538103040

Крепеж

9645600609

Крепеж

Код

Описание

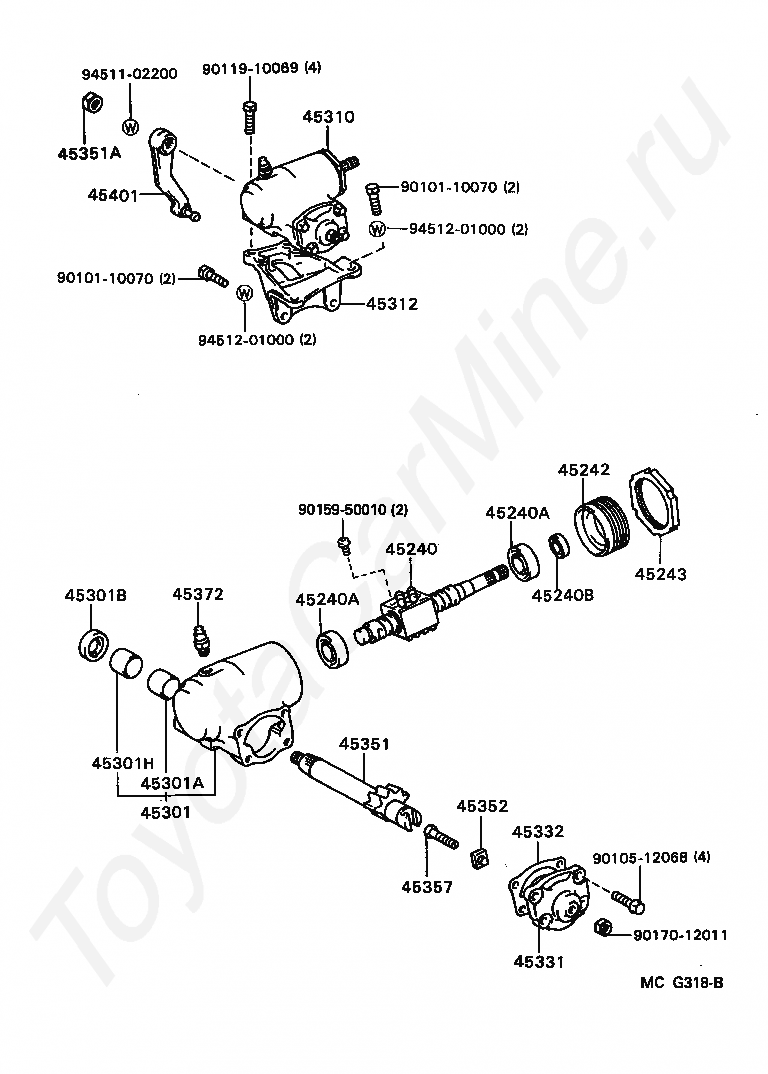

45240

WORM ASSY, STEERING

45240A

BEARING(FOR STEERING WORM)

45240A

BEARING(FOR STEERING WORM)

45240B

SEAL, OIL(FOR STEERING WORM)

45242

SCREW, WORM BEARING ADJUSTING

45243

NUT, WORM BEARING ADJUSTING SCREW LOCK

45301

HOUSING SUB-ASSY, STEERING GEAR

45301A

BUSH OR BEARING, SECTOR SHAFT, NO.1

45301B

SEAL, OIL(FOR SECTOR SHAFT)

45301H

BUSH OR BEARING, SECTOR SHAFT, NO.2

45310

HOUSING ASSY, STEERING GEAR

45312

BRACKET, STEERING GEAR HOUSING

45331

COVER, SECTOR SHAFT END

45332

GASKET, SECTOR SHAFT END COVER

45351

SHAFT, STEERING SECTOR

45351A

NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

45352

WASHER, SECTOR SHAFT THRUST

45357

SCREW, SECTOR SHAFT ADJUSTING

45372

PLUG, STEERING GEAR HOUSING OIL

45401

ARM SUB-ASSY, PITMAN

9010110070

Крепеж

9010110070

Крепеж

9010512068

Крепеж

9011910069

Крепеж

9015950010

Крепеж

9017012011

Крепеж

9451102200

Крепеж

9451201000

Крепеж

9451201000

Крепеж

Код

Описание

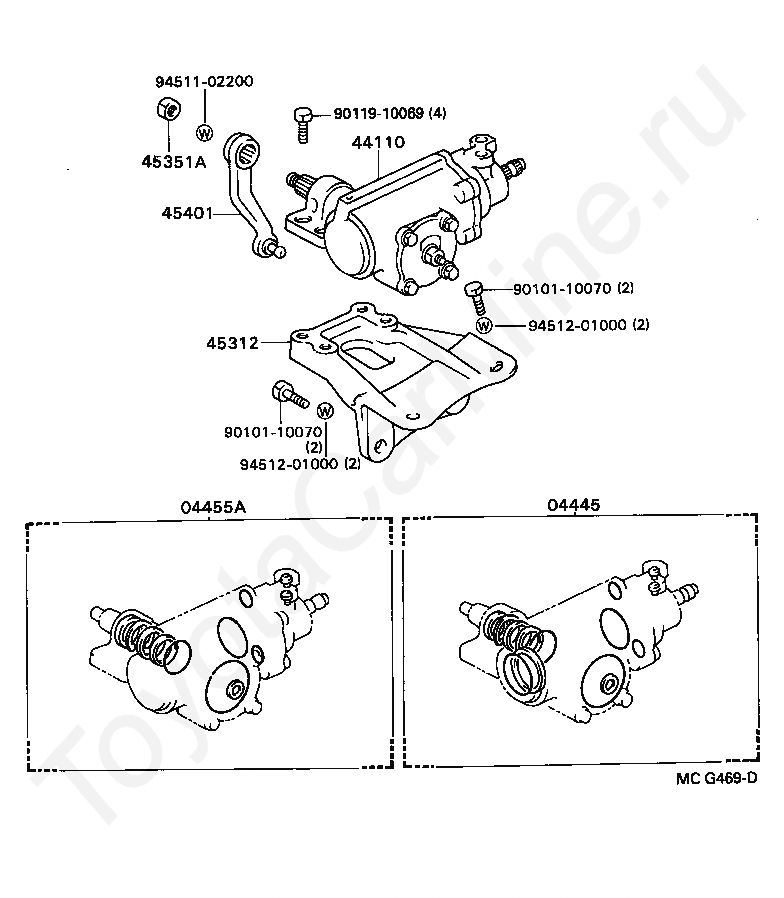

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

04455A

GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

44110

GEAR ASSY, POWER STEERING

45312

BRACKET, STEERING GEAR HOUSING

45351A

NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

45401

ARM SUB-ASSY, PITMAN

9010110070

Крепеж

9010110070

Крепеж

9011910069

Крепеж

9451102200

Крепеж

9451201000

Крепеж

9451201000

Крепеж

Код

Описание

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107D

RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44108

COVER SUB-ASSY, SIDE

44108A

RING, O(FOR SIDE COVER)

44111

SHAFT, CROSS

44114A

RING(FOR POWER PISTON NUT)

44114B

RING, O(FOR POWER PISTON NUT)

44120

VALVE ASSY, W/BALL NUT

44142A

NUT, LOCK, NO.1

44257A

WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)

45357

SCREW, SECTOR SHAFT ADJUSTING

9011910070

Крепеж

9017010208

Крепеж
