Япония

Модель

HILUX SURF

VIN

Дата

2004/08

Двигатель

2,7 литра, 16 клапанов, DOHC, EFI

Класс

SSR-X TYPE

Фрейм

TRN215

КПП

автомат АКПП, 4 ступени

Опции

5 дверей электронная система впрыска топлива 243W

Кресла TOYOTA HILUX SURF

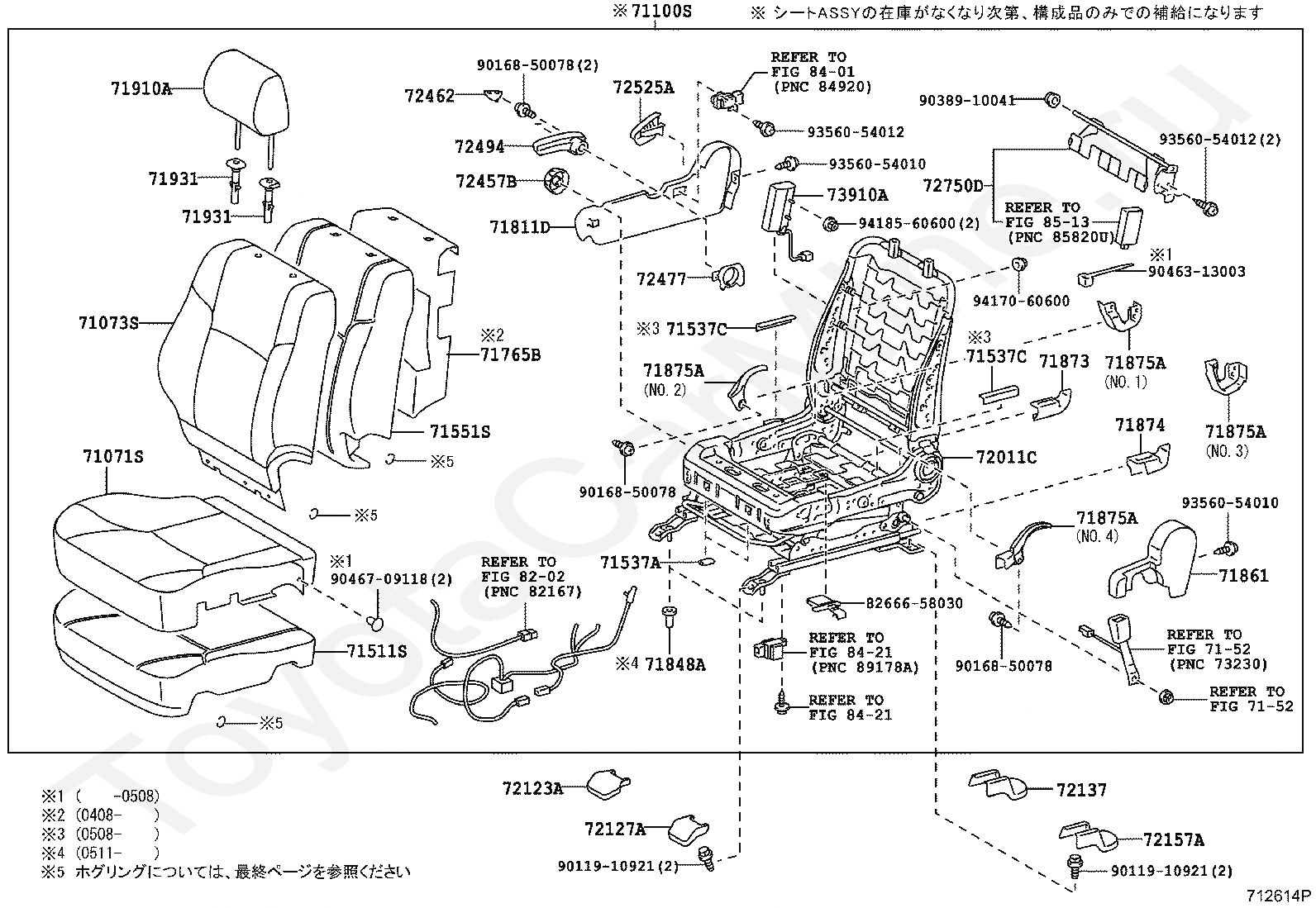

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71765B

PROTECTOR, FRONT SEAT BACK, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71910A

HEADREST ASSY, FRONT SEAT

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

8202

переход к группе запчастей

8266658030

Крепеж

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

8513

переход к группе запчастей

9011910921

Крепеж

9011910921

Крепеж

9016850078

Крепеж

9016850078

Крепеж

9016850078

Крепеж

9038910041

Крепеж

9046313003

Крепеж

9046709118

Крепеж

9356054010

Крепеж

9356054010

Крепеж

9356054012

Крепеж

9356054012

Крепеж

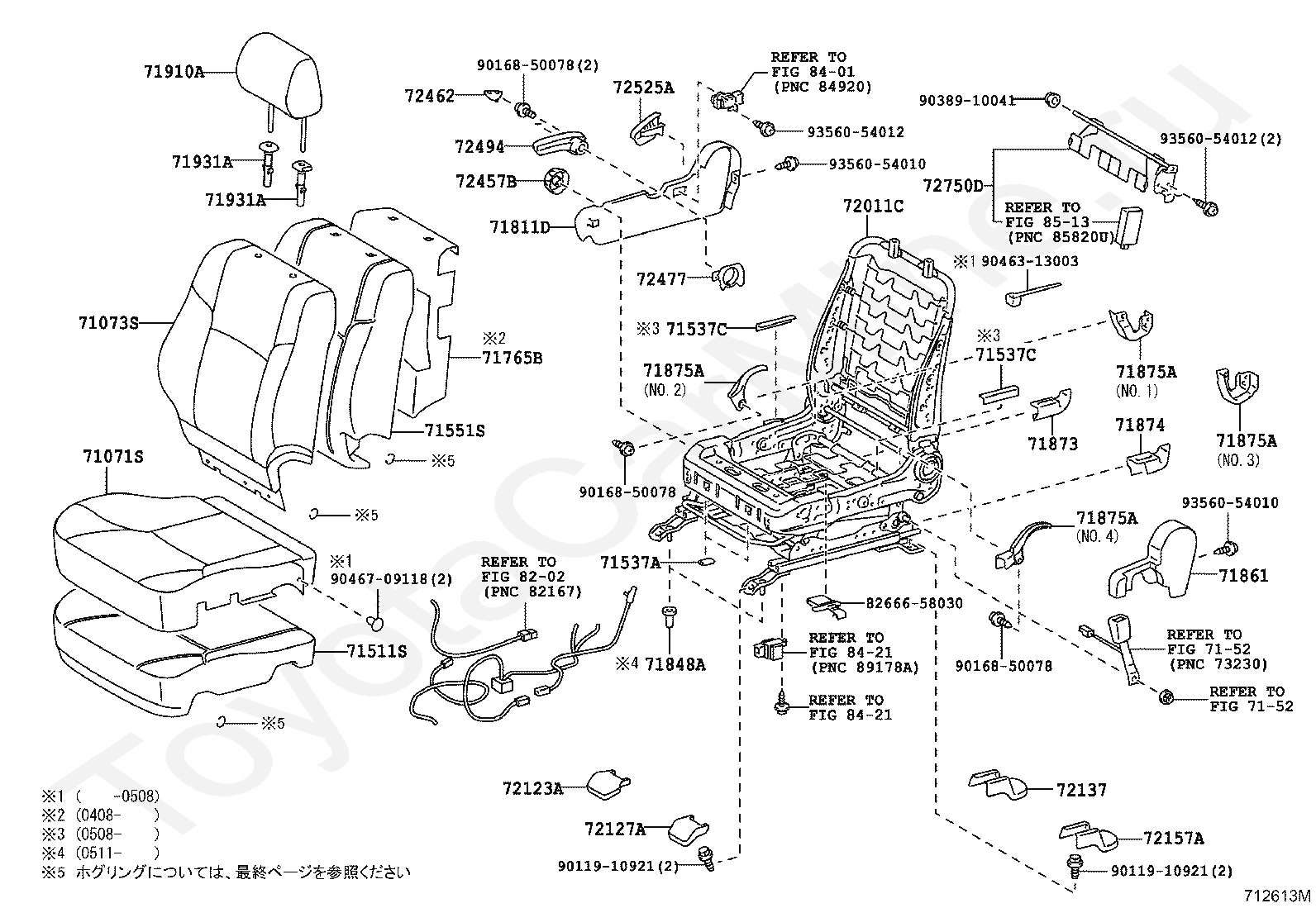

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71765B

PROTECTOR, FRONT SEAT BACK, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8266658030

Крепеж

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

8513

переход к группе запчастей

9011910921

Крепеж

9011910921

Крепеж

9016850078

Крепеж

9016850078

Крепеж

9016850078

Крепеж

9038910041

Крепеж

9046313003

Крепеж

9046709118

Крепеж

9356054010

Крепеж

9356054010

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9417060600

Крепеж

9418560600

Крепеж

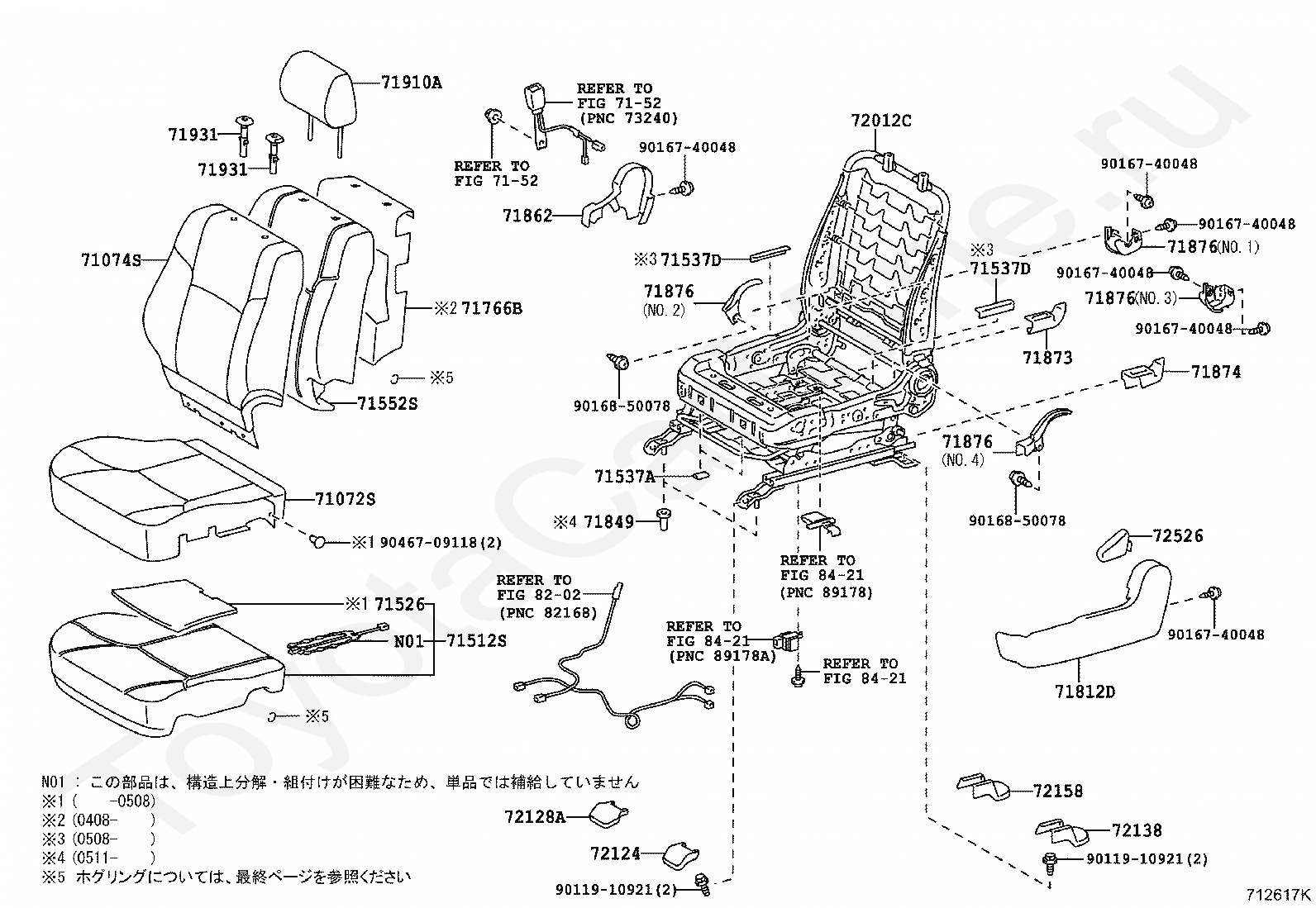

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71526

PAD,FRONT SEAT CUSHION COVER,CENTER LH

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71766B

PROTECTOR, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138

COVER, SEAT TRACK, OUTER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

8202

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

9011910921

Крепеж

9011910921

Крепеж

9016740048

Крепеж

9016740048

Крепеж

9016740048

Крепеж

9016740048

Крепеж

9016740048

Крепеж

9016740048

Крепеж

9016850078

Крепеж

9016850078

Крепеж

9046709118

Крепеж

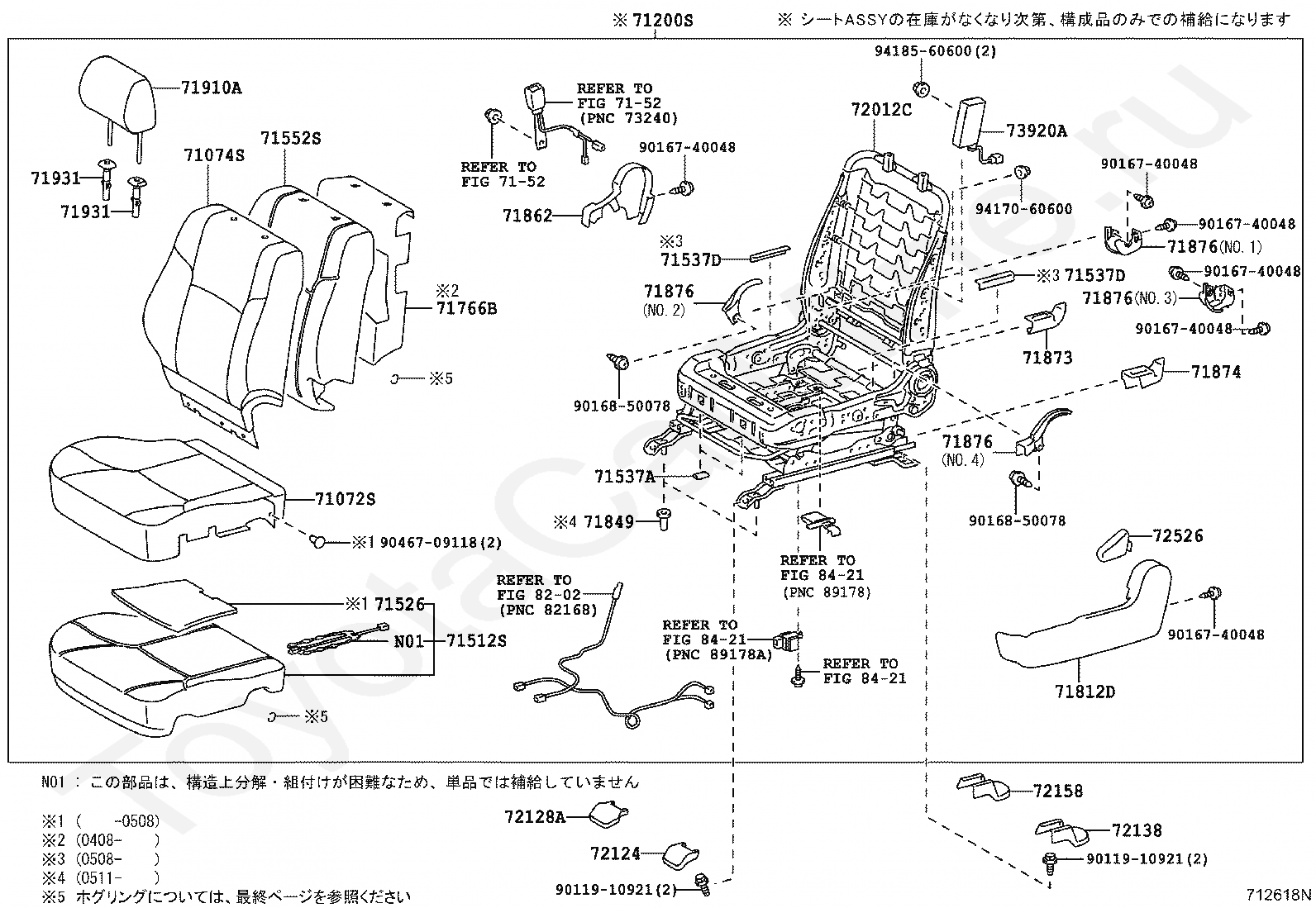

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71526

PAD,FRONT SEAT CUSHION COVER,CENTER LH

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71766B

PROTECTOR, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138

COVER, SEAT TRACK, OUTER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

9011910921

Крепеж

9011910921

Крепеж

9016740048

Крепеж

9016740048

Крепеж

9016740048

Крепеж

9016740048

Крепеж

9016740048

Крепеж

9016740048

Крепеж

9016850078

Крепеж

9016850078

Крепеж

9046709118

Крепеж

9417060600

Крепеж

9418560600

Крепеж

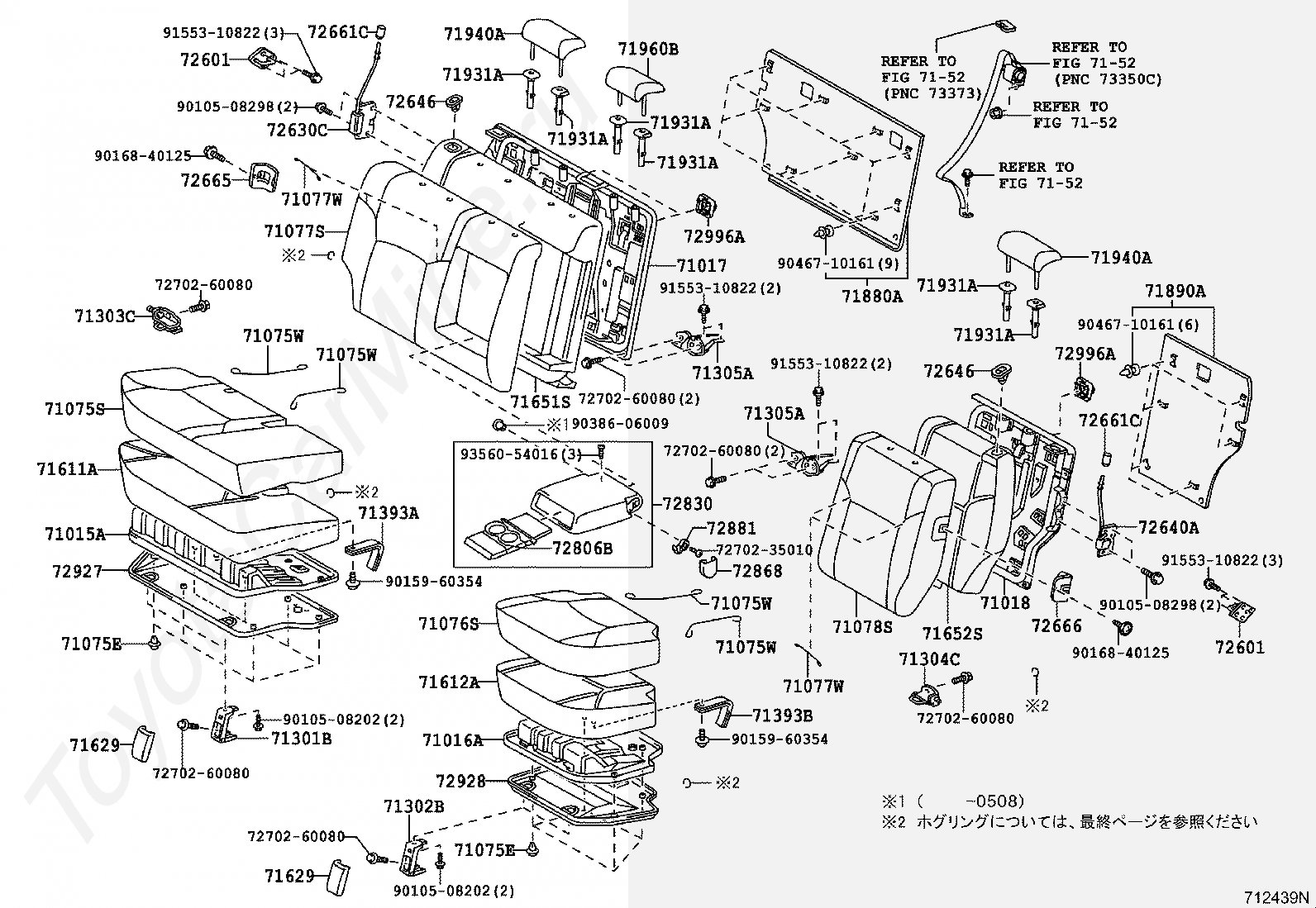

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075E

CLIP(FOR REAR SEAT)

71075E

CLIP(FOR REAR SEAT)

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71075W

WIRE, REAR SEAT CUSHION COVER

71075W

WIRE, REAR SEAT CUSHION COVER

71075W

WIRE, REAR SEAT CUSHION COVER

71075W

WIRE, REAR SEAT CUSHION COVER

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71077W

WIRE, REAR SEAT BACK COVER

71077W

WIRE, REAR SEAT BACK COVER

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71301B

HINGE SUB-ASSY, REAR NO.1 SEAT, RH

71302B

HINGE SUB-ASSY, REAR NO.1 SEAT, LH

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71393A

BAND, REAR SEAT CUSHION, RH

71393B

BAND, REAR SEAT CUSHION, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71629

COVER, REAR SEAT CUSHION HINGE

71629

COVER, REAR SEAT CUSHION HINGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71880A

CARPET ASSY, REAR SEAT BACK BOARD, RH

71890A

CARPET ASSY, REAR SEAT BACK BOARD, LH

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72665

COVER, REAR SEAT BACK LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

7270235010

Крепеж

7270260080

Крепеж

7270260080

Крепеж

7270260080

Крепеж

7270260080

Крепеж

7270260080

Крепеж

7270260080

Крепеж

72806B

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72868

COVER, CENTER ARMREST HINGE, RH

72881

SUPPORT, REAR SEAT CENTER ARMREST, RH

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

72996A

COVER, REAR SEAT BACK

72996A

COVER, REAR SEAT BACK

9010508202

Крепеж

9010508202

Крепеж

9010508298

Крепеж

9010508298

Крепеж

9015960354

Крепеж

9015960354

Крепеж

9016840125

Крепеж

9016840125

Крепеж

9038606009

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9155310822

Крепеж

9155310822

Крепеж

9155310822

Крепеж

9155310822

Крепеж

9356054016

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти HILUX > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
