Каталог

Япония

Модель

HILUX SURF

VIN

Дата

2004/08

Двигатель

2,7 литра, 16 клапанов, DOHC, EFI

Класс

SSR-X TYPE

Фрейм

TRN215

КПП

автомат АКПП, 4 ступени

Опции

5 дверей электронная система впрыска топлива 243W

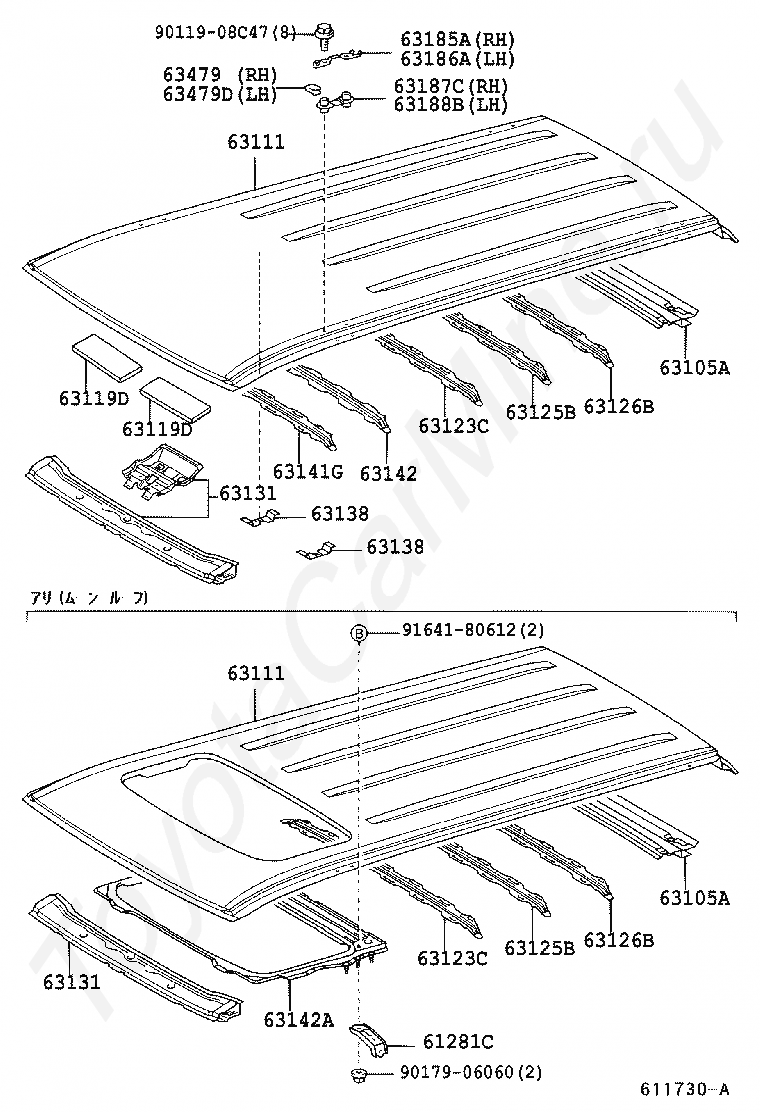

ROOF PANEL & BACK PANEL TOYOTA HILUX SURF







Код

Описание

61281C

BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63111

PANEL, ROOF

63111

PANEL, ROOF

63119D

PAD, ROOF PANEL, NO.1

63119D

PAD, ROOF PANEL, NO.1

63123C

REINFORCEMENT, ROOF PANEL

63123C

REINFORCEMENT, ROOF PANEL

63125B

REINFORCEMENT, ROOF PANEL, FRONT

63125B

REINFORCEMENT, ROOF PANEL, FRONT

63126B

REINFORCEMENT, ROOF PANEL, REAR NO.2

63126B

REINFORCEMENT, ROOF PANEL, REAR NO.2

63131

PANEL, WINDSHIELD HEADER, OUTER

63131

PANEL, WINDSHIELD HEADER, OUTER

63138

BRACKET, DOME LAMP, NO.2

63138

BRACKET, DOME LAMP, NO.2

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63142

REINFORCEMENT, ROOF PANEL, NO.2

63142A

REINFORCEMENT, ROOF PANEL, NO.2

63185A

BRACKET, ROOF RACK, FRONT RH

63186A

BRACKET, ROOF RACK, FRONT LH

63187C

BRACKET, ROOF RACK, NO.1 REAR RH

63188B

BRACKET, ROOF RACK, NO.1 REAR LH

63479

RETAINER, ROOF INNER RACK

63479D

RETAINER, ROOF INNER RACK, LH

9011908C47

Крепеж

9017906060

Крепеж

9164180612

Крепеж

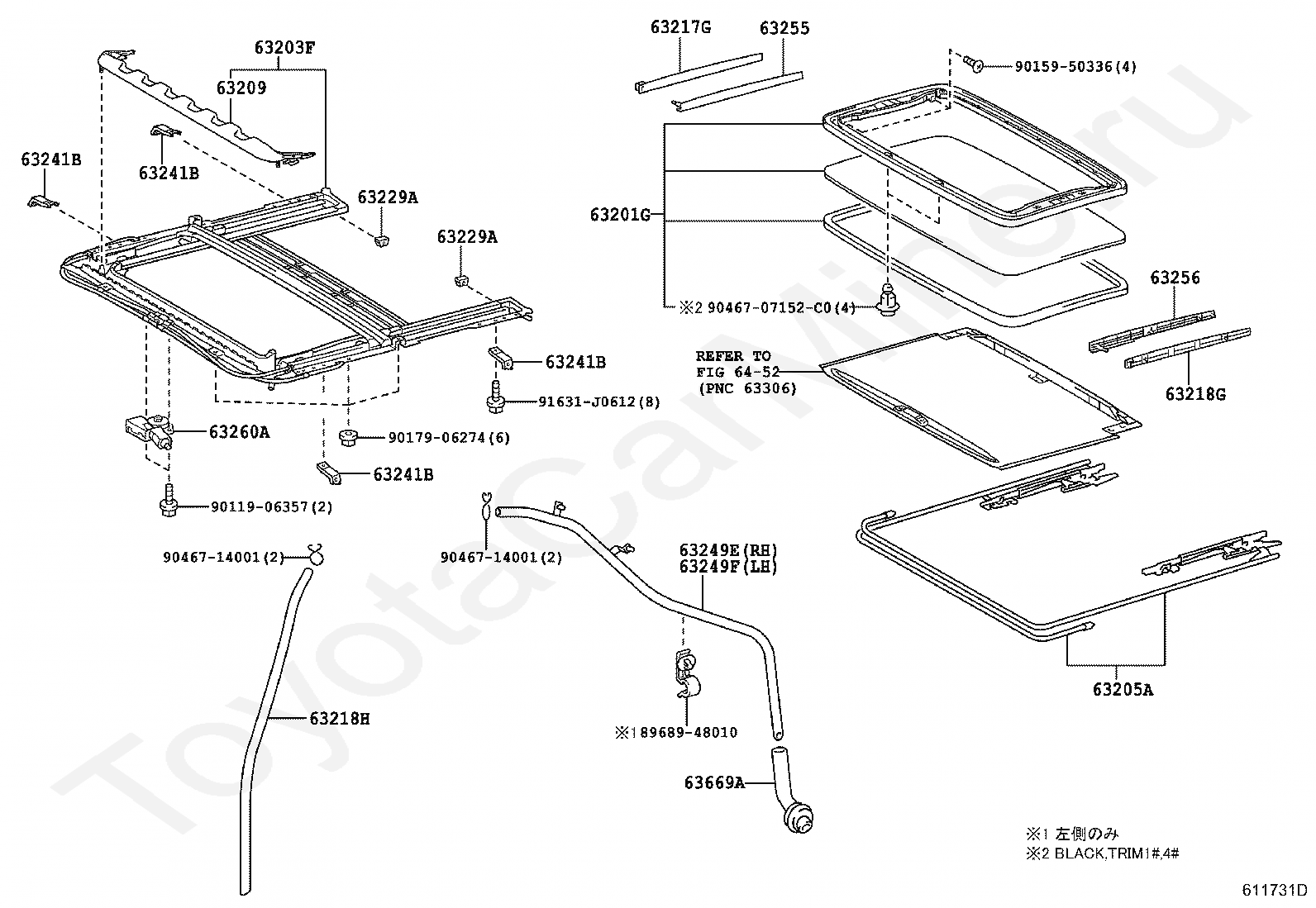

Код

Описание

63201G

GLASS SUB-ASSY, SLIDING ROOF

63203F

HOUSING SUB-ASSY, SLIDING ROOF

63205A

CABLE SUB-ASSY, SLIDING ROOF DRIVE

63209

PANEL SUB-ASSY, ROOF WIND DEFLECTOR

63217G

GARNISH, SLIDING ROOF SIDE, RH

63218G

GARNISH, SLIDING ROOF SIDE, LH

63218H

HOSE, SLIDING ROOF DRAIN

63229A

STOPPER, SLIDING ROOF SUNSHADE

63229A

STOPPER, SLIDING ROOF SUNSHADE

63241B

BRACKET, SLIDING ROOF HOUSING, NO.1

63241B

BRACKET, SLIDING ROOF HOUSING, NO.1

63241B

BRACKET, SLIDING ROOF HOUSING, NO.1

63241B

BRACKET, SLIDING ROOF HOUSING, NO.1

63249E

HOSE, SLIDING ROOF DRAIN

63249F

HOSE, SLIDING ROOF DRAIN

63255

COVER, SLIDING ROOF GUIDE RAIL, RH

63256

COVER, SLIDING ROOF GUIDE RAIL, LH

63260A

GEAR SUB-ASSY, SLIDING ROOF DRIVE

63669A

GROMMET, SLIDING ROOF DRAIN

6452

переход к группе запчастей

8968948010

Крепеж

9011906357

Крепеж

9015950336

Крепеж

9017906274

Крепеж

9046707152C0

Крепеж

9046714001

Крепеж

9046714001

Крепеж

91631J0612

Крепеж

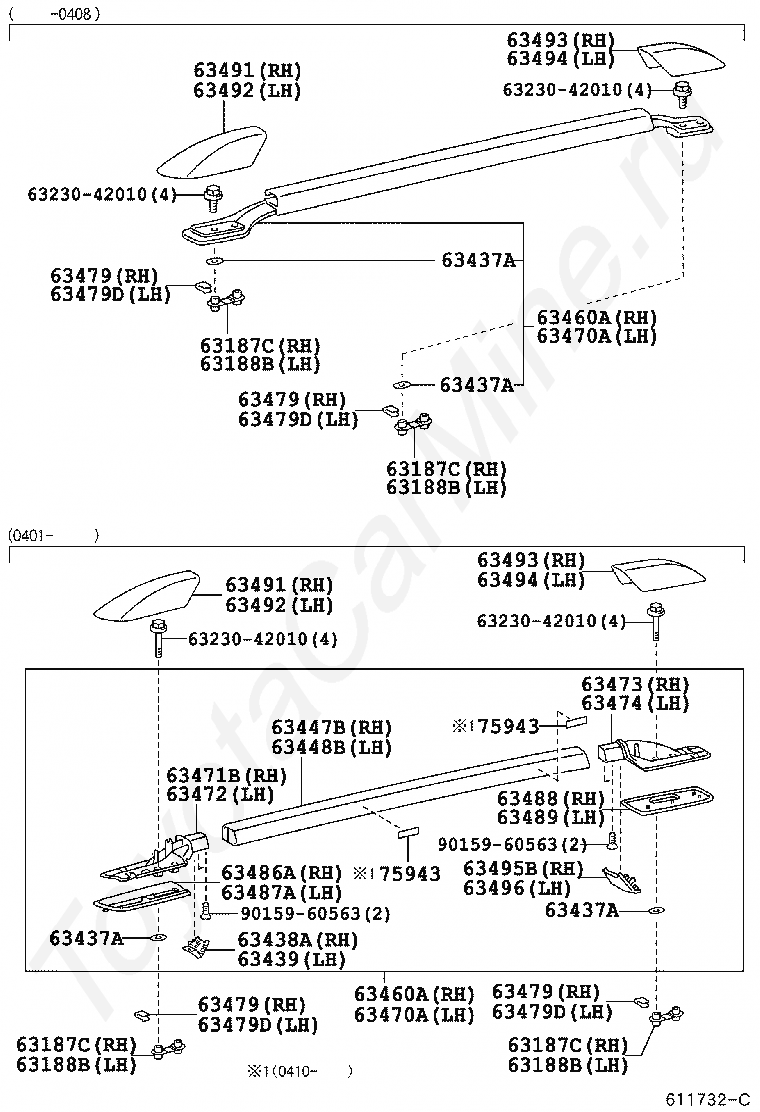

Код

Описание

63187C

BRACKET, ROOF RACK, NO.1 REAR RH

63187C

BRACKET, ROOF RACK, NO.1 REAR RH

63187C

BRACKET, ROOF RACK, NO.1 REAR RH

63187C

BRACKET, ROOF RACK, NO.1 REAR RH

63188B

BRACKET, ROOF RACK, NO.1 REAR LH

63188B

BRACKET, ROOF RACK, NO.1 REAR LH

63188B

BRACKET, ROOF RACK, NO.1 REAR LH

63188B

BRACKET, ROOF RACK, NO.1 REAR LH

6323042010

Крепеж

6323042010

Крепеж

6323042010

Крепеж

6323042010

Крепеж

63437A

SEAL, ROOF CARRIER, NO.2

63437A

SEAL, ROOF CARRIER, NO.2

63437A

SEAL, ROOF CARRIER, NO.2

63437A

SEAL, ROOF CARRIER, NO.2

63438A

COVER, ROOF RACK END, NO.1

63439

COVER, ROOF RACK END, NO.2

63447B

BAR, ROOF CARRIER, RH

63448B

BAR, ROOF CARRIER, LH

63460A

RACK ASSY, ROOF, RH

63460A

RACK ASSY, ROOF, RH

63470A

RACK ASSY, ROOF, LH

63470A

RACK ASSY, ROOF, LH

63471B

LEG, ROOF RACK, FRONT RH

63472

LEG, ROOF RACK, FRONT LH

63473

LEG, ROOF RACK, REAR RH

63474

LEG, ROOF RACK, REAR LH

63479

RETAINER, ROOF INNER RACK

63479

RETAINER, ROOF INNER RACK

63479

RETAINER, ROOF INNER RACK

63479

RETAINER, ROOF INNER RACK

63479D

RETAINER, ROOF INNER RACK, LH

63479D

RETAINER, ROOF INNER RACK, LH

63479D

RETAINER, ROOF INNER RACK, LH

63479D

RETAINER, ROOF INNER RACK, LH

63486A

CUSHION, ROOF RACK LEG, FRONT RH

63487A

CUSHION, ROOF RACK LEG, FRONT LH

63488

CUSHION, ROOF RACK LEG, REAR RH

63489

CUSHION, ROOF RACK LEG, REAR LH

63491

COVER, ROOF RACK LEG, FRONT RH

63491

COVER, ROOF RACK LEG, FRONT RH

63492

COVER, ROOF RACK LEG, FRONT LH

63492

COVER, ROOF RACK LEG, FRONT LH

63493

COVER, ROOF RACK LEG, REAR RH

63493

COVER, ROOF RACK LEG, REAR RH

63494

COVER, ROOF RACK LEG, REAR LH

63494

COVER, ROOF RACK LEG, REAR LH

63495B

COVER, ROOF RACK LEG, CENTER RH

63496

COVER, ROOF RACK LEG, CENTER LH

75943

STRIPE, ROOF

75943

STRIPE, ROOF

9015960563

Крепеж

9015960563

Крепеж
