Япония

Модель

HILUX SURF

VIN

Дата

2004/08

Двигатель

2,7 литра, 16 клапанов, DOHC, EFI

Класс

SSR-X TYPE

Фрейм

TRN215

КПП

автомат АКПП, 4 ступени

Опции

5 дверей электронная система впрыска топлива 243W

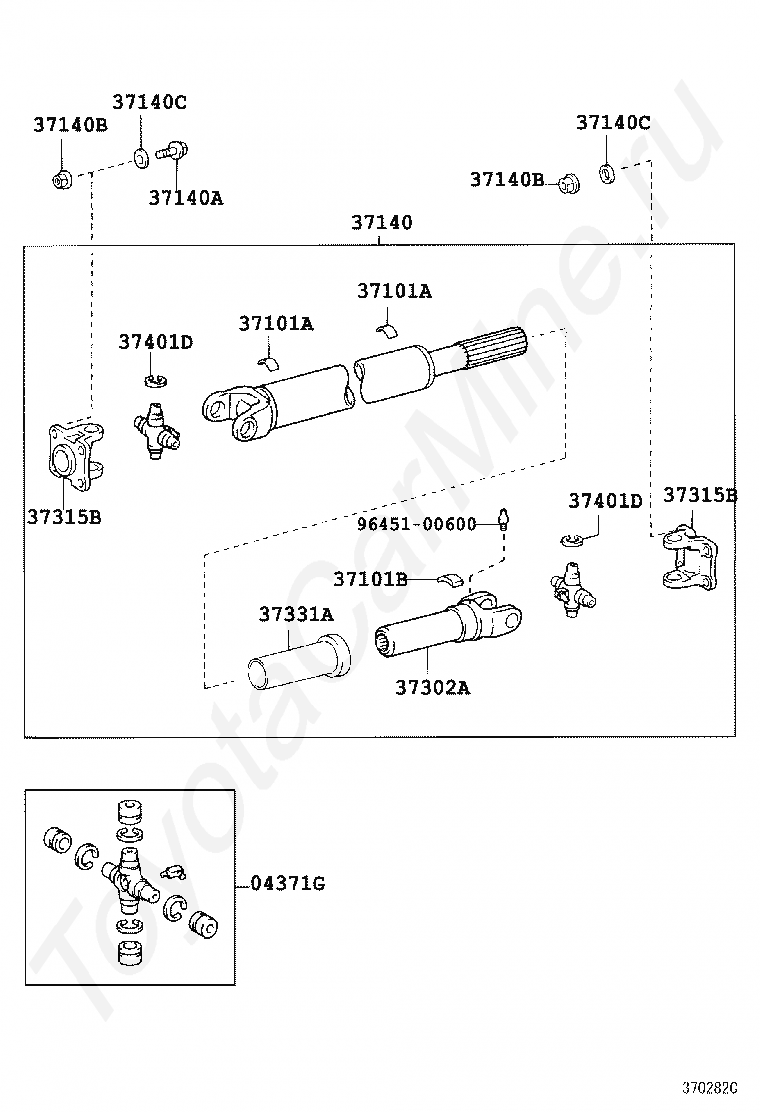

Кардан и крестовины TOYOTA HILUX SURF

Код

Описание

04371G

SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

37101A

PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

37101A

PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

37101B

PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT)

37140

SHAFT ASSY, PROPELLER, FRONT

37140A

BOLT (F0R FRONT PROPELLER SHAFT)

37140B

NUT (F0R FRONT PROPELLER SHAFT)

37140B

NUT (F0R FRONT PROPELLER SHAFT)

37140C

WASHER (F0R FRONT PROPELLER SHAFT)

37140C

WASHER (F0R FRONT PROPELLER SHAFT)

37302A

YOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE

37315B

Y0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE

37315B

Y0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE

37331A

COVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUST

37401D

RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

37401D

RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

9645100600

Крепеж

Код

Описание

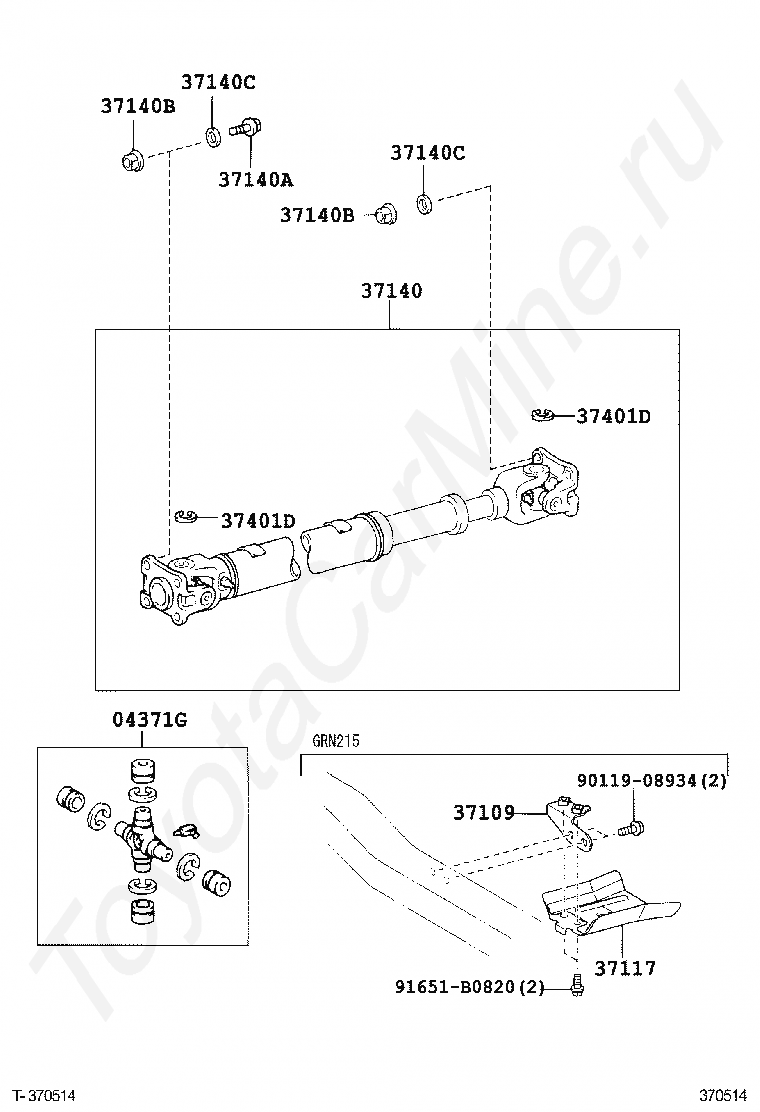

04371G

SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

37109

BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

37117

INSULATOR, PROPELLER SHAFT HEAT

37140

SHAFT ASSY, PROPELLER, FRONT

37140A

BOLT (F0R FRONT PROPELLER SHAFT)

37140B

NUT (F0R FRONT PROPELLER SHAFT)

37140B

NUT (F0R FRONT PROPELLER SHAFT)

37140C

WASHER (F0R FRONT PROPELLER SHAFT)

37140C

WASHER (F0R FRONT PROPELLER SHAFT)

37401D

RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

37401D

RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

9011908934

Крепеж

91651B0820

Крепеж

Код

Описание

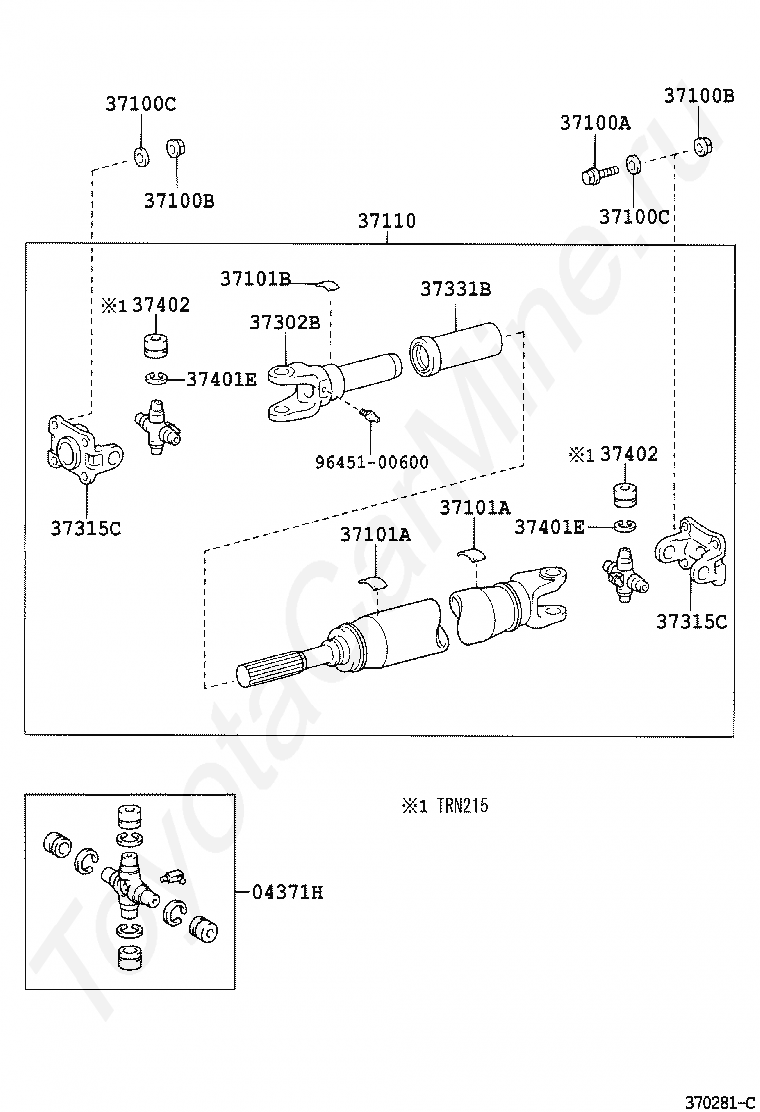

04371H

SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT

37100A

BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100B

NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100B

NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100C

WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100C

WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37101A

PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

37101A

PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

37101B

PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT)

37110

SHAFT ASSY, PROPELLER

37302B

YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE

37315C

YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE

37315C

YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE

37331B

COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST

37401E

RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

37401E

RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

37402

BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

37402

BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

9645100600

Крепеж

Код

Описание

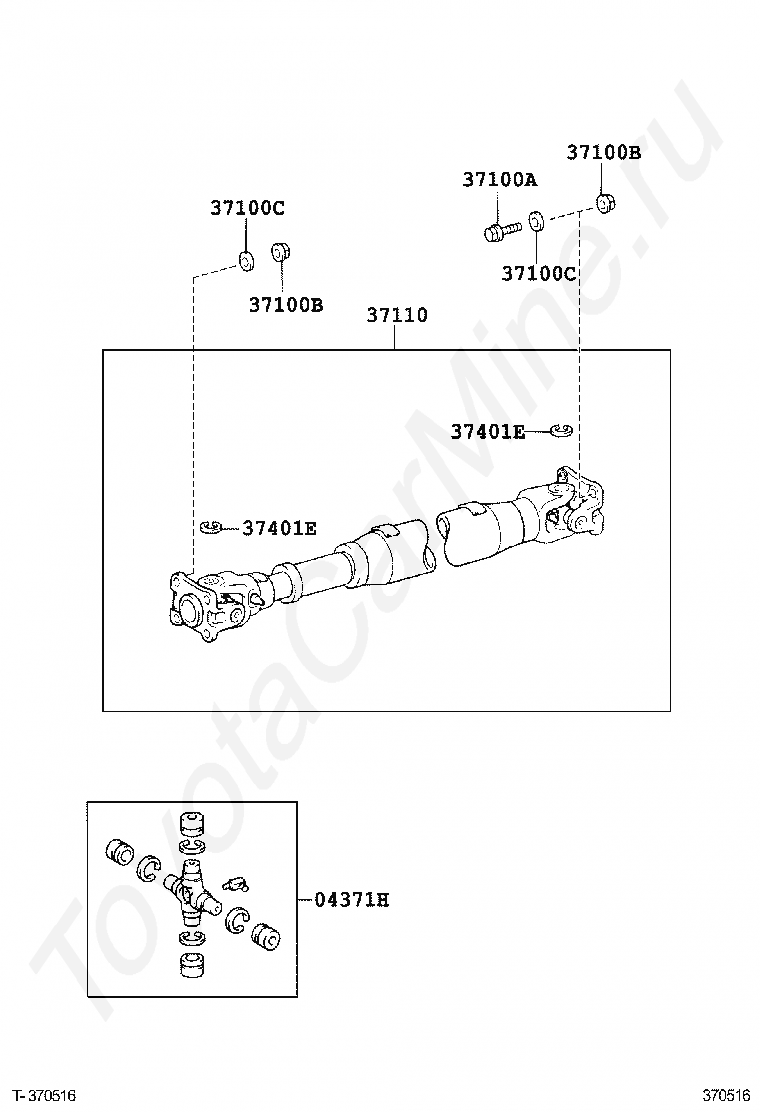

04371H

SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT

37100A

BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100B

NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100B

NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100C

WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37100C

WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

37110

SHAFT ASSY, PROPELLER

37401E

RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

37401E

RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

Кардан и крестовины TOYOTA HILUX SURF
