Каталог

Америка

Модель

HILUX

VIN

Дата

2015/05

Двигатель

2,7 литра, 16 клапанов, DOHC, EFI

Фрейм

TGN126

КПП

автомат АКПП, 6 скоростей

Опции

левый руль THAILAND PRODUCED DOUBLE CAB L TYPE HIGH EFFICIENCY TWIN CAM GCC CBU 578W

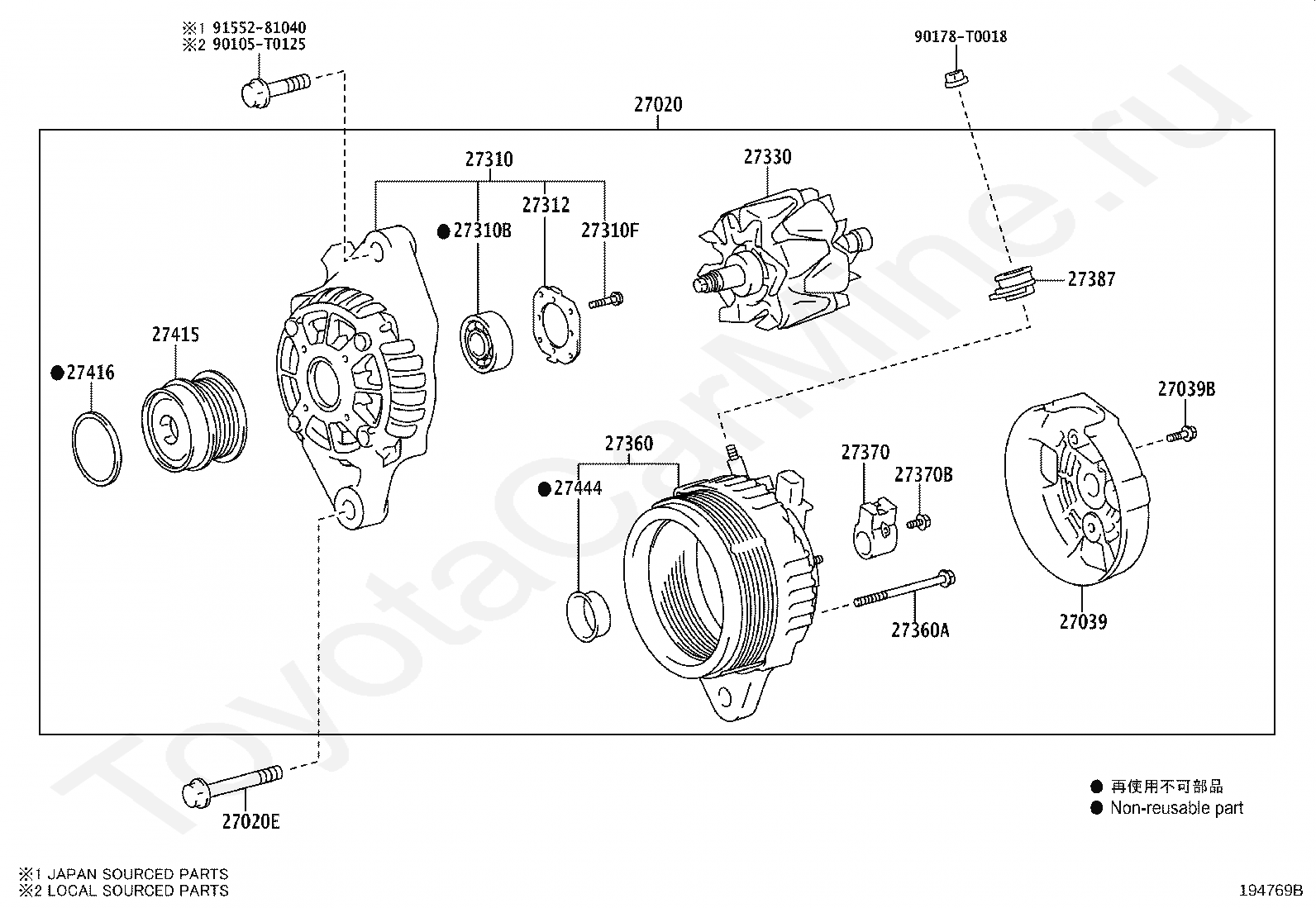

Генератор TOYOTA HILUX

Код

Описание

27020

ALTERNATOR ASSY

27020E

BOLT(FOR ALTERNATOR)

27039

COVER, ALTERNATOR REAR END

27039B

BOLT(FOR ALTERNATOR REAR END COVER)

27310

FRAME ASSY, DRIVE END, ALTERNATOR

27310B

BEARING(FOR ALTERNATOR DRIVE END FRAME)

27310F

SCREW(FOR ALTERNATOR DRIVE END FRAME)

27312

PLATE, RETAINER

27330

ROTOR ASSY, ALTERNATOR

27360

COIL ASSY, ALTERNATOR

27360A

BOLT(FOR ALTERNATOR COIL)

27370

HOLDER ASSY, ALTERNATOR BRUSH

27370B

SCREW(FOR ALTERNATOR BRUSH HOLDER)

27387

INSULATOR, TERMINAL

27415

PULLEY, ALTERNATOR W/CLUTCH

27416

CAP, ALTERNATOR PULLEY

27444

PACKING, ALTERNATOR BEARING COVER

90105T0125

Крепеж

90178T0018

Крепеж

9155281040

Крепеж

Код

Описание

27020

ALTERNATOR ASSY

27020E

BOLT(FOR ALTERNATOR)

27039

COVER, ALTERNATOR REAR END

27039B

BOLT(FOR ALTERNATOR REAR END COVER)

27310

FRAME ASSY, DRIVE END, ALTERNATOR

27310B

BEARING(FOR ALTERNATOR DRIVE END FRAME)

27310F

SCREW(FOR ALTERNATOR DRIVE END FRAME)

27312

PLATE, RETAINER

27330

ROTOR ASSY, ALTERNATOR

27360

COIL ASSY, ALTERNATOR

27360A

BOLT(FOR ALTERNATOR COIL)

27370

HOLDER ASSY, ALTERNATOR BRUSH

27370B

SCREW(FOR ALTERNATOR BRUSH HOLDER)

27387

INSULATOR, TERMINAL

27415

PULLEY, ALTERNATOR W/CLUTCH

27416

CAP, ALTERNATOR PULLEY

27444

PACKING, ALTERNATOR BEARING COVER

90105T0125

Крепеж

90105T0170

Крепеж

90178T0018

Крепеж

9155281040

Крепеж

9155281060

Крепеж
