Европа

Модель

HIGHLANDER/KLUGER

VIN

Дата

2020/11

Двигатель

2,5 литра, 16 клапанов, DOHC

Класс

LIMITED TYPE

Фрейм

AXUH78

КПП

вариатор

Опции

левый руль двигатель с прямым впрыском топлива Европа 755W

Крыша и заднее стекло TOYOTA HIGHLANDER/KLUGER

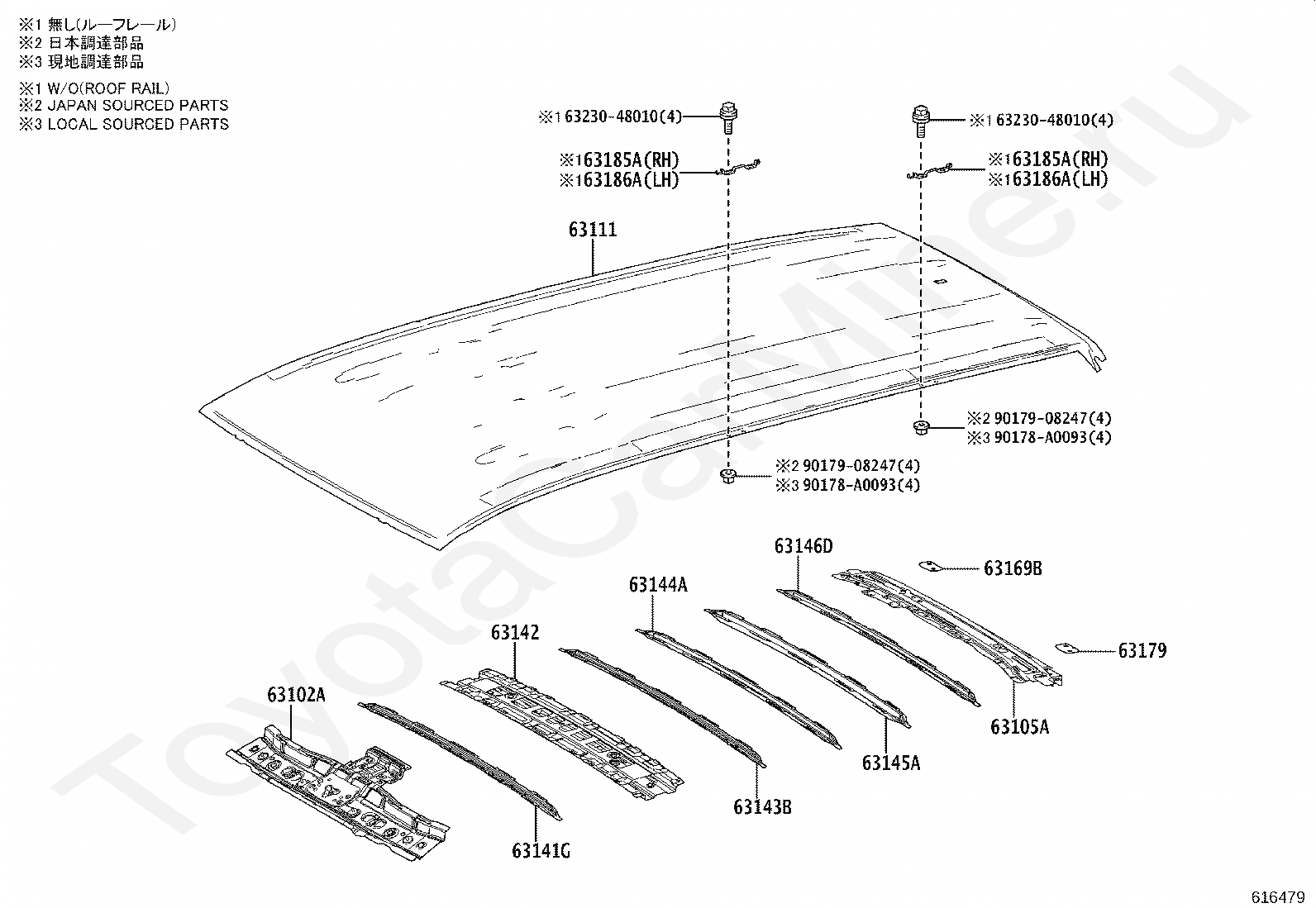

Код

Описание

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63111

PANEL, ROOF

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63142

REINFORCEMENT, ROOF PANEL, NO.2

63143B

REINFORCEMENT, ROOF PANEL, NO.3

63144A

REINFORCEMENT, ROOF PANEL, NO.4

63145A

REINFORCEMENT, ROOF PANEL, NO.5

63146D

REINFORCEMENT, ROOF PANEL, NO.6

63169B

PLATE, ROOF PANEL REINFORCEMENT, RH

63179

PLATE, ROOF PANEL REINFORCEMENT, LH

63185A

BRACKET, ROOF RACK, FRONT RH

63185A

BRACKET, ROOF RACK, FRONT RH

63186A

BRACKET, ROOF RACK, FRONT LH

63186A

BRACKET, ROOF RACK, FRONT LH

6323048010

Крепеж

6323048010

Крепеж

90178A0093

Крепеж

90178A0093

Крепеж

9017908247

Крепеж

9017908247

Крепеж

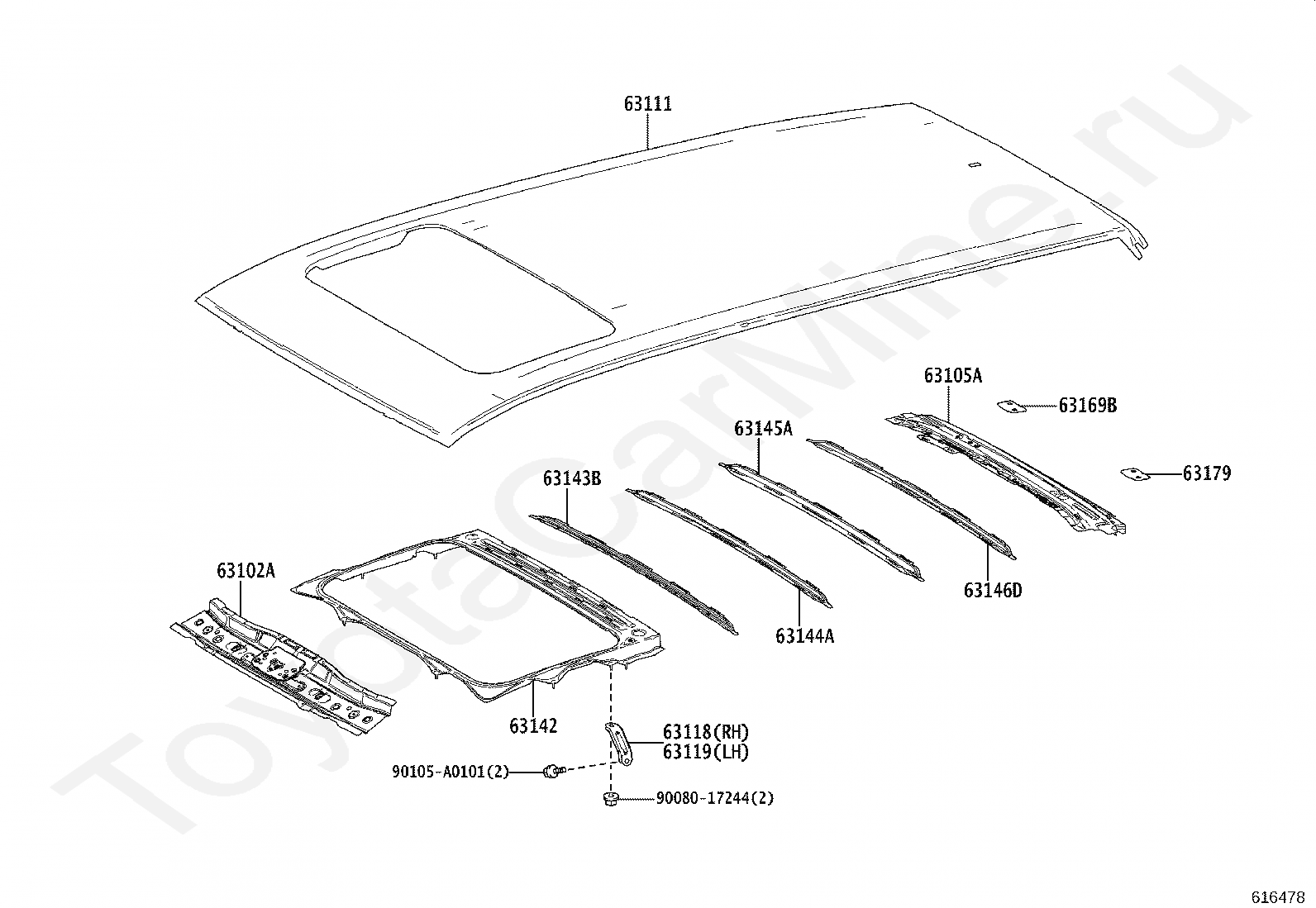

Код

Описание

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63111

PANEL, ROOF

63118

SUPPORT, ROOF PANEL, RH

63119

SUPPORT, ROOF PANEL, LH

63142

REINFORCEMENT, ROOF PANEL, NO.2

63143B

REINFORCEMENT, ROOF PANEL, NO.3

63144A

REINFORCEMENT, ROOF PANEL, NO.4

63145A

REINFORCEMENT, ROOF PANEL, NO.5

63146D

REINFORCEMENT, ROOF PANEL, NO.6

63169B

PLATE, ROOF PANEL REINFORCEMENT, RH

63179

PLATE, ROOF PANEL REINFORCEMENT, LH

9008017244

Крепеж

90105A0101

Крепеж

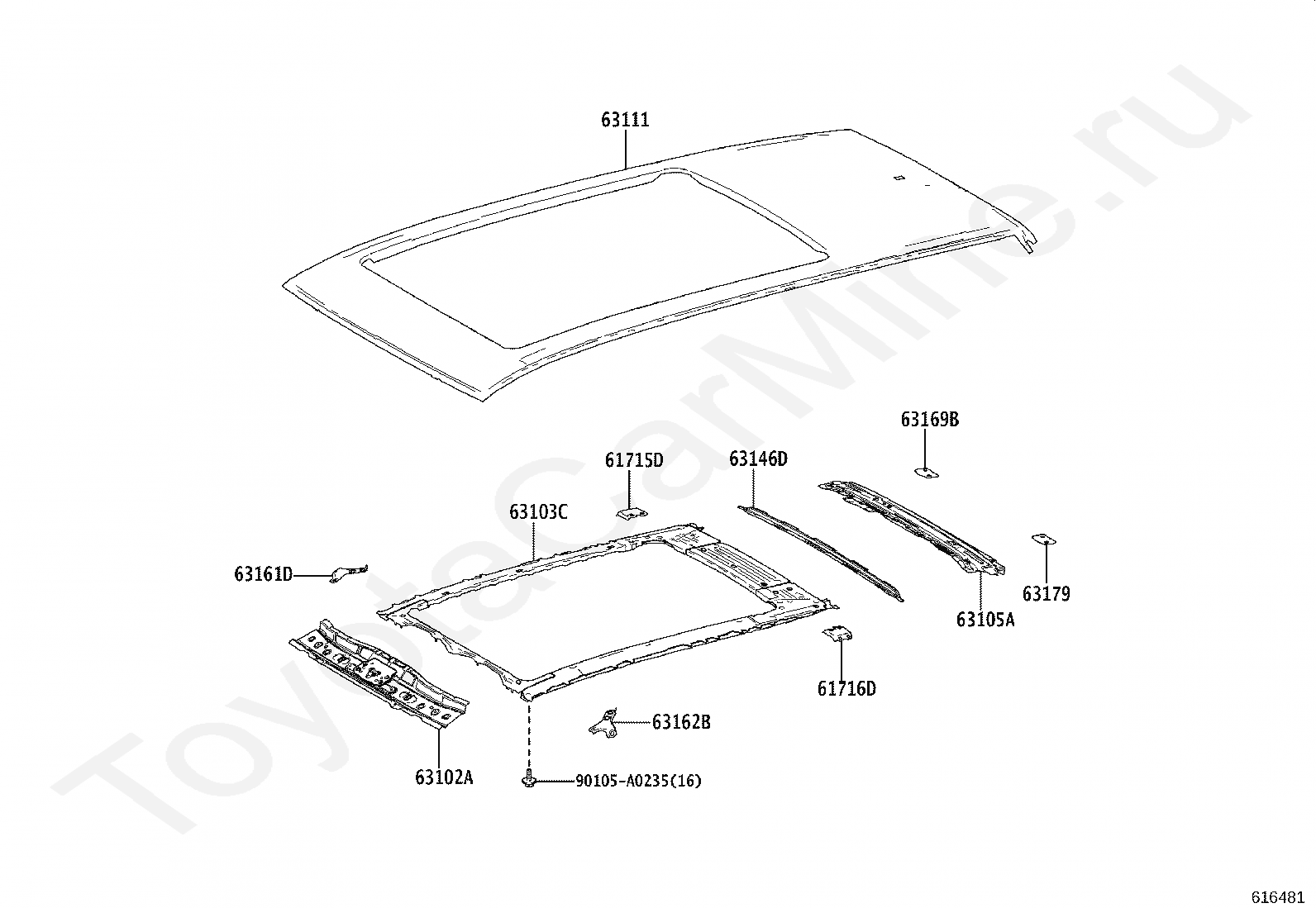

Код

Описание

61715D

EXTENSION, ROOF SIDE, INNER FRONT RH

61716D

EXTENSION, ROOF SIDE, INNER FRONT LH

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63103C

REINFORCEMENT SUB-ASSY, ROOF PANEL

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63111

PANEL, ROOF

63146D

REINFORCEMENT, ROOF PANEL, NO.6

63161D

PLATE, ROOF HEADER PANEL, NO.1

63162B

PLATE, ROOF HEADER PANEL, NO.2

63169B

PLATE, ROOF PANEL REINFORCEMENT, RH

63179

PLATE, ROOF PANEL REINFORCEMENT, LH

90105A0235

Крепеж

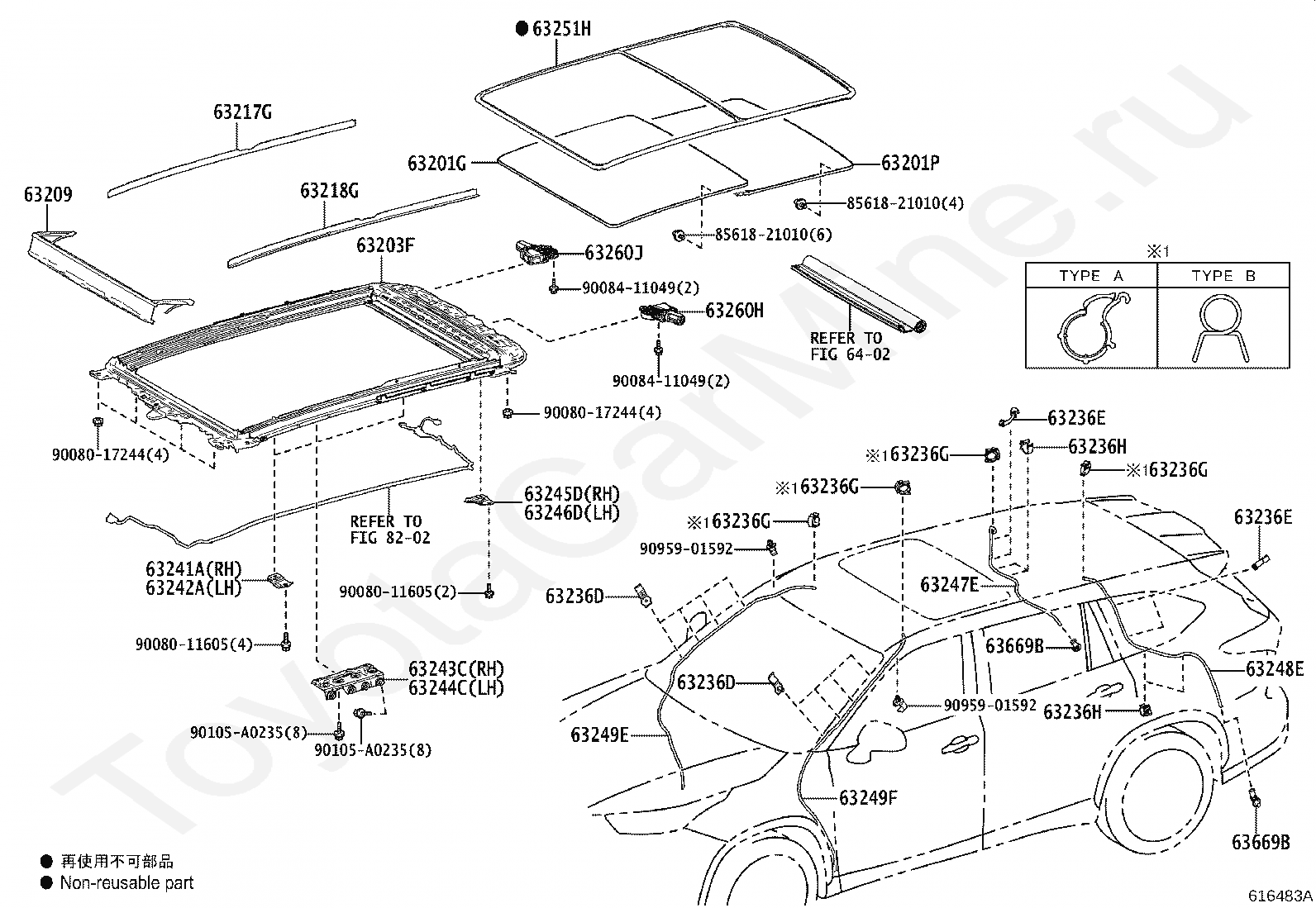

Код

Описание

63201G

GLASS SUB-ASSY, SLIDING ROOF

63202H

RAIL SUB-ASSY, SLIDE ROOF

63203F

HOUSING SUB-ASSY, SLIDING ROOF

63205A

CABLE SUB-ASSY, SLIDING ROOF DRIVE

63217G

GARNISH, SLIDING ROOF SIDE, RH

63218G

GARNISH, SLIDING ROOF SIDE, LH

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63236E

CLAMP, SLIDING ROOF DRAIN HOSE

63236E

CLAMP, SLIDING ROOF DRAIN HOSE

63236G

CLAMP, SLIDING ROOF DRAIN HOSE

63236G

CLAMP, SLIDING ROOF DRAIN HOSE

63236G

CLAMP, SLIDING ROOF DRAIN HOSE

63236G

CLAMP, SLIDING ROOF DRAIN HOSE

63236H

CLAMP, SLIDING ROOF DRAIN HOSE

63236H

CLAMP, SLIDING ROOF DRAIN HOSE

63236H

CLAMP, SLIDING ROOF DRAIN HOSE

63236H

CLAMP, SLIDING ROOF DRAIN HOSE

63247E

HOSE, SLIDING ROOF DRAIN, REAR RH

63248E

HOSE, SLIDING ROOF DRAIN, REAR LH

63249E

HOSE, SLIDING ROOF DRAIN

63249F

HOSE, SLIDING ROOF DRAIN

63260H

GEAR ASSY, SLIDING ROOF DRIVE

63669B

GROMMET, SLIDING ROOF DRAIN

63669B

GROMMET, SLIDING ROOF DRAIN

6402

переход к группе запчастей

9008015059

Крепеж

9008015084

Крепеж

9008015084

Крепеж

9008017244

Крепеж

90105A0235

Крепеж

9095901592

Крепеж

9095901592

Крепеж

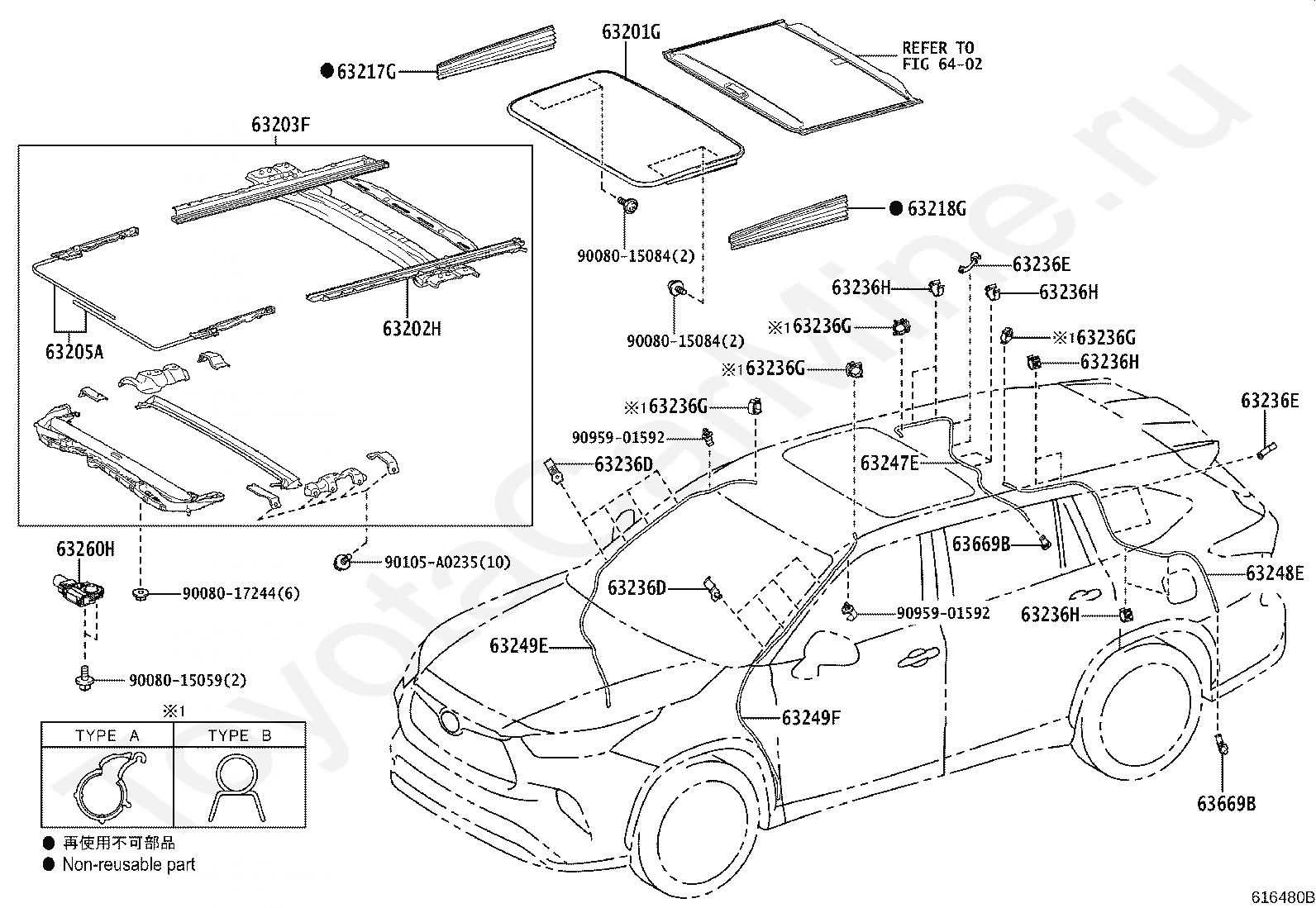

Код

Описание

63201G

GLASS SUB-ASSY, SLIDING ROOF

63201P

GLASS SUB-ASSY, SLIDING ROOF

63203F

HOUSING SUB-ASSY, SLIDING ROOF

63209

PANEL SUB-ASSY, ROOF WIND DEFLECTOR

63217G

GARNISH, SLIDING ROOF SIDE, RH

63218G

GARNISH, SLIDING ROOF SIDE, LH

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63236E

CLAMP, SLIDING ROOF DRAIN HOSE

63236E

CLAMP, SLIDING ROOF DRAIN HOSE

63236G

CLAMP, SLIDING ROOF DRAIN HOSE

63236G

CLAMP, SLIDING ROOF DRAIN HOSE

63236G

CLAMP, SLIDING ROOF DRAIN HOSE

63236G

CLAMP, SLIDING ROOF DRAIN HOSE

63236H

CLAMP, SLIDING ROOF DRAIN HOSE

63236H

CLAMP, SLIDING ROOF DRAIN HOSE

63241A

BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH

63242A

BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH

63243C

BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH

63244C

BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH

63245D

BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH

63246D

BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH

63247E

HOSE, SLIDING ROOF DRAIN, REAR RH

63248E

HOSE, SLIDING ROOF DRAIN, REAR LH

63249E

HOSE, SLIDING ROOF DRAIN

63249F

HOSE, SLIDING ROOF DRAIN

63251H

WEATHERSTRIP, SLIDING ROOF

63260H

GEAR ASSY, SLIDING ROOF DRIVE

63260J

GEAR ASSY, SLIDING ROOF DRIVE

63669B

GROMMET, SLIDING ROOF DRAIN

63669B

GROMMET, SLIDING ROOF DRAIN

6402

переход к группе запчастей

8202

переход к группе запчастей

8561821010

Крепеж

8561821010

Крепеж

9008011605

Крепеж

9008011605

Крепеж

9008017244

Крепеж

9008017244

Крепеж

9008411049

Крепеж

9008411049

Крепеж

90105A0235

Крепеж

90105A0235

Крепеж

9095901592

Крепеж

9095901592

Крепеж

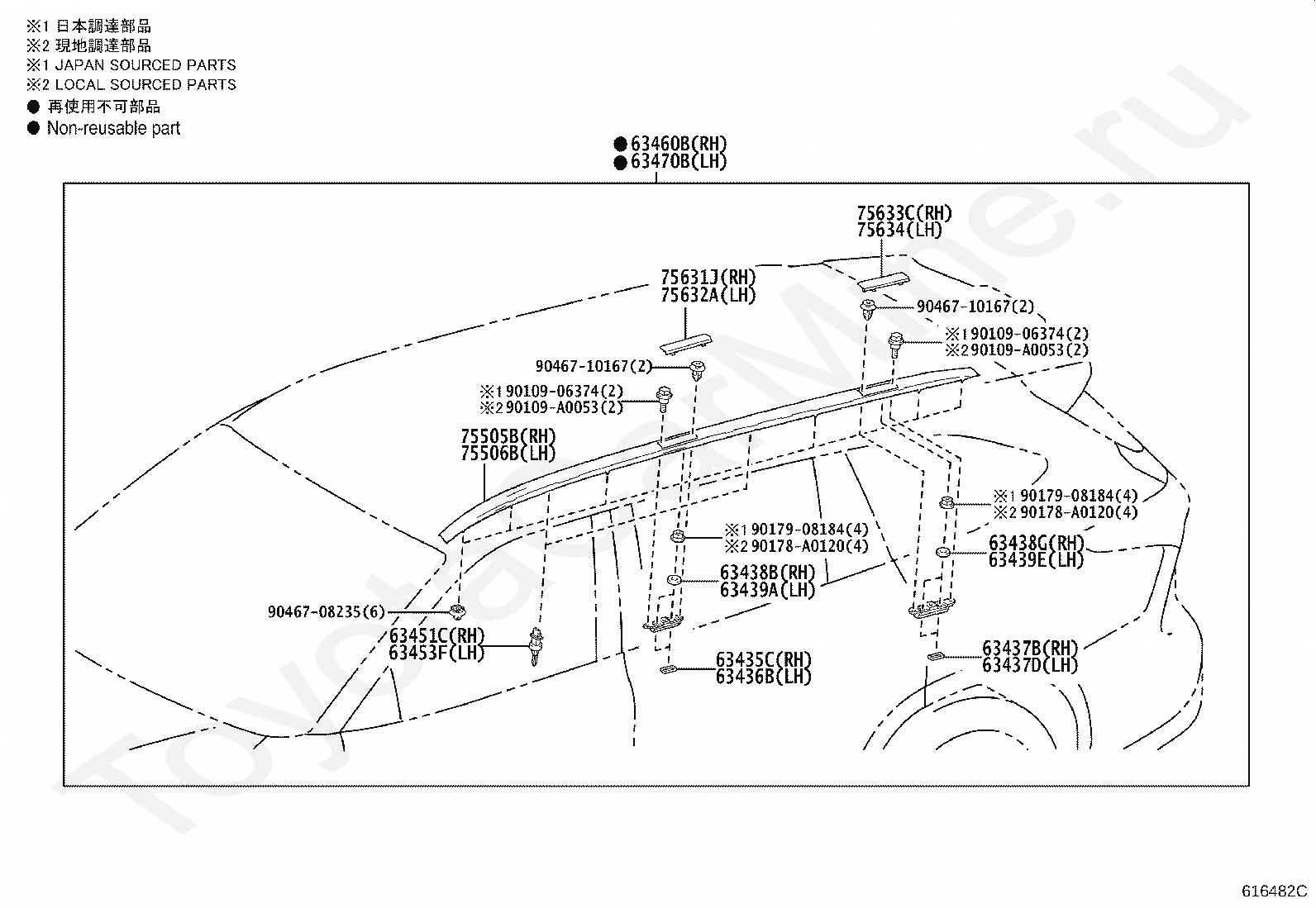

Код

Описание

63435C

SEAL, ROOF CARRIER, NO.1 RH

63436B

SEAL, ROOF CARRIER, NO.1 LH

63437B

SEAL, ROOF CARRIER, NO.2 RH

63437D

SEAL, ROOF CARRIER, NO.2 LH

63438B

SEAL, ROOF CARRIER, NO.3 RH

63438G

SEAL, ROOF CARRIER, NO.4 RH

63439A

SEAL, ROOF CARRIER, NO.3 LH

63439E

SEAL, ROOF CARRIER, NO.4 LH

63451C

RETAINER, ROOF RACK, FRONT RH

63453F

RETAINER, ROOF RACK, FRONT LH

63460B

RACK ASSY, ROOF, RH

63470B

RACK ASSY, ROOF, LH

75505B

GARNISH SUB-ASSY, ROOF SIDE, FRONT RH

75506B

GARNISH SUB-ASSY, ROOF SIDE, FRONT LH

75631J

LID, ROOF SIDE GARNISH, NO.1 RH

75632A

LID, ROOF SIDE GARNISH, NO.1 LH

75633C

LID, ROOF SIDE GARNISH, NO.2 RH

75634

LID, ROOF SIDE GARNISH, NO.2 LH

9010906374

Крепеж

9010906374

Крепеж

90109A0053

Крепеж

90109A0053

Крепеж

90178A0120

Крепеж

90178A0120

Крепеж

9017908184

Крепеж

9017908184

Крепеж

9046708235

Крепеж

9046710167

Крепеж

9046710167

Крепеж

Крыша и заднее стекло TOYOTA HIGHLANDER/KLUGER
