Ближний Восток

Модель

HIGHLANDER/KLUGER

VIN

Дата

2020/12

Двигатель

3,5 литра, 24 клапана, DOHC

Класс

LE TYPE

Фрейм

GSU70

КПП

автомат АКПП, 8 скоростей

Опции

правый руль двигатель с прямым впрыском топлива Австралия 755W

Реле и кнопки TOYOTA HIGHLANDER/KLUGER

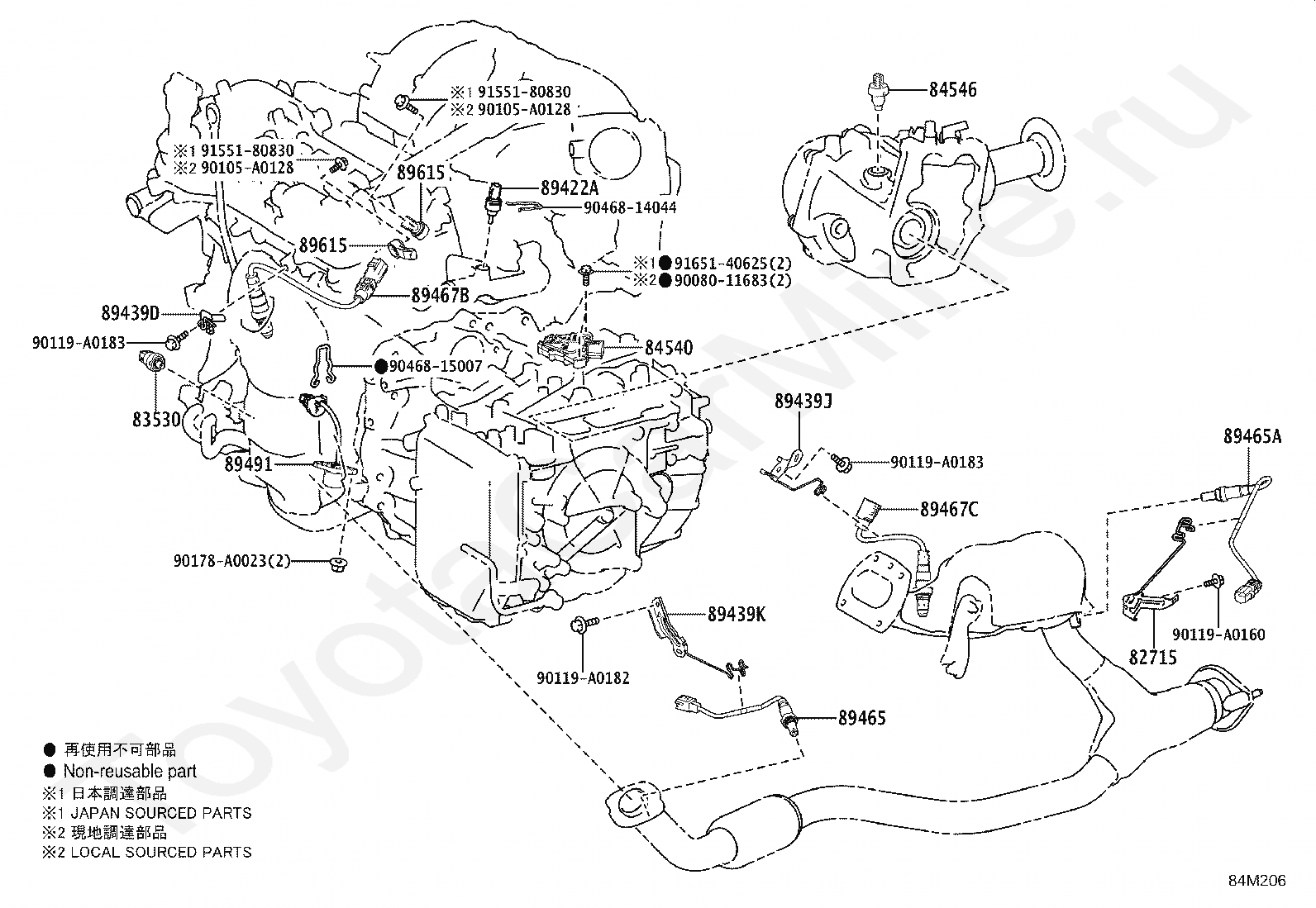

Код

Описание

82715

BRACKET,WIRING HARNESS CLAMP

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84540

SWITCH ASSY, NEUTRAL START

84546

SWITCH, 4 WHEEL DRIVE POSITION, NO.1

89422A

SENSOR, WATER TEMPERATURE

89439D

BRACKET, SENSOR, NO.1

89439J

BRACKET, SENSOR, NO.2

89439K

BRACKET, SENSOR, NO.3

89465

SENSOR, OXYGEN

89465A

SENSOR, OXYGEN NO.2

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

89615

SENSOR, KNOCK CONTROL

9008011683

Крепеж

90105A0128

Крепеж

90105A0128

Крепеж

90119A0160

Крепеж

90119A0182

Крепеж

90119A0183

Крепеж

90119A0183

Крепеж

90178A0023

Крепеж

9046814044

Крепеж

9046815007

Крепеж

9155180830

Крепеж

9155180830

Крепеж

9165140625

Крепеж

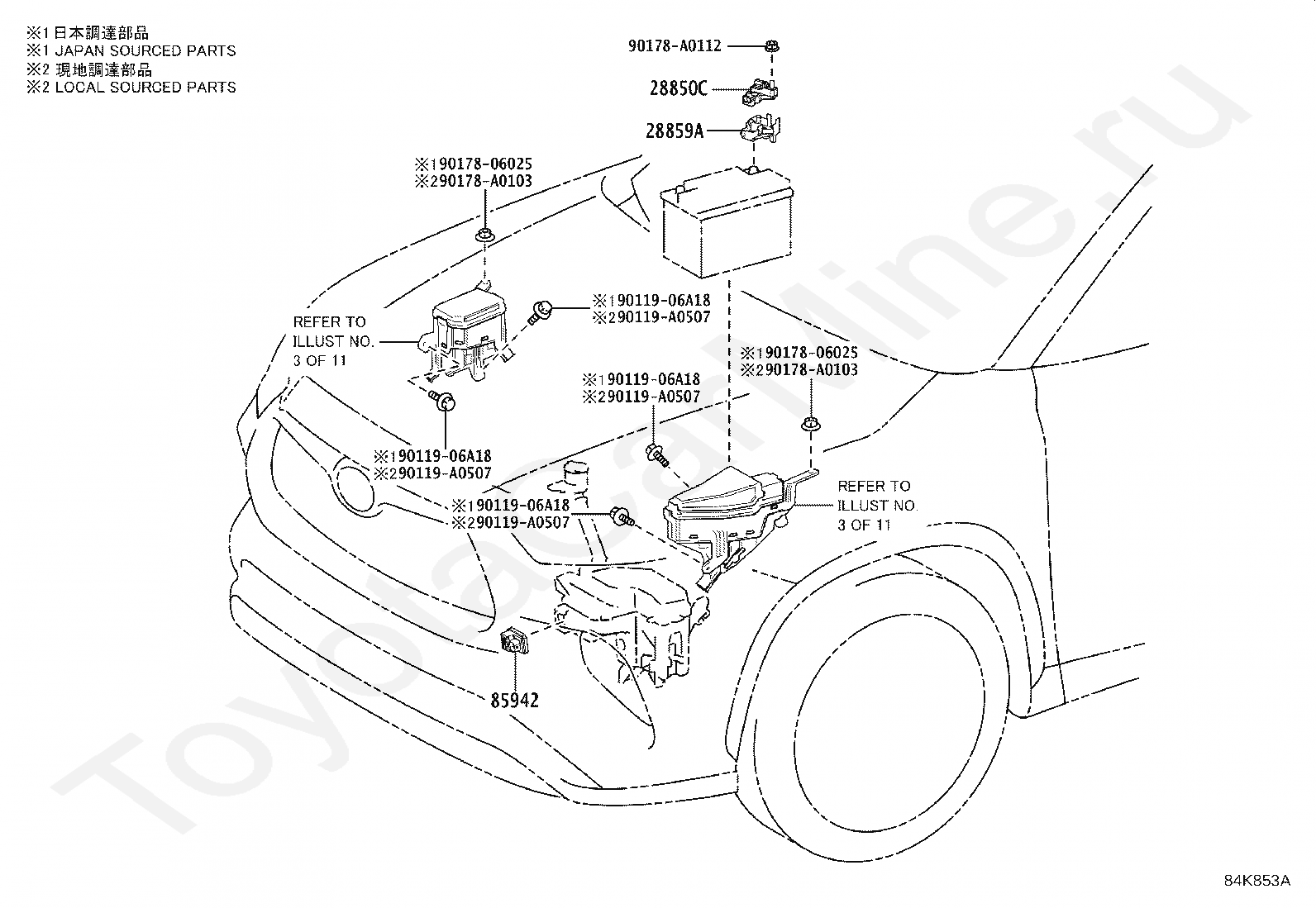

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

85942

RELAY, HEADLAMP CLEANER CONTROL

9011906A18

Крепеж

9011906A18

Крепеж

9011906A18

Крепеж

9011906A18

Крепеж

90119A0507

Крепеж

90119A0507

Крепеж

90119A0507

Крепеж

90119A0507

Крепеж

9017806025

Крепеж

9017806025

Крепеж

90178A0103

Крепеж

90178A0103

Крепеж

90178A0112

Крепеж

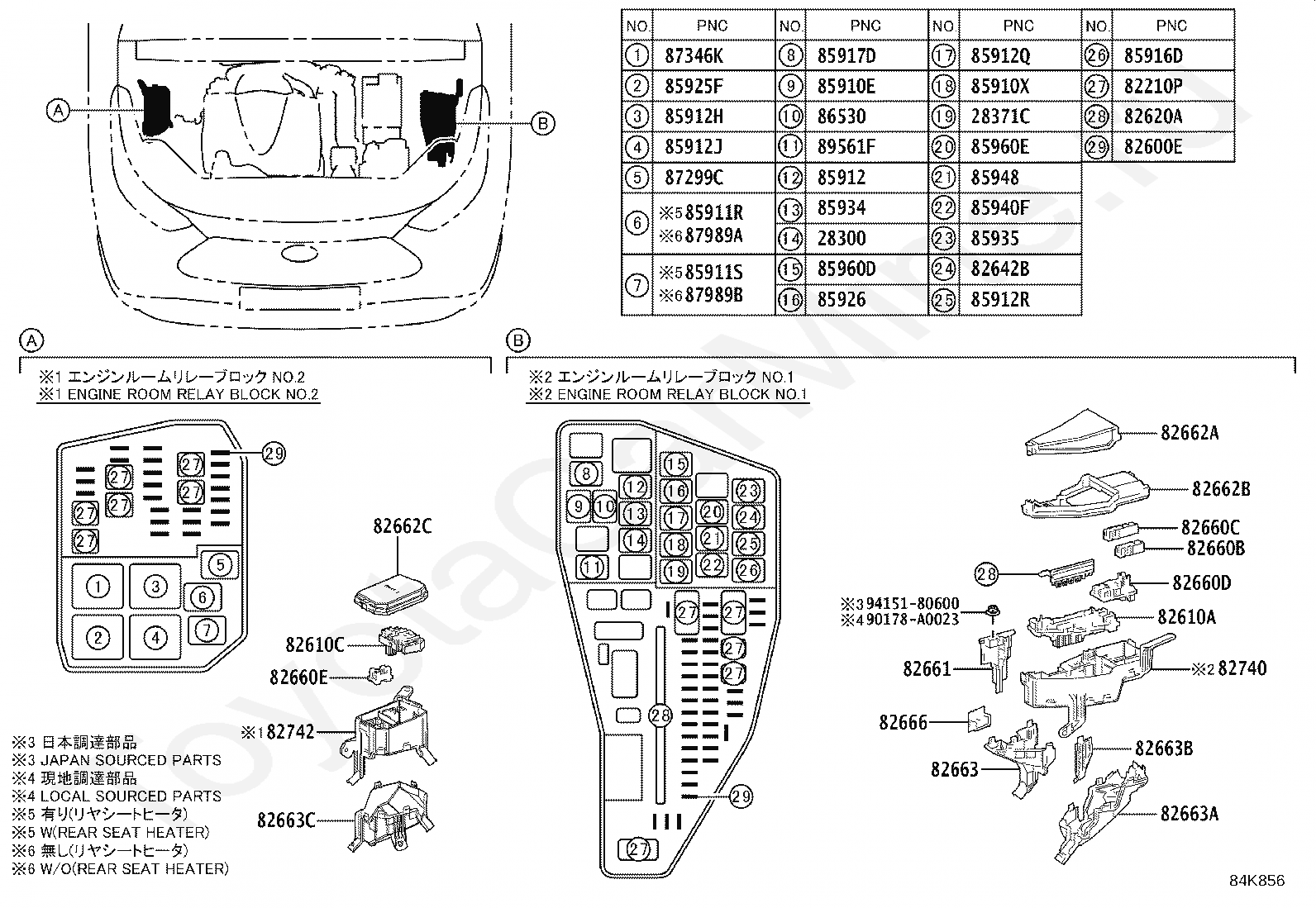

Код

Описание

28300

RELAY ASSY, STARTER

28371C

RELAY, IGNITION, NO.2

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82642B

RELAY, DAY TIME RUNNING LIGHT, NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82666

HOLDER, CONNECTOR

82740

BLOCK ASSY, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

85910E

RELAY, INJECTOR

85910X

RELAY, HEATER MIRROR

85911R

RELAY, REAR SEAT HEATER, RH

85911S

RELAY, REAR SEAT HEATER, LH

85912

RELAY, DEFOGGER

85912H

RELAY, HWD, NO.1

85912J

RELAY, HWD, NO.2

85912Q

RELAY, FRONT SEAT HEATER, RH

85912R

RELAY, FRONT SEAT HEATER, LH

85916D

RELAY, FOG LAMP

85917D

RELAY, HEATER(FOR AIR FUEL RATIO SENSOR)

85925F

RELAY, PTC HEATER NO.2

85926

RELAY, HEADLAMP DIMMER

85934

RELAY, MAGNET-CLUTCH

85935

RELAY, FUEL PUMP

85940F

RELAY ASSY, WINDSHIELD DEICER

85948

RELAY, WINDSHIELD WIPER

85960D

RELAY, HEADLAMP, RH

85960E

RELAY, HEADLAMP, LH

86530

RELAY ASSY, HORN

87299C

RELAY, WASHER NOZZLE HEATER

87346K

RELAY, PTC HEATER

87989A

RELAY, MIRROR NO.1

87989B

RELAY, MIRROR NO.2

89561F

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

90178A0023

Крепеж

9415180600

Крепеж

Код

Описание

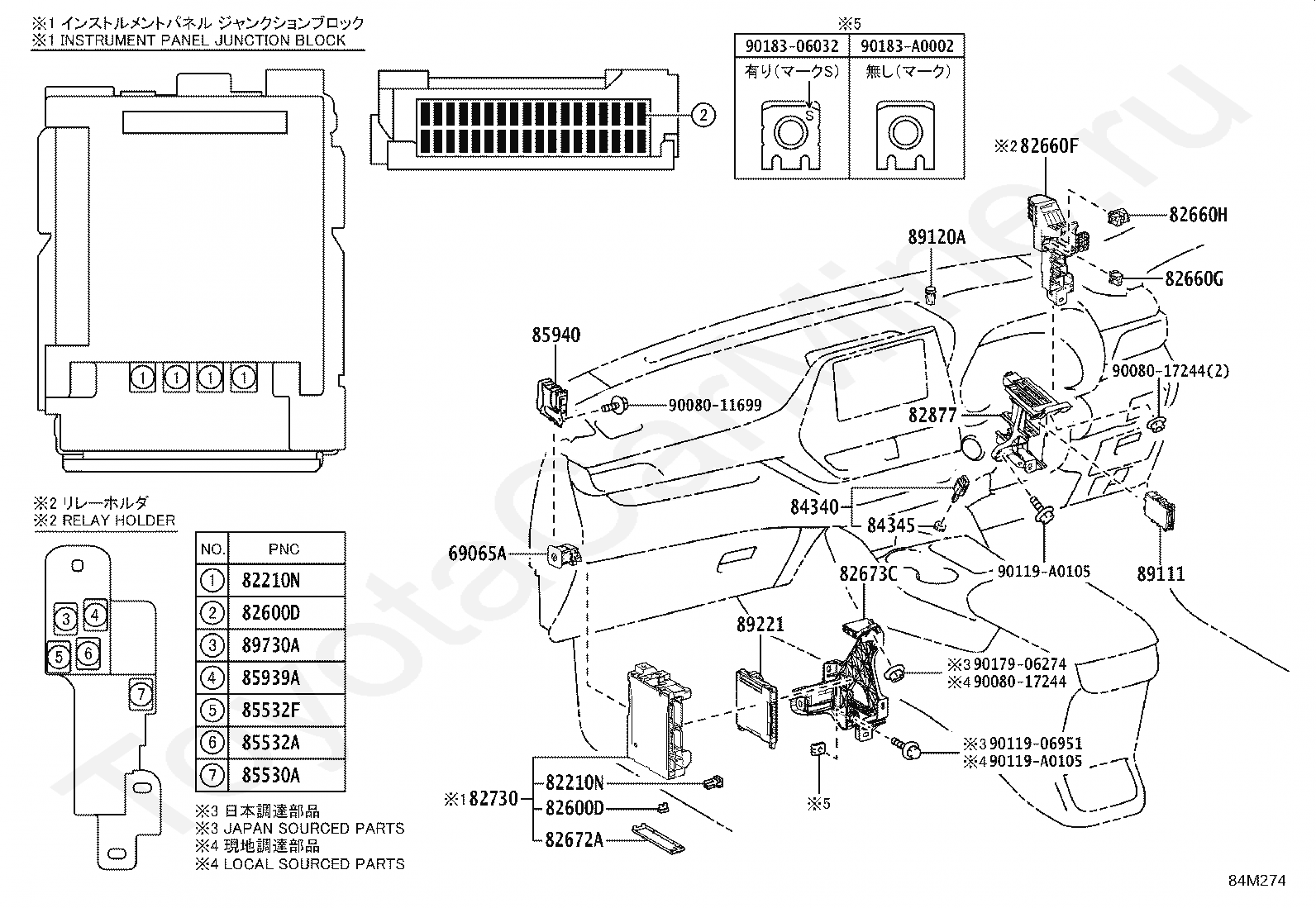

69065A

CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660F

BLOCK ASSY, RELAY

82660G

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82672A

COVER, JUNCTION BLOCK

82673C

BRACKET, JUNCTION BLOCK

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85530A

RELAY, POWER OUTLET SOCKET

85532A

RELAY, USB

85532F

RELAY, USB, NO.2

85939A

RELAY, STEERING HEATER

85940

RELAY ASSY, WINDSHIELD WIPER

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89730A

RELAY(FOR SECURITY WARNING)

9008011699

Крепеж

9008017244

Крепеж

9008017244

Крепеж

9011906951

Крепеж

90119A0105

Крепеж

90119A0105

Крепеж

9017906274

Крепеж

9018306032

Крепеж

90183A0002

Крепеж

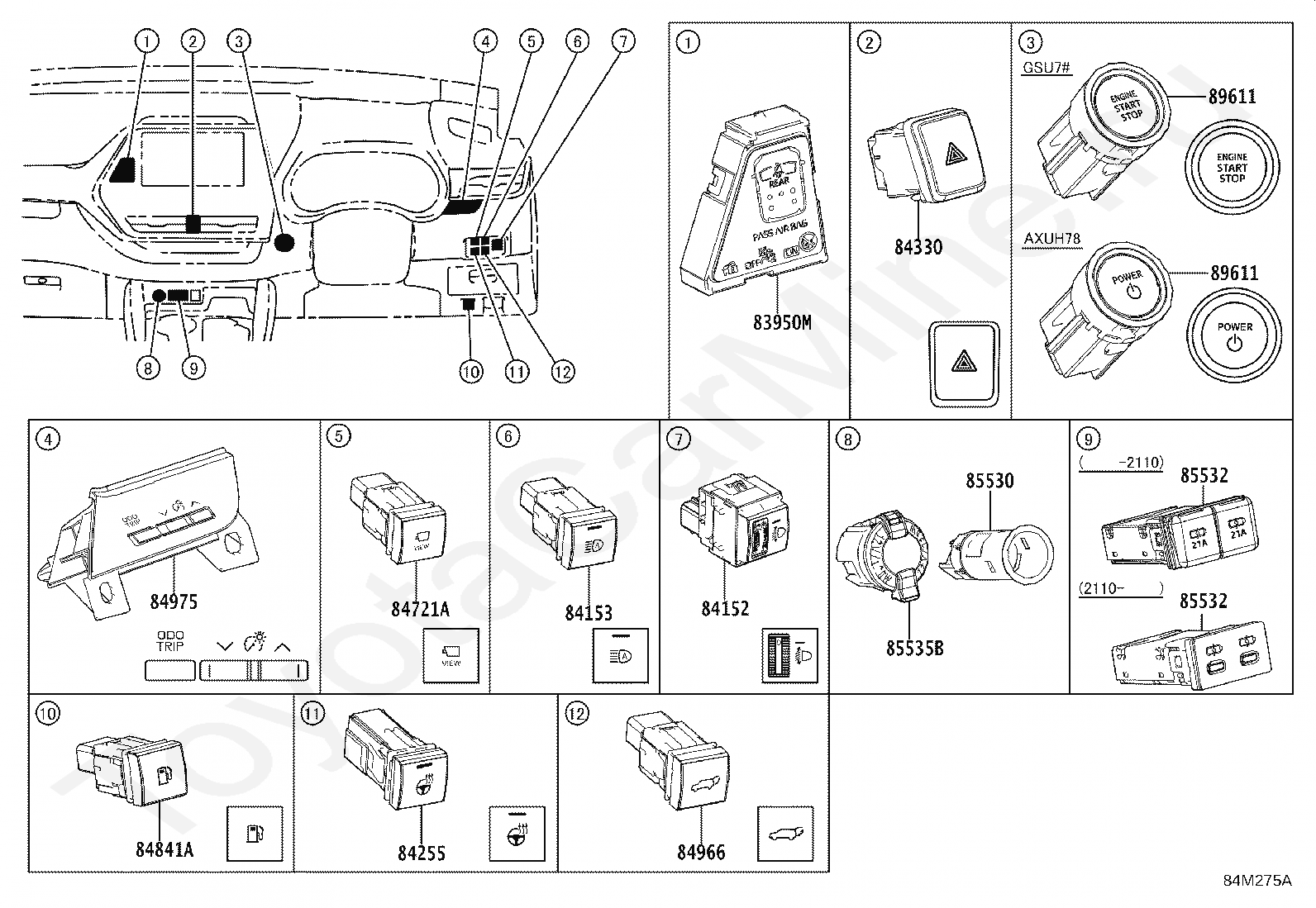

Код

Описание

83950M

LAMP ASSY, TELLTALE

84152

SWITCH, HEADLAMP LEVELING

84153

SWITCH, AUTO HIGH BEAM

84255

SWITCH, STEERING HEATER

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84721A

SWITCH, FRONT WIDE VIEW

84841A

SWITCH, FUEL LID OPENER

84966

SWITCH, POWER BACK DOOR CONTROL

84975

SWITCH, TRIP

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

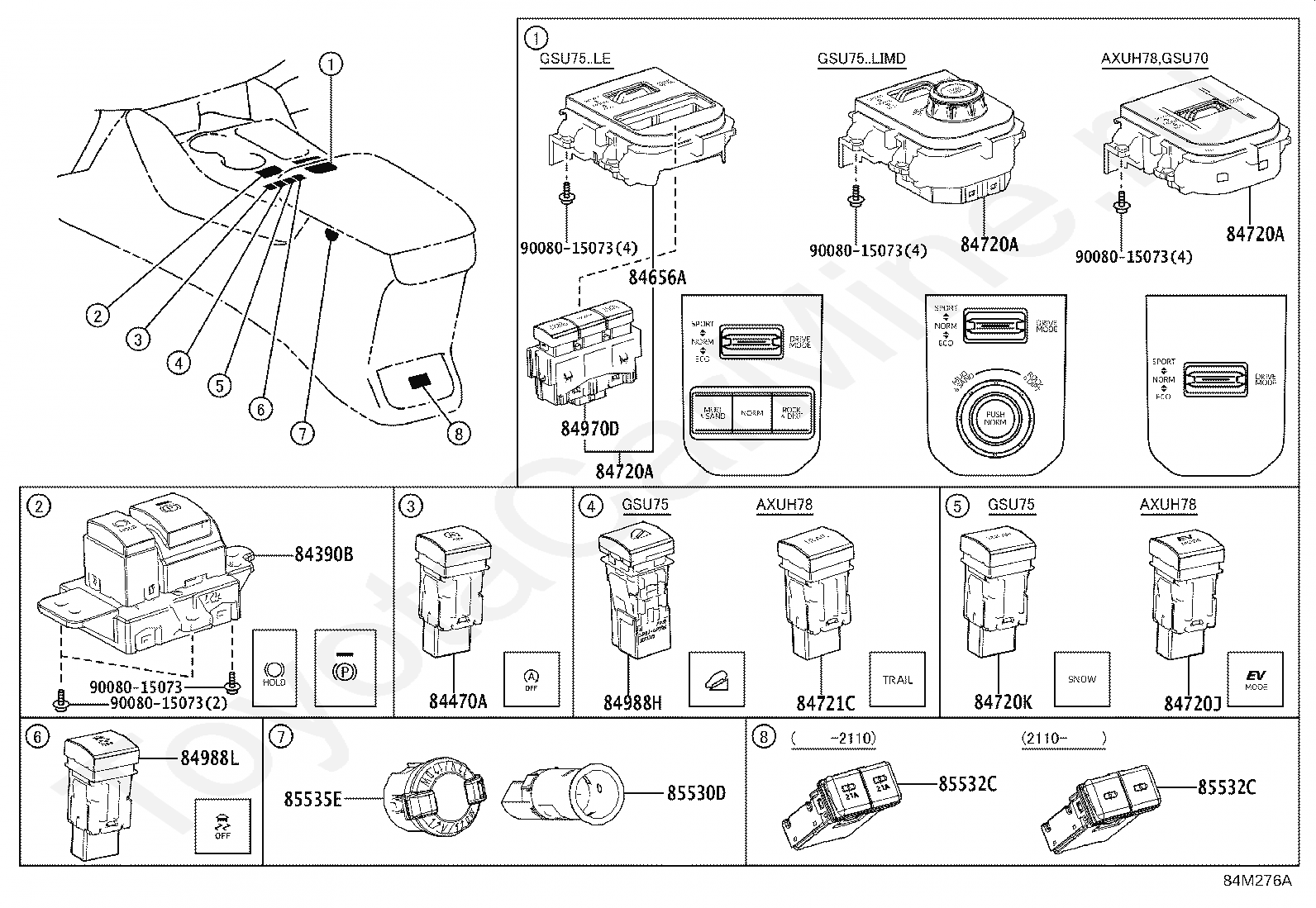

Код

Описание

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84470A

SWITCH ASSY, ECORUN CANCEL

84656A

BEZEL, SWITCH

84720A

SWITCH ASSY, PATTERN SELECT, NO.1

84720A

SWITCH ASSY, PATTERN SELECT, NO.1

84720A

SWITCH ASSY, PATTERN SELECT, NO.1

84720J

SWITCH ASSY, PATTERN SELECT

84720K

SWITCH ASSY, PATTERN SELECT

84721C

SWITCH, PATTERN SELECT

84970D

SWITCH ASSY, CRAWL CONTROL

84988H

SWITCH, DOWNHILL ASSIST CONTROL

84988L

SWITCH, VSC OFF

85530D

SOCKET ASSY, POWER OUTLET, NO.2

85532C

SOCKET, USB CHARGER, NO.2

85532C

SOCKET, USB CHARGER, NO.2

85535E

COVER, POWER OUTLET SOCKET, NO.2

9008015073

Крепеж

9008015073

Крепеж

9008015073

Крепеж

9008015073

Крепеж

9008015073

Крепеж

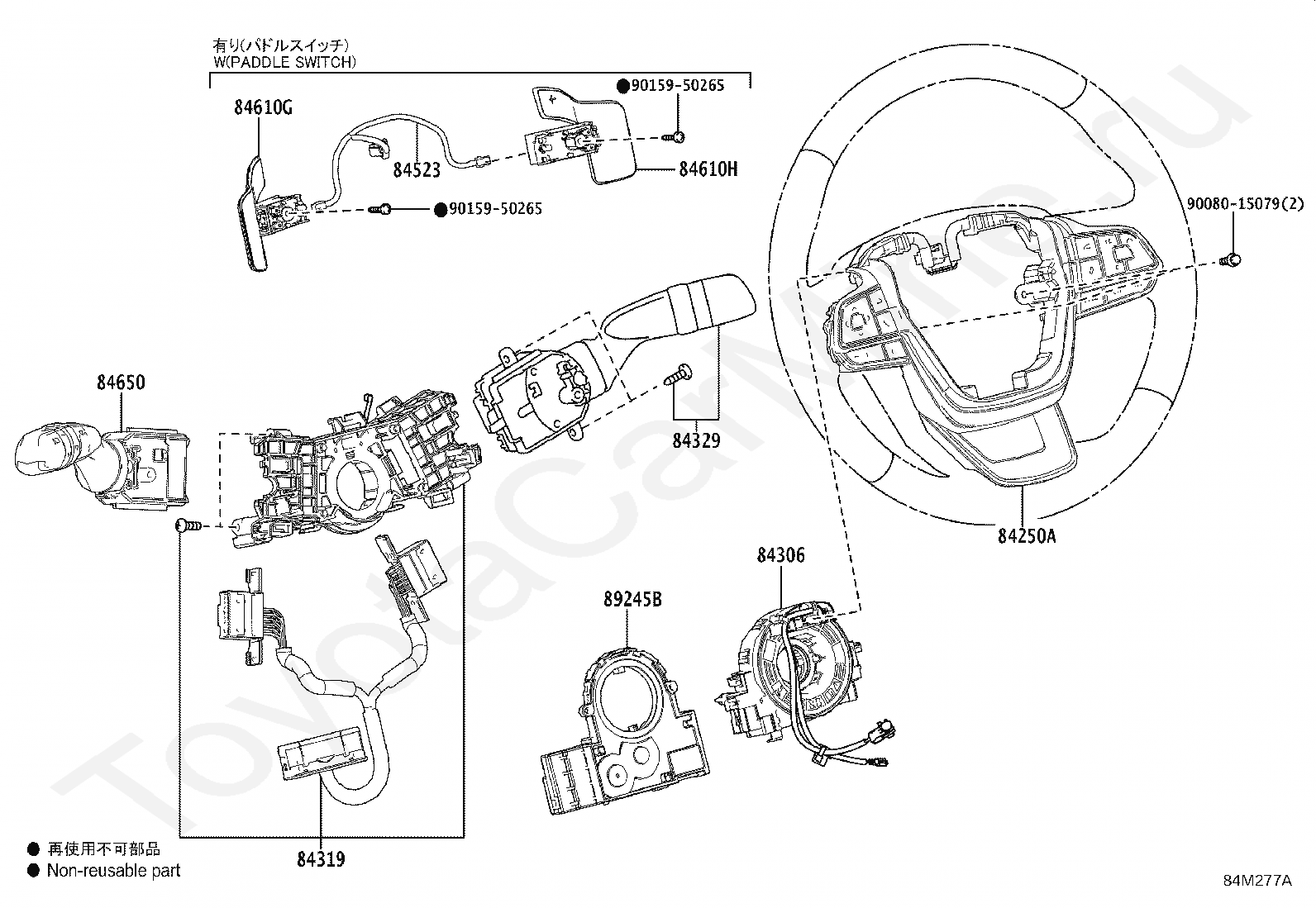

Код

Описание

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84523

WIRE, SWITCH NO.1

84610G

SWITCH ASSY, TRANSMISSION SHIFT, NO.1

84610H

SWITCH ASSY, TRANSMISSION SHIFT, NO.2

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

9008015079

Крепеж

9015950265

Крепеж

9015950265

Крепеж

Код

Описание

7101

переход к группе запчастей

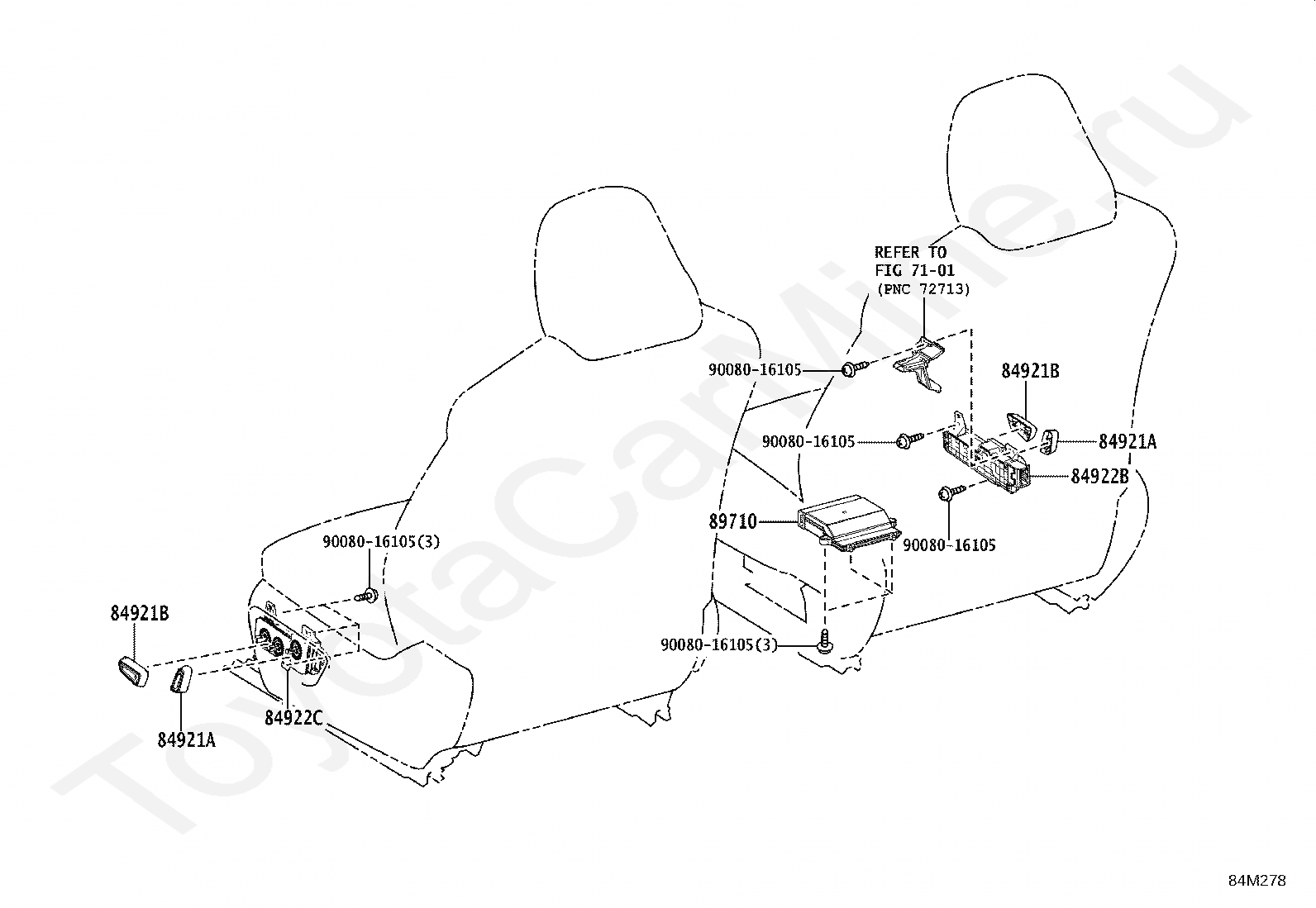

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922B

SWITCH, FRONT POWER SEAT, RH

84922C

SWITCH, FRONT POWER SEAT, LH

89710

COMPUTER ASSY, POSITION CONTROL

9008016105

Крепеж

9008016105

Крепеж

9008016105

Крепеж

9008016105

Крепеж

9008016105

Крепеж

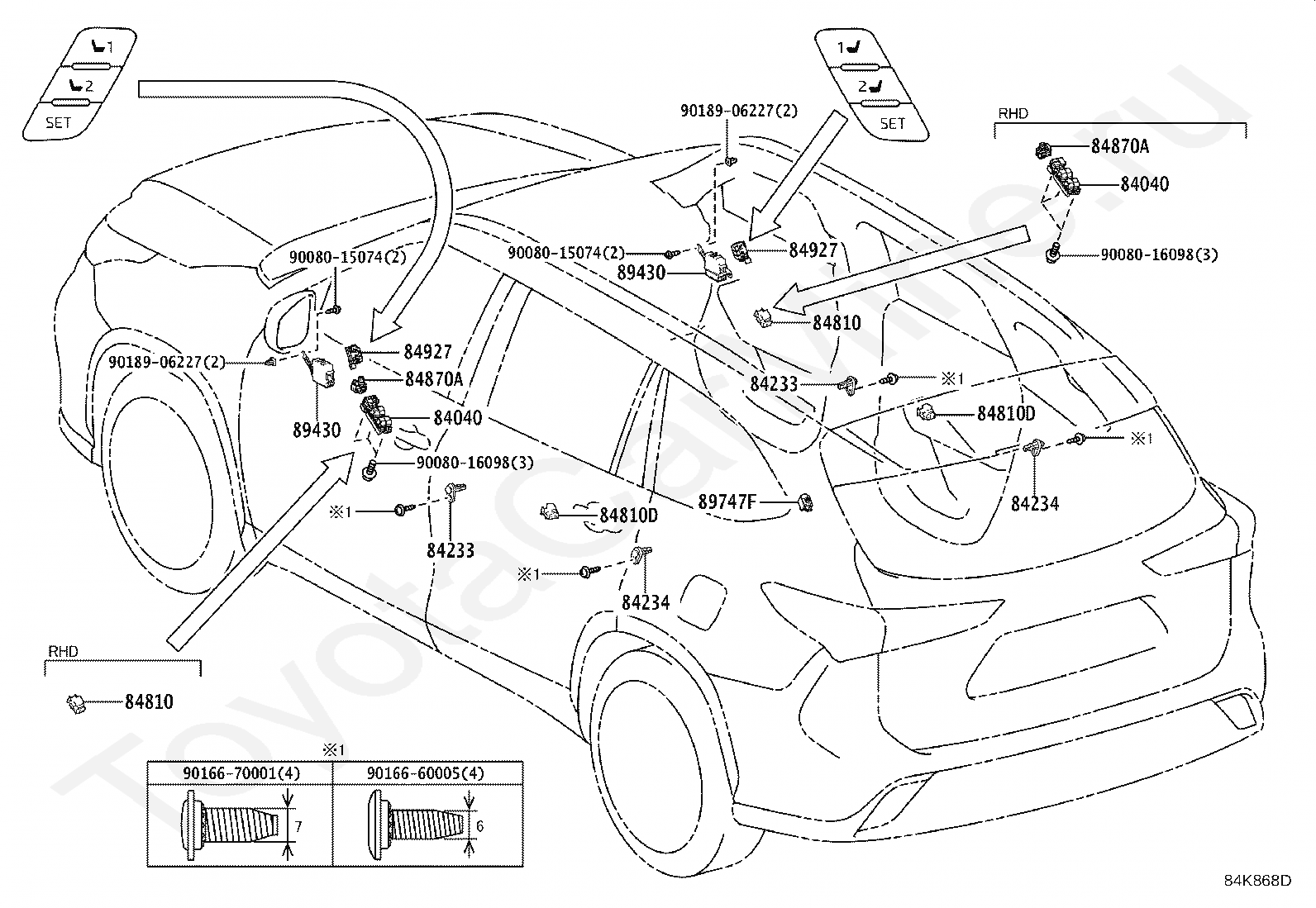

Код

Описание

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84870A

SWITCH ASSY, OUTER MIRROR

84927

SWITCH, SEAT MEMORY

84927

SWITCH, SEAT MEMORY

89430

COMPUTER ASSY, OUTER MIRROR CONTROL

89430

COMPUTER ASSY, OUTER MIRROR CONTROL

89747F

BUZZER, BLIND SPOT MONITOR

9008015074

Крепеж

9008015074

Крепеж

9008016098

Крепеж

9008016098

Крепеж

9016660005

Крепеж

9016670001

Крепеж

9018906227

Крепеж

9018906227

Крепеж

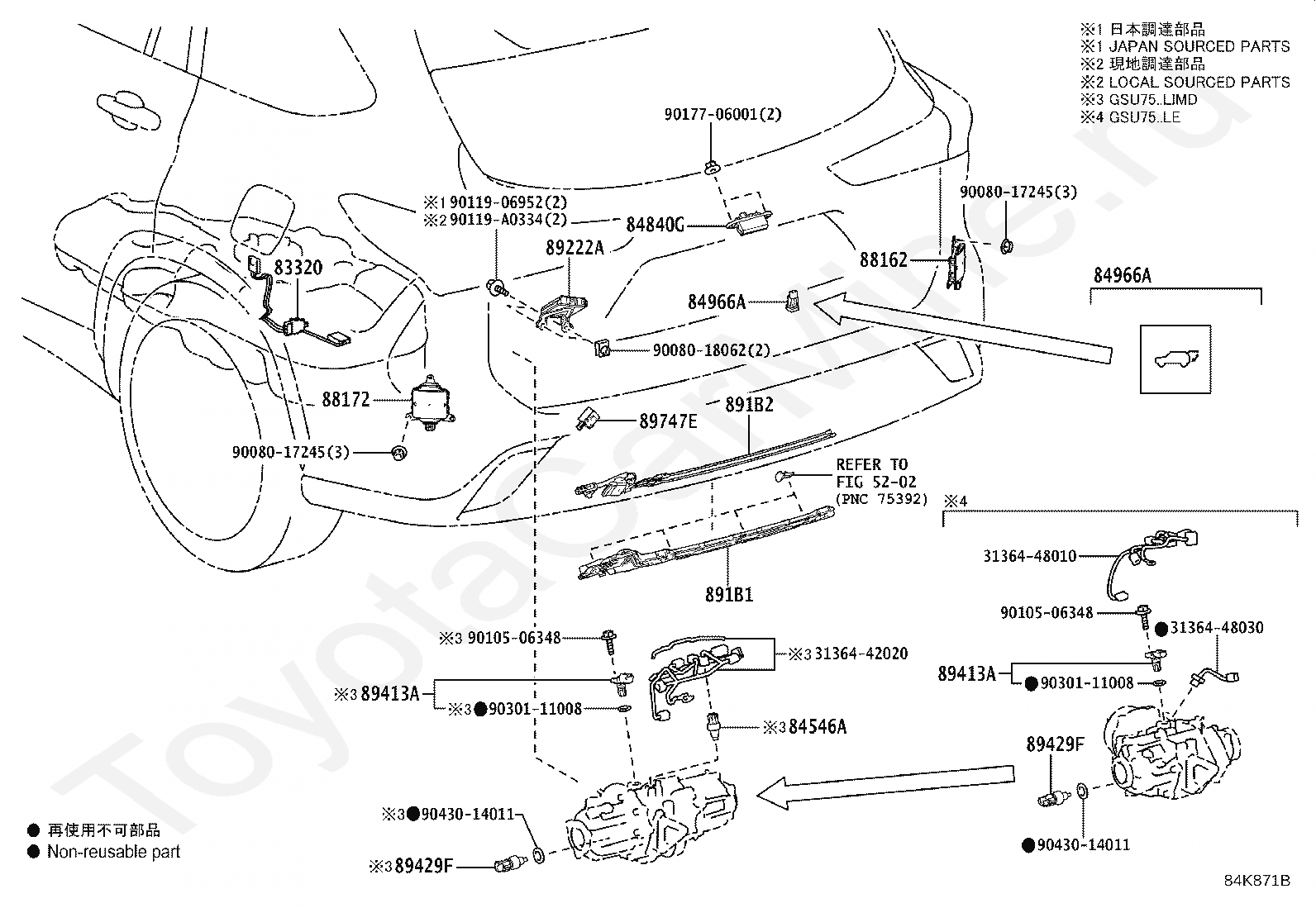

Код

Описание

3136442020

Крепеж

3136448010

Крепеж

3136448030

Крепеж

5202

переход к группе запчастей

83320

GAGE ASSY, FUEL SENDER

84546A

SWITCH, 4 WHEEL DRIVE POSITION, NO.2

84840G

SWITCH ASSY, BACK DOOR OPENER

84966A

SWITCH, POWER BACK DOOR CONTROL, NO.1

84966A

SWITCH, POWER BACK DOOR CONTROL, NO.1

88162

SENSOR, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

891B1

BRACKET, KICK DOOR CONTROL

891B2

SENSOR, KICK DOOR CONTROL

89222A

COMPUTER, MULTIPLEX NETWORK DOOR

89413A

SENSOR, TRANSMISSION REVOLUTION

89413A

SENSOR, TRANSMISSION REVOLUTION

89429F

SENSOR, TEMPERATURE

89429F

SENSOR, TEMPERATURE

89747E

BUZZER, POWER BACK DOOR WARNING

9008017245

Крепеж

9008017245

Крепеж

9008018062

Крепеж

9010506348

Крепеж

9010506348

Крепеж

9011906952

Крепеж

90119A0334

Крепеж

9017706001

Крепеж

9030111008

Крепеж

9030111008

Крепеж

9043014011

Крепеж

9043014011

Крепеж
