Каталог

Европа

Модель

HIGHLANDER/KLUGER

VIN

Дата

2016/11

Двигатель

3,5 литра, 24 клапана, DOHC

Класс

LIMITED TYPE

Фрейм

GSU55

КПП

автомат АКПП, 8 скоростей

Опции

левый руль HIGH EFFICIENCY TWIN CAM Россия 676W

Задние кресла TOYOTA HIGHLANDER/KLUGER







Код

Описание

71015

FRAME SUB-ASSY, REAR SEAT CUSHION

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71485

COVER, REAR SEAT HINGE

71485B

COVER, REAR SEAT HINGE

71486C

COVER, REAR SEAT HINGE, LH

71611A

PAD, REAR SEAT CUSHION, RH

71629

COVER, REAR SEAT CUSHION HINGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71825B

MOULDING, REAR SEAT CUSHION, RH

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71845D

CAP, REAR SEAT COVER, RH

71865

BEZEL, REAR SEAT COVER, NO.1

71880A

CARPET ASSY, REAR SEAT BACK BOARD, RH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72084

PAD SUB-ASSY, REAR SEAT CENTER ARMREST, NO.2

72087

COVER, REAR SEAT CENTER ARMREST, NO.1

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127G

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137S

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72210G

CABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, RH

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72307

LINK SUB-ASSY, RECLINING CONTROL, RH

72307

LINK SUB-ASSY, RECLINING CONTROL, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72551A

COVER, RECLINING HINGE

72593C

KNOB, RECLINING REMOTE CONTROL LEVER, NO.2

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72615B

COVER, REAR SEAT LOCK STRIKER, RH

72615H

COVER, REAR SEAT BACK LOCK STRIKER, NO.1

72616B

COVER, REAR SEAT LOCK STRIKER

72704A

CABLE, REAR SEAT RECLINING CONTROL

72704B

CABLE, REAR SEAT RECLINING CONTROL, NO.2

72806D

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72831B

PLATE, REAR SEAT CENTER ARMREST, NO.1

72831C

PLATE, REAR SEAT CENTER ARMREST, NO.2

72868

COVER, CENTER ARMREST HINGE, RH

72996

COVER, REAR SEAT BACK, RH

72996A

COVER, REAR SEAT BACK

72996E

COVER, REAR SEAT SHIELD INNER, NO.1

7889942010

Крепеж

7889948040

Крепеж

7889948040

Крепеж

79101

FRAME SUB-ASSY, NO.1 SEAT CUSHION

8202

переход к группе запчастей

8271102130

Крепеж

87501D

CONTROL SUB-ASSY, SEAT HEATER

87510P

HEATER ASSY, SEAT

87510Q

HEATER ASSY, SEAT

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008046007

Крепеж

9008046007

Крепеж

9011910886

Крепеж

9011910886

Крепеж

90119A0384

Крепеж

90119A0384

Крепеж

9016850078

Крепеж

90178A0037

Крепеж

90178A0037

Крепеж

9415180800

Крепеж

Код

Описание

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71612A

PAD, REAR SEAT CUSHION, LH

71639

COVER, REAR SEAT CUSHION HINGE, LH

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71826B

MOULDING, REAR SEAT CUSHION, LH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71846E

CAP, REAR SEAT COVER, LH

71866A

BEZEL, REAR SEAT COVER, NO.2

71890A

CARPET ASSY, REAR SEAT BACK BOARD, LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72058A

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72124C

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128G

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138M

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72210H

CABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, LH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72308

LINK SUB-ASSY, RECLINING CONTROL, LH

72308

LINK SUB-ASSY, RECLINING CONTROL, LH

72526E

HANDLE, RECLINING ADJUSTER RELEASE, LH

72552E

COVER, RECLINING HINGE, LH

72591

KNOB, RECLINING REMOTE CONTROL LEVER

72615H

COVER, REAR SEAT BACK LOCK STRIKER, NO.1

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72704F

CABLE, REAR SEAT RECLINING CONTROL, NO.3

72704G

CABLE, REAR SEAT RECLINING CONTROL, NO.4

72997

COVER, REAR SEAT BACK, LH

7889948040

Крепеж

7889948040

Крепеж

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

8202

переход к группе запчастей

8271102130

Крепеж

87501D

CONTROL SUB-ASSY, SEAT HEATER

87510R

HEATER ASSY, SEAT

87510S

HEATER ASSY, SEAT

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008046007

Крепеж

9008046007

Крепеж

9011910886

Крепеж

9011910886

Крепеж

90119A0384

Крепеж

90119A0384

Крепеж

9016850078

Крепеж

90178A0037

Крепеж

90178A0037

Крепеж

9415180800

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71628E

SPACER, REAR SEAT CUSHION

71628E

SPACER, REAR SEAT CUSHION

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71704

BAND SUB-ASSY, REAR SIDE SEAT

71704B

BAND SUB-ASSY, REAR SIDE SEAT, NO.2

71778C

MOULDING, REAR SEAT BACK

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71866B

BEZEL, REAR SEAT COVER, NO.2

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

725480E010

Крепеж

72649

SPRING, REAR SEAT CUSHION SUPPORT

72660J

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK

72660K

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

7889948040

Крепеж

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79207B

BOARD SUB-ASSY, NO.2 SEAT BACK, RH

79220B

CLIP, NO.2 SEAT CUSHION

79235D

PAD, NO.2 SEAT CUSHION, RH

79273A

COVER, NO.2 SEAT HINGE, NO.2

79273C

COVER, NO.2 SEAT HINGE, NO.4

79275C

PAD, NO.2 SEAT BACK, RH

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008046007

Крепеж

9008046007

Крепеж

9050608035

Крепеж

9356054008

Крепеж

9356054008

Крепеж

9616001000

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71628E

SPACER, REAR SEAT CUSHION

71628E

SPACER, REAR SEAT CUSHION

71628E

SPACER, REAR SEAT CUSHION

71628E

SPACER, REAR SEAT CUSHION

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71694

COVER, REAR SEAT CUSHION HINGE, LOWER LH

71704

BAND SUB-ASSY, REAR SIDE SEAT

71704B

BAND SUB-ASSY, REAR SIDE SEAT, NO.2

71778C

MOULDING, REAR SEAT BACK

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71866B

BEZEL, REAR SEAT COVER, NO.2

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72660J

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK

72660L

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79209B

BOARD SUB-ASSY, NO.2 SEAT BACK, LH

79220B

CLIP, NO.2 SEAT CUSHION

79245C

PAD, NO.2 SEAT CUSHION, LH

79273

COVER, NO.2 SEAT HINGE

79273B

COVER, NO.2 SEAT HINGE, NO.3

79285

PAD, NO.2 SEAT BACK, LH

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008046007

Крепеж

9008046007

Крепеж

9050608035

Крепеж

9356054008

Крепеж

9356054008

Крепеж

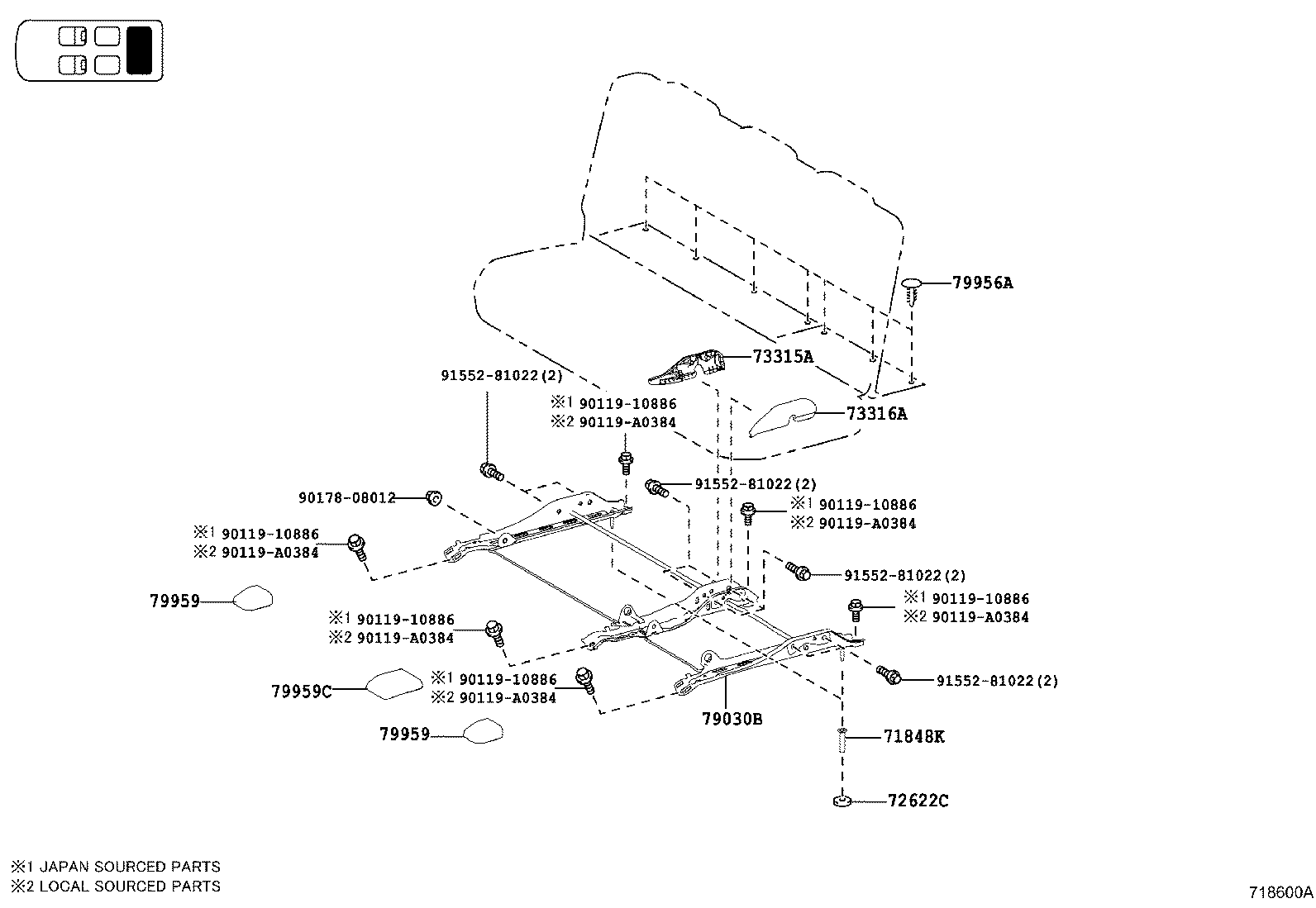

Код

Описание

71848K

CAP, SEAT ADJUSTER COVER

72622C

BUSH, REAR SEAT BACK PROTECTOR SHAFT

73315A

COVER, RR SEAT BELT, INNER RH

73316A

COVER, RR SEAT BELT, INNER LH

79030B

LEG ASSY, REAR NO.2 SEAT, RH

79956A

CLIP (FOR REAR SEAT LEG BRACKET COVER)

79959

COVER, RR SEAT LEG

79959

COVER, RR SEAT LEG

79959C

COVER, REAR SEAT LEG

9011910886

Крепеж

9011910886

Крепеж

9011910886

Крепеж

9011910886

Крепеж

9011910886

Крепеж

9011910886

Крепеж

90119A0384

Крепеж

90119A0384

Крепеж

90119A0384

Крепеж

90119A0384

Крепеж

90119A0384

Крепеж

90119A0384

Крепеж

9017808012

Крепеж

9155281022

Крепеж

9155281022

Крепеж

9155281022

Крепеж

9155281022

Крепеж

Код

Описание

7114930050

Крепеж
