Ближний Восток

Модель

HIGHLANDER (CHINA)

VIN

Дата

2015/03

Двигатель

3,5 литра, 24 клапана, DOHC, EFI

Кузов

фургон

Класс

SEAT POCKET

Фрейм

GSU55

КПП

автомат АКПП, 6 скоростей

Опции

левый руль HIGH EFFICIENCY TWIN CAM 611W

Головка блока цилиндров TOYOTA HIGHLANDER (CHINA)

Код

Описание

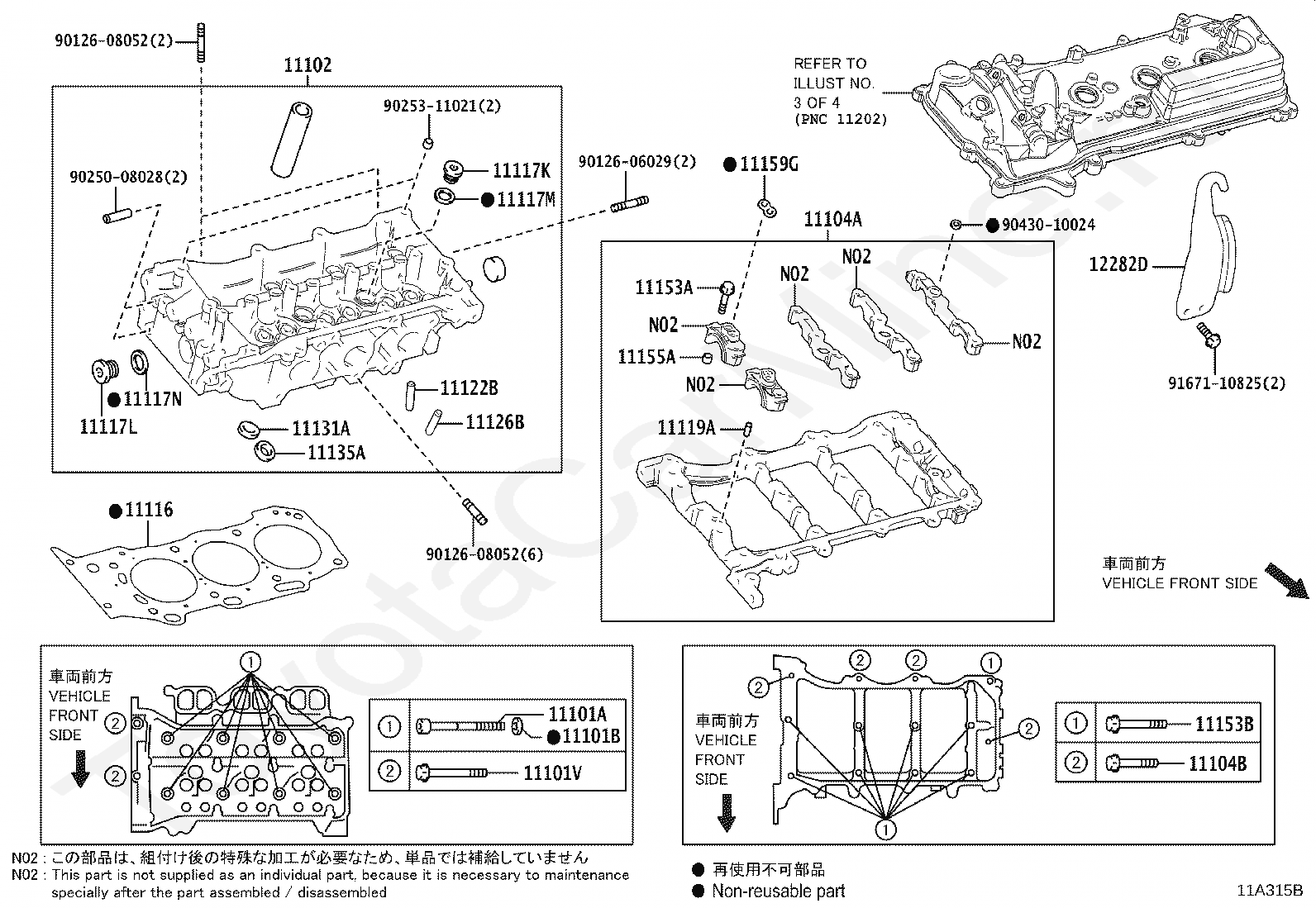

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11101V

BOLT(FOR CYLINDER HEAD SET SUB)

11102

HEAD, CYLINDER, LH

11104A

HOUSING SUB-ASSY, CAMSHAFT, LH

11104B

BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)

11116

GASKET, CYLINDER HEAD, NO.2

11117K

PLUG, W/HEAD STRAIGHT SCREW, LH NO.1

11117L

PLUG, W/HEAD STRAIGHT SCREW, LH NO.2

11117M

GASKET(FOR WATER HOLE NO.2)

11117N

GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)

11119A

PIN, STRAIGHT, NO.1

11122B

BUSH, INTAKE VALVE GUIDE, NO.2

11126B

BUSH, EXHAUST VALVE GUIDE, NO.2

11131A

SEAT, INTAKE VALVE, NO.2

11135A

SEAT, EXHAUST VALVE, NO.2

11153A

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)

11153B

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)

11155A

PIN, RING W/HEAD

11159G

GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH

12282D

HANGER, ENGINE, NO.2

9012606029

Крепеж

9012608052

Крепеж

9012608052

Крепеж

9025008028

Крепеж

9025311021

Крепеж

9043010024

Крепеж

9167110825

Крепеж

Код

Описание

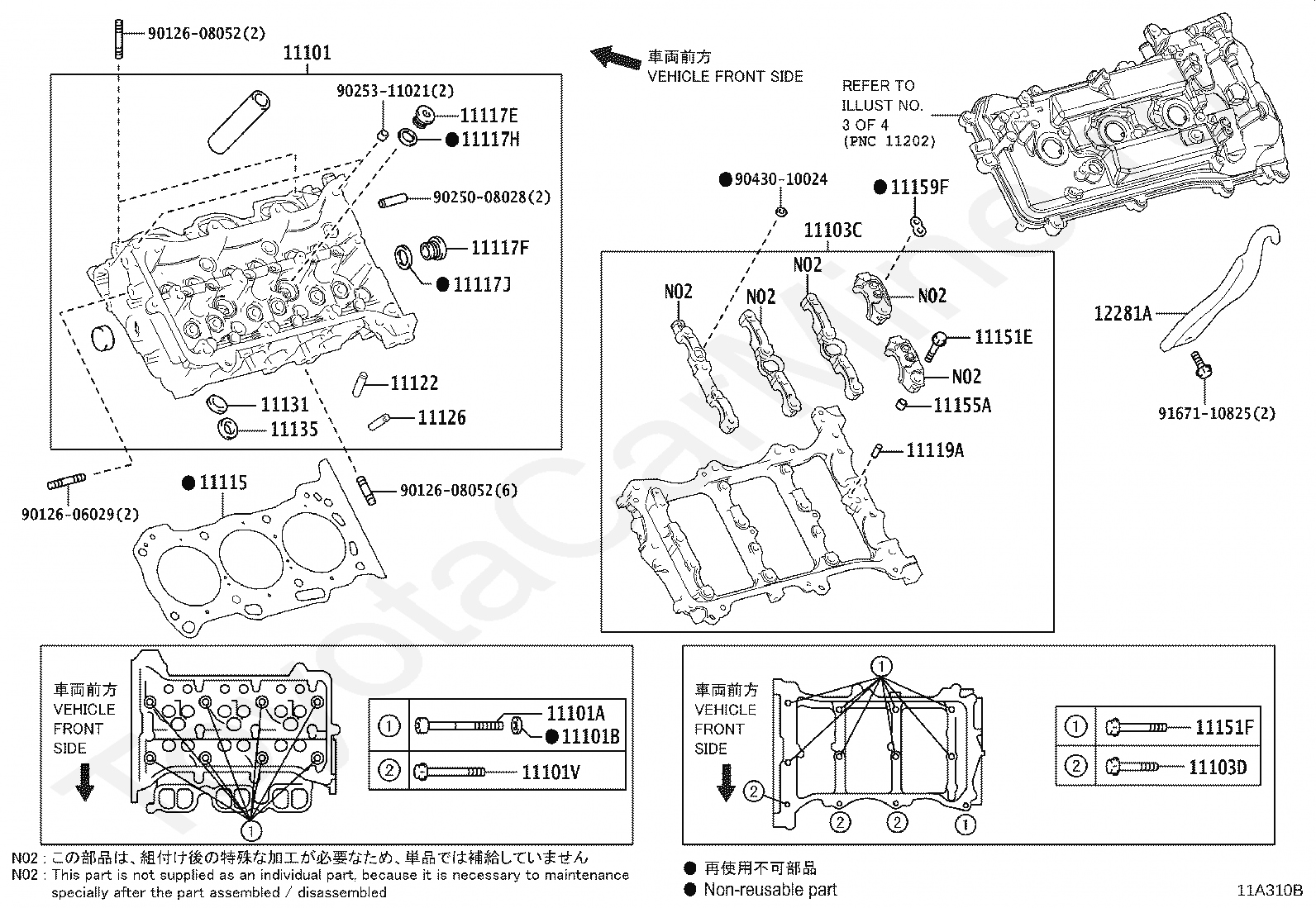

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11101V

BOLT(FOR CYLINDER HEAD SET SUB)

11103C

HOUSING SUB-ASSY, CAMSHAFT, RH

11103D

BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)

11115

GASKET, CYLINDER HEAD

11117E

PLUG, W/HEAD STRAIGHT SCREW, NO.1

11117F

PLUG, W/HEAD STRAIGHT SCREW, NO.2

11117H

GASKET(FOR WATER HOLE)

11117J

GASKET(FOR CYLINDER HEAD SCREW PLUG)

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11131

SEAT, INTAKE VALVE

11135

SEAT, EXHAUST VALVE

11151E

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)

11151F

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)

11155A

PIN, RING W/HEAD

11159F

GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH

12281A

HANGER, ENGINE, NO.1

9012606029

Крепеж

9012608052

Крепеж

9012608052

Крепеж

9025008028

Крепеж

9025311021

Крепеж

9043010024

Крепеж

9167110825

Крепеж

Код

Описание

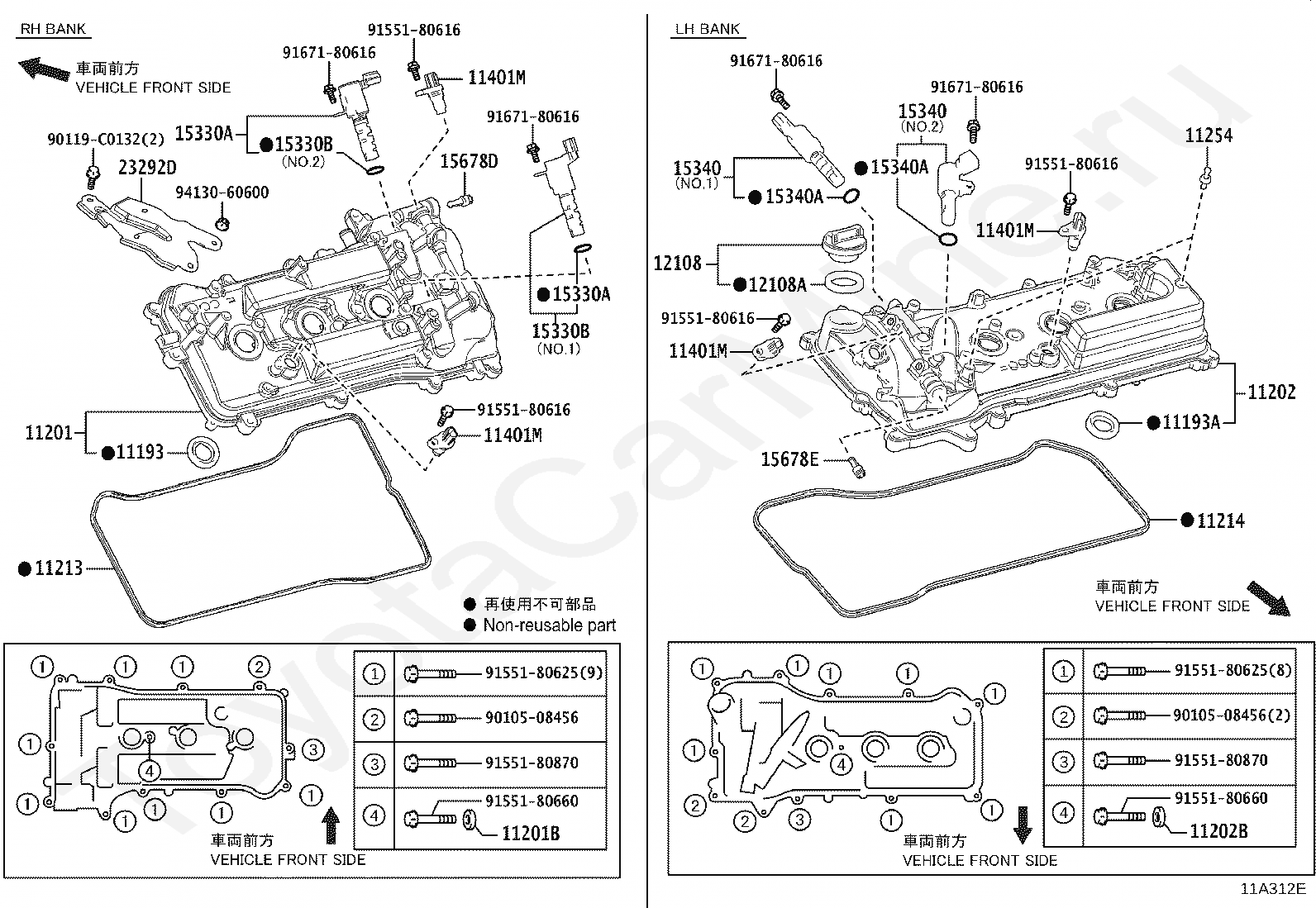

11193

GASKET, SPARK PLUG TUBE

11193A

GASKET, SPARK PLUG TUBE, LH

11201

COVER SUB-ASSY, CYLINDER HEAD

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11202

COVER SUB-ASSY, CYLINDER HEAD, LH

11202B

WASHER, SEAL(FOR CYLINDER HEAD COVER, LH)

11213

GASKET, CYLINDER HEAD COVER

11214

GASKET, CYLINDER HEAD COVER, NO.2

11254

BRACKET, V-BANK COVER, NO.1

11401M

SENSOR, CRANK POSITION, NO.2

11401M

SENSOR, CRANK POSITION, NO.2

11401M

SENSOR, CRANK POSITION, NO.2

11401M

SENSOR, CRANK POSITION, NO.2

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

15330A

RING, O(FOR CAM TIMING OIL CONTROL VALVE)

15330A

RING, O(FOR CAM TIMING OIL CONTROL VALVE)

15330B

VALVE ASSY, CAM TIMING OIL CONTROL, RH

15330B

VALVE ASSY, CAM TIMING OIL CONTROL, RH

15340

VALVE ASSY, CAM TIMING OIL CONTROL, LH

15340

VALVE ASSY, CAM TIMING OIL CONTROL, LH

15340A

RING, O(FOR CAM TIMING OIL CONTROL VALVE)

15340A

RING, O(FOR CAM TIMING OIL CONTROL VALVE)

15678D

FILTER, OIL CONTROL VALVE, RH

15678E

FILTER, OIL CONTROL VALVE, LH

23292D

PROTECTOR, FUEL HOSE

9010508456

Крепеж

9010508456

Крепеж

90119C0132

Крепеж

9155180616

Крепеж

9155180616

Крепеж

9155180616

Крепеж

9155180616

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180660

Крепеж

9155180660

Крепеж

9155180870

Крепеж

9155180870

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9413060600

Крепеж

Код

Описание

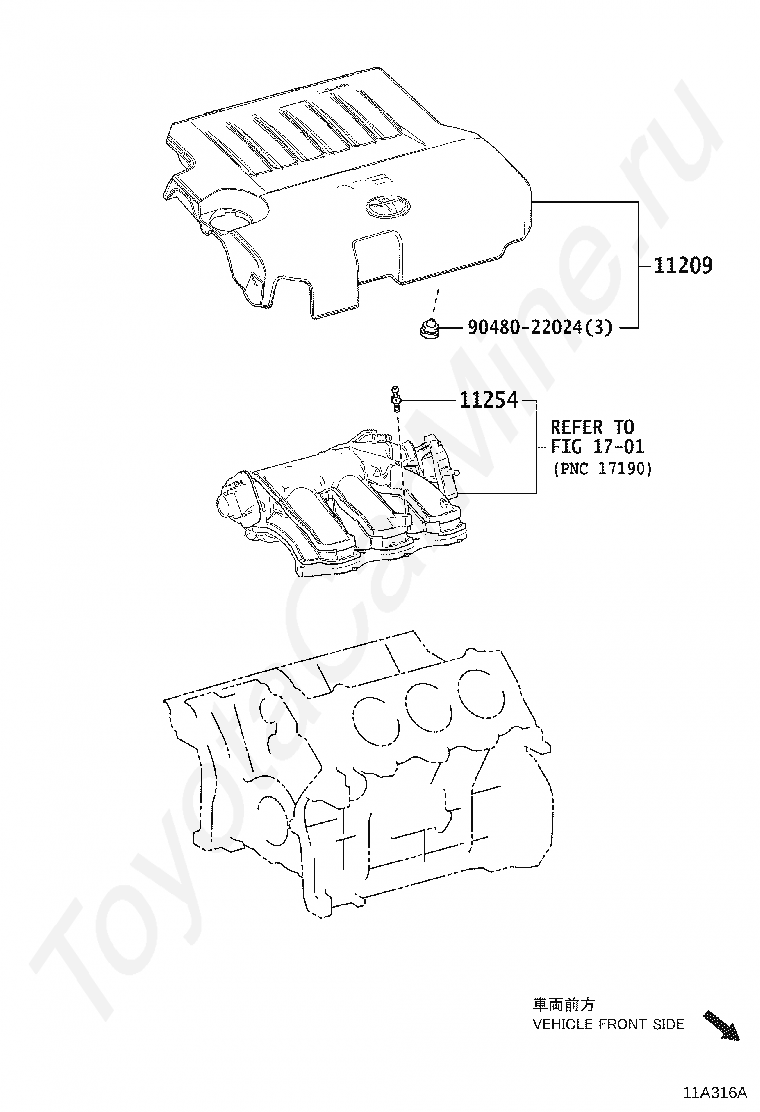

11209

COVER SUB-ASSY, V-BANK

11254

BRACKET, V-BANK COVER, NO.1

1701

переход к группе запчастей

9048022024

Крепеж

Головка блока цилиндров TOYOTA HIGHLANDER (CHINA)
