Каталог

Япония

Модель

HIACE VAN,WAGON

VIN

Дата

1984/01

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

DELUX SPECIFICATION

Фрейм

LH61V

КПП

механика МКПП, 5 скоростей, на руле

Опции

STANDARD ROOF 5-дверный вэн SIDE GLASS VAN 6-местный ST DSL

Реле и кнопки TOYOTA HIACE VAN,WAGON

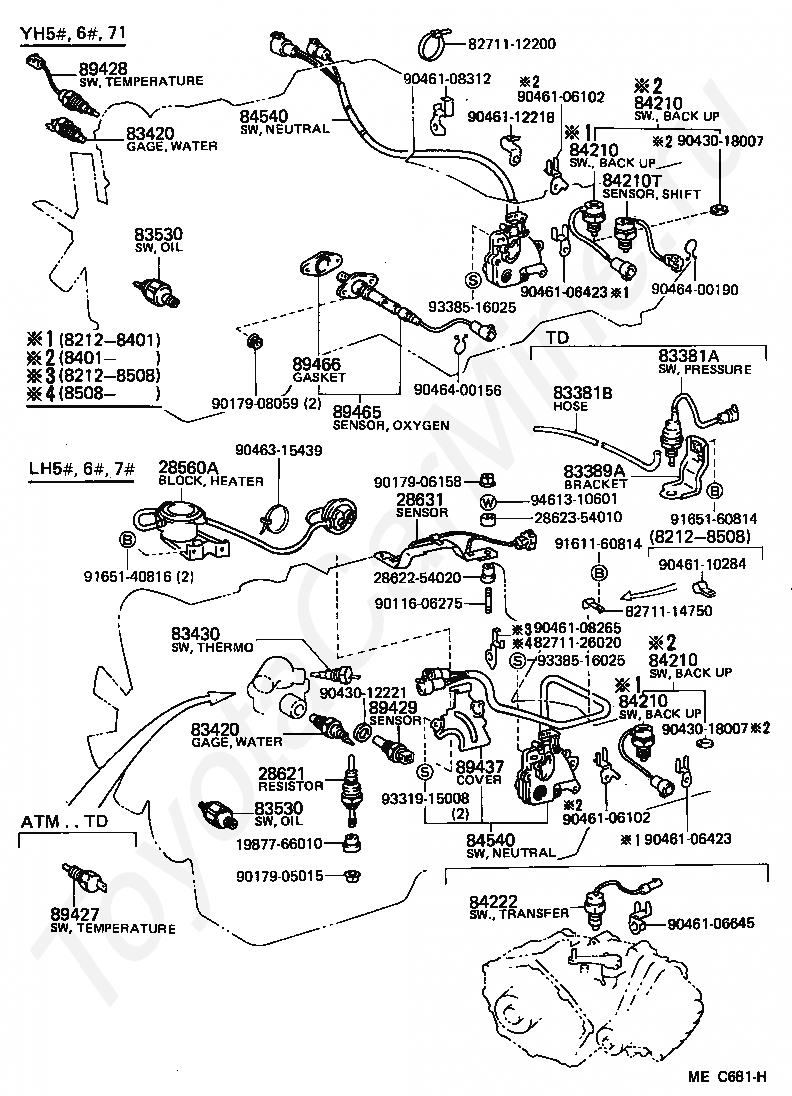

Код

Описание

1987766010

Крепеж

28560A

BLOCK, HEATER

28621

RESISTOR, GLOW PLUG

2862254020

Крепеж

2862354010

Крепеж

28631

SENSOR, GLOW PLUG CURRENT

8271112200

Крепеж

8271114750

Крепеж

8271126020

Крепеж

83381A

SWITCH, PRESSURE

83381B

HOSE, VACUUM

83389A

BRACKET, PRESSURE SWITCH

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83430

SWITCH ASSY, WATER LEVEL SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84210

SWITCH ASSY, BACK-UP LAMP

84210

SWITCH ASSY, BACK-UP LAMP

84210

SWITCH ASSY, BACK-UP LAMP

84210T

SENSOR ASSY, SHIFT POINT

84222

SWITCH, TRANSFER INDICATOR, NO.1

84540

SWITCH ASSY, NEUTRAL START

84540

SWITCH ASSY, NEUTRAL START

89427

SWITCH, TEMPERATURE DETECT

89428

SWITCH, TEMPERATURE DETECT, NO.2

89429

SENSOR, OIL TEMPERATURE

89437

COVER, SENSOR

89465

SENSOR, OXYGEN

89466

GASKET, OXYGEN SENSOR

9011606275

Крепеж

9017905015

Крепеж

9017906158

Крепеж

9017908059

Крепеж

9043012221

Крепеж

9043018007

Крепеж

9043018007

Крепеж

9046106102

Крепеж

9046106102

Крепеж

9046106423

Крепеж

9046106423

Крепеж

9046106645

Крепеж

9046108265

Крепеж

9046108312

Крепеж

9046110284

Крепеж

9046112218

Крепеж

9046315439

Крепеж

9046400156

Крепеж

9046400190

Крепеж

9161160814

Крепеж

9165140816

Крепеж

9165160814

Крепеж

9331915008

Крепеж

9338516025

Крепеж

9338516025

Крепеж

9461310601

Крепеж

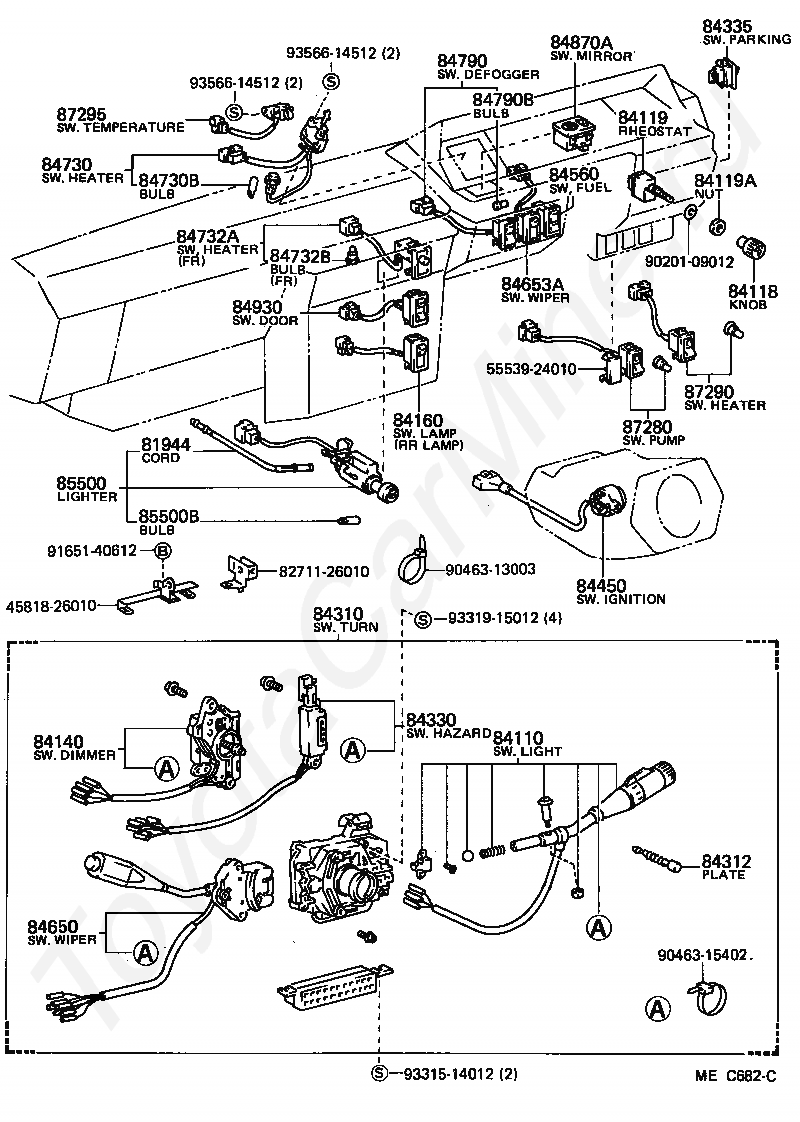

Код

Описание

4581826010

Крепеж

5553924010

Крепеж

81944

CORD, OPTICAL FIBER

8271126010

Крепеж

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84118

KNOB, LIGHT CONTROL RHEOSTAT

84119

RHEOSTAT, LIGHT CONTROL

84119A

BOLT OR NUT, RHEOSTAT CONTROL SET

84140

SWITCH ASSY, HEADLAMP DIMMER

84160

SWITCH ASSY, ROOM LAMP

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84335

SWITCH ASSY, PARKING LAMP

84450

SWITCH ASSY, IGNITION OR STARTER

84560

SWITCH ASSY, FUEL VALVE CONTROL

84650

SWITCH ASSY, WINDSHIELD WIPER

84653A

SWITCH, REAR WIPER

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84732A

SWITCH, REAR HEATER BLOWER

84732B

BULB, REAR HEATER BLOWER SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

84930

SWITCH ASSY, DOOR CONTROL

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

87280

SWITCH ASSY, HETER PUMP

87290

SWITCH ASSY, HEATER

87295

SWITCH ASSY, TEMPERATURE CONTROL

9020109012

Крепеж

9046313003

Крепеж

9046315402

Крепеж

9165140612

Крепеж

9331514012

Крепеж

9331915012

Крепеж

9356614512

Крепеж

9356614512

Крепеж

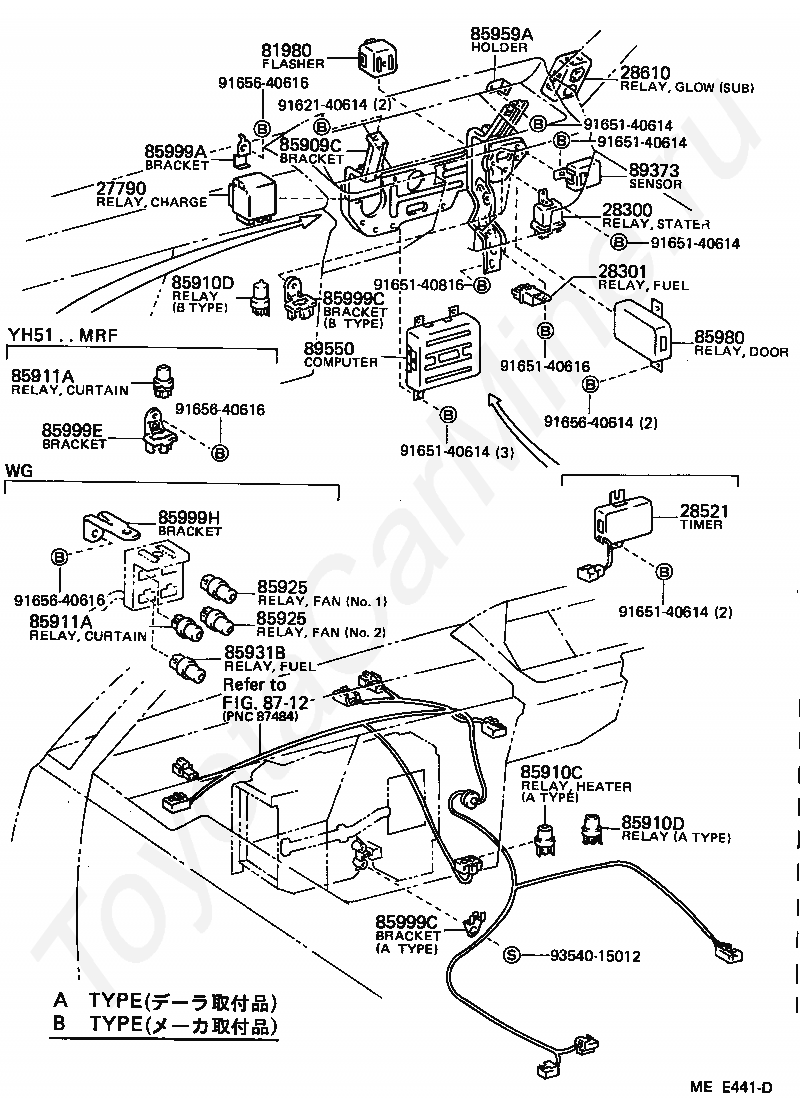

Код

Описание

27790

RELAY ASSY, CHARGE LAMP

28300

RELAY ASSY, STARTER

28301

RELAY ASSY, FUEL PUMP

28521

TIMER, PREHEATING

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

81980

FLASHER ASSY, TURN SIGNAL

85909C

BRACKET SUB-ASSY, RELAY, NO.1

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910D

RELAY (FOR HEATER IDLE UP)

85910D

RELAY (FOR HEATER IDLE UP)

85911A

RELAY, AUTO CURTAIN

85911A

RELAY, AUTO CURTAIN

85925

RELAY, RADIATOR FAN

85925

RELAY, RADIATOR FAN

85931B

RELAY, FUEL HEATER

85959A

HOLDER, RELAY

85980

RELAY ASSY, DOOR CONTROL

85999A

BRACKET, RELAY, NO.2

85999C

BRACKET, RELAY, NO.3

85999C

BRACKET, RELAY, NO.3

85999E

BRACKET, RELAY, NO.5

85999H

BRACKET, RELAY

8712

переход к группе запчастей

89373

SENSOR, LAMP FAILURE INDICATOR

89550

COMPUTER ASSY, EMISSION CONTROL

9162140614

Крепеж

9165140614

Крепеж

9165140614

Крепеж

9165140614

Крепеж

9165140614

Крепеж

9165140614

Крепеж

9165140616

Крепеж

9165140816

Крепеж

9165640614

Крепеж

9165640616

Крепеж

9165640616

Крепеж

9165640616

Крепеж

9354015012

Крепеж

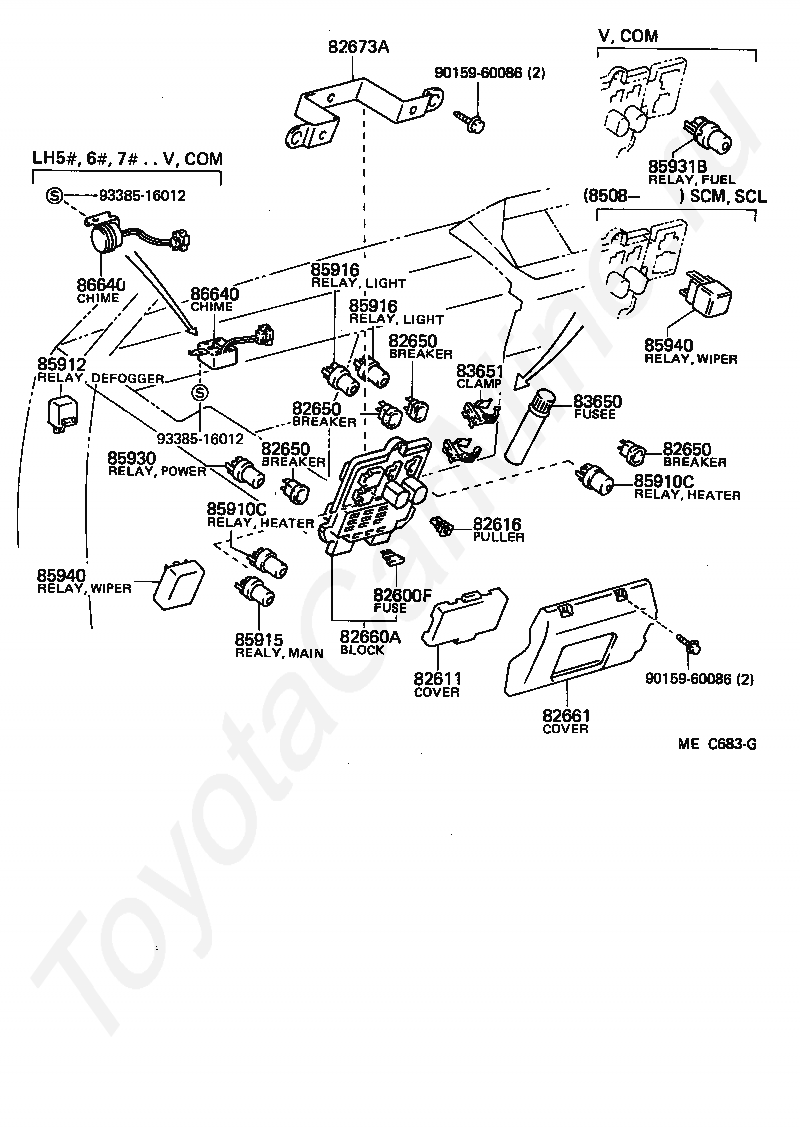

Код

Описание

82600F

FUSE, FUSE BLOCK

82611

COVER, FUSE BLOCK

82616

PULLER, FUSE

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82660A

BLOCK ASSY, RELAY, COWL SIDE

82661

COVER, RELAY BLOCK, NO.1

82673A

BRACKET, JUNCTION BLOCK

83650

FUSEE

83651

CLAMP, FUSEE

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85912

RELAY, DEFOGGER

85915

RELAY, MAIN

85916

RELAY, LIGHT CONTROL

85916

RELAY, LIGHT CONTROL

85930

RELAY ASSY, POWER WINDOW

85931B

RELAY, FUEL HEATER

85940

RELAY ASSY, WINDSHIELD WIPER

85940

RELAY ASSY, WINDSHIELD WIPER

86640

CHIME ASSY

86640

CHIME ASSY

9015960086

Крепеж

9015960086

Крепеж

9338516012

Крепеж

9338516012

Крепеж

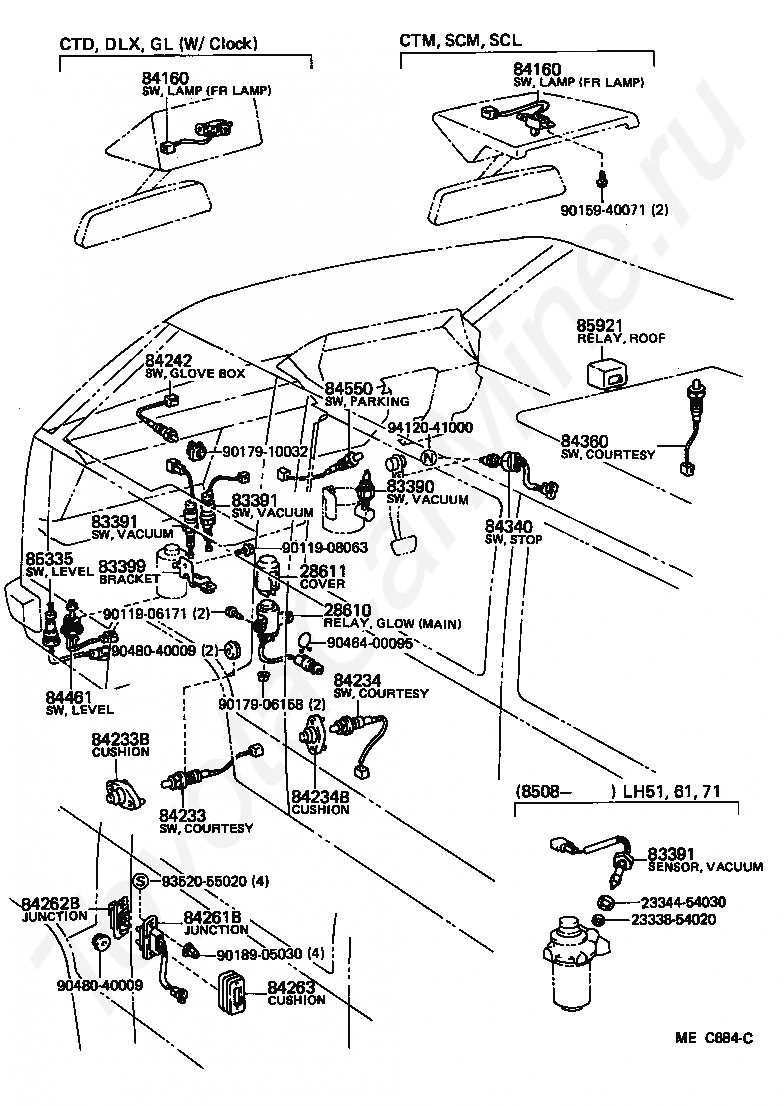

Код

Описание

2333854020

Крепеж

2334454030

Крепеж

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28611

COVER, GLOW PLUG RELAY

83390

SWITCH ASSY, VACUUM WARNING

83391

SWITCH, VACUUM

83391

SWITCH, VACUUM

83391

SWITCH, VACUUM

83399

BRACKET, VACUUM SWITCH

84160

SWITCH ASSY, ROOM LAMP

84160

SWITCH ASSY, ROOM LAMP

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233B

CUSHION, COURTESY SWITCH (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234B

CUSHION, COURTESY SWITCH (FOR REAR DOOR)

84242

SWITCH, GLOVE BOX LAMP

84261B

JUNCTION, SLIDE DOOR CONTROL,MALE

84262B

JUNCTION, SLIDE DOOR CONTROL, FEMALE

84263

CUSHION, SLIDE DOOR JUNCTION

84340

SWITCH ASSY, STOP LAMP

84360

SWITCH, COURTESY LAMP

84461

SWITCH, LEVEL WARNING

84550

SWITCH ASSY, PARKING BRAKE

85335

SWITCH ASSY, WASHER LEVEL WARNING

85921

RELAY, SLIDING ROOF CONTROL

9011906171

Крепеж

9011908063

Крепеж

9015940071

Крепеж

9017906158

Крепеж

9017910032

Крепеж

9018905030

Крепеж

9046400095

Крепеж

9048040009

Крепеж

9048040009

Крепеж

9352055020

Крепеж

9412041000

Крепеж

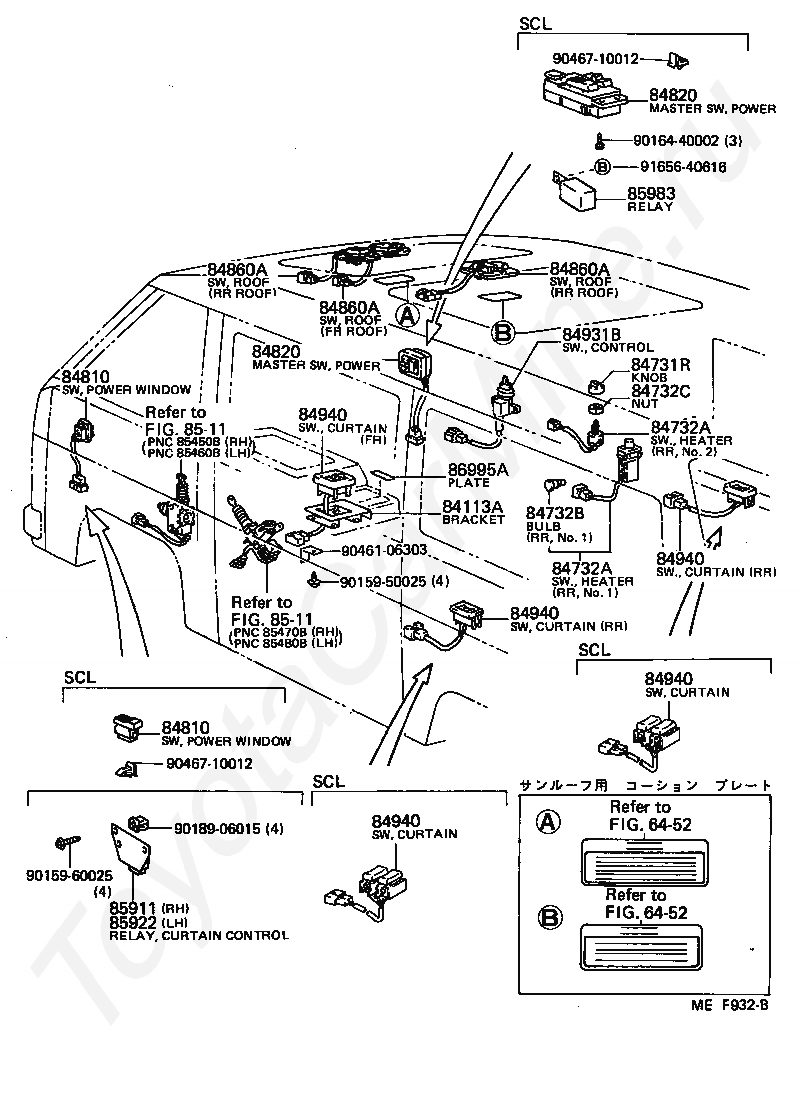

Код

Описание

6452

переход к группе запчастей

6452

переход к группе запчастей

84113A

BRACKET, SWITCH, NO.1

84731R

KNOB, REAR HEATER BLOWER SWITCH

84732A

SWITCH, REAR HEATER BLOWER

84732A

SWITCH, REAR HEATER BLOWER

84732B

BULB, REAR HEATER BLOWER SWITCH

84732C

NUT, REAR HEATER BLOWER SWITCH

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84860A

SWITCH ASSY, SLIDING ROOF

84860A

SWITCH ASSY, SLIDING ROOF

84860A

SWITCH ASSY, SLIDING ROOF

84931B

SWITCH, DOOR CONTROL

84940

SWITCH ASSY, CURTAIN

84940

SWITCH ASSY, CURTAIN

84940

SWITCH ASSY, CURTAIN

84940

SWITCH ASSY, CURTAIN

84940

SWITCH ASSY, CURTAIN

8511

переход к группе запчастей

8511

переход к группе запчастей

85911

RELAY, AUTO CURTAIN CONTROL, RH

85922

RELAY, AUTO CURTAIN CONTROL, LH

85983

RELAY, POWER SEAT RECLINING

86995A

PLATE, POWER CURTAIN CAUTION

9015950025

Крепеж

9015960025

Крепеж

9016440002

Крепеж

9018906015

Крепеж

9046106303

Крепеж

9046710012

Крепеж

9046710012

Крепеж

9165640616

Крепеж

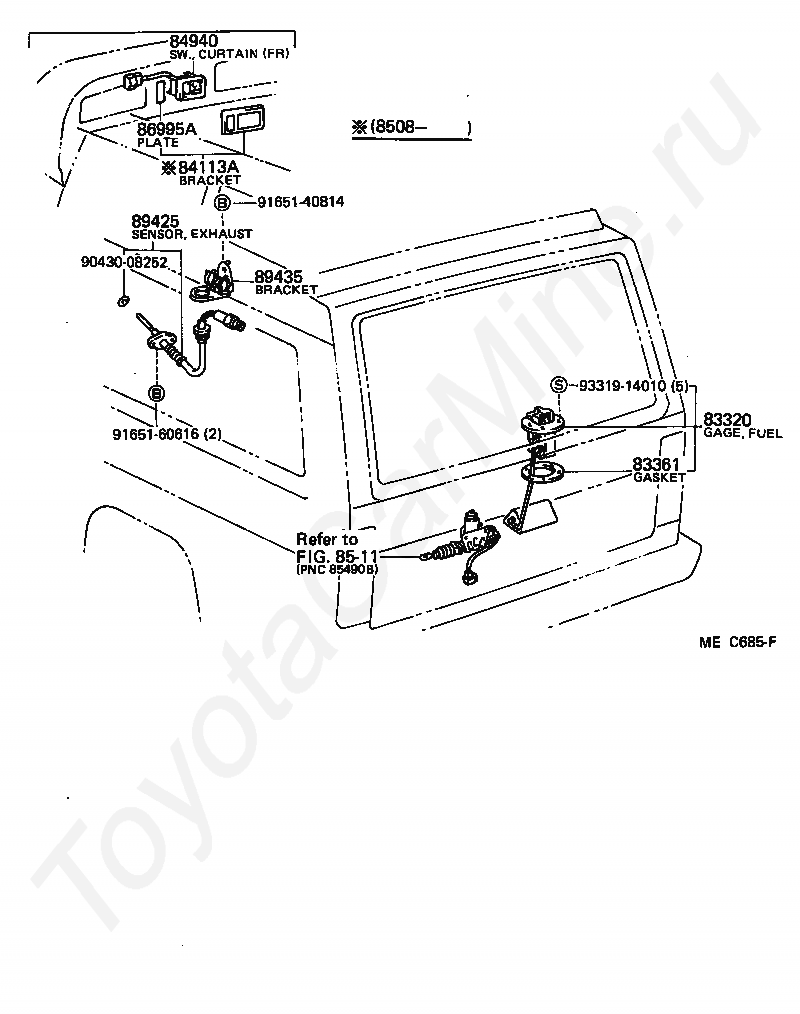

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

84113A

BRACKET, SWITCH, NO.1

84940

SWITCH ASSY, CURTAIN

8511

переход к группе запчастей

86995A

PLATE, POWER CURTAIN CAUTION

89425

SENSOR, EXHAUST GAS TEMPERATURE

89435

BRACKET, CONNECTOR COVER

9043008252

Крепеж

9165140814

Крепеж

9165160616

Крепеж

9331914010

Крепеж
