Каталог

Япония

Модель

HIACE VAN,WAGON

VIN

Дата

1984/01

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

DELUX SPECIFICATION

Фрейм

LH61V

КПП

механика МКПП, 5 скоростей, на руле

Опции

STANDARD ROOF 5-дверный вэн SIDE GLASS VAN 6-местный ST DSL

Молдинги TOYOTA HIACE VAN,WAGON

Код

Описание

5854

переход к группе запчастей

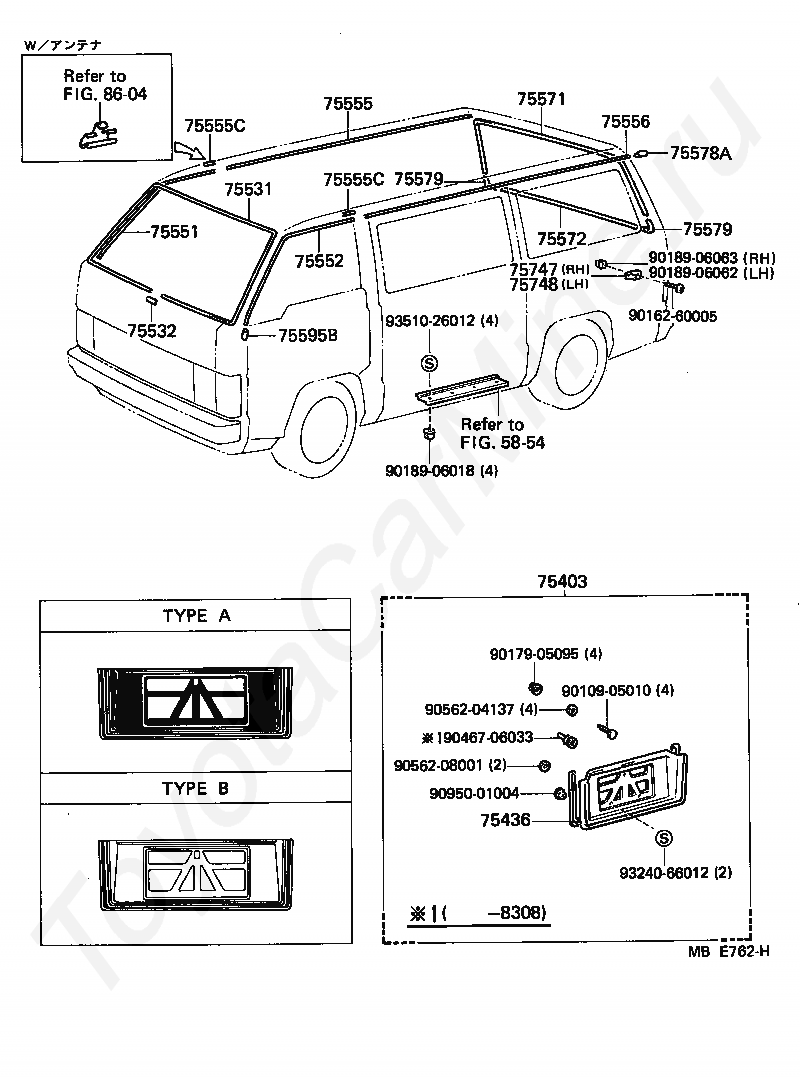

75403

ORNAMENT SUB-ASSY, BACK DOOR

75436

PROTECTOR, BACK DOOR ORNAMENT

75531

MOULDING, WINDSHIELD, OUTER UPPER

75532

MOULDING, WINDSHIELD, LOWER

75551

MOULDING, ROOF DRIP SIDE FINISH, RH

75552

MOULDING, ROOF DRIP SIDE FINISH, LH

75555

MOULDING, ROOF DRIP SIDE FINISH, REAR RH

75555C

CONNECTOR, ROOF DRIP MOULDING

75555C

CONNECTOR, ROOF DRIP MOULDING

75556

MOULDING, ROOF DRIP SIDE FINISH, REAR LH

75571

MOULDING, BACK WINDOW, OUTSIDE UPPER

75572

MOULDING, BACK WINDOW, LOWER

75578A

COVER, ROOF DRIP MOULDING END, REAR

75579

COVER, BACK WINDOW OUTSIDE MOULDING JOINT

75579

COVER, BACK WINDOW OUTSIDE MOULDING JOINT

75595B

COVER, ROOF DRIP SIDE MOULDING END, FRONT

75747

MOULDING, SLIDE DOOR END, RH

75748

MOULDING, SLIDE DOOR END, LH

8604

переход к группе запчастей

9010905010

Крепеж

9016260005

Крепеж

9017905095

Крепеж

9018906018

Крепеж

9018906062

Крепеж

9018906063

Крепеж

9046706033

Крепеж

9056204137

Крепеж

9056208001

Крепеж

9095001004

Крепеж

9324066012

Крепеж

9351026012

Крепеж

Код

Описание

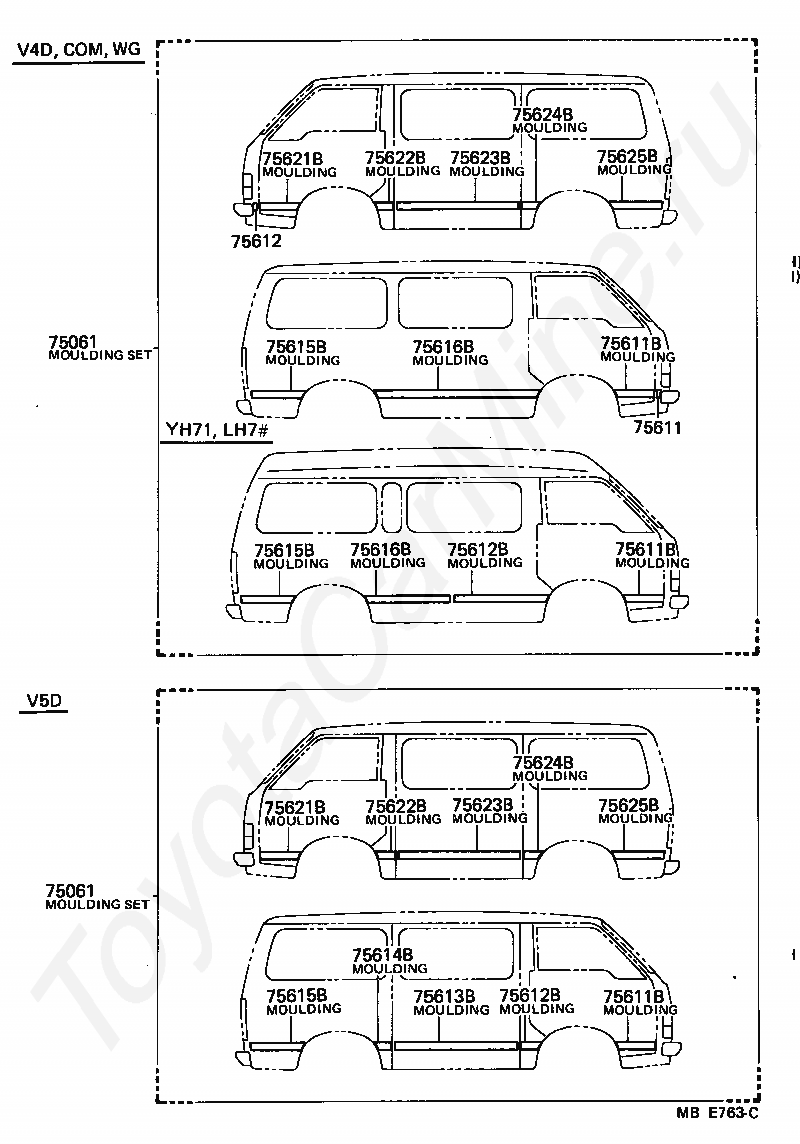

75061

MOULDING SET, OUTSIDE

75061

MOULDING SET, OUTSIDE

75611

MOULDING, SIDE PANEL FRONT, RH

75611B

MOULDING, SIDE PANEL, NO.1 RH

75611B

MOULDING, SIDE PANEL, NO.1 RH

75611B

MOULDING, SIDE PANEL, NO.1 RH

75612

MOULDING, SIDE PANEL FRONT, LH

75612B

MOULDING, SIDE PANEL, NO.2 RH

75612B

MOULDING, SIDE PANEL, NO.2 RH

75613B

MOULDING, SIDE PANEL, NO.3 RH

75614B

MOULDING, SIDE PANEL, NO.4 RH

75615B

MOULDING, SIDE PANEL, NO.5 RH

75615B

MOULDING, SIDE PANEL, NO.5 RH

75615B

MOULDING, SIDE PANEL, NO.5 RH

75616B

MOULDING, SIDE PANEL, NO.6 RH

75616B

MOULDING, SIDE PANEL, NO.6 RH

75621B

MOULDING, SIDE PANEL, NO.1 LH

75621B

MOULDING, SIDE PANEL, NO.1 LH

75622B

MOULDING, SIDE PANEL, NO.2 LH

75622B

MOULDING, SIDE PANEL, NO.2 LH

75623B

MOULDING, SIDE PANEL, NO.3 LH

75623B

MOULDING, SIDE PANEL, NO.3 LH

75624B

MOULDING, SIDE PANEL, NO.4 LH

75624B

MOULDING, SIDE PANEL, NO.4 LH

75625B

MOULDING, SIDE PANEL, NO.5 LH

75625B

MOULDING, SIDE PANEL, NO.5 LH
