Каталог

Япония

Модель

HIACE VAN,WAGON

VIN

Дата

1984/01

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

DELUX SPECIFICATION

Фрейм

LH61V

КПП

механика МКПП, 5 скоростей, на руле

Опции

STANDARD ROOF 5-дверный вэн SIDE GLASS VAN 6-местный ST DSL

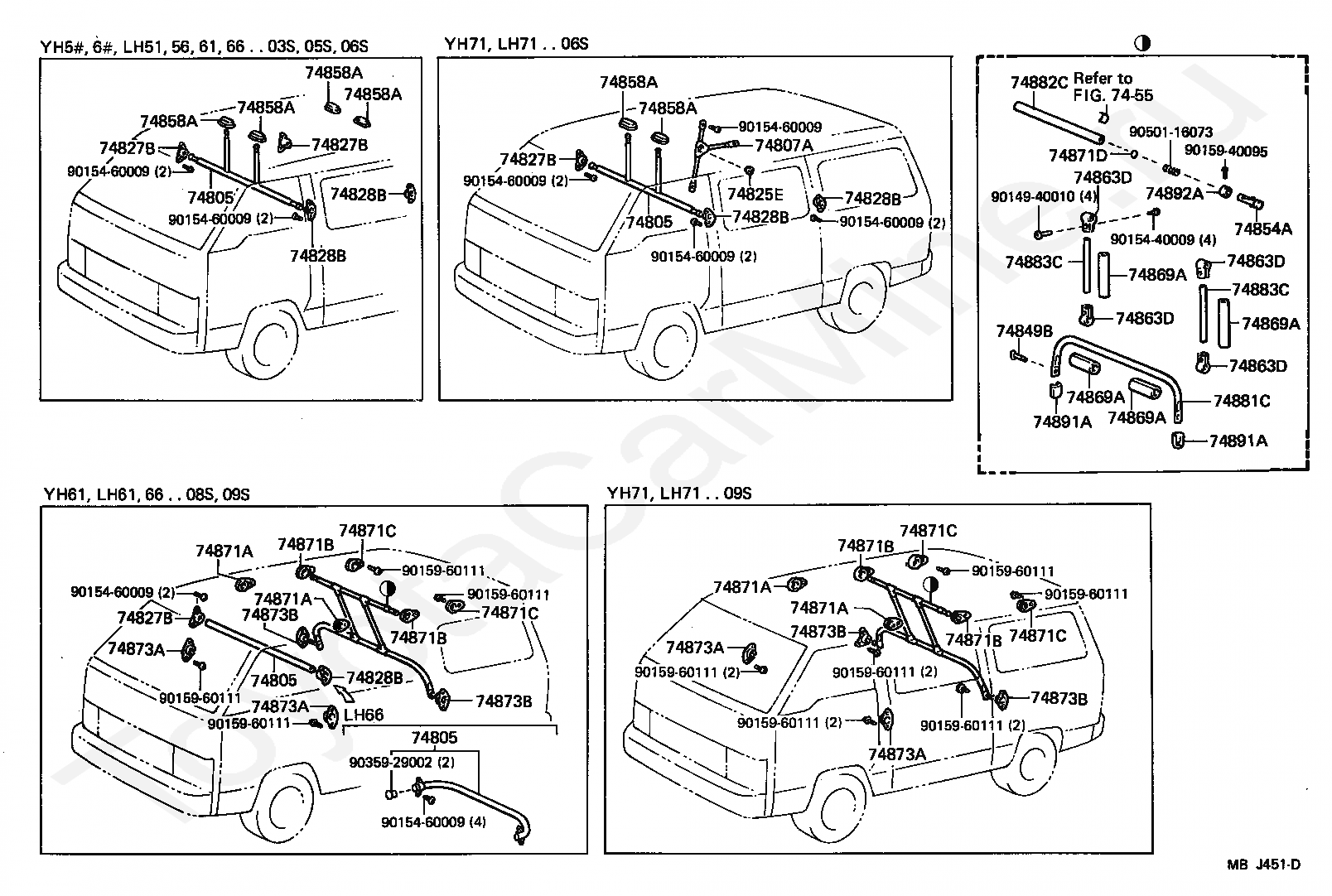

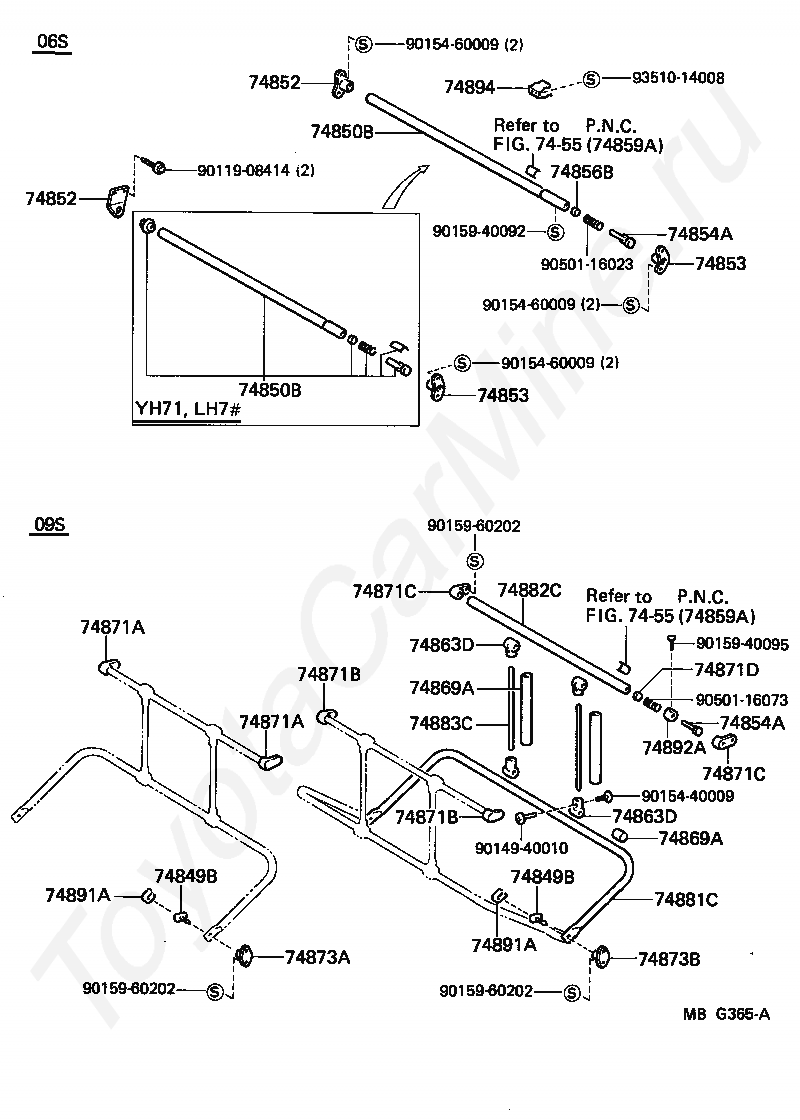

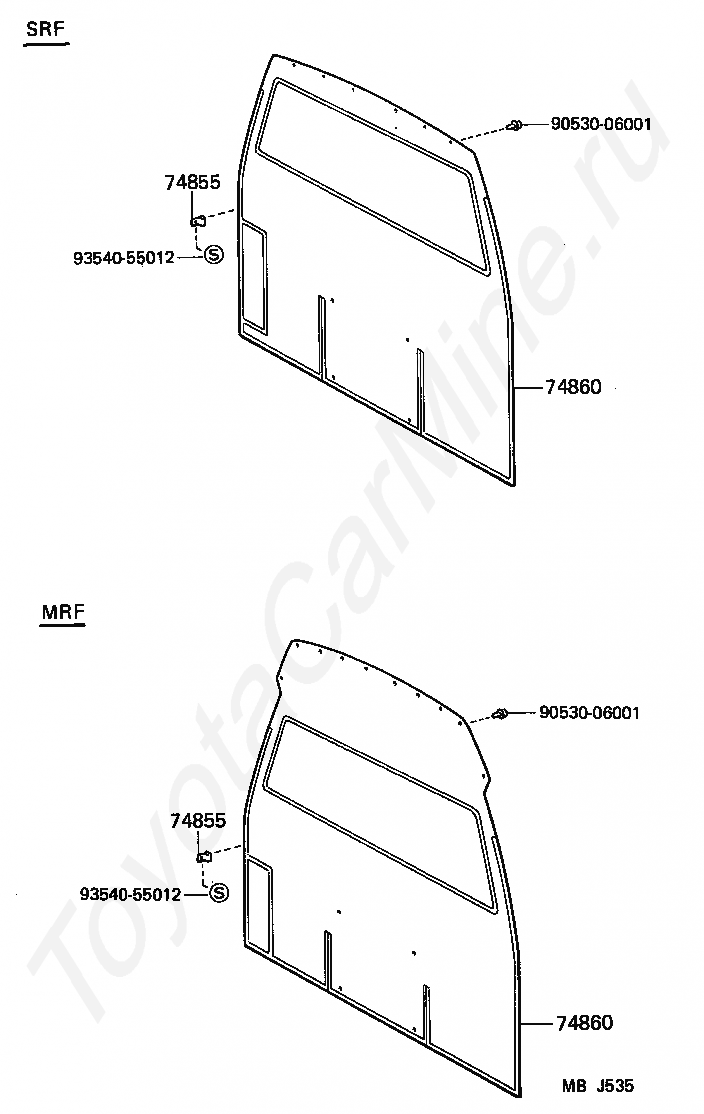

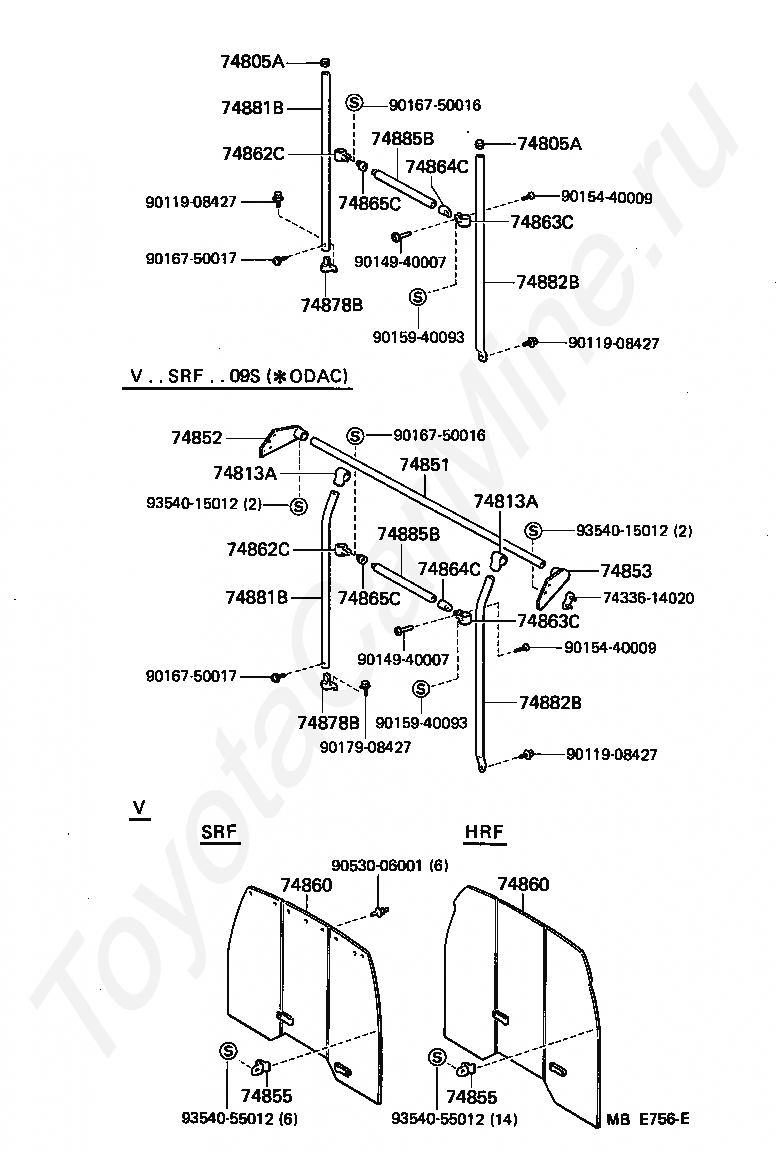

SEPARATOR & SEPARATOR CURTAIN TOYOTA HIACE VAN,WAGON

Код

Описание

7433614020

Крепеж

74805A

GROMMET (FOR SEPARATOR)

74805A

GROMMET (FOR SEPARATOR)

74813A

BRACKET, SEPARATOR

74813A

BRACKET, SEPARATOR

74851

BAR, SEPARATOR

74852

BRACKET, SEPARATOR, RH

74853

BRACKET, SEPARATOR, LH

74855

PLATE, SEPARATOR CURTAIN SET

74855

PLATE, SEPARATOR CURTAIN SET

74860

CURTAIN ASSY, SEPARATE

74860

CURTAIN ASSY, SEPARATE

74862C

BRACKET, SEPARATOR BAR, NO.2

74862C

BRACKET, SEPARATOR BAR, NO.2

74863C

BRACKET, SEPARATOR BAR, NO.3

74863C

BRACKET, SEPARATOR BAR, NO.3

74864C

BRACKET, SEPARATOR BAR, NO.4

74864C

BRACKET, SEPARATOR BAR, NO.4

74865C

BRACKET, SEPARATOR BAR, NO.5

74865C

BRACKET, SEPARATOR BAR, NO.5

74878B

BRACKET, SEPARATOR BAR, LOWER RH

74878B

BRACKET, SEPARATOR BAR, LOWER RH

74881B

BAR, SEPARATOR, NO.1

74881B

BAR, SEPARATOR, NO.1

74882B

BAR, SEPARATOR, NO.2

74882B

BAR, SEPARATOR, NO.2

74885B

BAR, SEPARATOR, NO.5

74885B

BAR, SEPARATOR, NO.5

9011908427

Крепеж

9011908427

Крепеж

9011908427

Крепеж

9014940007

Крепеж

9014940007

Крепеж

9015440009

Крепеж

9015440009

Крепеж

9015940093

Крепеж

9015940093

Крепеж

9016750016

Крепеж

9016750016

Крепеж

9016750017

Крепеж

9016750017

Крепеж

9017908427

Крепеж

9053006001

Крепеж

9354015012

Крепеж

9354015012

Крепеж

9354055012

Крепеж

9354055012

Крепеж

Код

Описание

7455

переход к группе запчастей

7455

переход к группе запчастей

74849B

PIN, SEPARATOR

74849B

PIN, SEPARATOR

74850B

SEPARATOR SUB-ASSY, REAR

74850B

SEPARATOR SUB-ASSY, REAR

74852

BRACKET, SEPARATOR, RH

74852

BRACKET, SEPARATOR, RH

74853

BRACKET, SEPARATOR, LH

74853

BRACKET, SEPARATOR, LH

74854A

STOP, SEPARATOR

74854A

STOP, SEPARATOR

74856B

PLATE, SPRING SET

74863D

BRACKET, SEPARATOR BAR REAR, NO.3

74863D

BRACKET, SEPARATOR BAR REAR, NO.3

74869A

PROTECTOR, SEPARATOR BAR

74869A

PROTECTOR, SEPARATOR BAR

74871A

BRACKET, SEPARATOR, UPPER, NO.1

74871A

BRACKET, SEPARATOR, UPPER, NO.1

74871B

BRACKET, SEPARATOR, UPPER, NO.2

74871B

BRACKET, SEPARATOR, UPPER, NO.2

74871C

BRACKET, SEPARATOR, UPPER, NO.3

74871C

BRACKET, SEPARATOR, UPPER, NO.3

74871D

PLATE, SPRING SET

74873A

BRACKET, SEPARATOR, LOWER, NO.1

74873B

BRACKET, SEPARATOR, LOWER, NO.2

74881C

BAR, SEPARATOR, REAR NO.1

74882C

BAR, SEPARATOR, REAR NO.2

74883C

BAR, SEPARATOR, NO.3

74891A

COVER, SEPARATOR BAR, NO.1

74891A

COVER, SEPARATOR BAR, NO.1

74892A

COVER, SEPARATOR BAR, NO.2

74894

SPRING, REAR SEPARATOR BAR STOPPER

9011908414

Крепеж

9014940010

Крепеж

9015440009

Крепеж

9015460009

Крепеж

9015460009

Крепеж

9015460009

Крепеж

9015940092

Крепеж

9015940095

Крепеж

9015960202

Крепеж

9015960202

Крепеж

9015960202

Крепеж

9050116023

Крепеж

9050116073

Крепеж

9351014008

Крепеж

Код

Описание

7455

переход к группе запчастей

74805

SEPARATOR SUB-ASSY

74805

SEPARATOR SUB-ASSY

74805

SEPARATOR SUB-ASSY

74805

SEPARATOR SUB-ASSY

74807A

BAR SUB-ASSY, REAR SEPARATOR

74825E

BRACKET, SEPARATOR, RH

74827B

BRACKET, SEPARATOR BAR, RH

74827B

BRACKET, SEPARATOR BAR, RH

74827B

BRACKET, SEPARATOR BAR, RH

74827B

BRACKET, SEPARATOR BAR, RH

74828B

BRACKET, SEPARATOR BAR, LH

74828B

BRACKET, SEPARATOR BAR, LH

74828B

BRACKET, SEPARATOR BAR, LH

74828B

BRACKET, SEPARATOR BAR, LH

74828B

BRACKET, SEPARATOR BAR, LH

74849B

PIN, SEPARATOR

74854A

STOP, SEPARATOR

74858A

BRACKET, SEPARATOR BAR, UPPER

74858A

BRACKET, SEPARATOR BAR, UPPER

74858A

BRACKET, SEPARATOR BAR, UPPER

74858A

BRACKET, SEPARATOR BAR, UPPER

74858A

BRACKET, SEPARATOR BAR, UPPER

74858A

BRACKET, SEPARATOR BAR, UPPER

74863D

BRACKET, SEPARATOR BAR REAR, NO.3

74863D

BRACKET, SEPARATOR BAR REAR, NO.3

74863D

BRACKET, SEPARATOR BAR REAR, NO.3

74863D

BRACKET, SEPARATOR BAR REAR, NO.3

74869A

PROTECTOR, SEPARATOR BAR

74869A

PROTECTOR, SEPARATOR BAR

74869A

PROTECTOR, SEPARATOR BAR

74869A

PROTECTOR, SEPARATOR BAR

74871A

BRACKET, SEPARATOR, UPPER, NO.1

74871A

BRACKET, SEPARATOR, UPPER, NO.1

74871A

BRACKET, SEPARATOR, UPPER, NO.1

74871A

BRACKET, SEPARATOR, UPPER, NO.1

74871B

BRACKET, SEPARATOR, UPPER, NO.2

74871B

BRACKET, SEPARATOR, UPPER, NO.2

74871B

BRACKET, SEPARATOR, UPPER, NO.2

74871B

BRACKET, SEPARATOR, UPPER, NO.2

74871C

BRACKET, SEPARATOR, UPPER, NO.3

74871C

BRACKET, SEPARATOR, UPPER, NO.3

74871C

BRACKET, SEPARATOR, UPPER, NO.3

74871C

BRACKET, SEPARATOR, UPPER, NO.3

74871D

PLATE, SPRING SET

74873A

BRACKET, SEPARATOR, LOWER, NO.1

74873A

BRACKET, SEPARATOR, LOWER, NO.1

74873A

BRACKET, SEPARATOR, LOWER, NO.1

74873A

BRACKET, SEPARATOR, LOWER, NO.1

74873B

BRACKET, SEPARATOR, LOWER, NO.2

74873B

BRACKET, SEPARATOR, LOWER, NO.2

74873B

BRACKET, SEPARATOR, LOWER, NO.2

74873B

BRACKET, SEPARATOR, LOWER, NO.2

74881C

BAR, SEPARATOR, REAR NO.1

74882C

BAR, SEPARATOR, REAR NO.2

74883C

BAR, SEPARATOR, NO.3

74883C

BAR, SEPARATOR, NO.3

74891A

COVER, SEPARATOR BAR, NO.1

74891A

COVER, SEPARATOR BAR, NO.1

74892A

COVER, SEPARATOR BAR, NO.2

9014940010

Крепеж

9015440009

Крепеж

9015460009

Крепеж

9015460009

Крепеж

9015460009

Крепеж

9015460009

Крепеж

9015460009

Крепеж

9015460009

Крепеж

9015460009

Крепеж

9015460009

Крепеж

9015940095

Крепеж

9015960111

Крепеж

9015960111

Крепеж

9015960111

Крепеж

9015960111

Крепеж

9015960111

Крепеж

9015960111

Крепеж

9015960111

Крепеж

9015960111

Крепеж

9015960111

Крепеж

9015960111

Крепеж

9035929002

Крепеж

9050116073

Крепеж

Код

Описание

74855

PLATE, SEPARATOR CURTAIN SET

74855

PLATE, SEPARATOR CURTAIN SET

74860

CURTAIN ASSY, SEPARATE

74860

CURTAIN ASSY, SEPARATE

9053006001

Крепеж

9053006001

Крепеж

9354055012

Крепеж

9354055012

Крепеж

SEPARATOR & SEPARATOR CURTAIN TOYOTA HIACE VAN,WAGON
