Каталог

Япония

Модель

HIACE VAN,WAGON

VIN

Дата

1984/01

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

DELUX SPECIFICATION

Фрейм

LH61V

КПП

механика МКПП, 5 скоростей, на руле

Опции

STANDARD ROOF 5-дверный вэн SIDE GLASS VAN 6-местный ST DSL

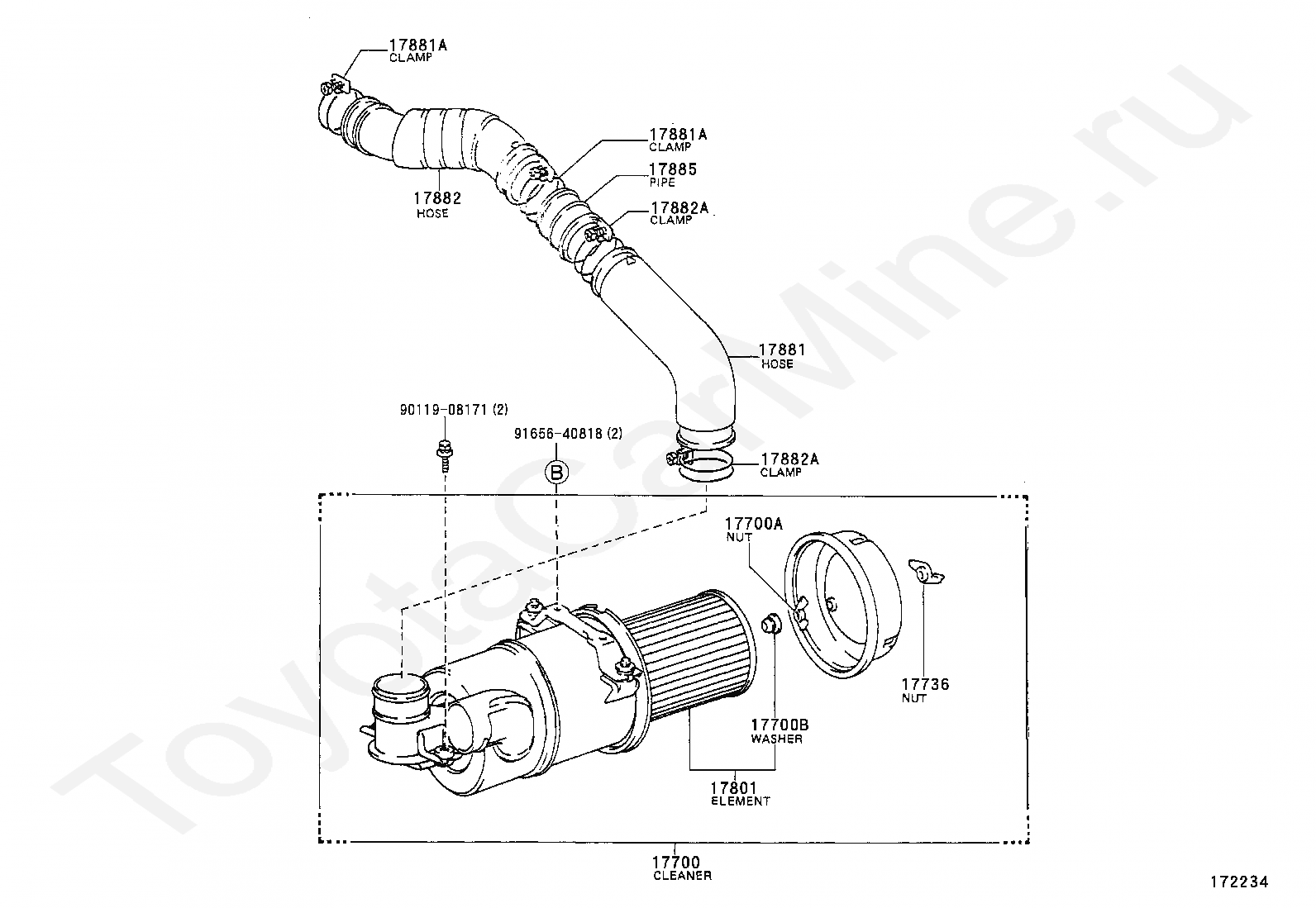

Воздушный фильтр TOYOTA HIACE VAN,WAGON

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17736

NUT, AIR CLEANER CASE

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17885

PIPE, AIR CLEANER

9011908171

Крепеж

9165640818

Крепеж

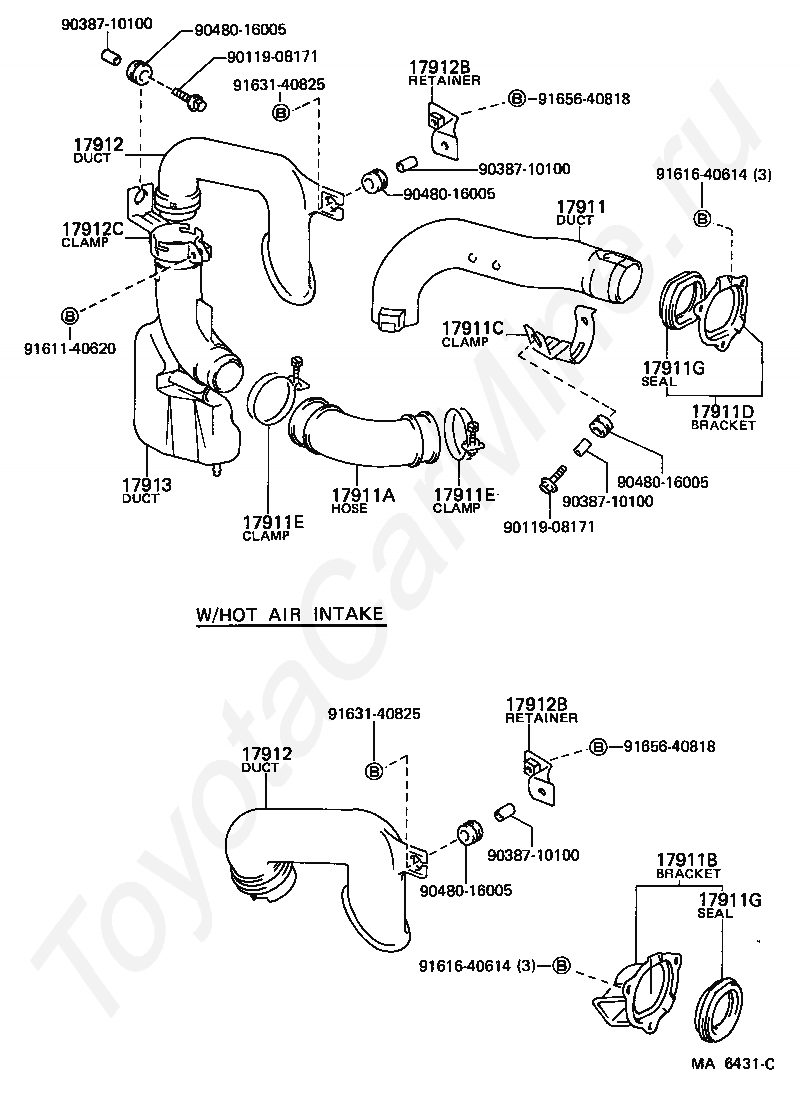

Код

Описание

17911

DUCT, COOL AIR INTAKE, NO.1

17911A

HOSE, COOL AIR INTAKE, NO.1

17911B

BRACKET, COOL AIR INTAKE DUCT, NO.1

17911C

CLAMP, COOL AIR INTAKE DUCT, NO.1

17911D

BRACKET, COOL AIR INTAKE HOSE, NO.1

17911E

CLAMP, COOL AIR INTAKE HOSE, NO.1

17911E

CLAMP, COOL AIR INTAKE HOSE, NO.1

17911G

SEAL, COOL AIR INTAKE HOSE

17911G

SEAL, COOL AIR INTAKE HOSE

17912

DUCT, COOL AIR INTAKE, NO.2

17912

DUCT, COOL AIR INTAKE, NO.2

17912B

BRACKET, COOL AIR INTAKE DUCT, NO.2

17912B

BRACKET, COOL AIR INTAKE DUCT, NO.2

17912C

CLAMP, COOL AIR INTAKE DUCT, NO.2

17913

DUCT, COOL AIR INTAKE, NO.3

9011908171

Крепеж

9011908171

Крепеж

9038710100

Крепеж

9038710100

Крепеж

9038710100

Крепеж

9038710100

Крепеж

9048016005

Крепеж

9048016005

Крепеж

9048016005

Крепеж

9048016005

Крепеж

9161140620

Крепеж

9161640614

Крепеж

9161640614

Крепеж

9163140825

Крепеж

9163140825

Крепеж

9165640818

Крепеж

9165640818

Крепеж
